Vollrath  |  SKU: 3647580HD

Vollrath 3647580HD Steam Tables & Food Wells

$5,927.90
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

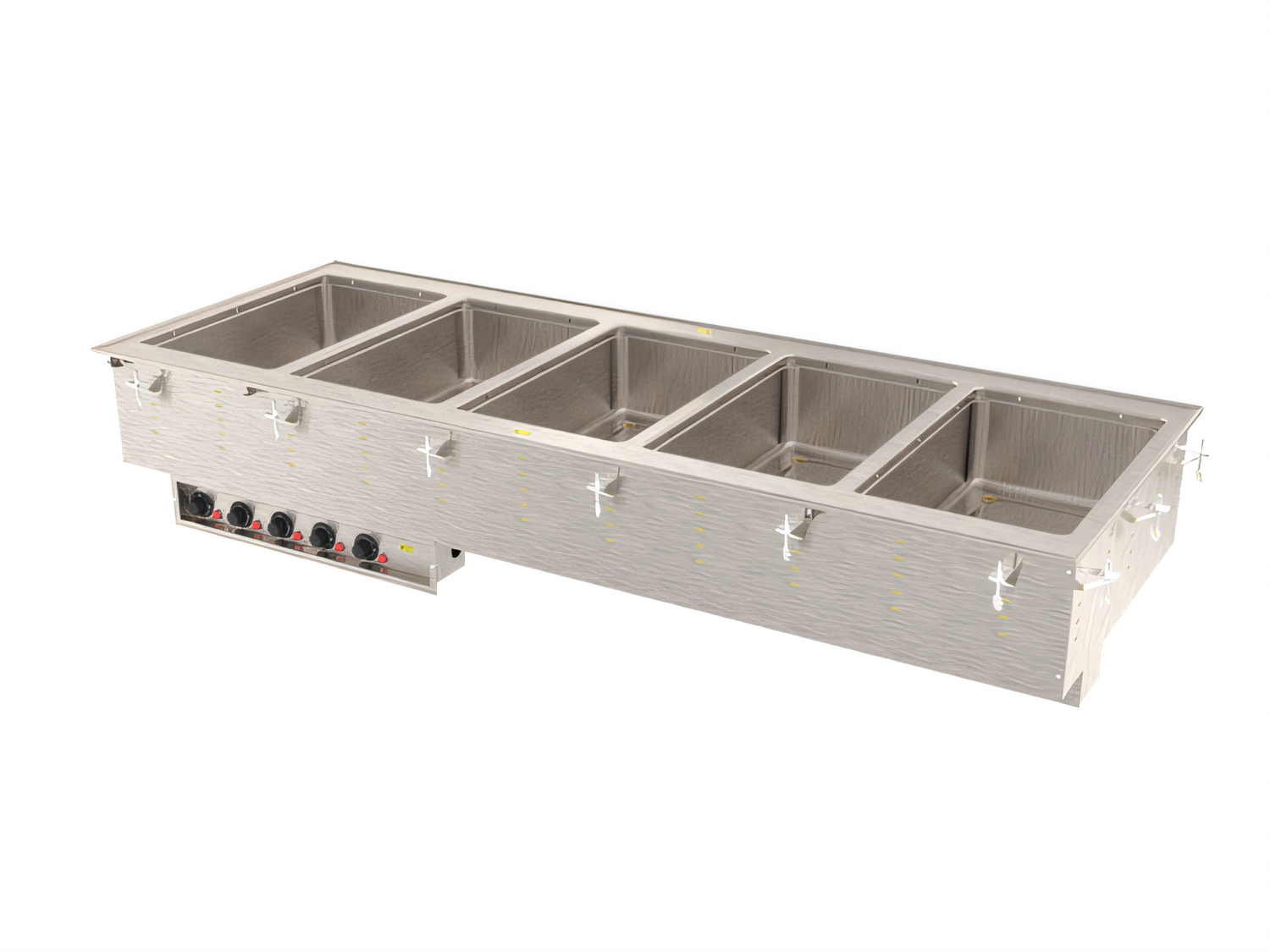

Vollrath 5-Well Marine-Grade Auto-Fill Drop-In Hot Food Well – 240 V

Five individually-controlled wells for high-volume, wet-heat holding

Engineered for demanding commercial kitchens, this Vollrath drop-in hot well keeps five full-size pans of food at safe serving temperatures while saving counter space and installation time. Marine-grade 316 stainless wells, built-in auto-fill, and individual thermostatic controls deliver reliable, worry-free performance shift after shift.

Key Features

  • Five 12 in × 20 in drawn wells, 20-gauge 316 marine-grade stainless steel for maximum corrosion resistance
  • Wet operation only with automatic water level sensing & auto-fill inlet – consistent heat distribution, no scorching
  • Individual thermostatic controls with power indicator lights on a remote stainless panel (4 ft tether) for flexible mounting
  • 625 W per well / 3,125 W total – energy-efficient holding with quick recovery
  • 1 in copper manifold drain with individual ball valves plus master shut-off for fast, mess-free cleanup
  • Drip-free flange and full perimeter insulation (including between wells) protect counters and conserve heat
  • 18-gauge stainless top & exterior housing – durable, easy-clean construction
  • Ships with factory-installed 6 ft cord & NEMA 6-20P plug – no hard-wiring required
  • Includes mounting/positioning clips for counters up to 3 in thick; zero-clearance design simplifies drop-in installation
  • NSF-4 listed (wet operation), cULus certified, and proudly Made in the USA

Specifications

Wells / Size 5 wells – each fits one full-size steam pan (12 in × 20 in × up to 6 in deep)
Operation Wet heat only | Auto-fill water connection | Thermostatic controls
Total Wattage 3,125 W (625 W per well)
Electrical 240 V / 60 Hz / 1-phase, 13 A, factory cord & NEMA 6-20P
Overall Dimensions 68 in W × 26 in D × 21 1⁄2 in H (172.7 × 66 × 54.6 cm)
Counter Cut-out 67 1⁄4 in W × 25 1⁄4 in D (170.8 × 64.1 cm) – 7⁄8 in corner radius required
Drain 1 in copper manifold with individual 1⁄2 in MPT well valves & manifold shut-off
Construction 18-ga stainless top | 20-ga 316 stainless wells | Fully insulated
Agency Listings NSF-4 (wet) | cULus
Country of Origin USA
Warranty 2-year parts & labor (see VollrathFoodservice.com for full policy)

Ideal Applications

  • Hospital & school cafeterias
  • Buffet lines & catering operations
  • Hotels, casinos, and cruise ships where salt air demands marine-grade durability
Important: This drop-in meets NSF performance standards only when operated with water in the wells. Orders for modular drop-ins cannot be cancelled or returned.

Need help planning your counter cut-out or plumbing connections? Our product specialists are ready to assist.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

68.0in

Depth

26.0in

Shipping Weight

202.0lbs

Pan Capacity

(5) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3125 watts, 240v/60/1-ph, 13.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
