Vollrath 3647580 Steam Tables & Food Wells

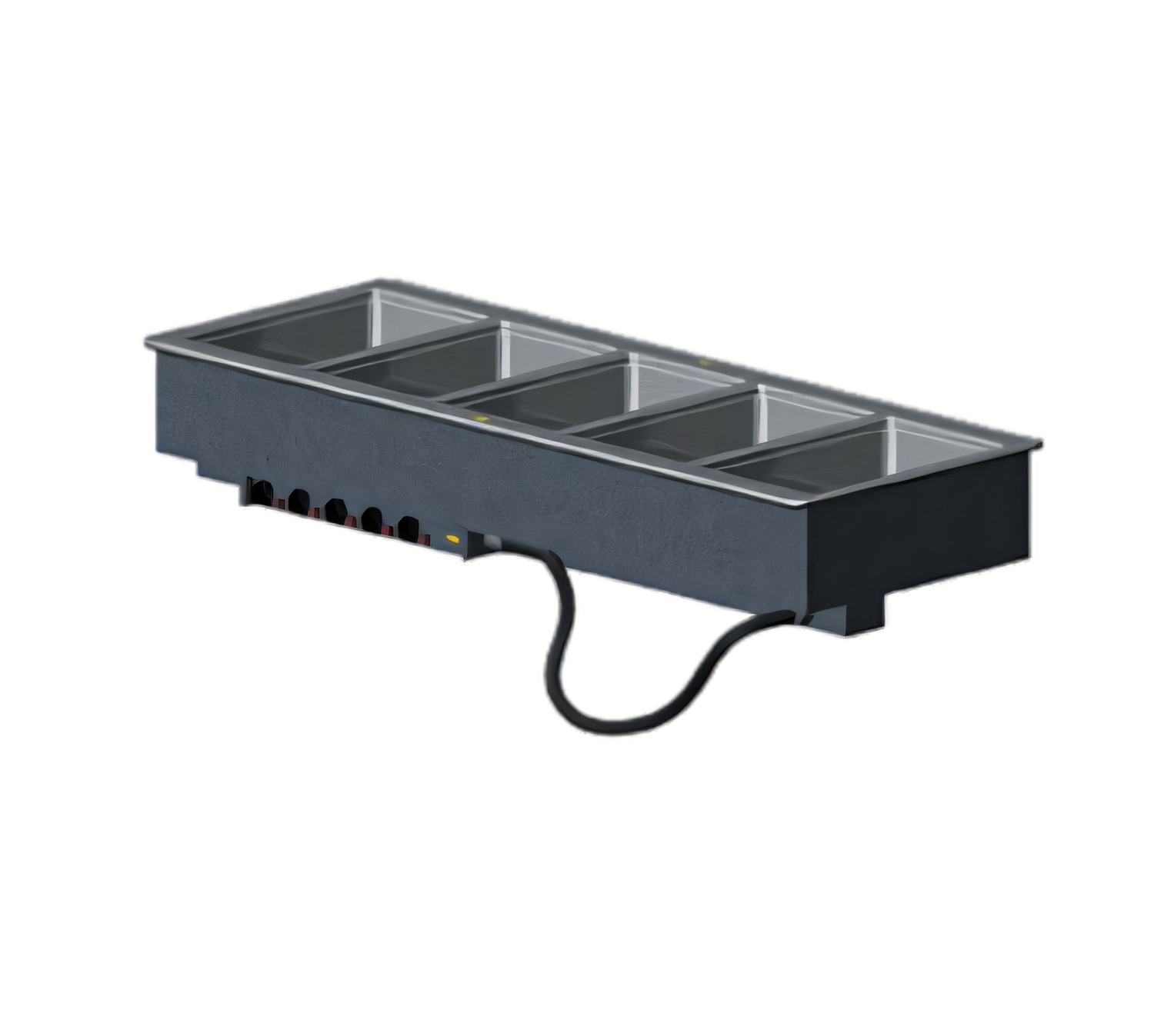

Vollrath Five-Well Hot Drop-In Unit – Auto-Fill & Manifold Drain

Designed for high-volume buffet lines, cafeterias and serving cafés, this Vollrath drop-in keeps five full-size food pans consistently hot while streamlining water management with built-in auto-fill and a 1 inch manifold drain. A plug-and-play 6 ft cord means no hard-wiring—just set, fill and serve.

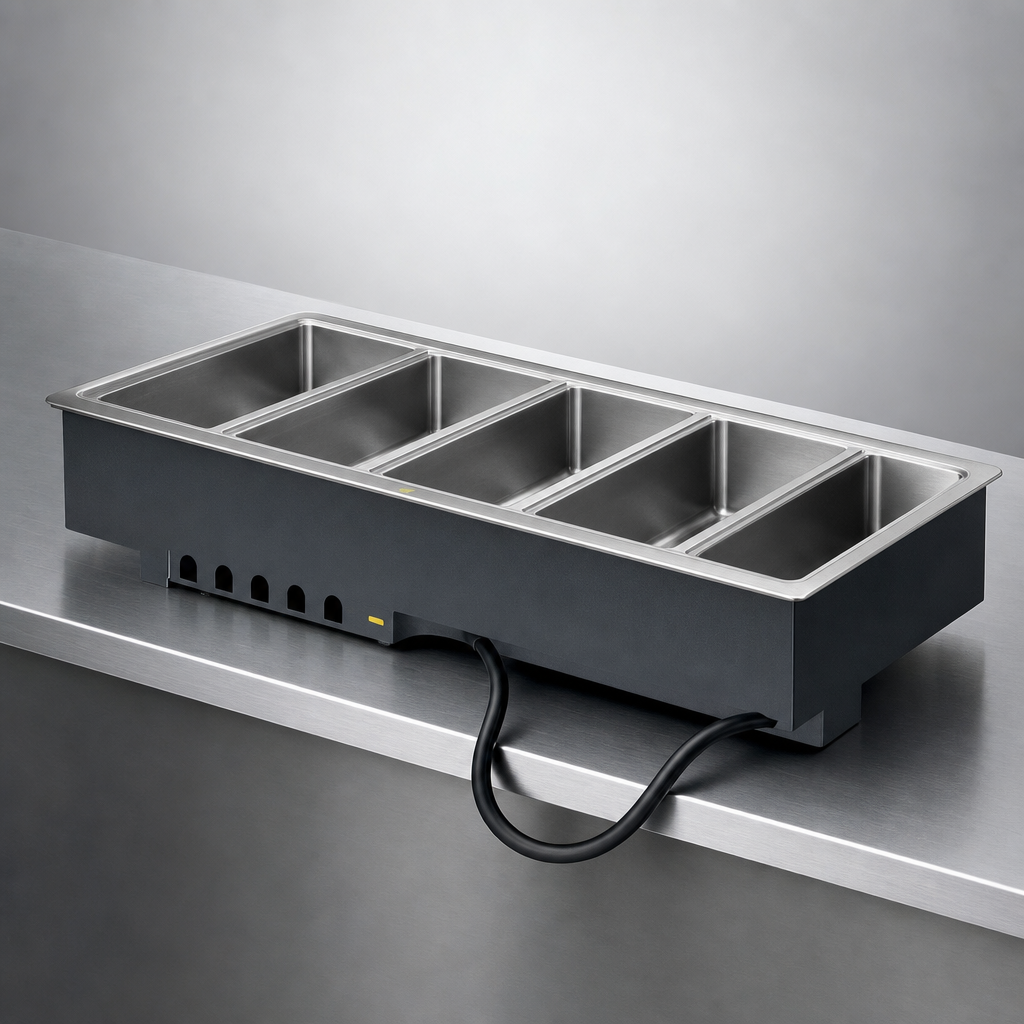

• Five individually insulated 12 × 20 inch wells (20 ga 300-series stainless) for precise multi-menu holding.
• Wet-operation only—integrated auto-fill keeps water at the optimal level for consistent heat transfer.
• Independent thermostatic controls and power lights for each well, mounted on a stainless panel with a 4 ft tether for flexible placement.
• Drip-free stainless flange provides a clean, finished look on any counter surface.
• 1 inch copper manifold drain with individual ball-valve shut-offs plus a master shut-off for fast end-of-day cleanup.
• Fully insulated on all sides—including between wells—to reduce energy loss and keep surrounding counters cool.
• Accepts pans up to 6 inches deep; adapter bars recommended for fractional pans.
• Zero-clearance installation and included mounting clips for counters up to 3 inches thick.
• NSF Listed and cULus certified for commercial kitchens.

• Five-well drop-in with pre-installed auto-fill assembly
• Stainless control panel  (4 ft tether)
• Mounting / positioning clips
• Factory-installed 6 ft power cord & NEMA 6-20P plug

For full warranty details please visit vollrathfoodservice.com.
