Vollrath 3647570HD Steam Tables & Food Wells
Description

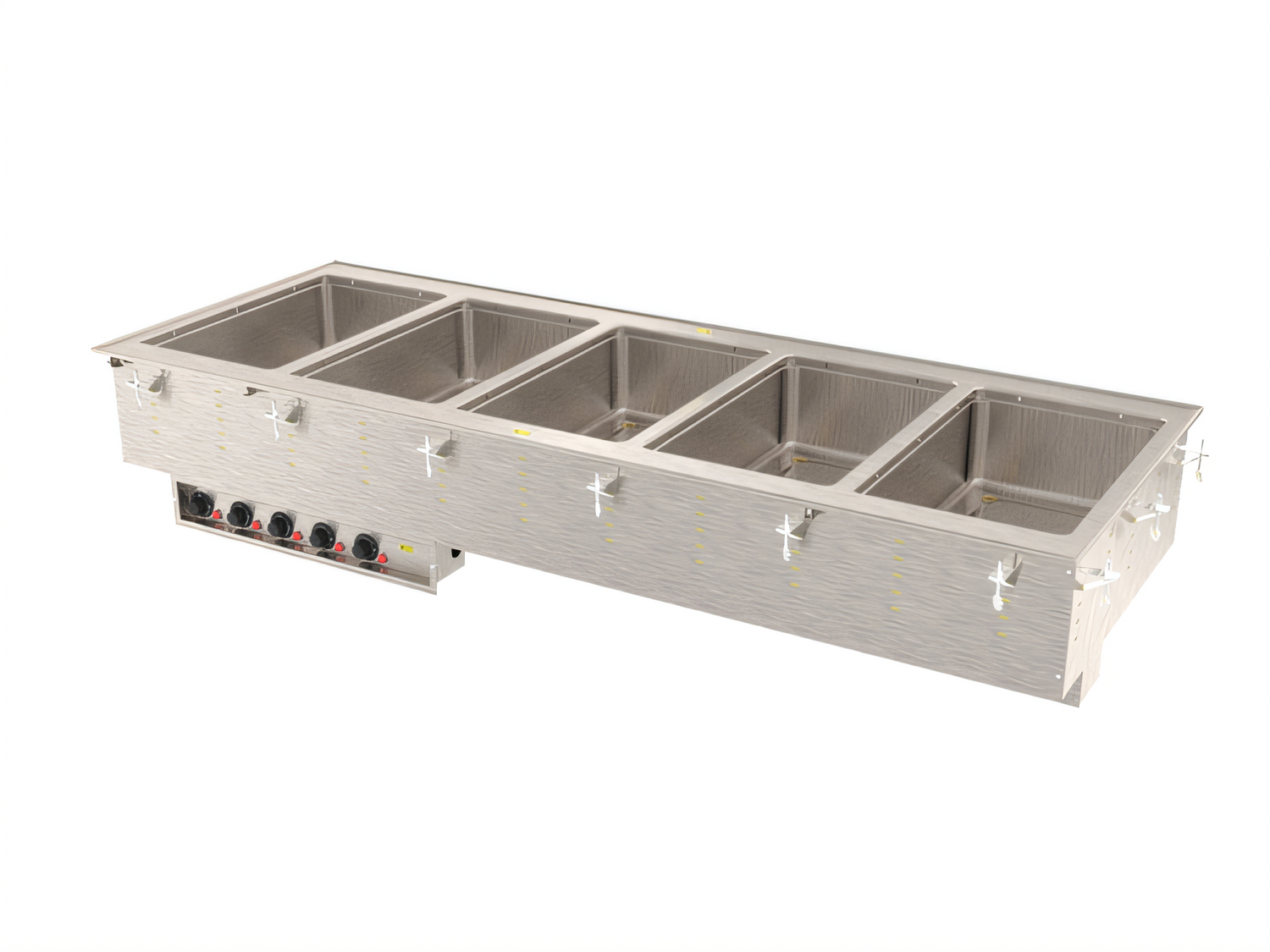

Vollrath HD Five-Well Modular Hot Drop-In
Marine-Grade 316 Stainless Steel | 240 V, 1-Ph | 3125 WBuilt for high-volume buffet lines, cafeterias and back-of-house steam tables, this heavy-duty drop-in keeps five different menu items hot, fresh and food-safe—all while resisting the harshest kitchen environments. The marine-grade 316 stainless wells shrug off salt and acidic ingredients, the thermostatic controls let you dial in exact holding temps, and the cord-and-plug design eliminates hard-wiring hassles.
Key Features

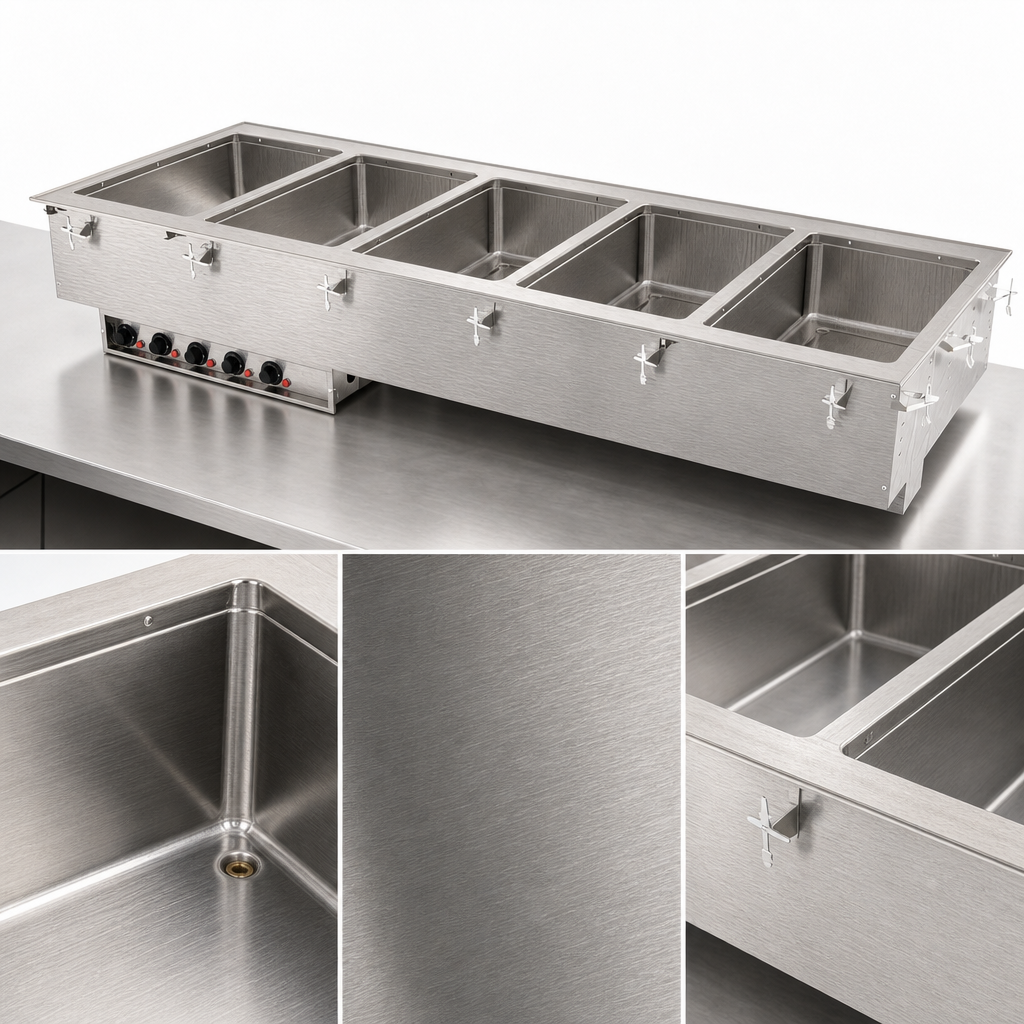

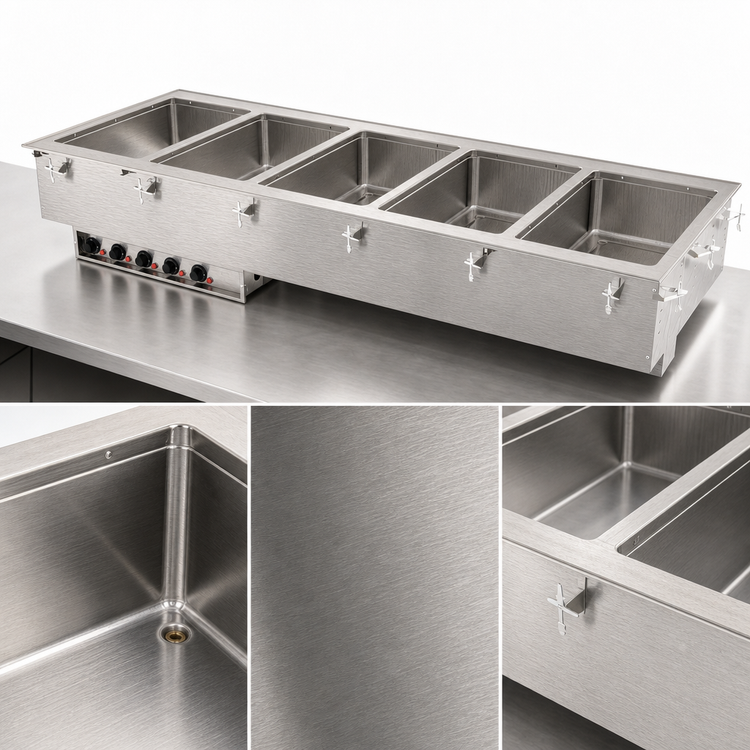

- (5) individual 12 × 20 in. wells formed from 20 ga SAE Type 316 stainless steel for superior corrosion resistance.
- Wet-operation design—fully insulated on every side (and between wells) for even heat distribution.
- Independent thermostatic controls with power indicator lights on a 4 ft (121.9 cm) tethered panel.
- 1 in. copper manifold drain with master shut-off plus ½ in. ball valve on each well for fast, consolidated draining.
- Drip-free perimeter flange and included gasket protect surrounding countertops.
- 18 ga stainless top deck and stainless exterior housing stand up to daily commercial abuse.
- Ships with mounting clips—zero-clearance installation on counters up to 3 in. (7.6 cm) thick.
- 6 ft (1.8 m) cord with NEMA 6-20P plug; no electrician required.
- NSF 4 & cULus listed; proudly made in the USA.
Performance & Capacity
| Total heat output | 3125 W (625 W per well) |
|---|---|
| Operating mode | Wet only – water required for NSF compliance |
| Control type | 5 independent thermostatic knobs with indicator lights |
| Pan capacity | Full-size or fractional pans up to 6 in. (15.2 cm) deep Adapter bars recommended for fractional pans |
Installation Details
| Overall dimensions (W × D × H) | 68 × 26 × 21-1/2 in. (172.7 × 66 × 54.6 cm) |
|---|---|
| Counter cut-out | 67-1/4 × 25-1/4 in. (170.8 × 64.1 cm) with 7/8 in. (2.2 cm) corner radius |
| Electrical | 240 V, 60 Hz, 1 Ph, 13 A Factory-installed cord & NEMA 6-20P plug |
| Drain connection | 1 in. copper manifold outlet plus individual ½ in. MPT drains |
| Recommended clearance | Zero-clearance; indoor use only |
Optional Accessories
- Sheet-pan adapter (Item 19186) for two 18 × 26 in. pans.
- Auto-fill kit (sold separately) for hands-free water maintenance.
Backed by Vollrath’s two-year limited warranty. Full terms available at vollrathfoodservice.com.
