Vollrath 3647570 Steam Tables & Food Wells
Description

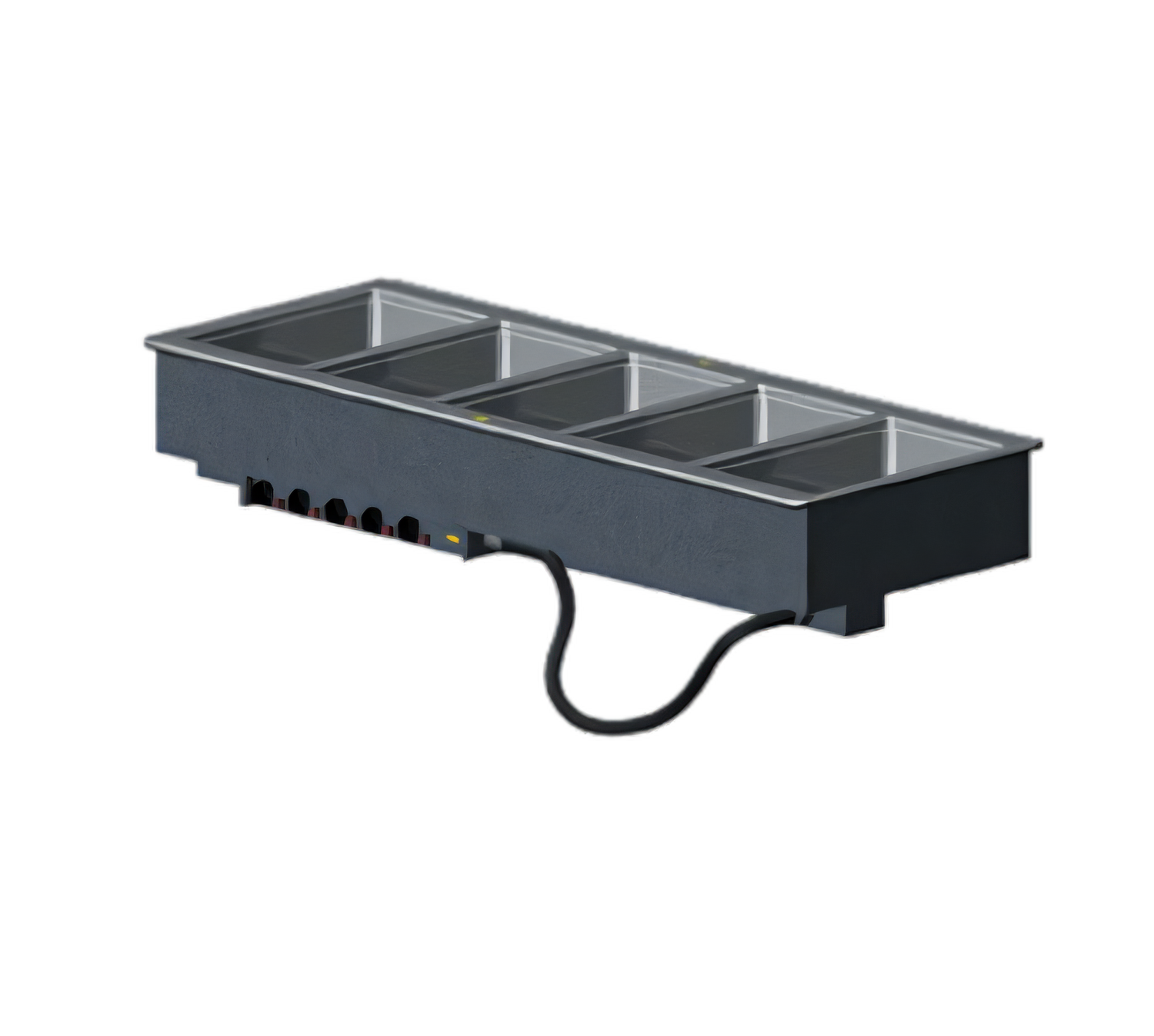

Vollrath 5-Well Drop-In Hot Food Well
Model 3647510 · Thermostatic · 240 V / 1-PhaseBuilt for busy serving lines, this Made-in-USA module keeps five full-size pans of food at safe, appetizing temperatures without the need for hard-wiring. Simply drop it in, fill the wells with water, plug it into a NEMA 6-20R receptacle, and start serving.
Key Features & Benefits

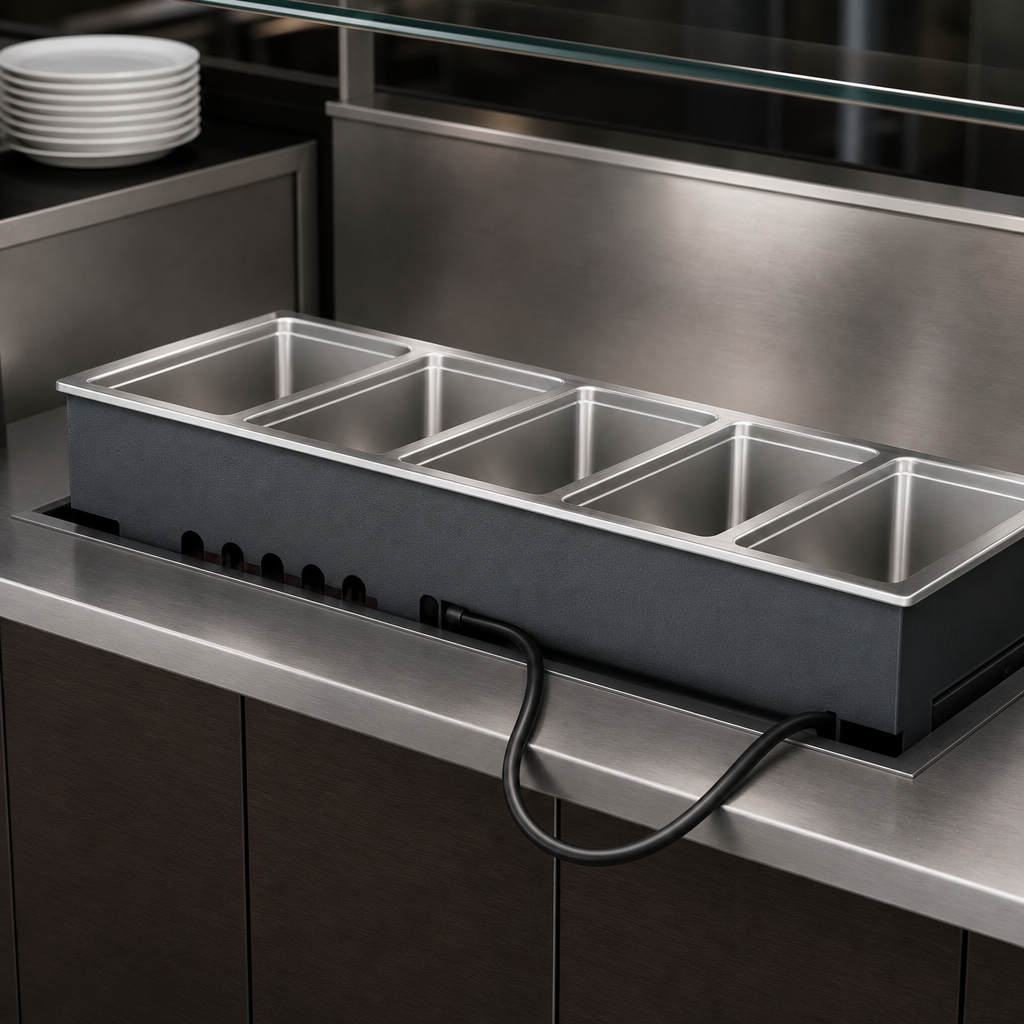

- Five individually insulated 12" × 20" stainless-steel wells (20 ga) – 625 W each, 6" pan depth capacity.
- Wet-operation only design delivers even heat that meets NSF 4 performance standards.
- Remote stainless-steel control panel (4 ft tether) with individual thermostatic dials and power lights for each well.
- 1" copper manifold drain with master shut-off plus ball valves on every well for mess-free draining.
- Drip-free 18 ga stainless top flange; mounting clips included for counters up to 3" thick – zero-clearance installation.
- 18 ga galvanized exterior housing stands up to daily commercial use.
- 6' factory-installed cord with NEMA 6-20P plug – no electrician required.
- NSF listed, cULus listed, and proudly Made in the USA.
Technical Specifications
| Number of wells | 5 (full-size, 12" × 20") |
|---|---|
| Operation mode | Wet heat only (water required) |
| Total wattage / amperage | 3,125 W · 13.0 A |
| Electrical | 240 V, 60 Hz, 1-phase, cord & NEMA 6-20P plug |
| Controls | 5 independent thermostatic knobs with indicator lights |
| Overall dimensions | 68" W × 26" D × 21 ½" H* |
| Counter cut-out | 67 ¼" W × 25 ¼" D · 7/8" corner radius |
| Drain | 1" copper manifold, individual well shut-offs & master shut-off |
| Construction | Wells: 20 ga 300-series SS · Top flange: 18 ga SS · Housing: 18 ga galvanized steel |
| Certifications | NSF 4 (wet), cULus |
*Manifold drain adds 6 ½" to overall height below the counter.
Installation & Use
- Indoor, commercial applications only.
- Zero-clearance sides let you butt against equipment or cabinetry.
- Adapter bars recommended for fractional pans (sold separately).
- Optional sheet-pan adapter: Vollrath #19186.
Covered by Vollrath’s standard commercial warranty. For complete terms visit vollrathfoodservice.com.
