Vollrath 3647560HD Steam Tables & Food Wells
Description

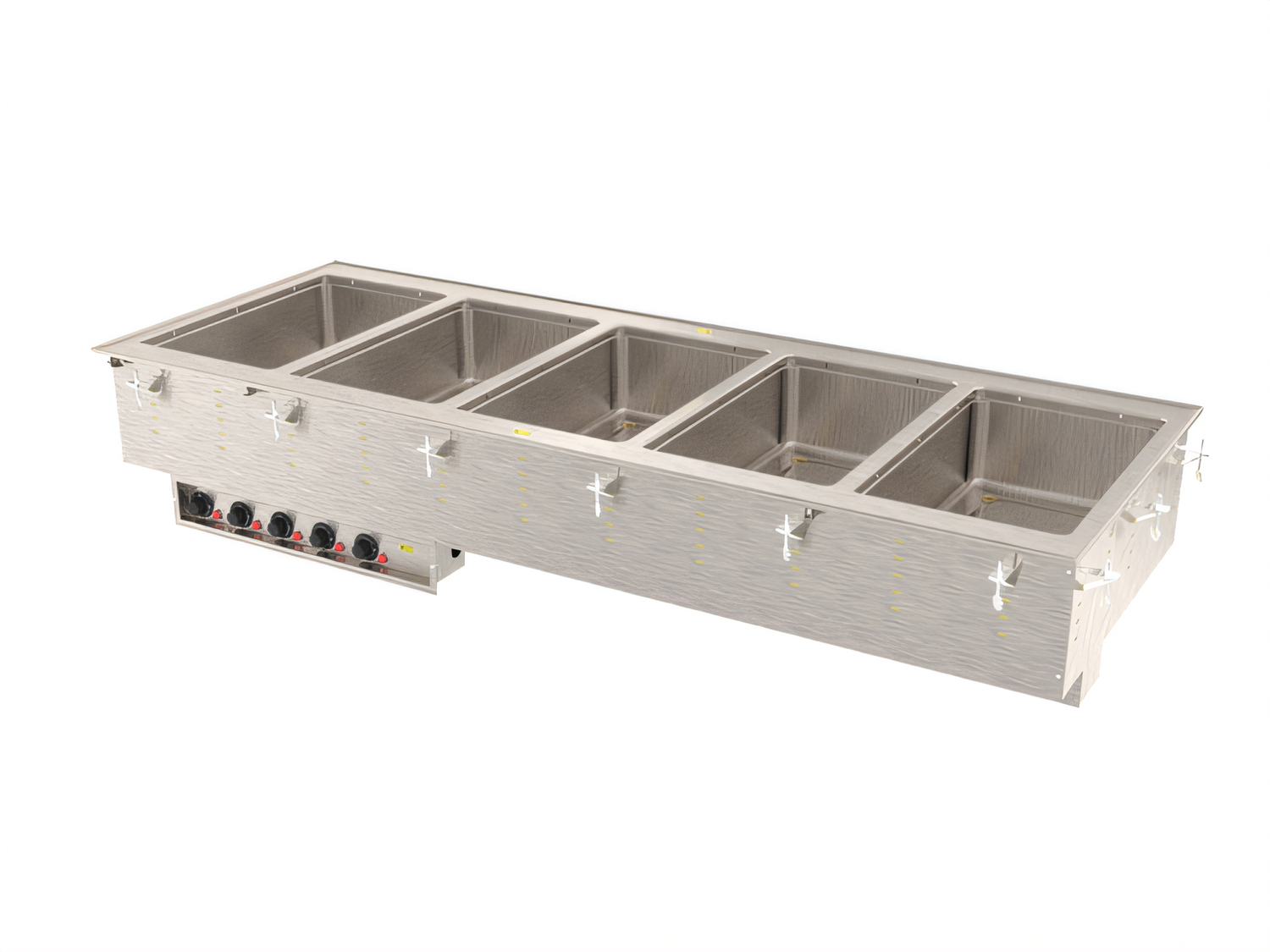

Vollrath 5-Well Modular Drop-In Hot Food Well – Marine-Grade, Auto-Fill (240 V)
Model 3647560HD | 625 W per well | Infinite controlsKeep five full-size 12" × 20" pans of soup, sauce, or entrée sides at safe serving temperatures with the reliability of Type-316 marine-grade stainless steel wells and the convenience of automatic water fill. Built for demanding commercial environments, this NSF-listed drop-in slips effortlessly into a 67 ¼" × 25 ¼" counter cutout and is ready to plug-in and perform—no hard-wiring required.
Why you’ll love it

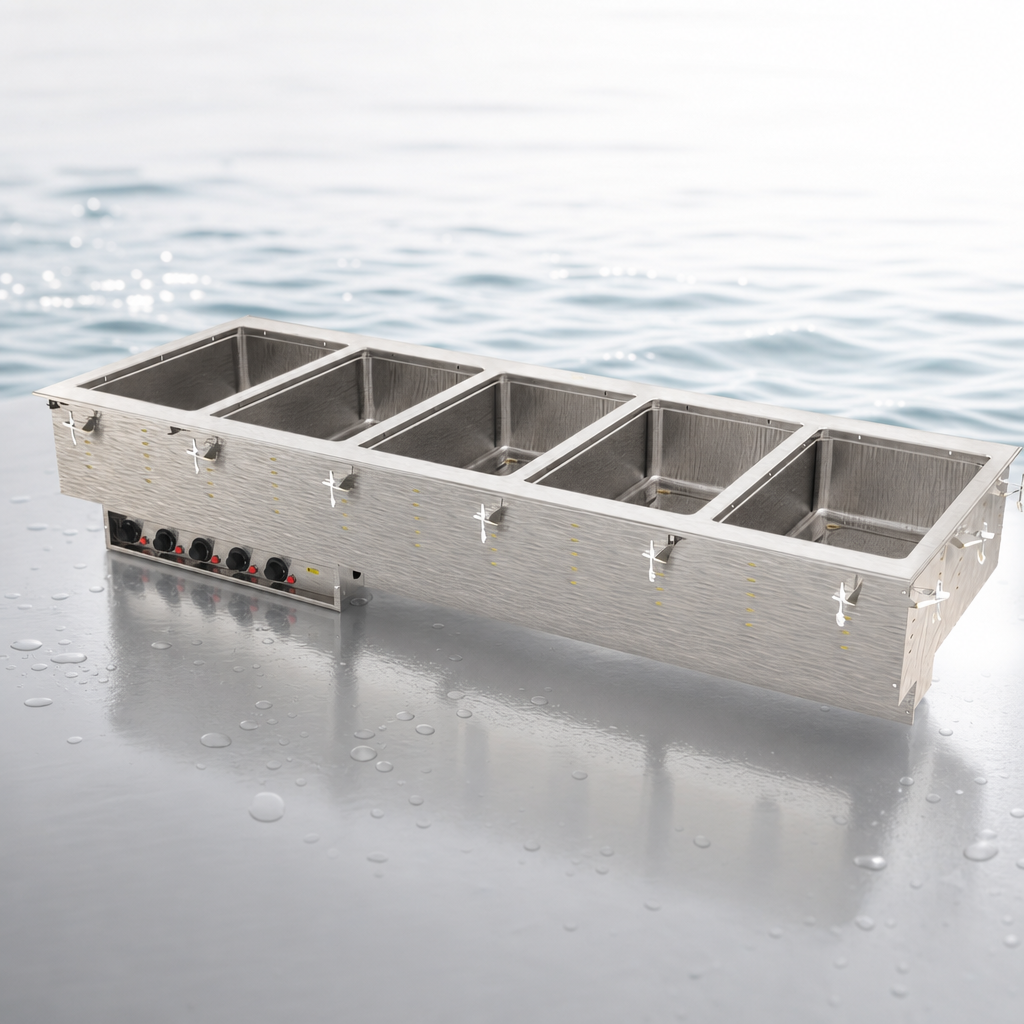

- Five individually insulated 12" × 20" wells, 20 ga. Type-316 stainless steel for superior corrosion resistance.
- Auto-fill system maintains optimum water level for consistent, even heat (wet operation required).
- Remote stainless steel control panel with infinite heat dials & power indicator lights for each well; 4 ft tether allows flexible mounting.
- Energy-efficient—only 625 W per well (total 3,125 W) powered through a factory-installed 6 ft cord with NEMA 6-20P plug.
- 1" copper manifold drain with master shut-off plus individual ball valves at every well for quick, mess-free clean-up.
- 18 ga. stainless steel top with drip-free flange keeps condensation off the counter surface.
- Includes positioning/mounting clips for counters up to 3" thick—zero-clearance required underneath.
- Made in the USA and certified by NSF & cULus.
Technical specifications
| Capacity | 5 full-size pans (12" × 20") up to 6" deep |
|---|---|
| Operation | Wet heat only (auto-fill) |
| Controls | Individual infinite switches, panel-mounted |
| Total Power | 3,125 W | 240 V | 13 A | 1-phase, 60 Hz |
| Plug / Cord | 6 ft cord with NEMA 6-20P |
| Exterior Construction | Stainless steel housing & 18 ga. top |
| Well Construction | Drawn 20 ga. 316 marine-grade stainless steel, fully insulated |
| Overall Dimensions | 68" W × 26" D × 21 ½" H |
| Counter Cut-out | 67 ¼" W × 25 ¼" D (7/8" corner radius required) |
| Drain | 1" copper manifold with master valve & individual well shut-offs |
| Agency Listings | NSF 4, cULus |
| Country of Origin | USA |
Installation & operation tips
- Adapter bars are recommended when using fractional pans (sold separately).
- Mounting clips included—no gasket adhesive or hard-wiring necessary.
- Unit achieves NSF performance only when operated with water; running dry will damage elements and void warranty.
Warranty & service
Backed by Vollrath’s two-year parts & labor warranty against defects in materials and workmanship. See full policy at vollrathfoodservice.com. Orders for drop-ins are custom-built and cannot be canceled or returned.
