Vollrath | SKU:
3647560
Vollrath 3647560 Steam Tables & Food Wells
$4,686.55
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3647560 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3647560 Steam Tables & Food Wells
$4,686.55
Unit price
/
Unavailable
Description

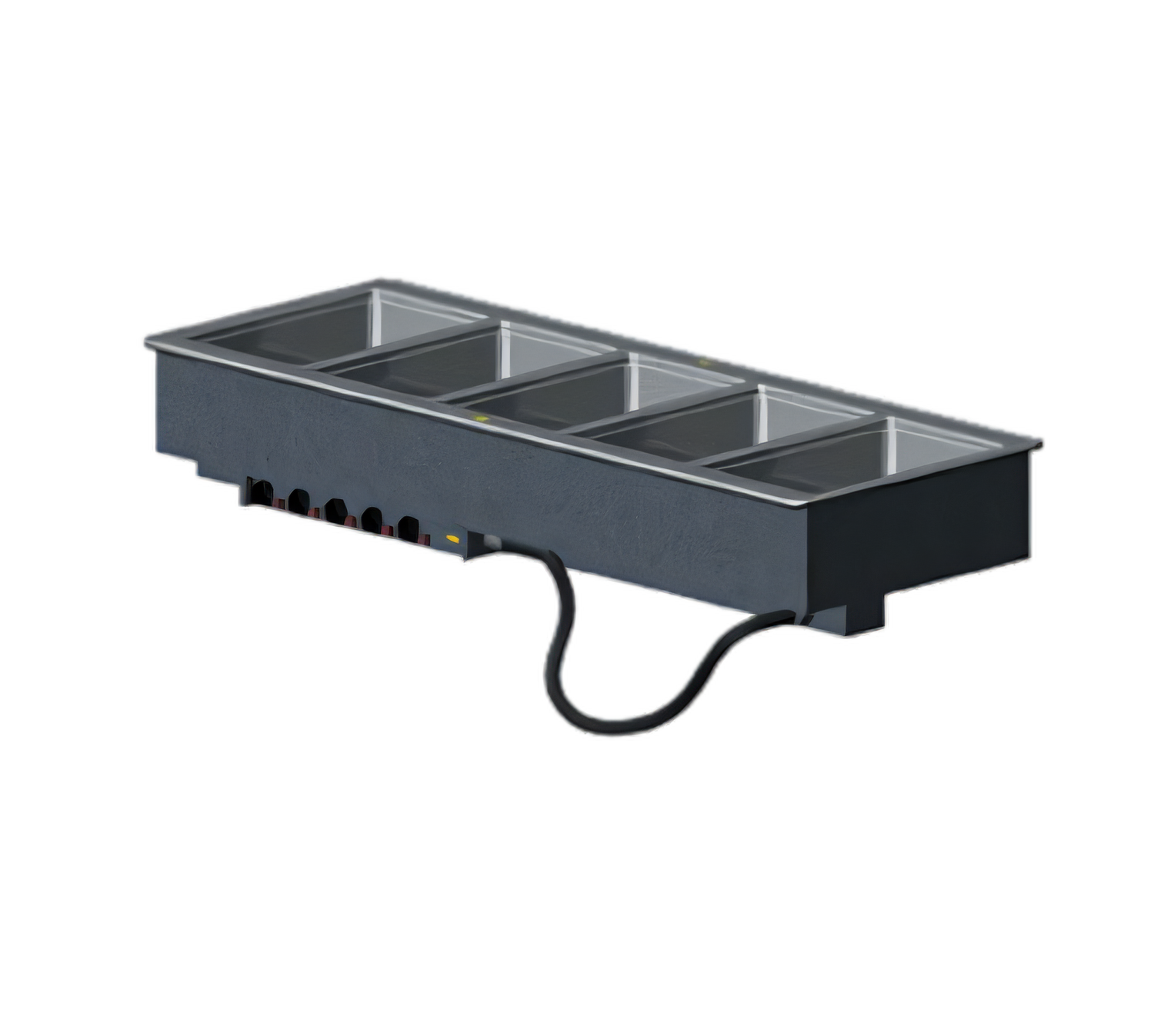

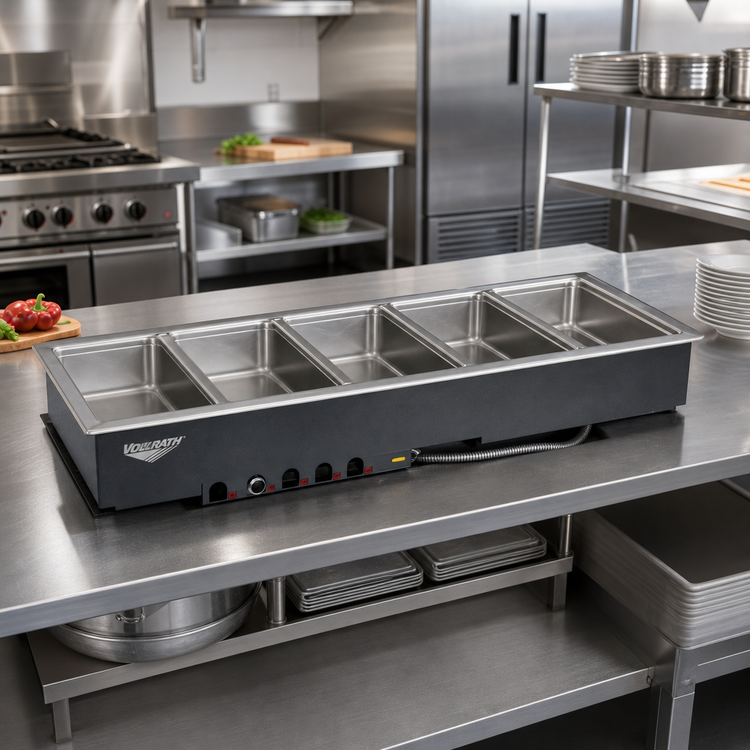

Vollrath 5-Well Auto-Fill Drop-In Hot Food Well – 240 V, 3,125 W
Standard manifold drain • Infinite controls • Model 3647560Keep soups, sauces and entrées at perfect serving temperature with this U.S-made Vollrath five-well electric drop-in. Designed for wet operation only, it automatically maintains its water level, giving operators worry-free, even heat across every 12 × 20 in. well.
Why You’ll Love It

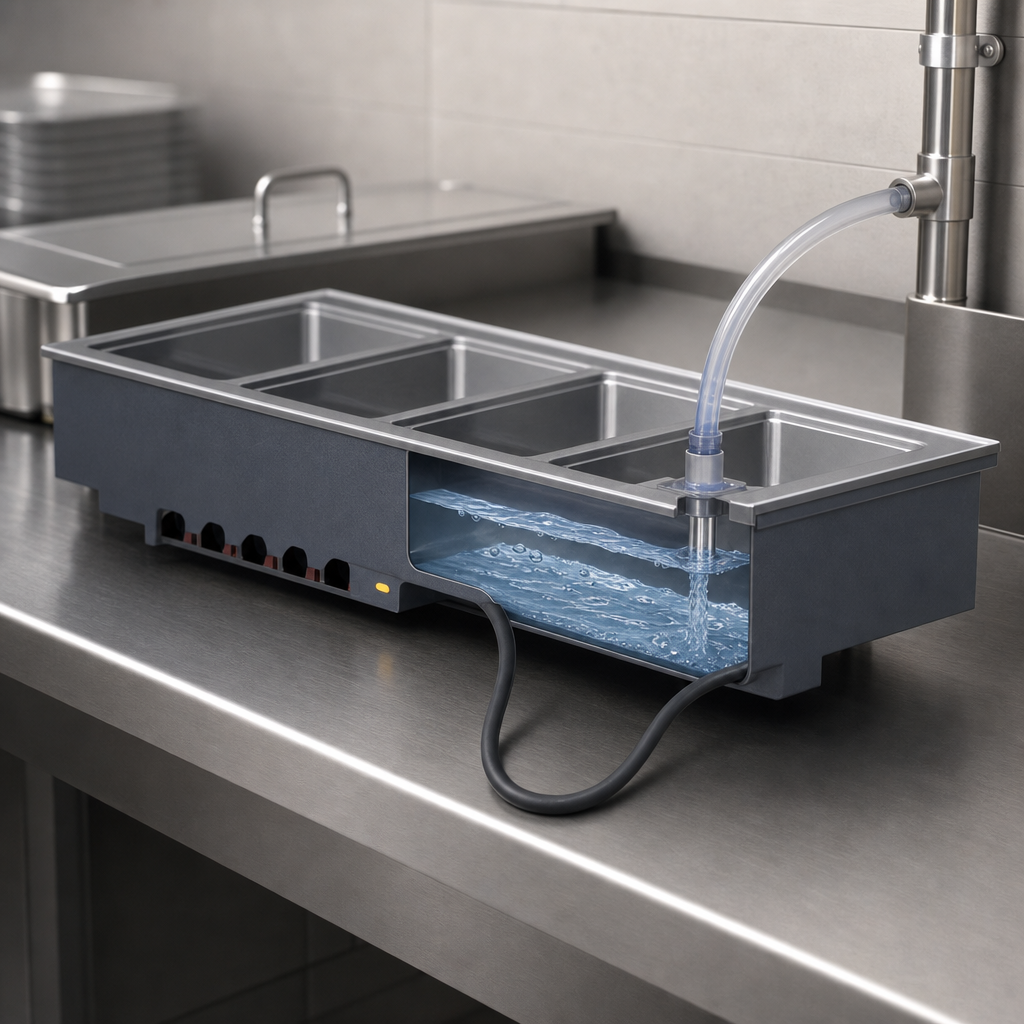

- Auto-fill system continuously keeps wells at the optimal water level.
- Individual infinite controls with power indicator lights let you fine-tune each well independently.
- Heavy-duty construction – 20 ga 300-series stainless wells, 18 ga stainless top and galvanized exterior housing.
- 1 in. copper manifold drain with individual shut-offs plus a master valve for fast, no-mess draining.
- Drip-free flange & factory-installed gasket protect counter surfaces and eliminate the need for caulk.
- Full insulation on every side, including between wells, boosts efficiency and keeps tops cool to the touch.
- Zero-clearance design and included mounting clips speed up installation in counters up to 3 in. thick.
- Accepts full-size or fractional pans up to 6 in. (15.2 cm) deep; use adapter bars for fractional pans.
- Plug-and-play 6 ft cord with NEMA 6-20P—no hard-wiring required.
At-a-Glance Specs
| Number of wells | 5 (12 × 20 in. each) |
|---|---|
| Operation | Wet only | Auto-fill |
| Controls | 5 independent infinite controls with indicator lights (remote panel, 4 ft tether) |
| Total power | 3,125 W (625 W / well) |
| Electrical | 240 V / 60 Hz / 1-ph, 13.0 A, cord & NEMA 6-20P |
| Overall size | 68 W × 26 D × 21.5 H in. (172.7 × 66 × 54.6 cm) |
| Counter cut-out | 67.25 W × 25.25 D in. (170.8 × 64.1 cm) with 7/8 in. corner radius |
| Drain | 1 in. copper manifold with individual ball valves & master shut-off |
| Certifications | NSF 4, cULus, Made in USA |
Ideal For
- Buffet lines & cafeterias
- Institutional kitchens
- C-stores & delis
- Catering facilities needing quick, drop-in hot holding
Important: Unit is wet-operation only. Water must be present in wells whenever heat is turned on.
Modular drop-ins are built to order and cannot be canceled or returned.
For complete warranty details, visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
68.0in
Depth
26.0in
Shipping Weight
202.0lbs
Controls
infinite controls
Pan Capacity
(5) full size (12" x 20")
Insulated or Non-Insulated
insulated
Style
individual pans
Drain
with drain
Construction
stainless steel top, corrosion resistant steel exterior
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3125 watts, 240v/60/1-ph, 13.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
