Vollrath 3647550HD Steam Tables & Food Wells
Description

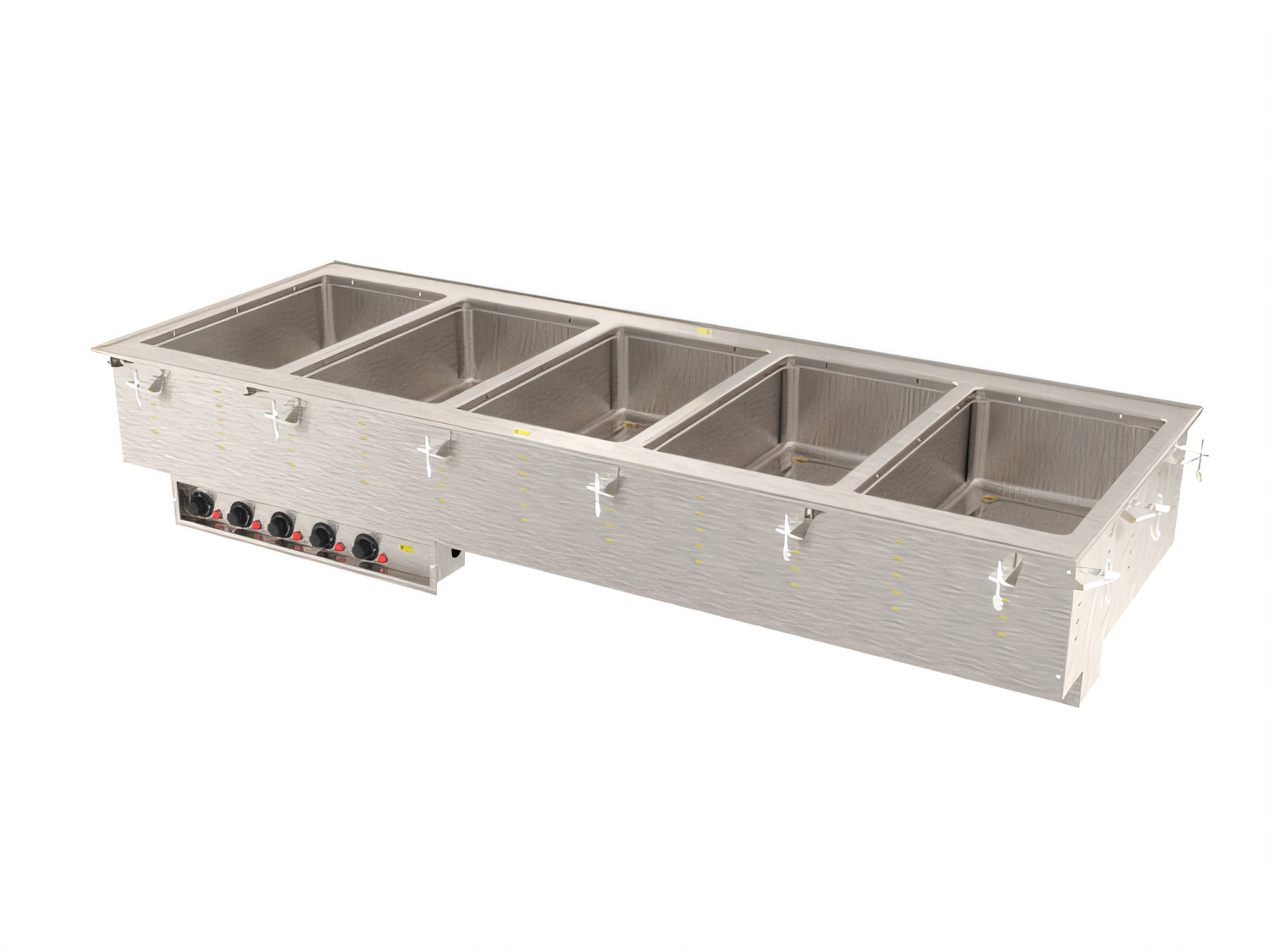

Vollrath 5-Well Marine-Grade Drop-In Hot Food Well – 240 V
68" W x 26" D | 625 W per well • Infinite Controls • Manifold DrainHold entrées, sides and sauces safely and consistently. This factory-assembled Vollrath hot well module features five corrosion-proof 316 stainless wells, individual infinite controls and a convenient 1" copper manifold drain system—everything you need for a professional, plug-and-play installation.
Key Benefits

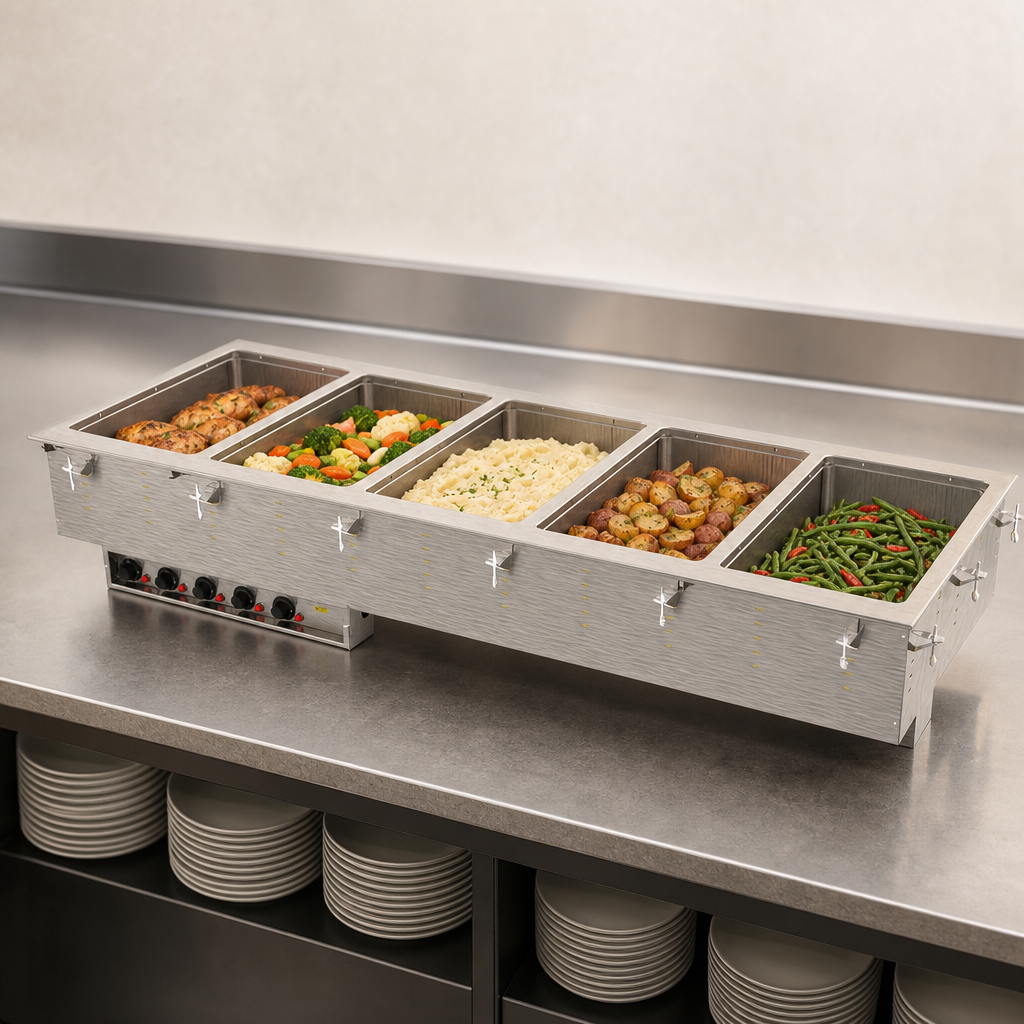

- Five independent full-size wells (12" × 20")—625 W each—for precise temperature control.
- 20-gauge, SAE 316 marine-grade stainless steel resists chloride pitting and harsh cleaners.
- Wet-heat design meets NSF 4 standards for even, gentle holding.
- Individual infinite controls with power indicator lights on a remote stainless panel (4' tether).
- 1" copper manifold drain with individual well shut-offs plus a master shut-off for fast, safe draining.
- Full insulation on all sides, including between wells, maximises energy efficiency.
- 18-gauge stainless top with drip-free flange installs flush on counters up to 3" thick.
- Ships with 6' cord and NEMA 6-20P plug—no hard-wiring required.
- NSF & cULus listed; proudly made in the USA.
Why Marine-Grade 316 Stainless?
Standard 304 stainless can corrode in high-salt or chemical environments. Upgrading to 316 stainless delivers superior resistance to pitting and rust, extending the life of your equipment—perfect for coastal venues, resorts and high-humidity kitchens.
Detailed Specifications
| Number of wells | 5 × full-size (12" × 20"), accepts pans up to 6" deep |
|---|---|
| Heating method | Wet operation only (water required) |
| Power output | 625 W per well • 3 125 W total |
| Controls | Individual infinite switches with indicator lights |
| Overall dimensions | 68" W × 26" D × 21-1/2" H* |
| Counter cut-out | 67-1/4" W × 25-1/4" D (7/8" corner radius required) |
| Electrical | 240 V / 60 Hz / 1-ph • 13 A • 6' cord with NEMA 6-20P |
| Drain system | 1" copper manifold with individual ball valves & master shut-off |
| Construction | 20-ga 316 SS wells, 18-ga SS top, stainless exterior housing |
| Certifications | NSF, cULus |
| Country of origin | Made in USA |
*Manifold drain adds 6-1/2" to overall height.
What’s Included
- Drop-in hot well assembly with factory-installed manifold drain
- Remote stainless steel control panel (4' tether)
- Mounting/positioning clips
- 6' power cord with NEMA 6-20P plug
- Owner’s manual & warranty information
For complete warranty terms, visit vollrathfoodservice.com. Modular drop-in orders are non-cancelable and non-returnable.
