Description

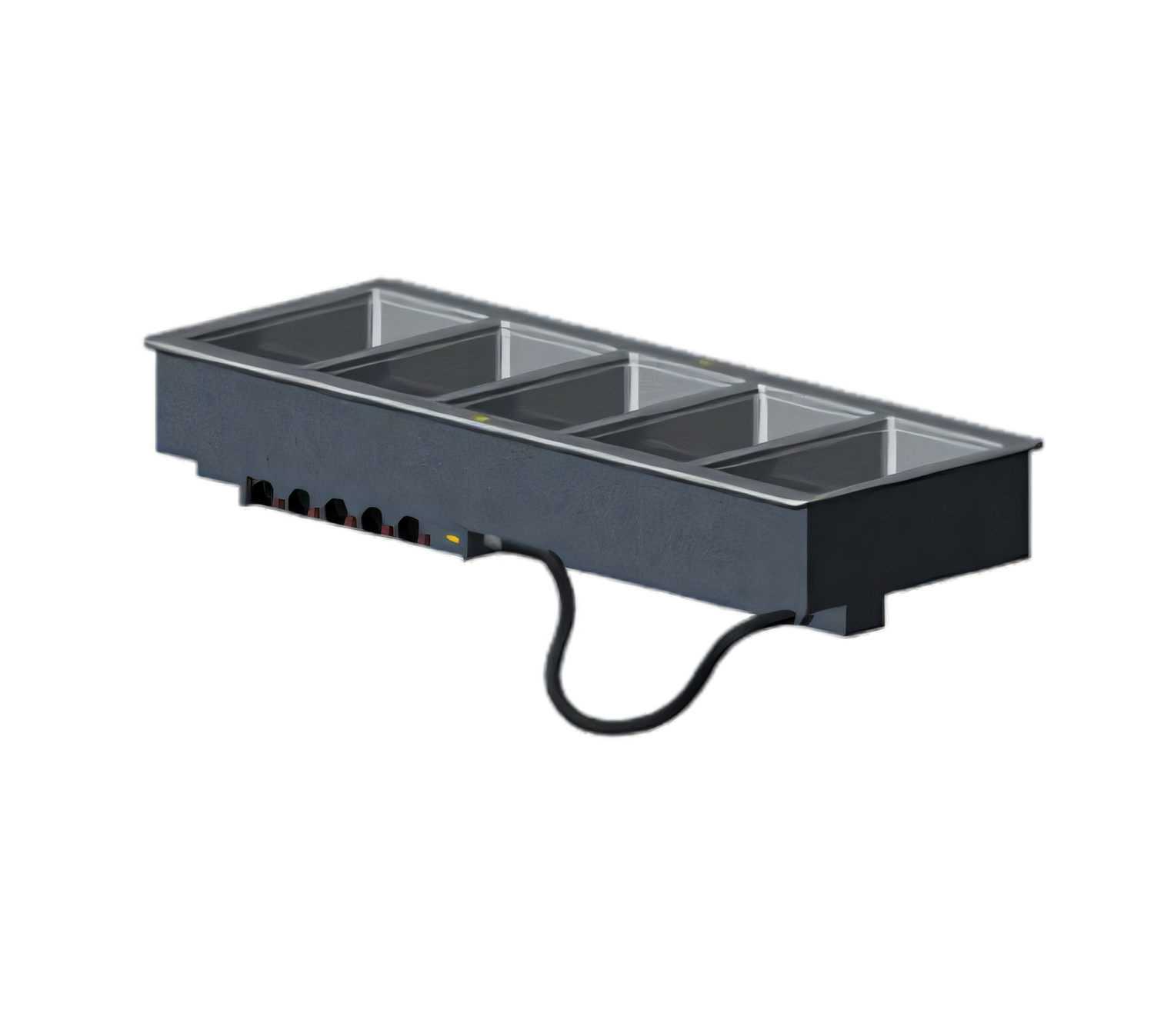

Vollrath Five-Well Drop-In Hot Food Well

Model 36475 • 240 V • Manifold Drain • Infinite Controls

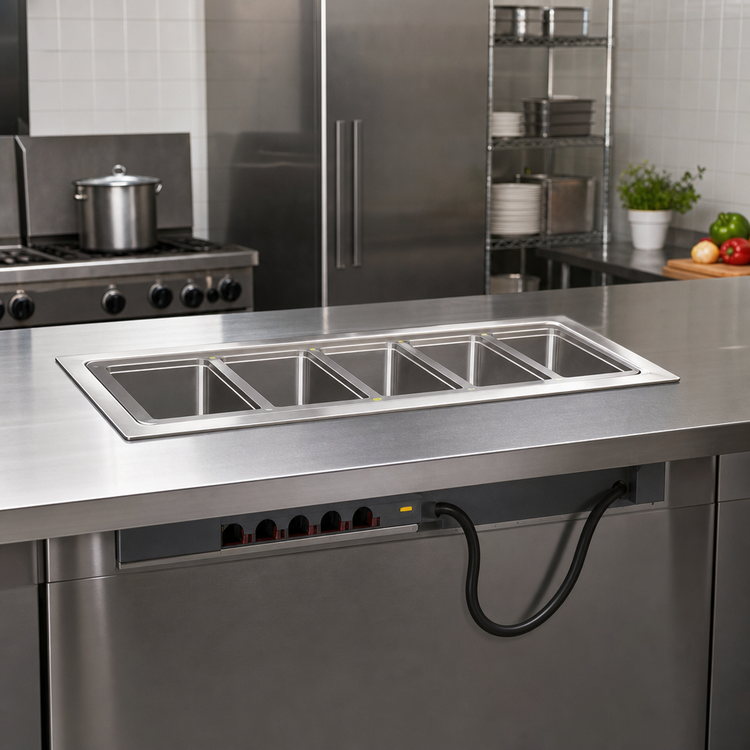

Serve piping-hot entrées with confidence. Made in the USA, this Vollrath five-well drop-in keeps food at safe, appetizing temperatures while fitting seamlessly into your countertop—no hard-wiring required.

Key Features

  • Five independent 12" × 20" full-size wells, 20-gauge 300-series stainless steel
  • Wet operation only for uniform, NSF-approved holding temperatures
  • Individual infinite controls with power indicator lights on a remote stainless-steel panel (4 ft tether)
  • 18-gauge stainless top flange with drip-free edge and factory-installed gasket
  • 1" copper manifold drain with ball valve on each well plus master shut-off
  • Fully insulated—in between wells and on every exterior surface—for energy efficiency
  • Includes mounting clips for counters up to 3" thick; zero-clearance installation
  • Accepts full-size or fractional pans up to 6" deep (adapter bars recommended)
  • 6' cord with NEMA 6-20P plug—plug-and-play convenience
  • NSF & cULus listed; proudly manufactured in Sheboygan, Wisconsin

Specifications

Overall dimensions (W × D × H) 68" × 26" × 21 ½"
Counter cutout 67 ¼" × 25 ¼"  •  ⅞" corner radius
Well size (each) 12" × 20" (full-size pan) • up to 6" pan depth
Electrical 240 V / 60 Hz / 1-ph • 3 125 W (625 W per well) • 13.0 A • NEMA 6-20P
Controls Five infinite switches with indicator lights
Construction 18-gauge stainless top • 20-gauge stainless wells • 18-gauge galvanized exterior
Drain 1" copper manifold with individual well shut-offs & master valve
Agency approvals NSF 4 • cULus
Important: Operate with water in the wells at all times. Dry use may damage the unit and void the warranty.

Built-to-order modular drop-ins cannot be canceled or returned. See complete warranty details at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

68.0in

Depth

26.0in

Shipping Weight

202.0lbs

Controls

infinite controls

Pan Capacity

(5) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge stainless steel insulated wells, 68"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3125 watts, 240v/60/1-ph, 13.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
