Vollrath  |  SKU: 3647510HD

Vollrath 3647510HD Steam Tables & Food Wells

$4,549.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

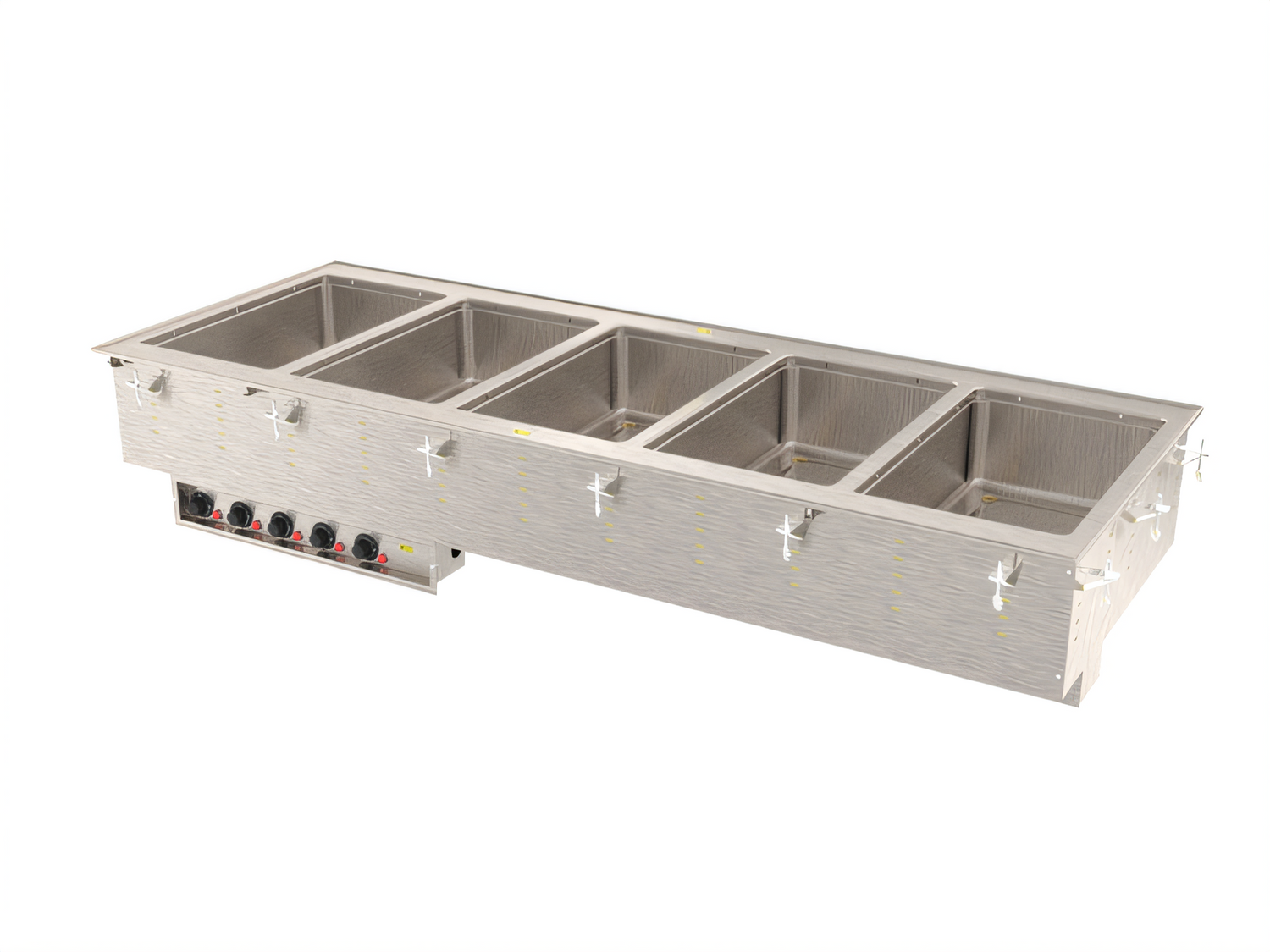

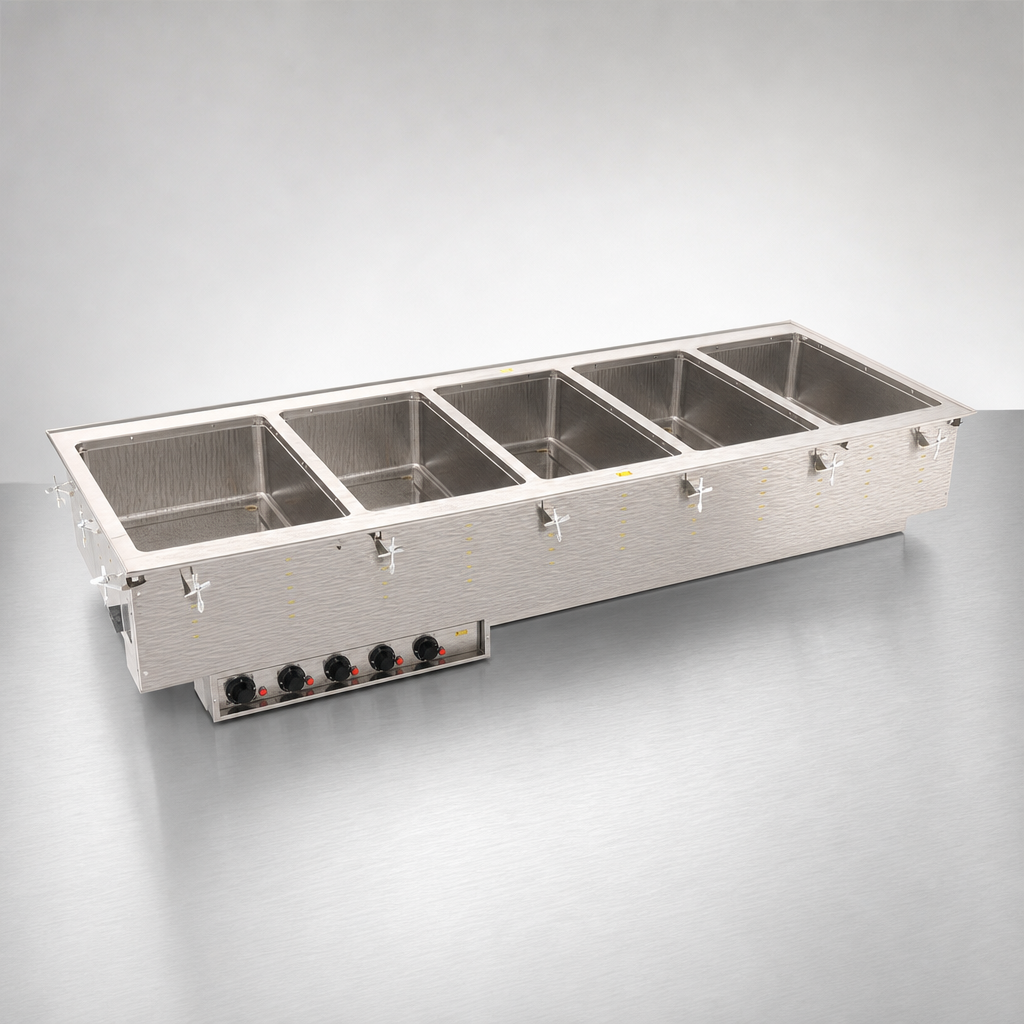

5-Well Modular Drop-In Hot Food Well

Marine-Grade 316 Stainless Steel | Thermostatic | 240 V

Keep high-volume service lines moving with Vollrath’s premium 5-well drop-in. Built for the harshest kitchen environments, each 12" x 20" well is formed from 316 marine-grade stainless steel, delivering unmatched corrosion resistance and even water-bath heating for your hot holding menu.

Why You’ll Love It

  • Five individually insulated, full-size wells – 625 W each (3125 W total).
  • Wet-operation only design promotes gentle, uniform heat that meets NSF 4 performance standards.
  • 20 ga drawn wells with drip-free flange resist pitting and rust in coastal or high-salt settings.
  • Independent thermostatic controls with power indicator lights for pinpoint temperature management.
  • ½" ball-valve drain on every well for fast, mess-free cleanup.
  • 18 ga stainless top and full stainless exterior housing for a seamless, professional installation.
  • Zero-clearance mounting—perfect for build-outs where space is at a premium.
  • Shipped ready to plug in; 6 ft (1.8 m) cord with NEMA 6-20P eliminates hard-wiring.
  • Made in the USA and backed by a 2-year parts-and-labor warranty.

Technical Specifications

Overall dimensions 68" W × 26" D × 15" H (172.7 × 66 × 38.1 cm)
Counter cut-out 67¼" W × 25¼" D (170.8 × 64.1 cm) – ⅞" (2.2 cm) corner radius required
Well size (each) 12" × 20" standard hotel pan; accepts pans up to 6" (15.2 cm) deep
Heating style Wet bath, thermostatically controlled (one control per well)
Power 3125 W, 240 V / 60 Hz / 1 ph, 13 A, cord & NEMA 6-20P plug
Drain system Individual ½" NPT drains with shut-off valves
Construction 316 marine-grade S/S wells (20 ga), 18 ga S/S top, S/S exterior housing, fully insulated
Control panel Stainless panel, 4 ft (121.9 cm) tether; includes mounting clips for counters up to 3" (7.6 cm)
Certifications NSF 4, cULus Listed, Made in USA

Installation & Operation

  • Suitable for indoor use only.
  • Zero-clearance design allows cabinetry to sit flush against the unit.
  • Use water in each well at all times for safe, even heating.
  • Avoid modifying the factory-installed cord or plug—doing so voids the warranty.
Important: Modular drop-ins are built to order and cannot be canceled or returned once production begins.

Warranty

This hot well includes a two-year limited parts & labor warranty. See the full policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

68.0in

Depth

26.0in

Shipping Weight

202.0lbs

Controls

thermostatic controls

Pan Capacity

(5) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (5) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 68"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3125 watts, 240v/60/1-ph, 13.0 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (67-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
