Vollrath 3647510 Steam Tables & Food Wells
Description

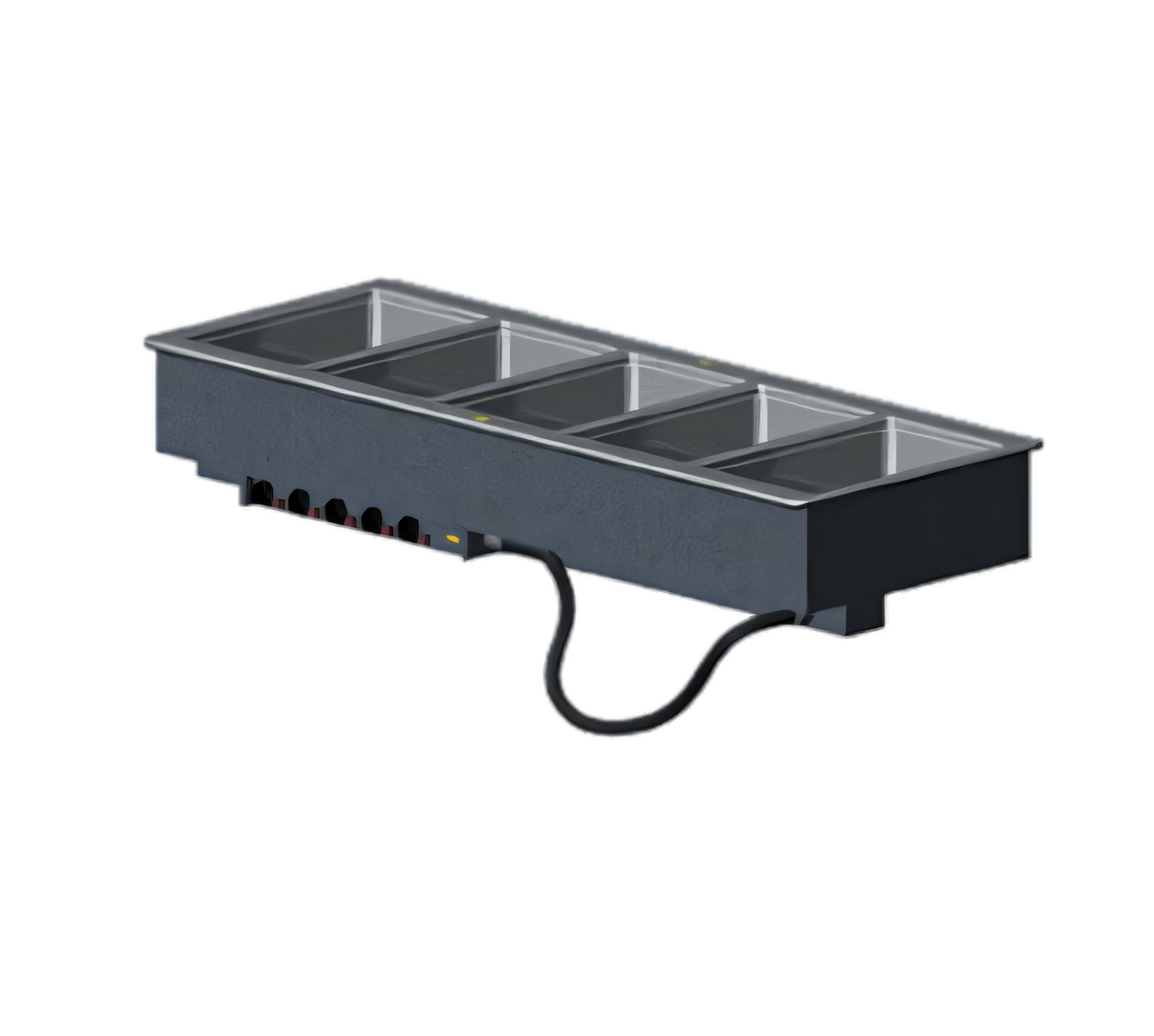

Vollrath 5-Well Drop-In Hot Food Unit – Thermostatic, 240 V
Model 3647510 | NSF & cULus Listed | Made in USAHold five different menu items at safe, appetizing temperatures in one compact footprint. Vollrath’s 5-well drop-in features individually-controlled, water-sealed wells that deliver gentle, even heat—perfect for buffets, cafeterias, and serving lines where quality counts.
Why you’ll love it

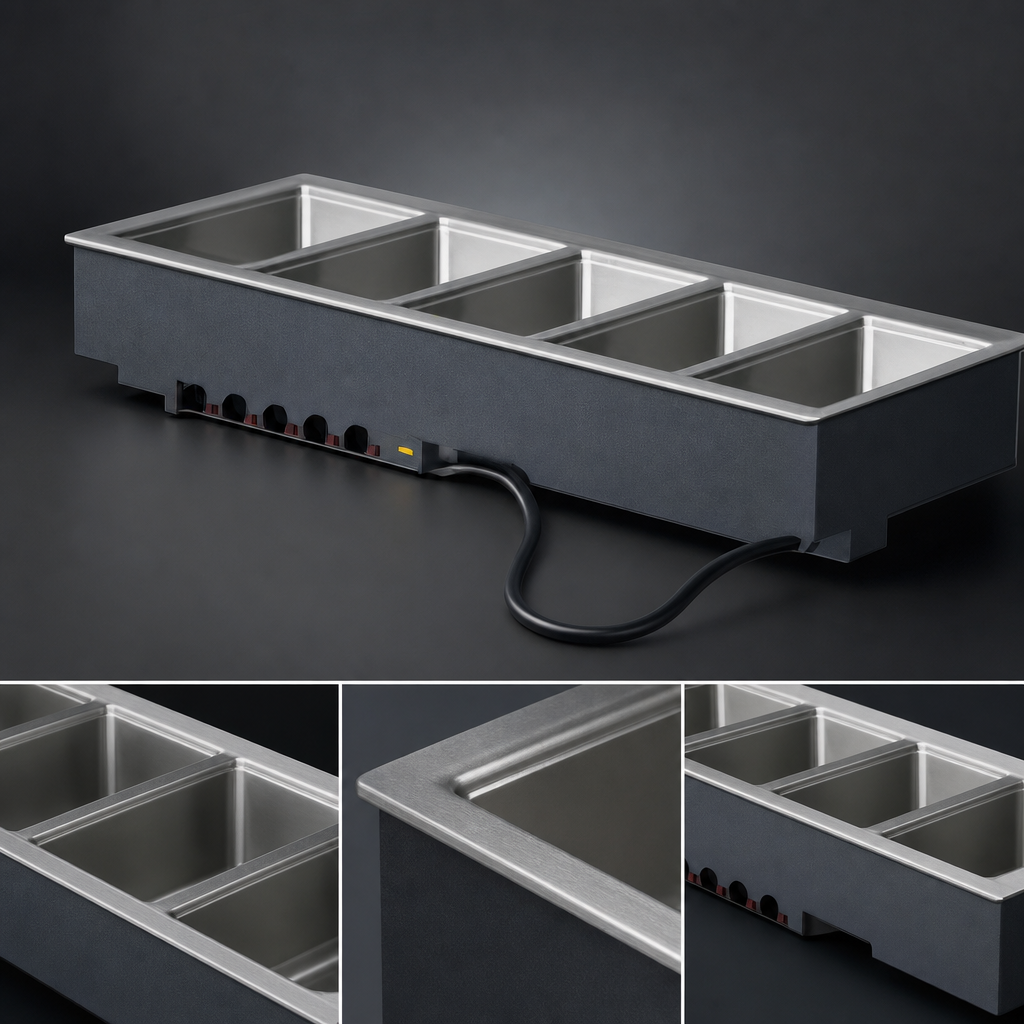

- (5) independent 12" × 20" wells, 20-gauge stainless steel, fully insulated for energy efficiency.
- Moist-heat design with drip-free top flange stops condensation from reaching your countertop.
- Individual thermostatic controls and power lights guarantee precise holding for every menu item.
- Stainless-steel control panel on a 4 ft (1.22 m) tether—mount it where it’s easiest for staff.
- ½" ball-valve drain on each well for fast, mess-free cleanup.
- Rugged 18-ga stainless-steel top and galvanized exterior housing stand up to daily commercial use.
- Includes factory gasket and mounting clips for counters up to 3" (7.6 cm) thick—no hard-wiring needed.
- Accepts full-size or fractional steam-table pans up to 6" (15.2 cm) deep; use adapter bars for fractions.
- Zero-clearance installation; indoor use only.
- 6 ft (1.8 m) cord with NEMA 6-20P plug—just drop in, plug in, and start serving.
Technical Specifications
| Number of wells | 5 (individually heated) |
|---|---|
| Operation | Wet heat only |
| Total wattage | 3,125 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-phase • 13.0 A |
| Controls | 5 independent thermostats with indicator lights |
| Plug | NEMA 6-20P, 6 ft (1.8 m) cord |
| Overall dimensions | 68" W × 26" D × 15" H (172.7 × 66 × 38.1 cm) |
| Counter cut-out | 67¼" W × 25¼" D (170.8 × 64.1 cm) with ⅞" (2.2 cm) corner radius |
| Drain fittings | (5) ½" NPT drains with individual shut-offs |
| Construction | 18-ga stainless top • 20-ga stainless wells • 18-ga galvanized housing |
| Certifications | NSF/ANSI 4 • cULus |
| Country of origin | United States of America |
Drop-in units are built to order and cannot be canceled or returned. For complete warranty details, visit VollrathFoodservice.com.
