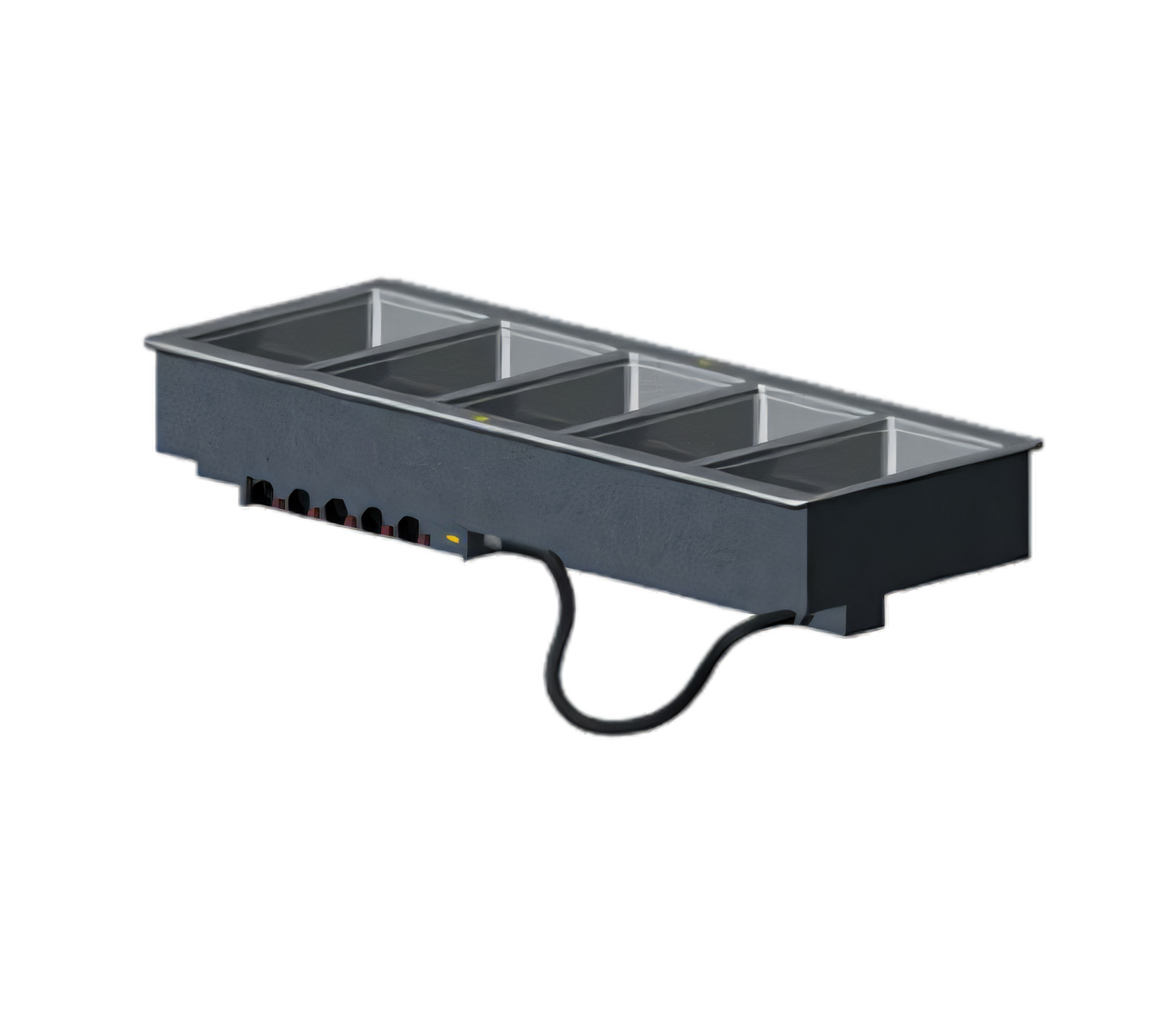

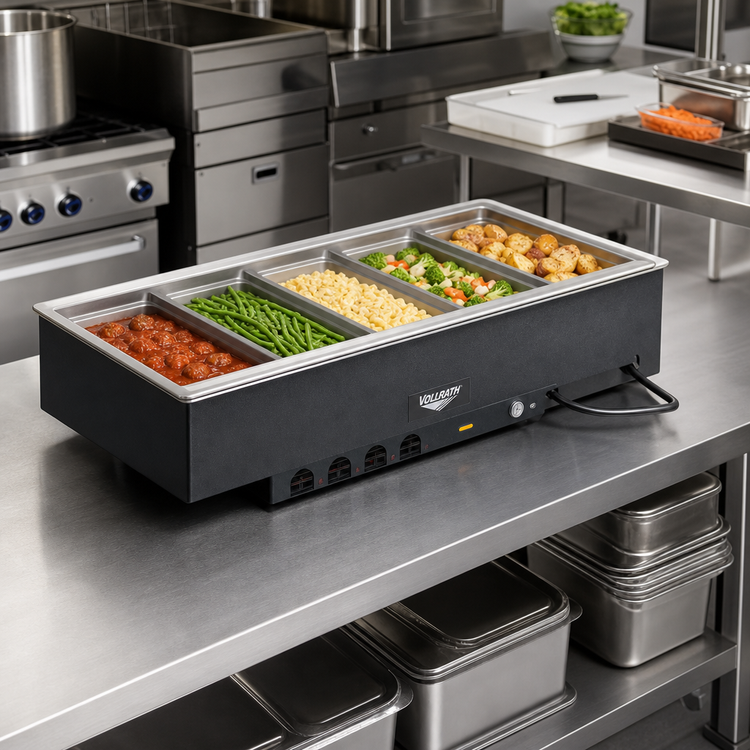

Vollrath 5-Well Insulated Drop-In Electric Hot Food Well with Drain, Wet Operation, 240V

Individual infinite controls for five 12" x 20" pans

Keep five full-size pans hot and ready with an insulated wet-operation well built for independent temperature control.

  • Holds five full-size 12" x 20" pans in individual insulated wells.
  • Wet-operation design with individual drain shutoffs for easier handling and cleanup.
  • Independent infinite controls let you regulate each well separately.
  • 18-gauge stainless steel top and galvanized exterior housing for durability.
  • Includes positioning clips and a cord with a NEMA 6-20P plug.
  • 240V, 60Hz, single-phase power; 3125W and 13.0A.

Overall Dimensions:

68.0"W x 26.0"D x 15.0"H

Product Weight:

202.0 lb

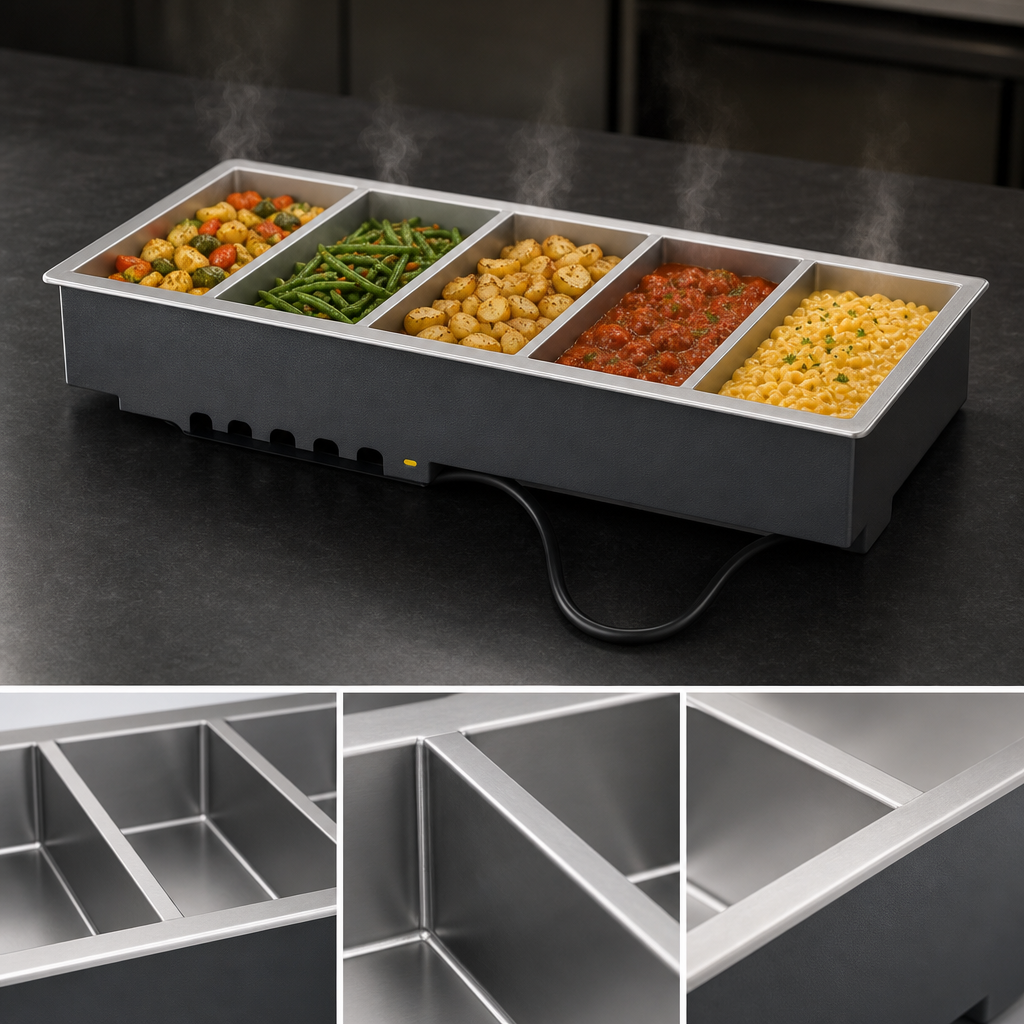

Five Individual Insulated Wells

Provides five separate 12" x 20" wells to help hold food at serving temperature.

Wet Operation Only

Designed for wet use only.

Individual Infinite Controls

Each well has its own infinite control mounted in the panel for separate temperature adjustment.

Power Indicator Light

Lets staff quickly see when the unit is powered.

Drip-Free Flange

Helps contain spills at the installation edge.

Individual Drain Shutoffs

Allows each well to be drained independently.

Stainless Steel Top and Galvanized Exterior

Built with an 18-gauge stainless steel top and 18-gauge galvanized exterior housing.

Includes Positioning Clips

Positioning clips are included to assist with installation.

240V Cord and Plug

Includes a cord with a NEMA 6-20P plug for 240V, single-phase power.

Installation Cutout Requirement

Requires a 67-1/4" W x 25-1/4" D cutout with a 7/8" corner radius.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 5
Pan Size 12 Inches x 20 Inches
Controls Infinite
Material Stainless Steel
Finish Galvanized Steel
Voltage 240 Volts
Watts 3.125 kW
Amps 13.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds five full-size 12" x 20" pans in individual wells.
Wet operation only.
240V, 60Hz, single-phase, 13.0 amps, 3125 watts, with a NEMA 6-20P cord and plug.
The required cutout is 67-1/4" W x 25-1/4" D with a 7/8" corner radius.
Yes. Each well has its own infinite control and individual drain shutoff.
The catalog indicates a 1-year warranty for standard hot drop-ins. HD wells carry a 2-year warranty. Refer to vollrathfoodservice.com for the full warranty policy.
