Vollrath  |  SKU: 36474HD

Vollrath 36474HD Steam Tables & Food Wells

$3,509.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

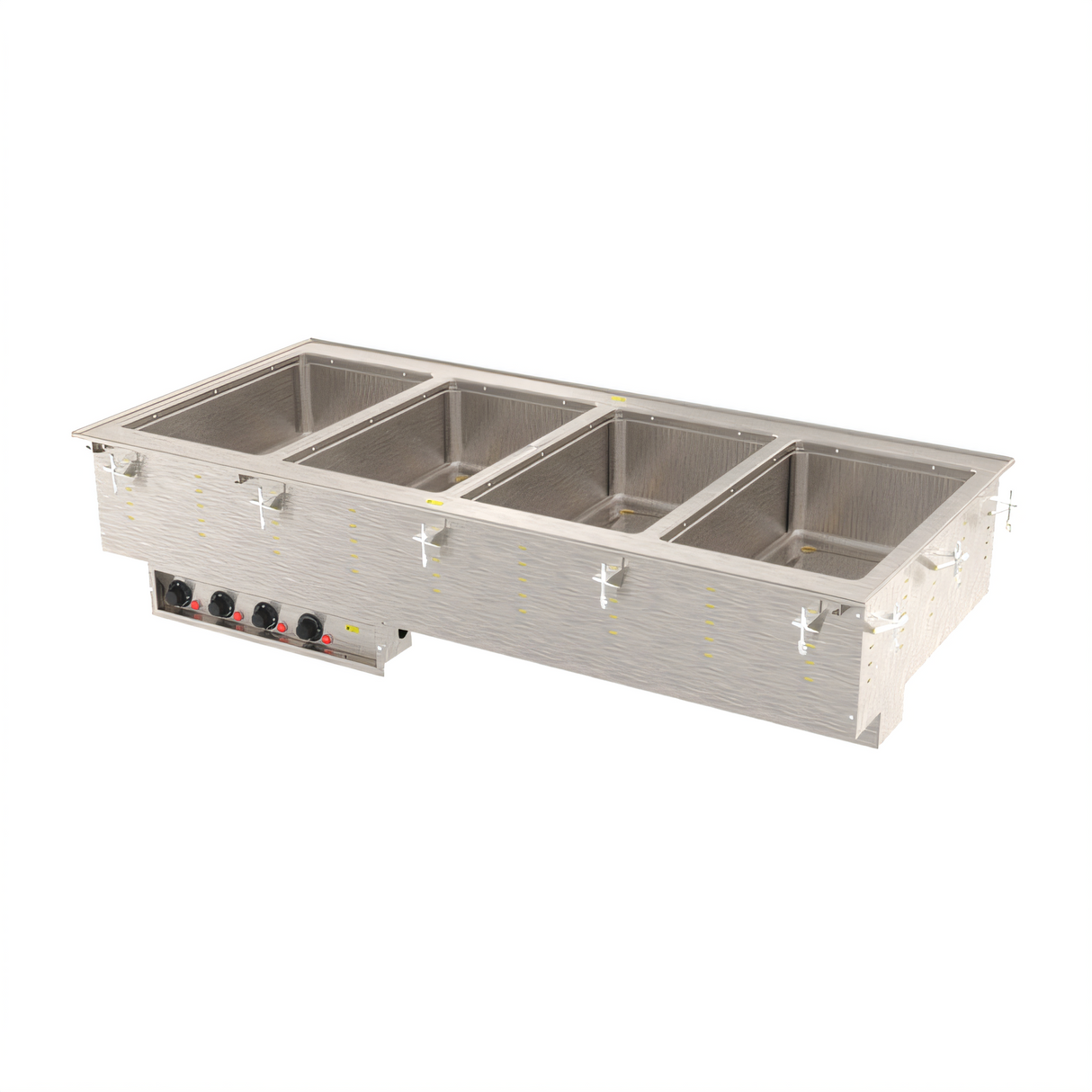

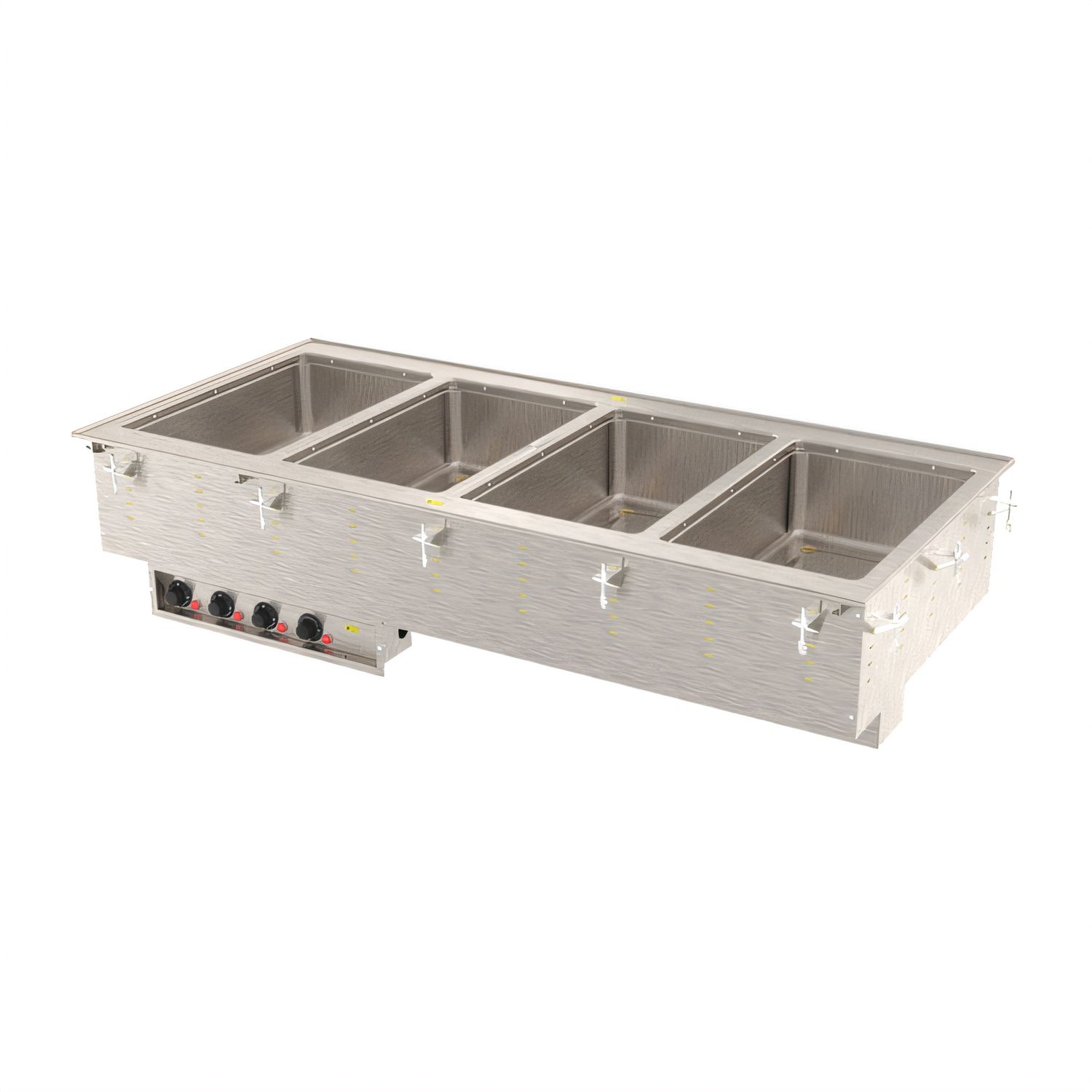

Vollrath 4-Well Marine-Grade Hot Food Drop-In, 240 V

Model 36474HD • Standard drain • Infinite controls

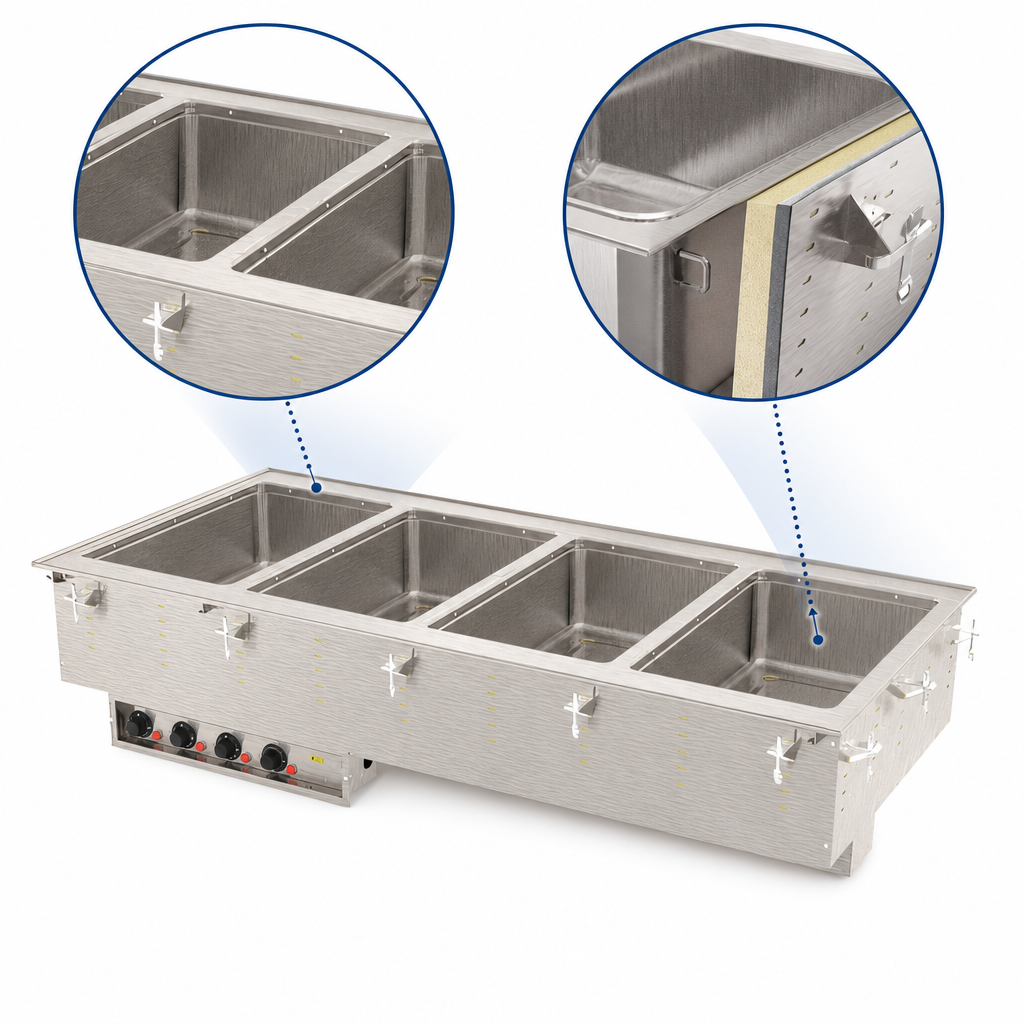

Keep four different menu items held safely at serving temperature with this NSF-listed drop-in hot well unit from Vollrath. Built for demanding commercial environments, each 12" x 20" well is formed from corrosion-resistant 316 marine-grade stainless steel and surrounded by high-temperature insulation for outstanding efficiency and even heat distribution.

Key benefits

  • Four independent 12" × 20" wells—accepts full-size or fractional pans up to 6" deep
  • 20-gauge 316 marine-grade stainless steel wells resist pitting & chemicals
  • Wet operation only: water layer provides gentle, uniform heat that meets NSF 4
  • Remote stainless-steel control panel (4 ft tether) with individual infinite-range knobs & power indicator lights
  • ½" ball-valve drain on each well for fast, mess-free emptying
  • Drip-free 18-gauge stainless top flange for a clean, sealed counter cut-out
  • Zero-clearance design—install flush in counters up to 3" thick using included clips & gasket
  • Ships ready to plug in—6' cord with NEMA 6-15P; no hard-wiring needed
  • Made in the USA and backed by Vollrath’s 2-year commercial warranty

At-a-glance specs

Overall dimensions (W × D × H) 54 3/4" × 26" × 15" (139.1 × 66 × 38.1 cm)
Counter cut-out 54" × 25 1/4" (137.2 × 64.1 cm) • 7/8" corner radius
Well construction 20-ga 316 marine-grade stainless, fully insulated
Top flange / housing 18-ga stainless steel top • stainless exterior housing
Operation Wet only • 625 W per well • 2,500 W total
Controls 4 independent infinite controls with indicator lights
Drainage ½" individual ball-valve drains
Electrical 240 V / 60 Hz / 1-phase • 10.4 A
Power connection 6' cord • NEMA 6-15P plug
Certifications NSF 4 (wet), cULus
Origin / Warranty Made in USA • 2-year parts & labor

Ideal applications

  • Cafeteria & buffet service lines
  • QSR makelines & finishing stations
  • Banquet or catering counters that require marine-grade corrosion resistance
Important: This unit must be operated with water in each well to meet NSF performance standards and to prevent damage. Never modify the factory cord or plug.

Drop-in units are built to order and cannot be cancelled or returned. Refer to the full warranty policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

54.75in

Depth

26.0in

Shipping Weight

178.0lbs

Wet or Dry operation

wet

Controls

infinite controls

Style

individual pans

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2500 watts, 240v/60/1-ph, 10.4 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
