Vollrath  |  SKU: 3647480

Vollrath 3647480 Steam Tables & Food Wells

$4,452.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

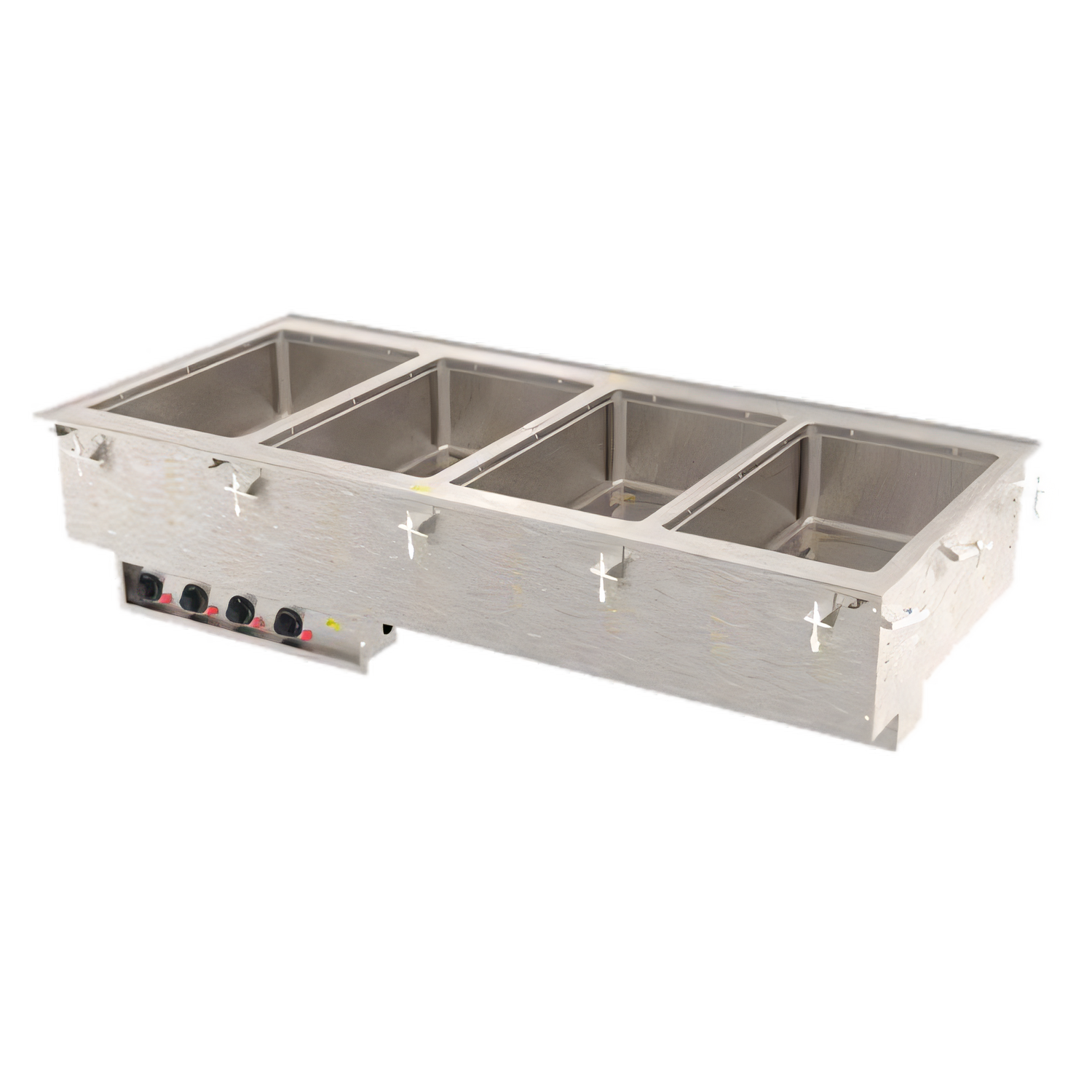

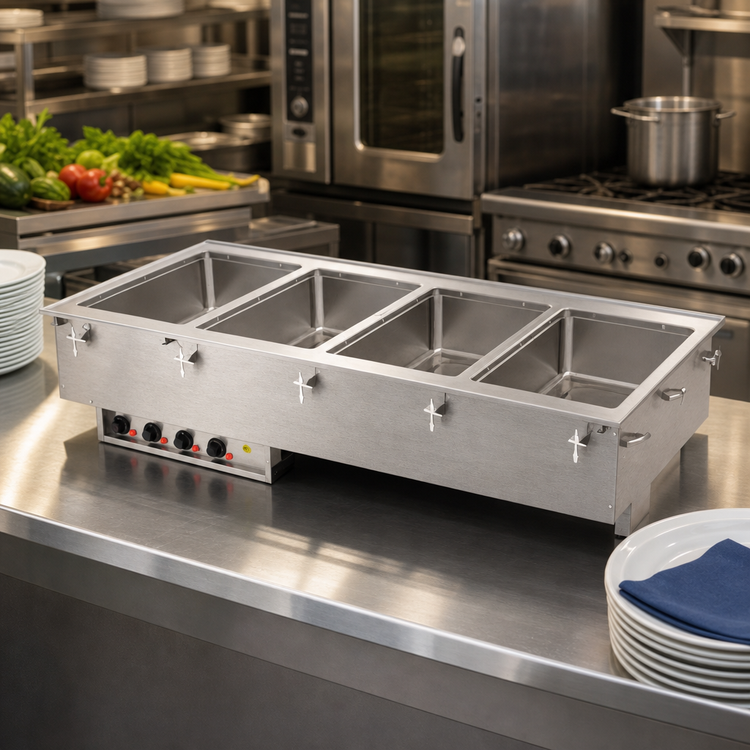

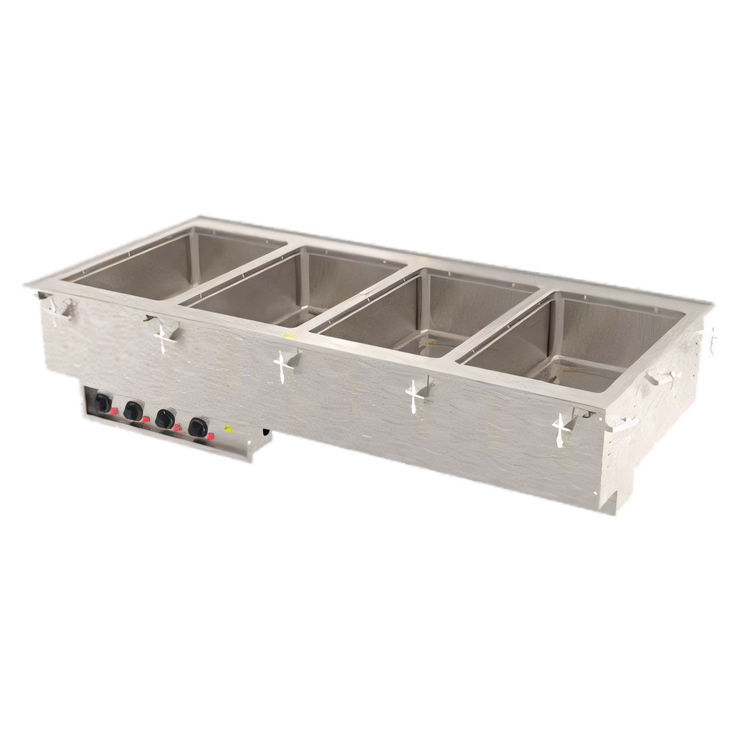

Vollrath Four-Well Drop-In Hot Food Well with Auto-Fill – 240 V

Model 3647480 | Thermostatic Control, Manifold Drain

Serve dishes at perfect, NSF-approved holding temperatures without hard-wiring. This U.S.–made Vollrath module features four individually controlled, insulated wells, an automatic water-fill system, and a plug-in design that installs flush in a 54 × 25-1/4 in. countertop cutout.

Important: Wet (water-bath) operation is required for safe, even heating. Modular drop-ins cannot be canceled or returned once ordered.

Why You’ll Love It

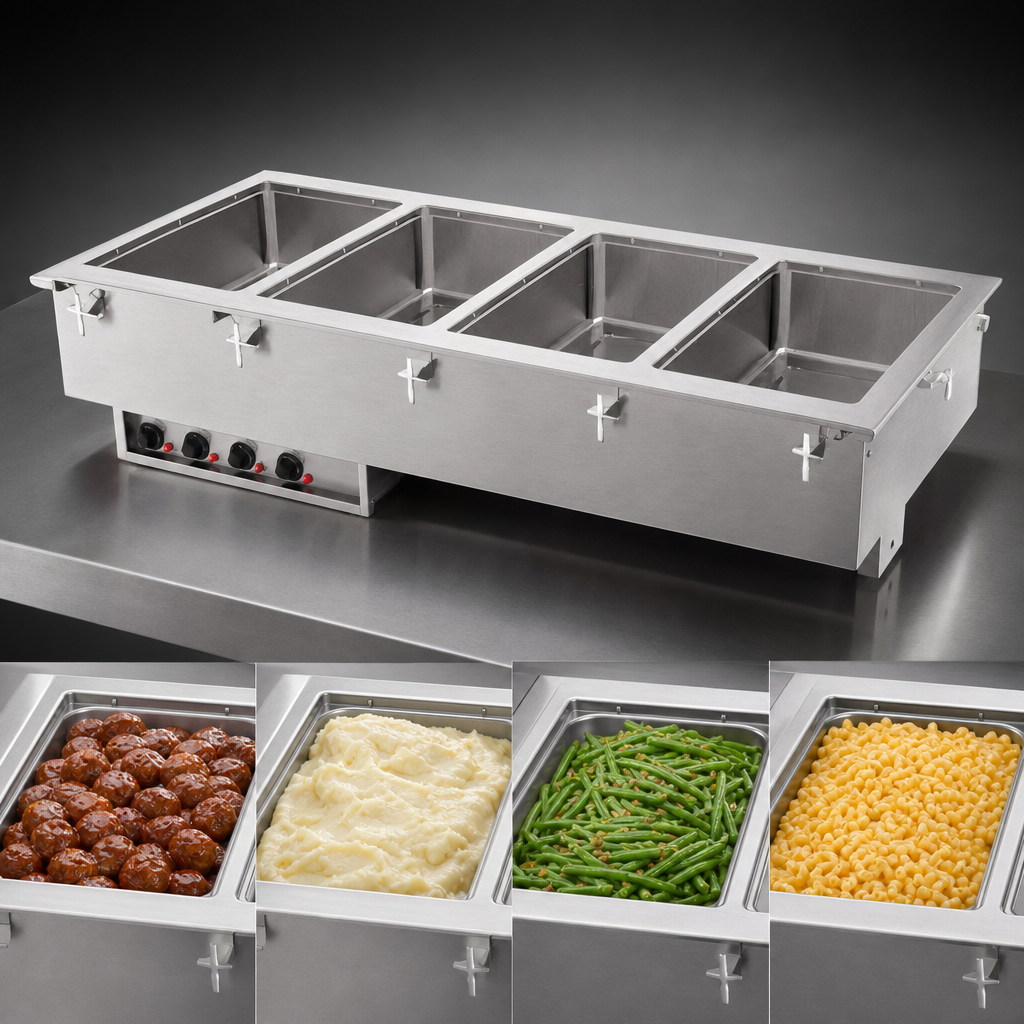

  • Four independent 12 × 20 in. wells – 20-gauge 300-series stainless steel.
  • Auto-fill maintains optimum water level automatically—no manual refilling during service.
  • 625 W per well (2,500 W total) with individual thermostatic controls & power indicator lights.
  • 1 in. copper manifold drain with ball valves on every well plus a master shut-off for fast, mess-free draining.
  • Drip-free top flange, fully insulated sides & inter-well dividers for energy efficiency.
  • Remote stainless-steel control panel on a 4 ft tether for flexible mounting.
  • Includes gasket & mounting clips for counters up to 3 in. thick—zero-clearance installation.
  • Accepts pans up to 6 in. deep; adapter bars recommended for fractional pans (sheet-pan adapter #19186 available).
  • NSF & cULus listed; Made in the USA.

Technical Specs

Configuration Drop-in, 4 wells, wet operation only
Well Size (each) 12 × 20 in. full-size pan (accepts fractional pans)
Heat Control Individual thermostatic knobs with indicator lights
Heating Power 625 W per well  |  2,500 W total
Electrical 240 V / 60 Hz / 1-ph  •  10.4 A  •  6-ft cord with NEMA 6-15P
Construction 18-ga stainless steel top, 18-ga galvanized exterior housing
Drainage 1 in. copper manifold drain with individual ball valves & master shut-off
Overall Dimensions 54-3/4 W × 26 D × 21-1/2 H in.  (139.1 × 66 × 54.6 cm)
Counter Cutout 54 W × 25-1/4 D in. (137.2 × 64.1 cm) with 7/8 in. corner radius
Certifications NSF 4, cULus
Country of Origin USA

Warranty & Service

Vollrath provides a one-year parts & labor warranty on modular drop-ins. For complete terms, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

54.75in

Depth

26.0in

Shipping Weight

188.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2500 watts, 240v/60/1-ph, 10.4- amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
