Vollrath 3647470 Steam Tables & Food Wells
Description
Vollrath 4-Well Drop-In Electric Hot Food Well, Manifold Drain
240 V • Thermostatic controls • Model 3647410-seriesHold four full-size steam-table pans at perfect serving temperature with this NSF-listed, Made-in-USA hot well module. Engineered for simple drop-in installation and precise, independent wet-heat control, it is the ideal upgrade for cafeteria lines, buffets, and mobile serving counters.
Why You’ll Love It

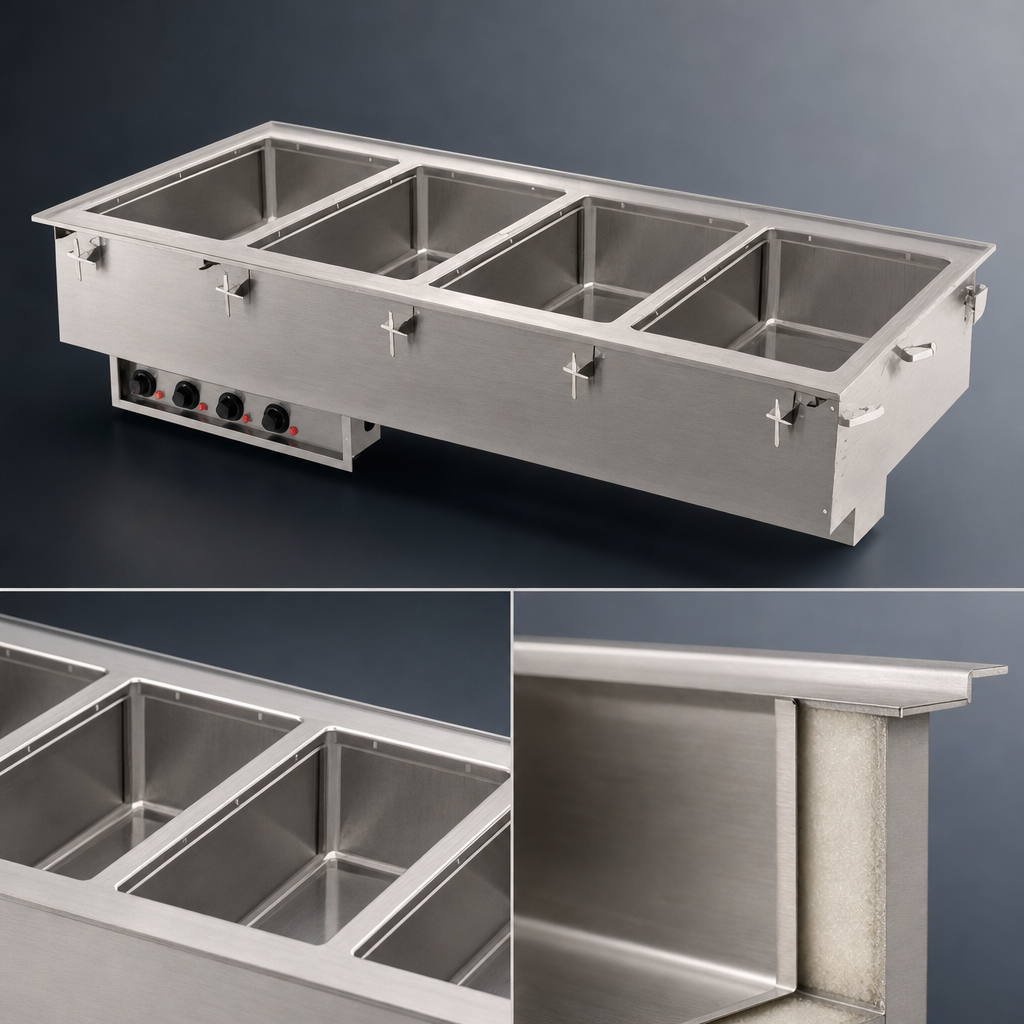

- Four 12" × 20" individually-insulated wells, each 20-gauge 300-series stainless steel.
- Thermostatic dial for every well with matching power-indicator light—fine-tune foods independently.
- Water bath (wet) operation delivers even heat and meets NSF 4 performance standards.
- 1" copper manifold drain with master shut-off plus ball valve on every well for fast, mess-free emptying.
- Drip-free stainless flange and included gasket protect the counter surface.
- Ships ready to plug in—6 ft (1.8 m) cord with NEMA 6-15P; no hard-wiring required.
- Zero-clearance design and mounting clips accommodate counters up to 3" (7.6 cm) thick.
- Accepts pans up to 6" deep; adapter bars recommended when using fractional pans.
At-a-Glance Specs
| Overall dimensions | 54-3/4" W × 26" D × 21-1/2" H (139.1 × 66 × 54.6 cm) |
|---|---|
| Counter cut-out | 54" W × 25-1/4" D with 7/8" (2.2 cm) corner radius |
| Electrical | 2500 W, 240 V, 1-phase, 14 A, cord & NEMA 6-15P |
| Controls | Four independent thermostatic knobs, remote stainless panel on 4 ft tether |
| Drain system | 1" copper manifold with individual well shut-offs & master shut-off |
| Top / housing | 18-ga stainless top; 18-ga galvanized exterior housing |
| Certifications | NSF 4 (wet use), cULus listed |
| Country of origin | USA |
Installation & Use Tips
- Unit is designed for indoor, wet-heat operation only; always keep wells filled to the water-level mark.
- Zero-clearance sides allow placement directly against cabinetry or adjacent equipment.
- DO NOT modify the factory cord or plug—doing so voids the warranty.
- For fractional pans, use Vollrath adapter bars for best heat distribution.
What’s in the Box
- 4-well drop-in hot module
- Remote control panel with tethered cord
- Mounting / positioning clips & gasket
- Owner’s manual & warranty information
Optional sheet-pan adapter (Vollrath #19186) sold separately.
Please verify cut-out dimensions, electrical requirements, and local code compliance before purchasing.
Warranty & Support
Backed by Vollrath’s standard commercial warranty against defects in materials and workmanship (see full policy at vollrathfoodservice.com). Technical service is available toll-free at 800-628-0832.
