Vollrath  |  SKU: 3647460HD

Vollrath 3647460HD Steam Tables & Food Wells

$4,718.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

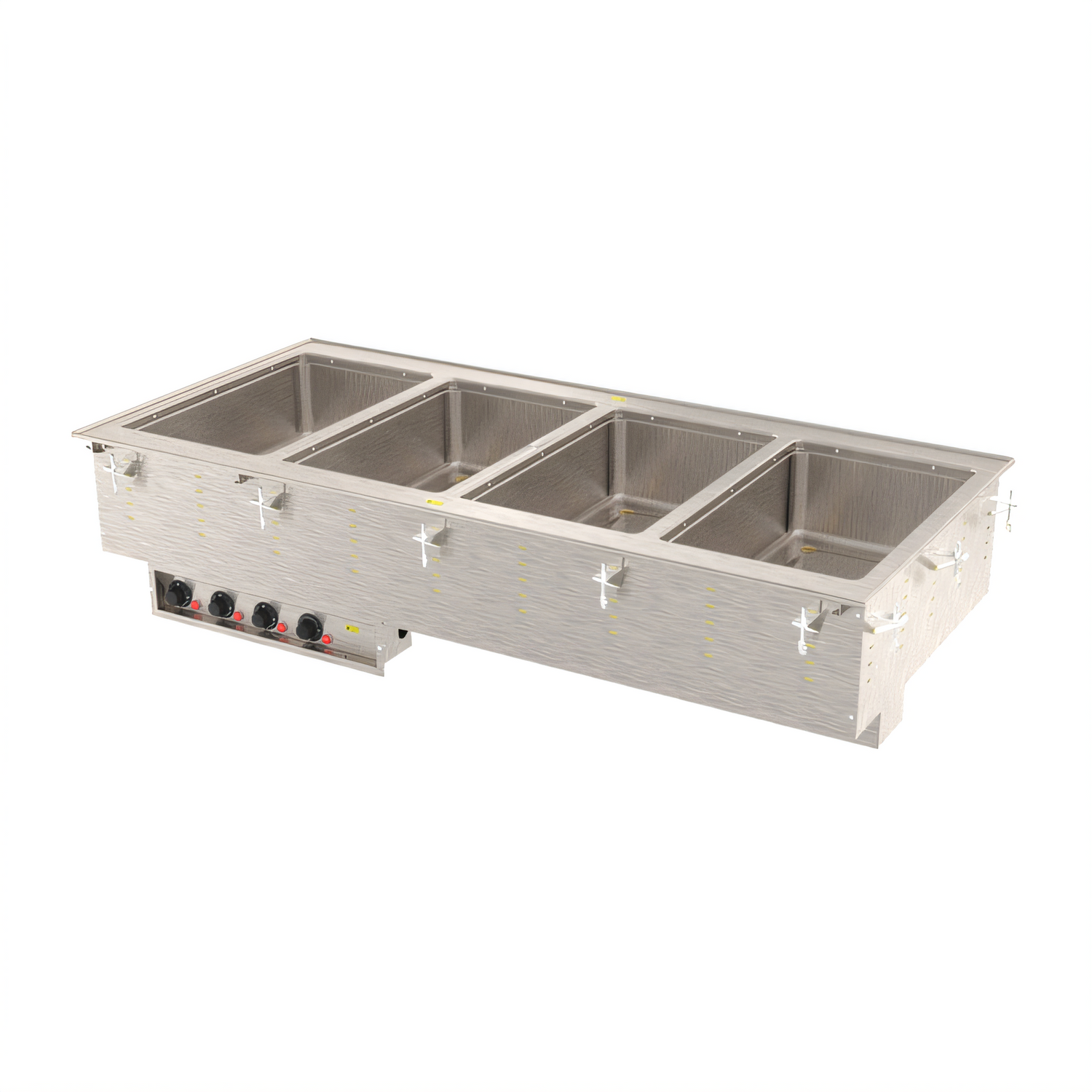

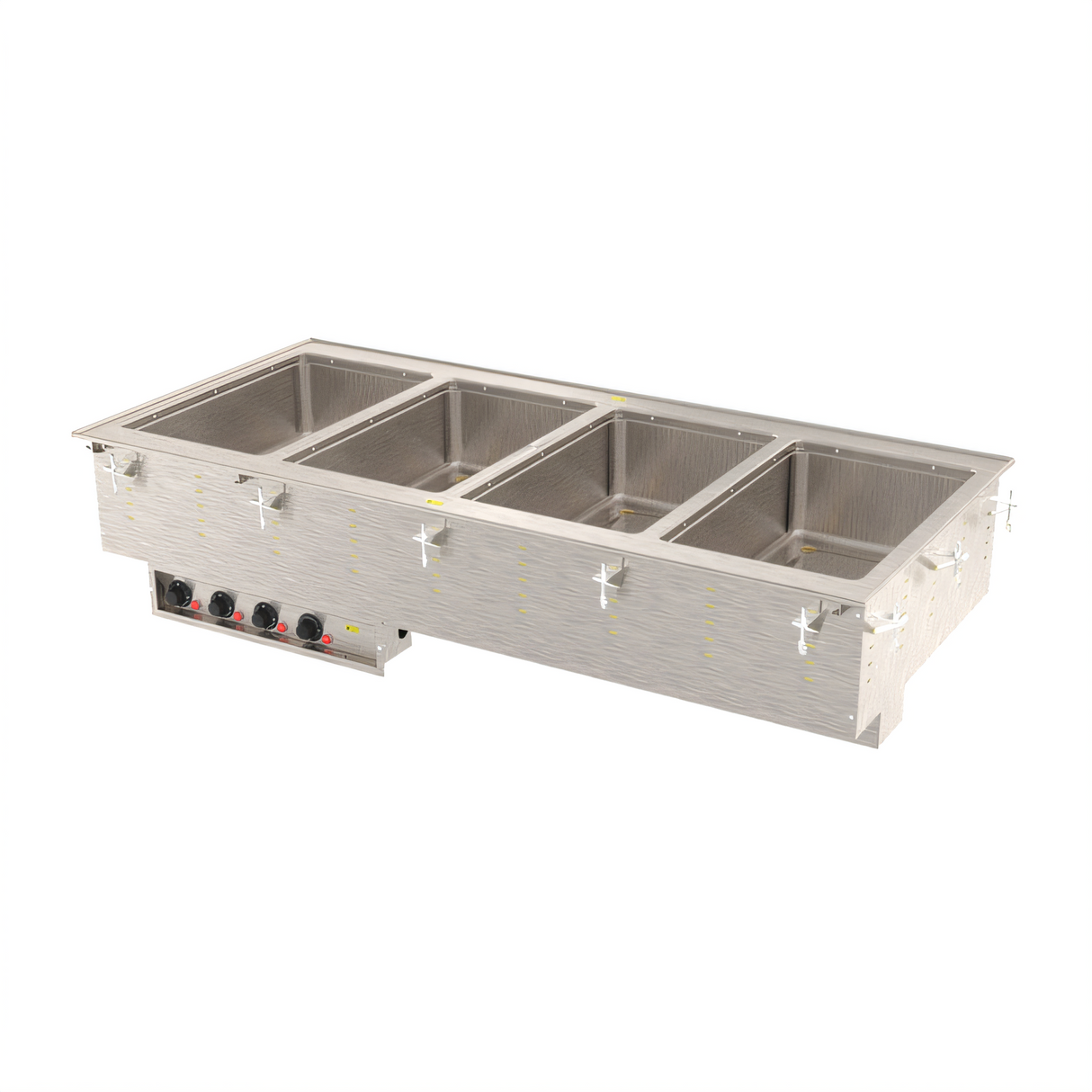

Vollrath 4-Well Marine-Grade Drop-In Hot Food Well – Auto-Fill, 240 V

Model 3647460HD | 625 W per well | Infinite controls

Keep entrées, sides and sauces at perfect serving temperatures with Vollrath’s premium 4-well hot drop-in. Four individually controlled, 316 marine-grade stainless steel wells resist corrosion in the harshest environments, while the integrated auto-fill and 1 inch manifold drain minimize labor and downtime. Built-in insulation, a drip-free flange and simple plug-and-play installation make this unit an operator’s dream for buffets, cafeterias, hotels and more.

Why you’ll love it

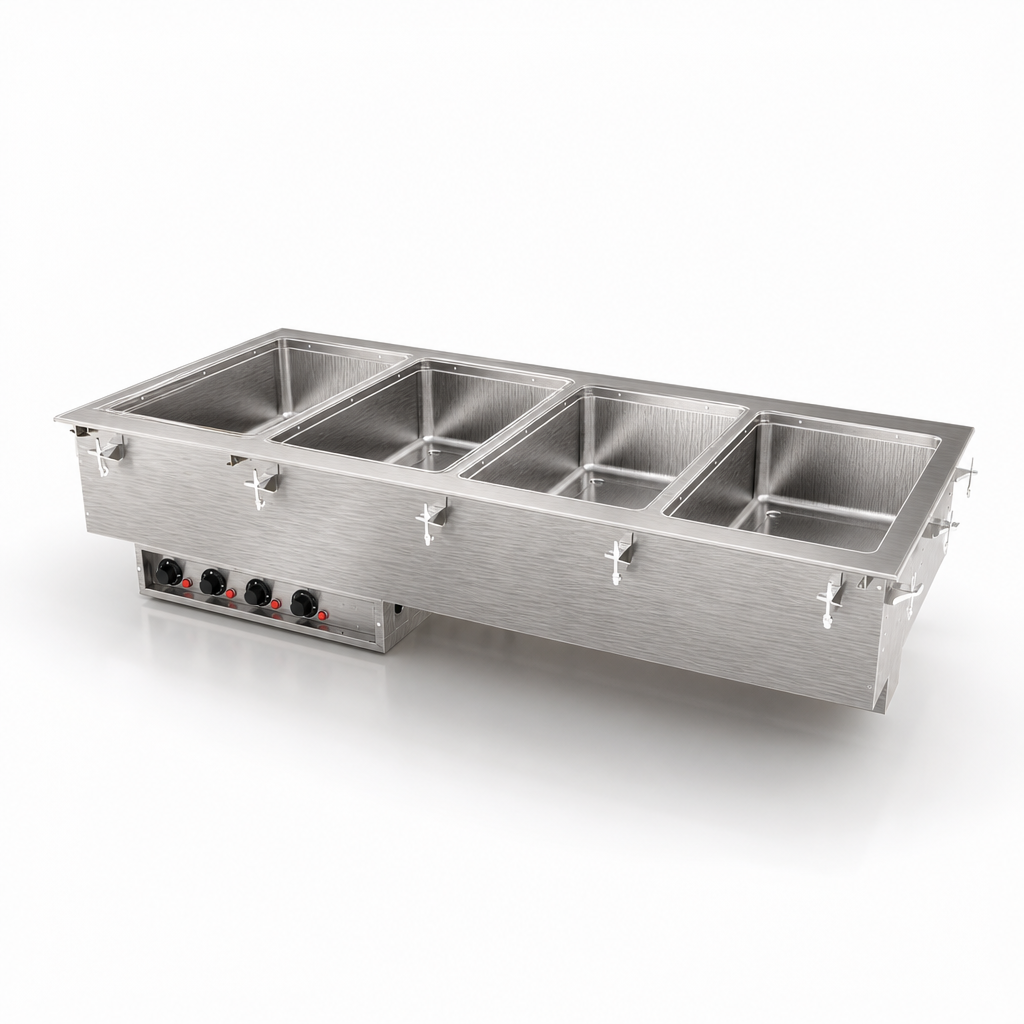

  • Four 12" × 20" wells, 20-ga 316 stainless steel – unmatched corrosion resistance.
  • Wet-heat only design with automatic water level control for consistent, even heating.
  • Remote stainless control panel (4 ft tether) with separate infinite dial & pilot light for each well.
  • 1" copper manifold drain with individual ball valves and master shut-off – drain one well or all four.
  • Drip-free mounting flange and full perimeter insulation for a spotless, energy-efficient installation.
  • Ships ready to drop in: gasket, positioning clips and 6 ft cord with NEMA 6-15P included.
  • Zero-clearance, top-mount design fits counters up to 3" thick; accepts pans up to 6" deep.
  • NSF 4 & cULus listed, proudly Made in the USA and backed by a 2-year warranty.

Perfect for

  • Institutional cafeterias & K-12 serving lines
  • Hotel, casino & resort buffets
  • Super-yachts, cruise ships and coastal foodservice
  • Convenience stores, delis & grab-and-go stations

Technical Specifications

Number of wells (4) full-size 12" × 20" (GN 1/1) – up to 6" (15.2 cm) deep
Total power 2,500 W (625 W per well)
Electrical 240 V / 60 Hz / 1-ph • 10.4 A • 6 ft cord with NEMA 6-15P
Controls Individual infinite switches with power-on indicator lights
Operation Wet heat only • Auto-fill (field water connection required)
Drain system 1" copper manifold drain, individual well shut-offs & master shut-off
Construction 20 ga 316 SS wells • 18 ga SS top • Insulated stainless housing
Overall dimensions 54 ¾" W × 26" D × 21 ½" H (139.1 × 66 × 54.6 cm)
Cut-out size 54" W × 25 ¼" D (137.2 × 64.1 cm) • 7/8" (2.2 cm) corner radius
Certifications NSF 4, cULus
Warranty 2-year parts & labor (see VollrathFoodservice.com for details)
Important: This drop-in is built to order and must be operated with water in the wells. Orders cannot be cancelled or returned once placed.

Need a sheet-pan adapter? Add Vollrath item 19186.
Looking for thermostatic controls or other voltages? Contact us for a custom quote.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

54.75in

Depth

26.0in

Shipping Weight

188.0lbs

Controls

infinite controls

Style

individual pans

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2500 watts, 240v/60/1-ph, 10.4 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
