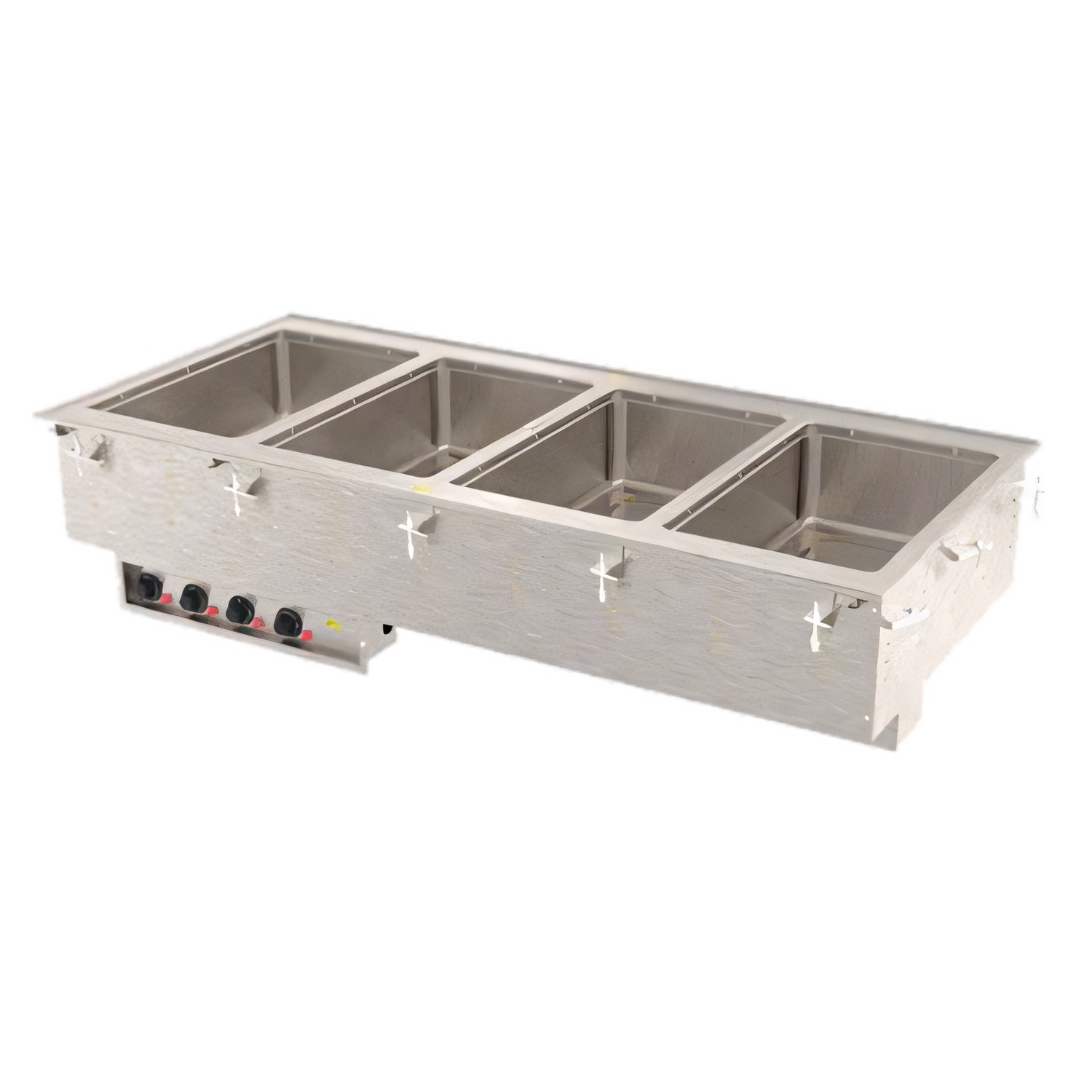

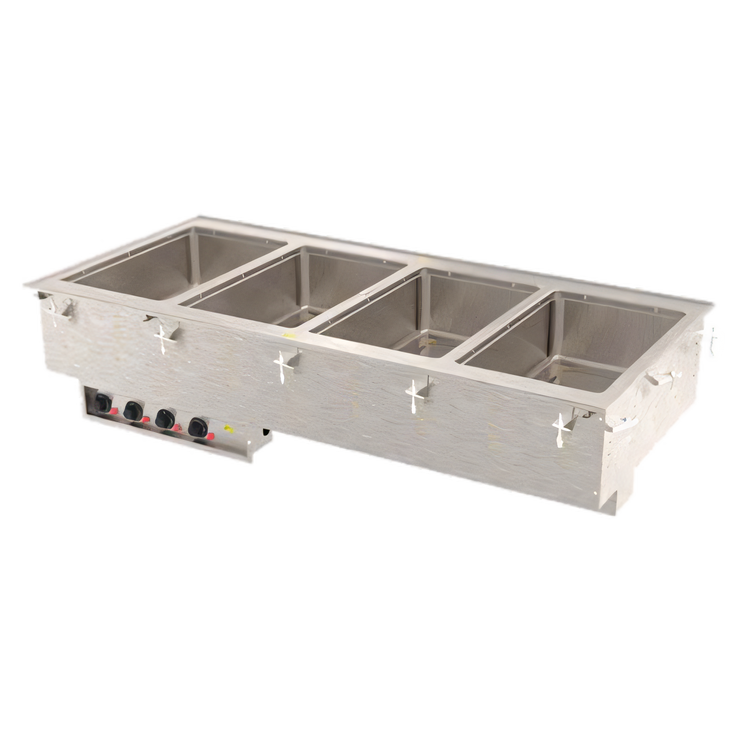

Vollrath 3647460 Steam Tables & Food Wells
Description

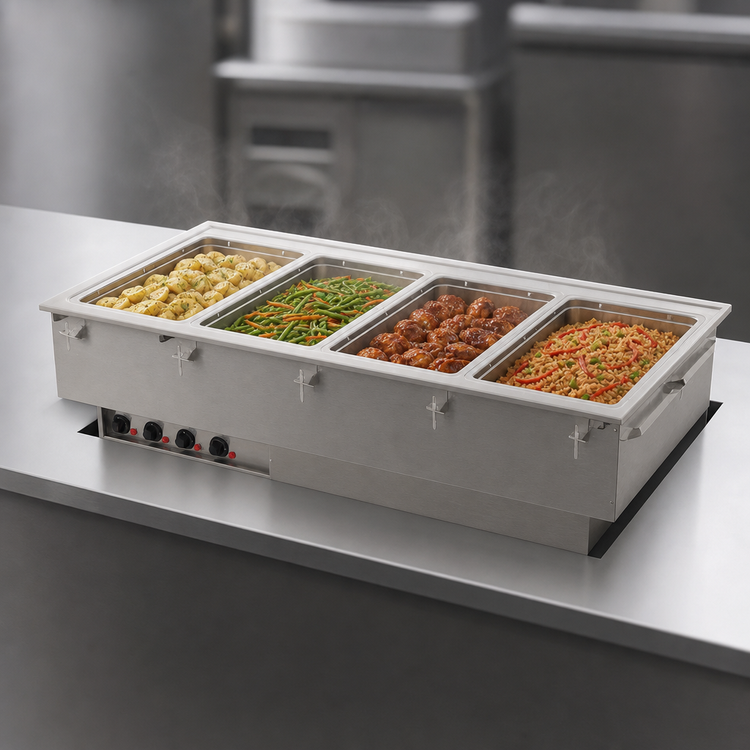

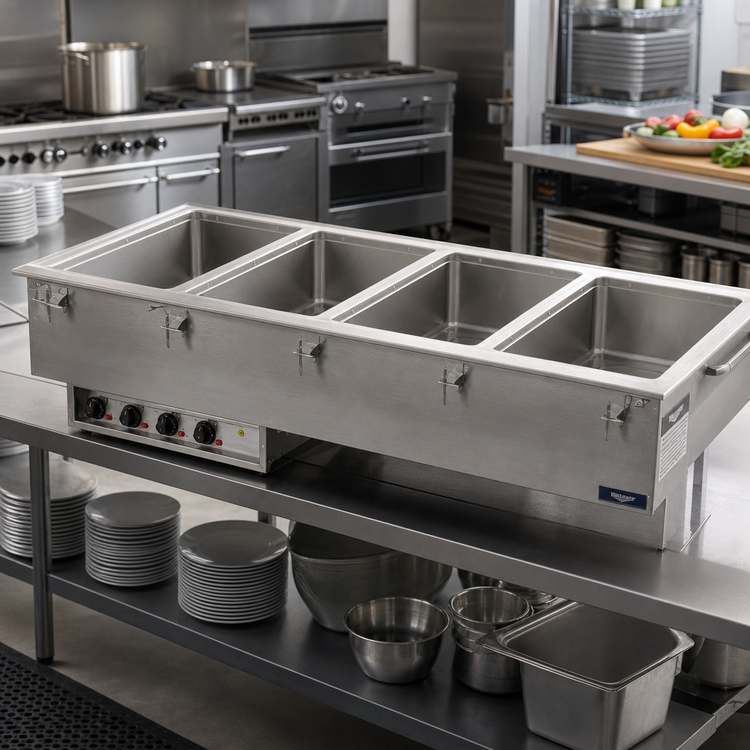

Vollrath 4-Well Auto-Fill Drop-In Hot Food Well – 240 V
Manifold Drain • Infinite Controls • 2,500 W Total OutputKeep four full-size hotel pans at perfect serving temperature with this U.S-made, self-contained drop-in from Vollrath. The auto-fill system maintains a consistent water level, while individual infinite controls give each well its own holding zone— all without the need for hard-wiring.
Key advantages

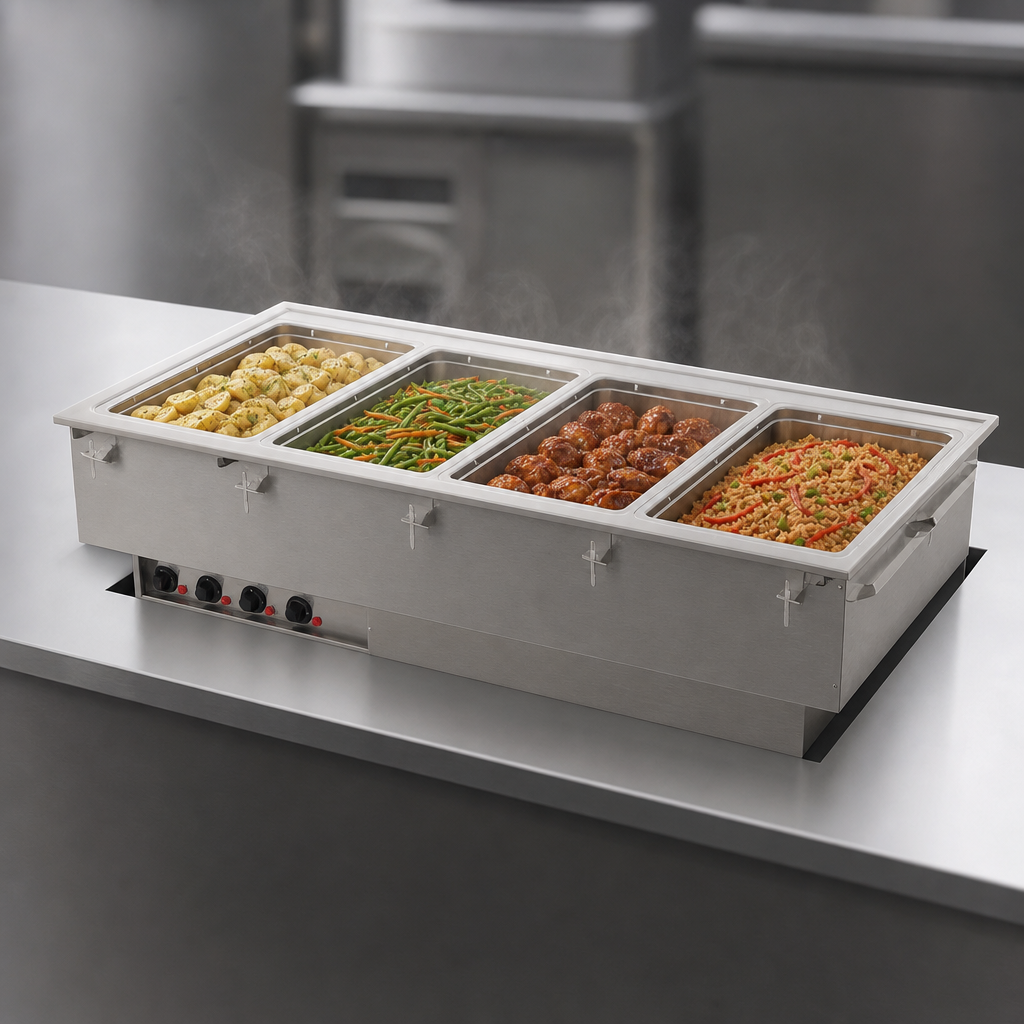

- Four independent 12" × 20" stainless steel wells, fully insulated on every side for energy-efficient, even heat.
- Integrated auto-fill keeps the water bath at the optimal level—no more manual refilling or temperature swings.
- 1" copper manifold drain with individual ball-valve shutoffs plus master shutoff for speedy, drip-free cleanup.
- Rugged 18 ga stainless steel top and 20 ga drawn wells stand up to constant commercial use.
- Separate panel-mounted infinite controls with power indicator lights put precise holding temps at your fingertips.
- Ships with a 6' cord and NEMA 6-15P plug—install without an electrician.
- Includes gasket and mounting clips for zero-clearance installation in counters up to 3" thick.
- Accepts full-size or fractional pans up to 6" deep; adapter bars available.
- NSF 4 & cULus listed; proudly made in the USA.
At-a-glance specs
| Number of wells | 4 (wet operation only) |
|---|---|
| Well size | Full-size 12" × 20" (GN 1/1) |
| Controls | 4 × infinite, panel-mounted (tethered) |
| Total wattage | 2,500 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-ph • 10.4 A • NEMA 6-15P cord & plug |
| Overall dimensions | 54-3/4" W × 26" D × 21-1/2" H |
| Counter cut-out | 54" W × 25-1/4" D, 7/8" corner radius required |
| Top material | 18 ga 300-series stainless steel with drip-free flange |
| Well material | 20 ga 300-series stainless steel |
| Exterior housing | 18 ga galvanized steel |
| Drain system | 1" copper manifold, individual & master shutoffs |
| Included | Mounting clips, gasket, 6' cord |
| Certifications | NSF, cULus |
| Origin | Made in USA |
Modular drop-ins cannot be canceled or returned. Refer to vollrathfoodservice.com for complete installation guidelines and full warranty policy.
