Vollrath  |  SKU: 3647450HD

Vollrath 3647450HD Steam Tables & Food Wells

$3,872.65
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

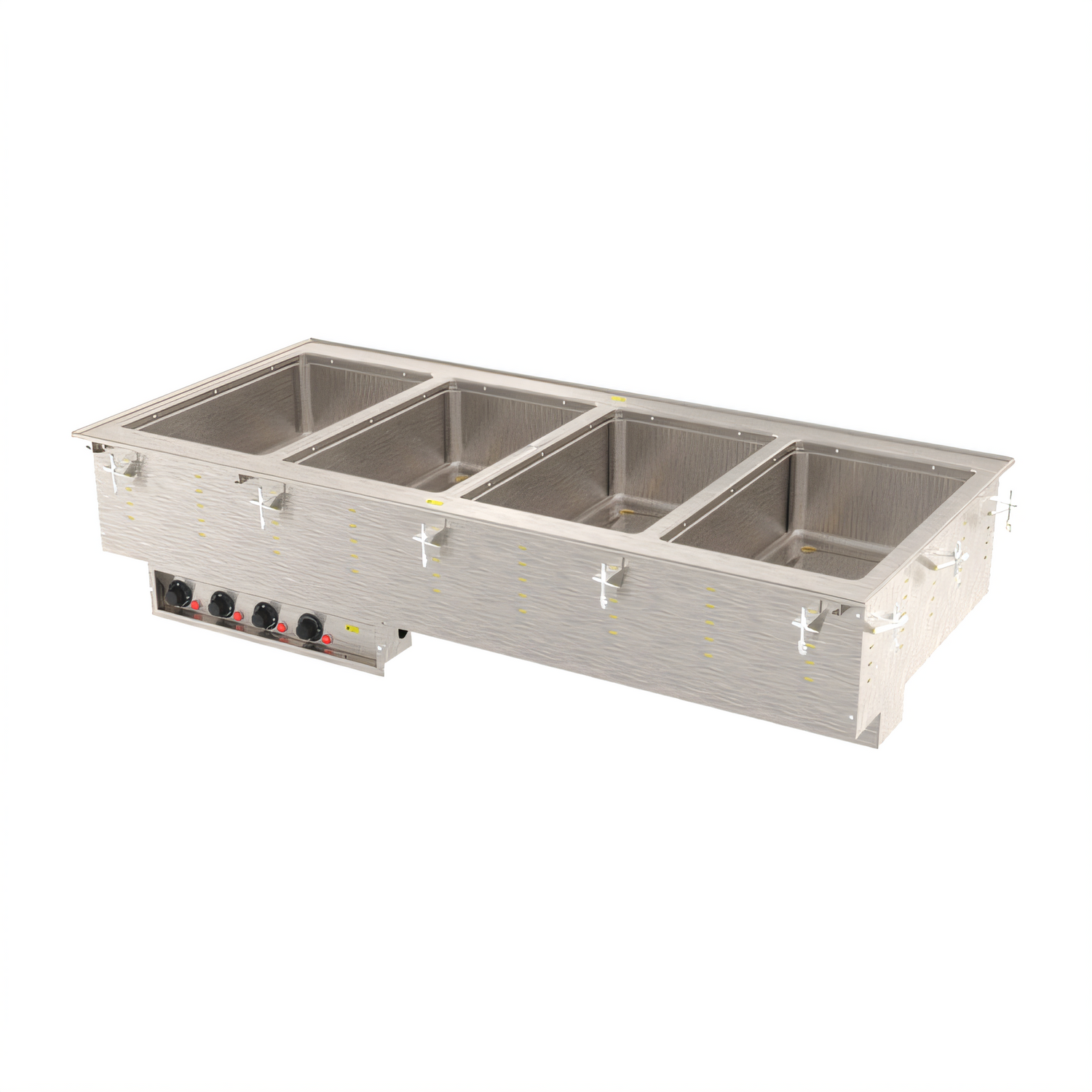

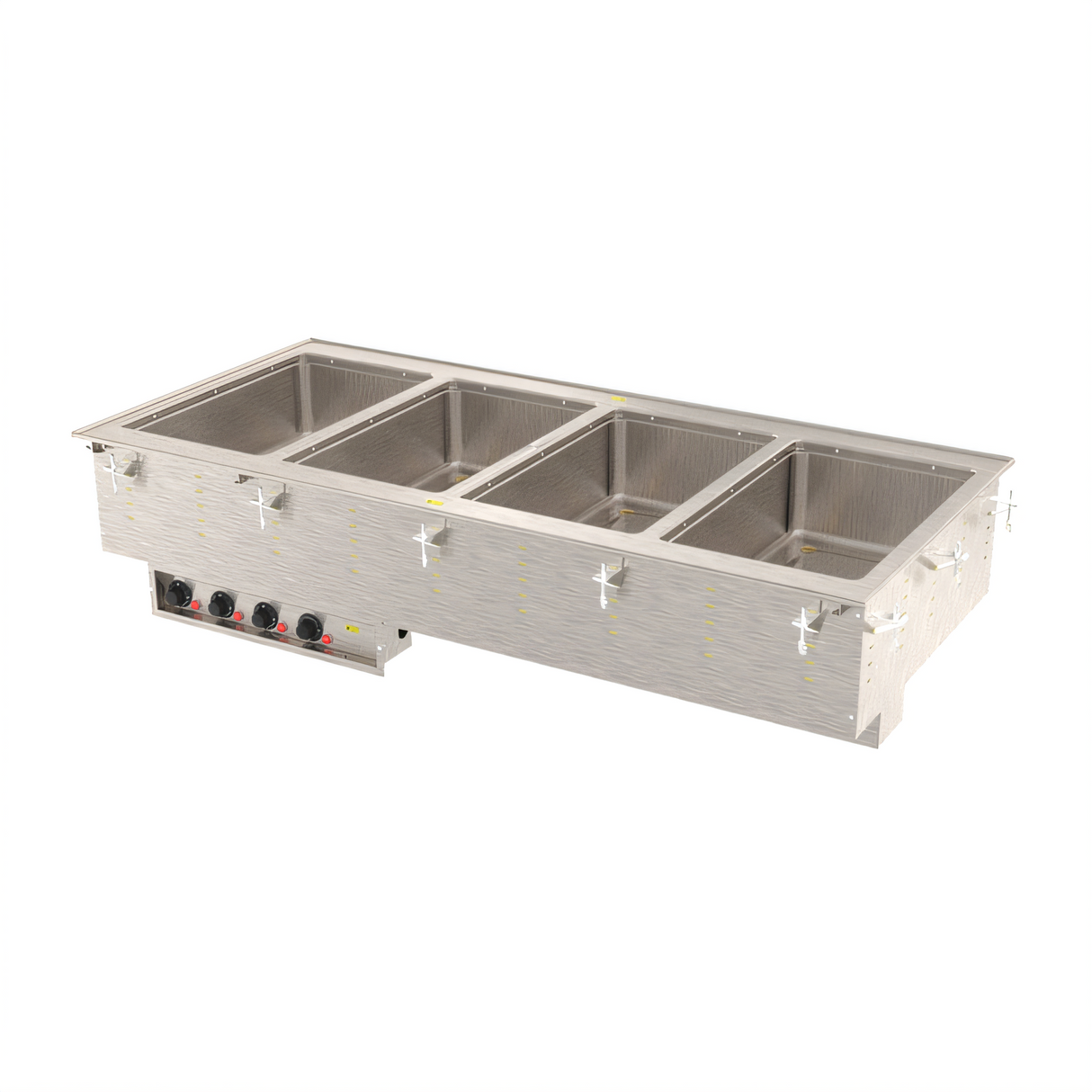

Vollrath 4-Well Modular Hot Drop-In with Marine-Grade Wells – 240 V

Model 36474HD · 625 W per well · Infinite Controls

Built for demanding commercial kitchens and corrosive coastal environments, this Made-in-USA drop-in unit holds four full-size pans at safe serving temperatures while delivering the durability and easy installation you expect from Vollrath.

Key Features

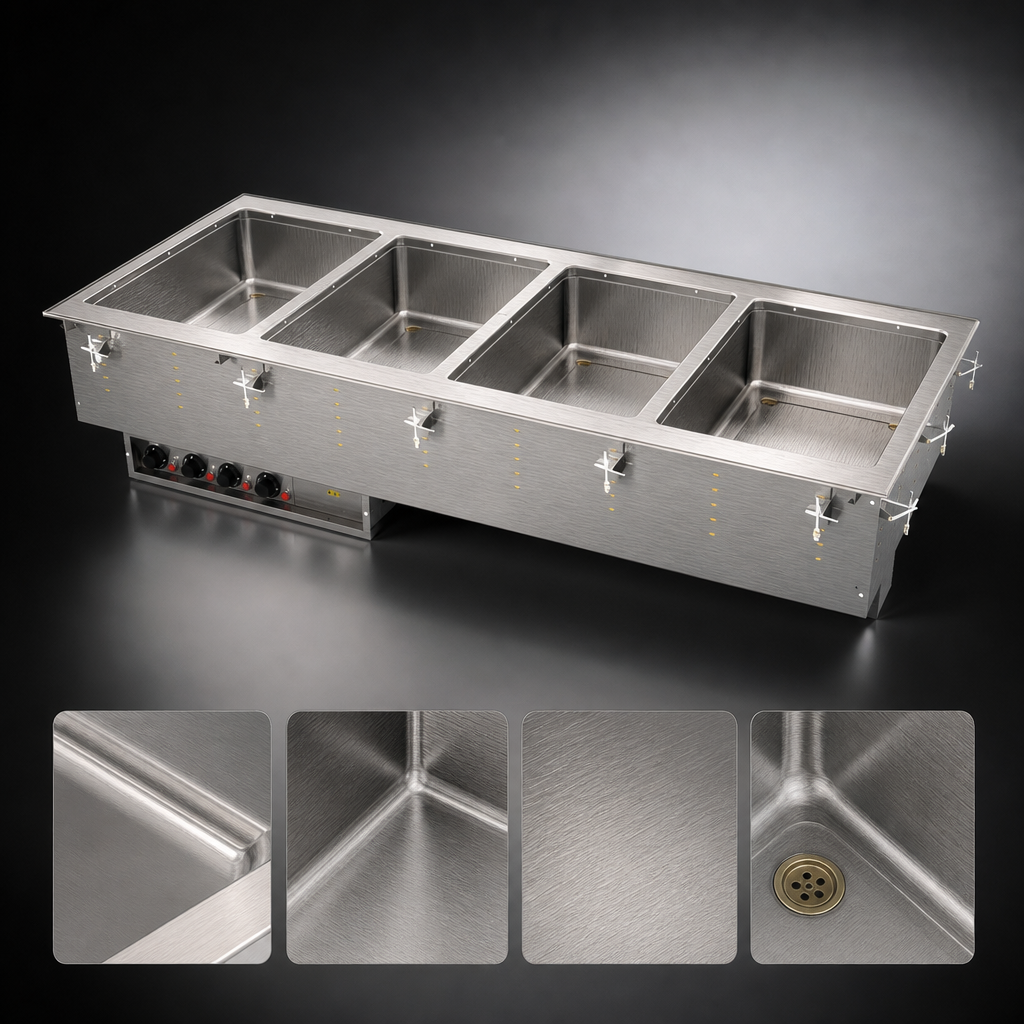

  • Four independently controlled 12" × 20" drawn wells made from 20-gauge 316 marine-grade stainless steel.
  • Wet-only operation meets NSF 4 performance standards for even, gentle heat.
  • Individual infinite control knobs with power indicator lights for precise holding of each well.
  • Factory insulation on all sides—including between wells—for superior energy efficiency.
  • 1" copper manifold drain with master shut-off plus ½" ball valves at each well for fast, drip-free draining.
  • Drip-free top flange and included under-counter gasket provide a sanitary, flush fit.
  • Rugged 18-gauge stainless-steel top and full stainless exterior housing.
  • Ships ready to plug in—6' cord with NEMA 6-15P eliminates hard-wiring.
  • Mounting/positioning clips included for counters up to 3" thick; zero-clearance design saves space.
  • NSF listed, cULus certified, backed by a 2-year Vollrath warranty.

Ideal Applications

  • Buffets, cafeterias & supermarkets
  • Marine galleys and coastal venues
  • Convenience stores & concession stands
  • Any operation needing four independent hot wells in a single cut-out

Specifications

Overall dimensions 54 ¾" W × 26" D × 21 ½" H (139.1 × 66 × 54.6 cm)
Cut-out required 54" W × 25 ¼" D (137.2 × 64.1 cm) with 7/8" (2.2 cm) corner radius
Well size (each) 12" × 20"; accepts pans up to 6" deep
Material – wells 316 marine-grade stainless steel, 20 ga
Material – top 18 ga stainless steel
Operation Wet only
Controls 4 × infinite; remote stainless panel with 4' tether
Drain system 1" copper manifold with master shut-off; ½" ball valve at each well
Total wattage 2,500 W (625 W per well)
Electrical 240 V / 60 Hz / 1-ph · 10.4 A · NEMA 6-15P
Certifications NSF, cULus
Country of origin USA
Warranty 2 years parts & labor (see VollrathFoodservice.com for full policy)

What’s Included

  • Vollrath 36474HD four-well drop-in
  • Remote control panel (pre-wired)
  • Mounting/positioning clips & installation gasket
  • Owner’s manual
Important: This unit is designed for wet operation only. Running the wells dry will damage the equipment and void the warranty. Modular drop-in orders cannot be canceled or returned once processed.

Need adapter bars, pans or an auto-fill kit? Contact us for compatible Vollrath accessories to complete your setup.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

54.75in

Depth

26.0in

Shipping Weight

160.0lbs

Controls

infinite controls

Style

individual pans

Wet or Dry operation

wet

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2500 watts, 240v/60/1-ph, 10.4 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
