Vollrath  |  SKU: 3647450

Vollrath 3647450 Steam Tables & Food Wells

$3,281.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

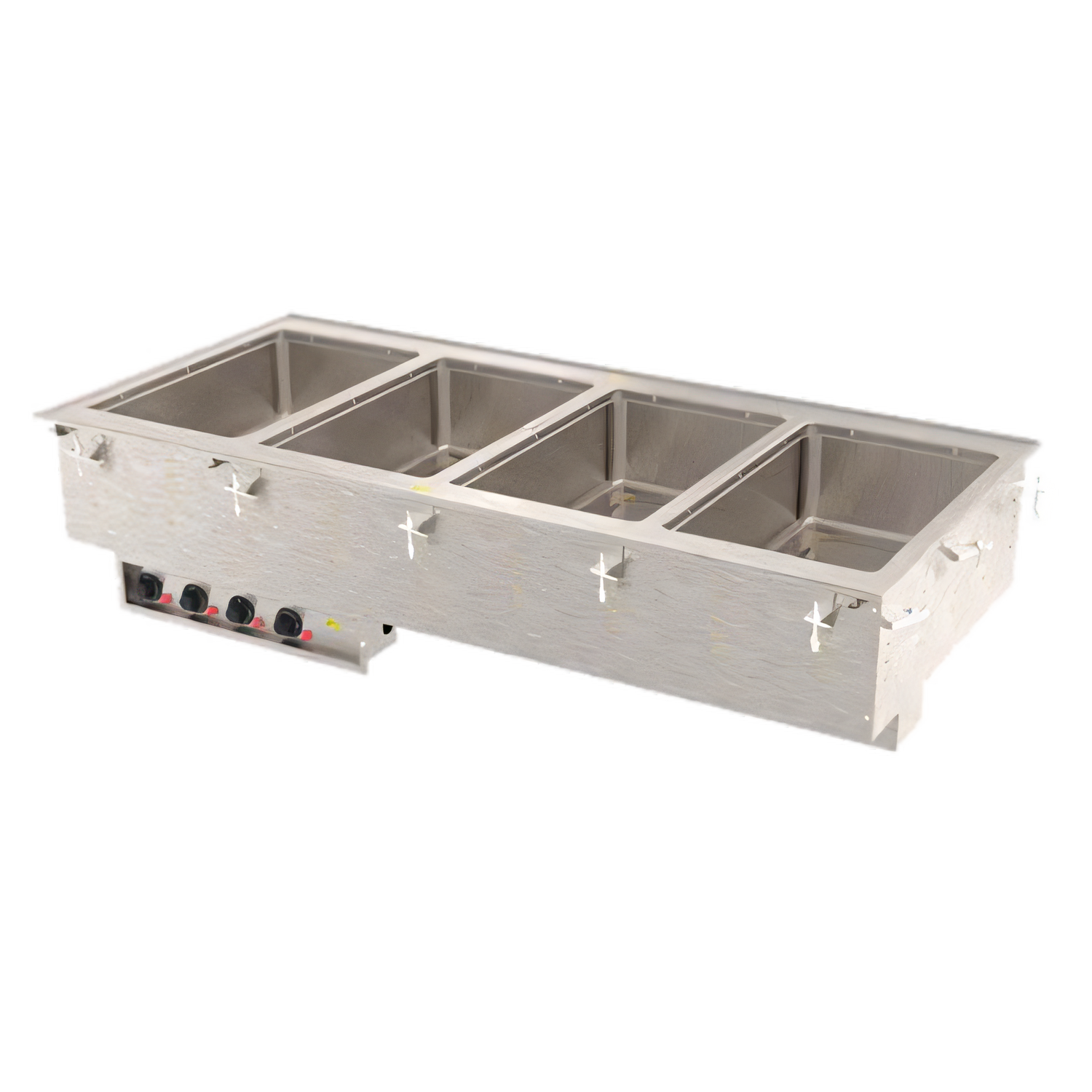

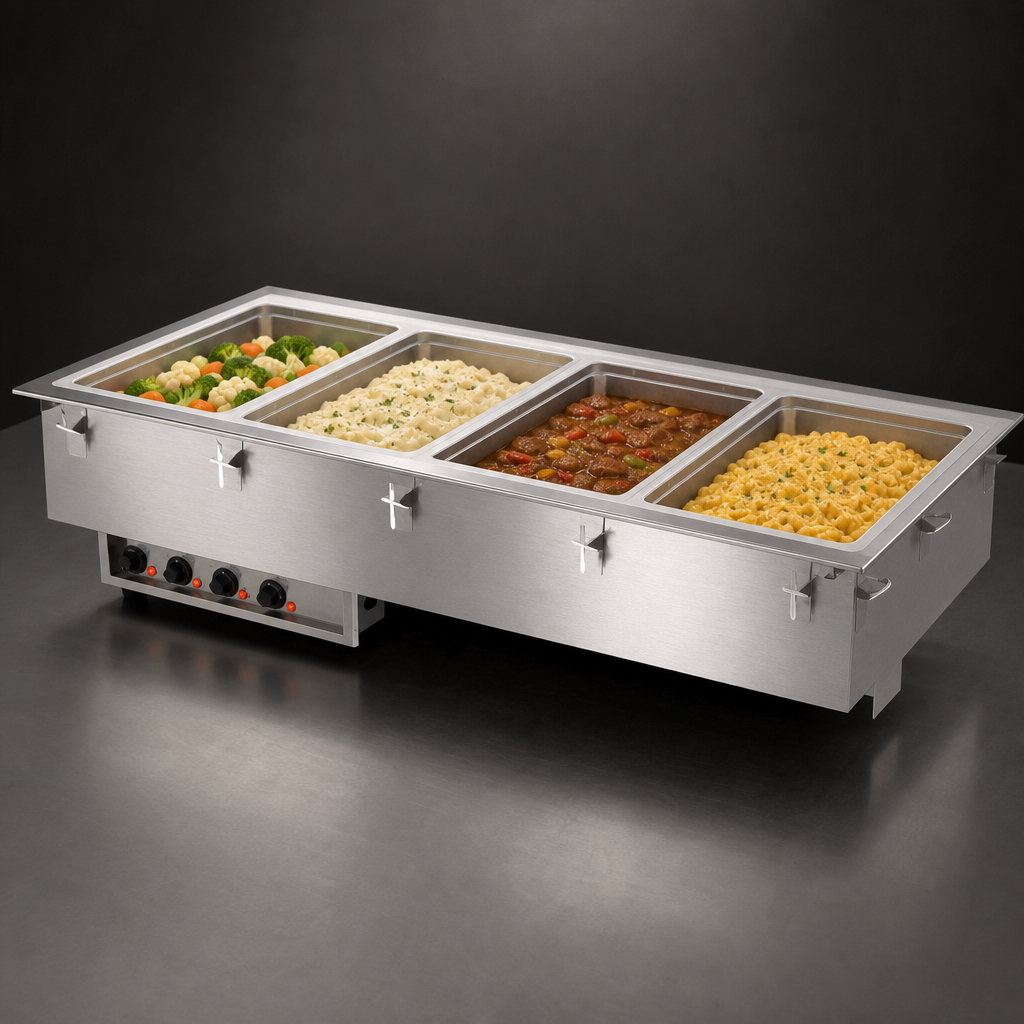

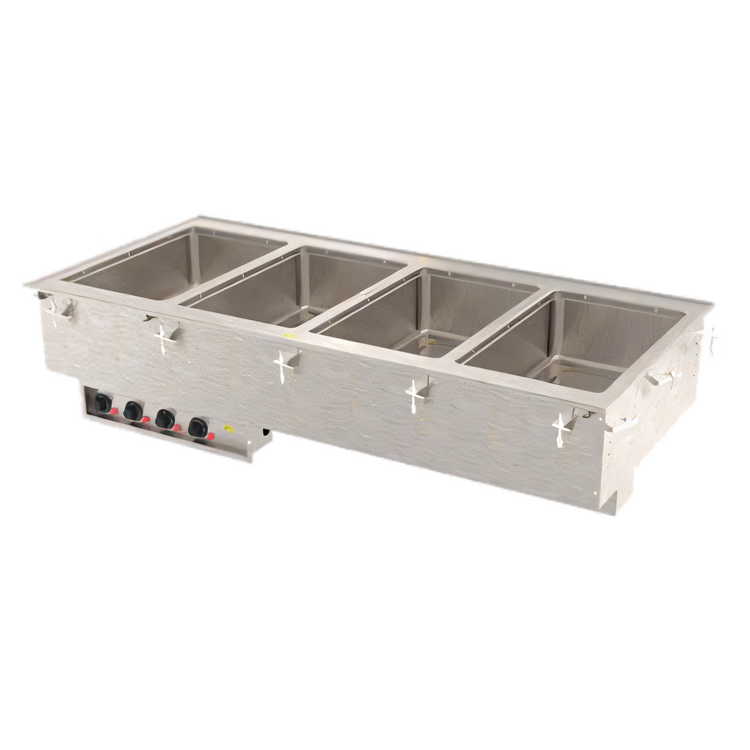

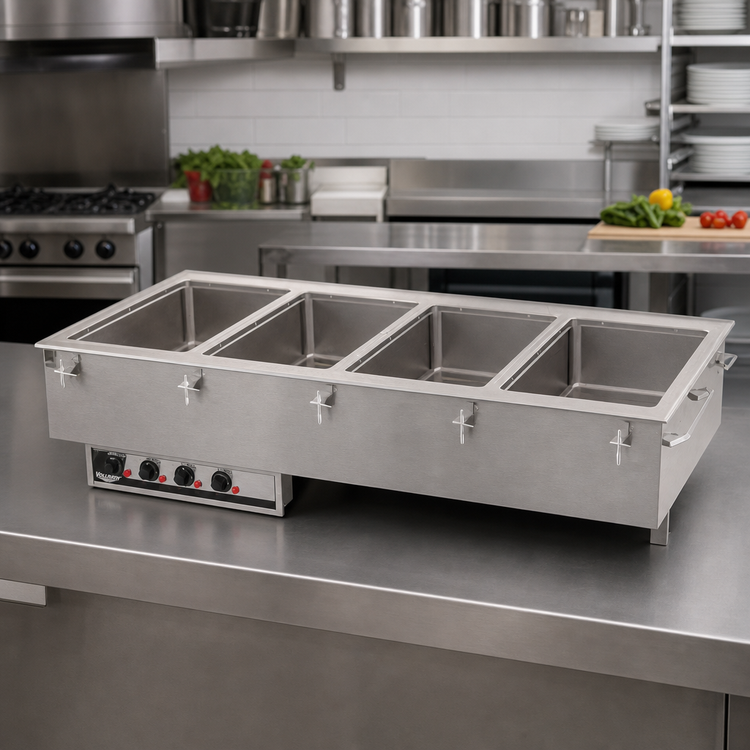

Vollrath 4-Well Drop-In Hot Food Well, 240 V

625 W per well • Infinite Controls • Manifold Drain

Built for busy buffets, cafeterias and serving lines, this Vollrath electric drop-in keeps four full-size pans of food at safe, appetizing temperatures. It installs flush with your counter, arrives fully assembled with cord & plug, and requires no hard-wiring—so you’re ready to serve in minutes.

Key Features

  • Four independent 12" × 20" wells (20 ga 300-series stainless) insulated on every side for superior heat retention.
  • Wet operation only for even, gentle heat that meets NSF 4 performance standards.
  • Individual infinite controls with power indicator lights on a 4 ft (121.9 cm) tethered stainless-steel panel—mount where it’s convenient for your staff.
  • 1" copper manifold drain with individual ball-valve shut-offs plus master shut-off for fast, drip-free cleanup.
  • Seamless, gasketed top flange prevents moisture from reaching the counter surface.
  • Rugged construction: 18 ga stainless-steel top, 18 ga galvanized exterior housing.
  • Ships with positioning/mounting clips for counters up to 3" (7.6 cm) thick—zero-clearance installation.
  • 6 ft cord with NEMA 6-15P plug; draws only 10.4 A at 240 V.
  • NSF Listed, cULus certified and proudly Made in the USA.

Specifications

Number of wells 4 (accepts full-size & fractional pans up to 6" deep)
Operation Wet only
Control type Individual infinite (analog) with pilot lights
Total wattage 2,500 W (625 W per well)
Electrical 240 V / 60 Hz / 1-phase, 10.4 A, NEMA 6-15P
Overall dimensions 54-3/4" W × 26" D × 21-1/2" H (139.1 × 66 × 54.6 cm)
Cut-out size 54" W × 25-1/4" D (137.2 × 64.1 cm) • 7/8" corner radius required
Drain 1" copper manifold with individual well shut-offs & master valve
Construction 18 ga stainless top • 20 ga stainless wells • 18 ga galvanized exterior
Included Gasket, mounting clips, tethered control panel, 6 ft cord & plug
Certifications NSF, cULus
Origin Made in USA
Important: Operate with water in each well at all times. Dry use can damage the unit and void the warranty.

Modular drop-ins are built to order and cannot be canceled or returned. Verify cut-out dimensions and electrical requirements before purchasing.

For complete warranty details visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

54.75in

Depth

26.0in

Shipping Weight

165.0lbs

Controls

infinite controls

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(4) full size (12" x 20")

Insulated or Non-Insulated

insulated

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2500 watts, 240v/60/1-ph, 10.4 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
