Vollrath 3647410HD Steam Tables & Food Wells
Vollrath 3647410HD Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3647410HD Steam Tables & Food Wells
Description

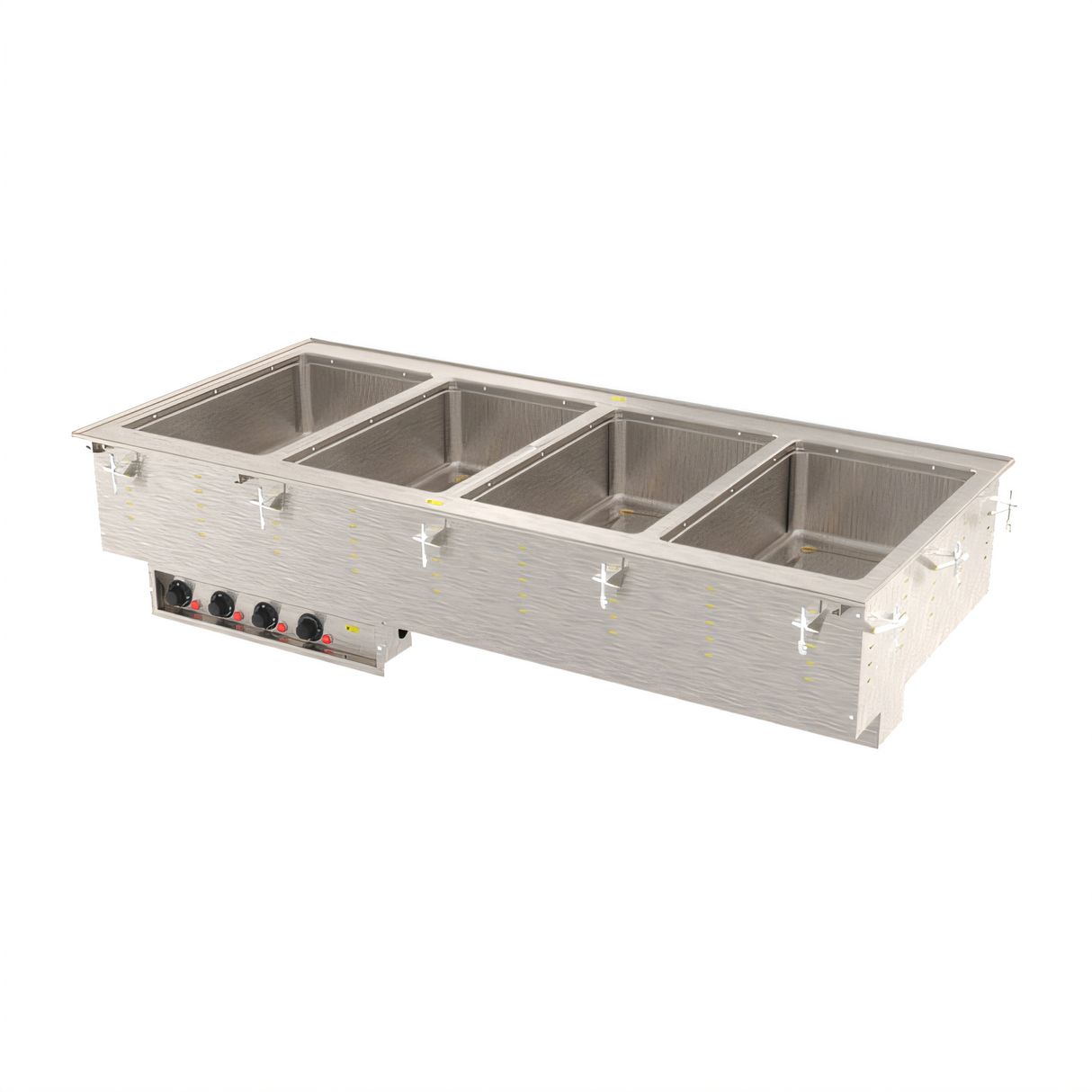

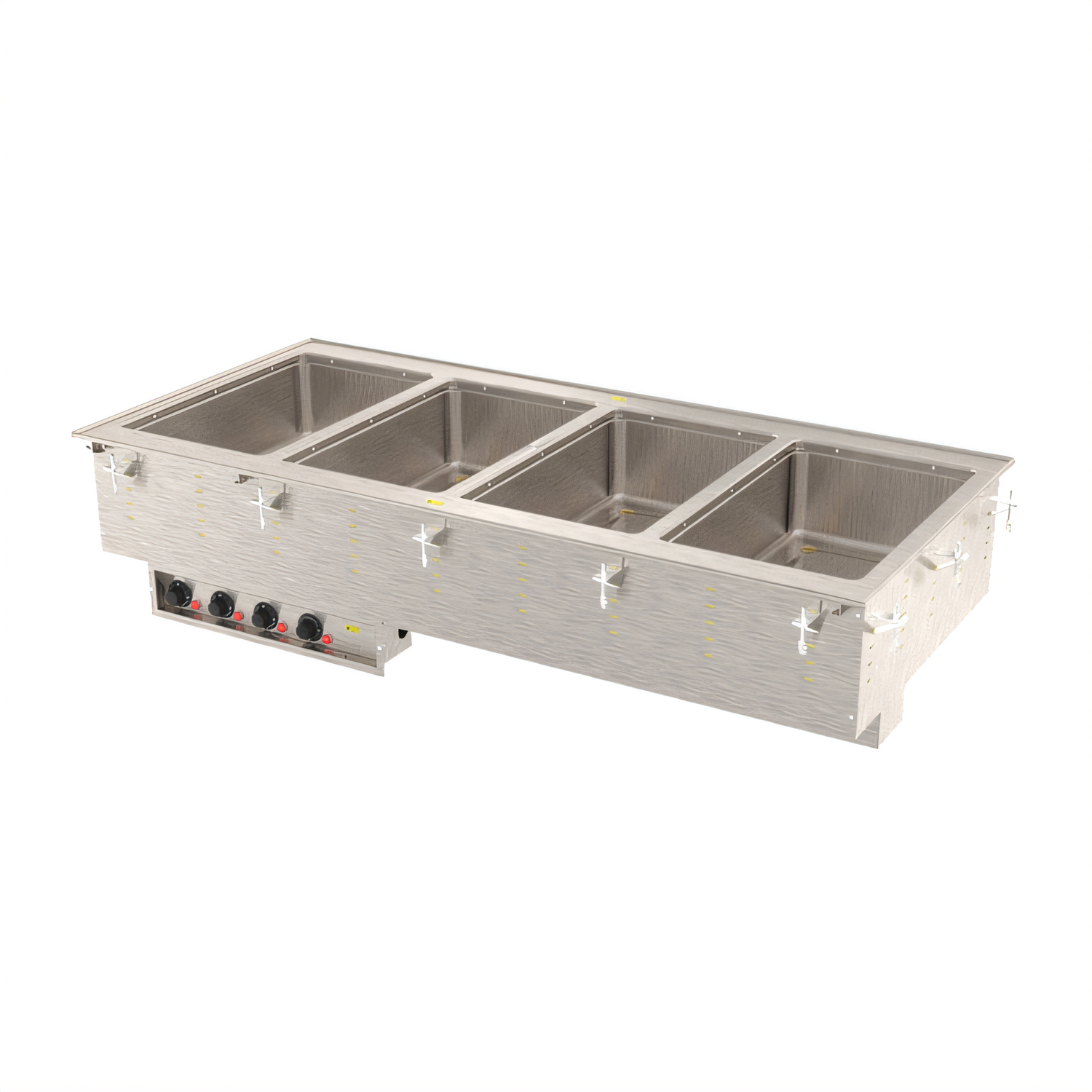

Vollrath 4-Well Marine-Grade Drop-In Hot Food Well
Model 3647410HD | Thermostatic Controls | 240 VDesigned for demanding commercial kitchens, this U.S-made Vollrath drop-in keeps four full-size pans of soups, sauces and sides at safe serving temperatures while standing up to the toughest, most corrosive environments. Independent thermostatic controls, marine-grade wells and a plug-and-play cord set make installation and daily operation remarkably simple.
Why you’ll love it

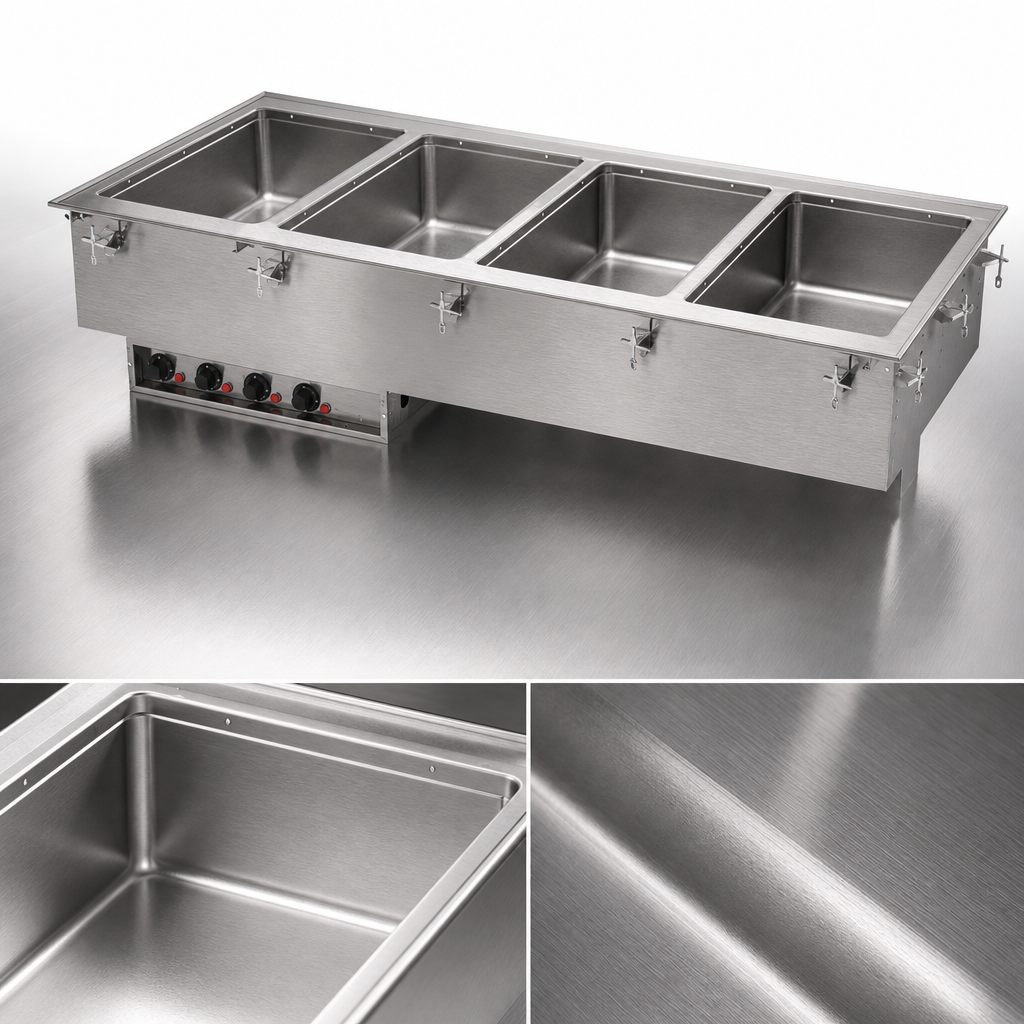

- Marine-grade 316 stainless steel wells resist salt, acid and chemicals for unmatched corrosion protection.
- Four individually insulated wells (12 in × 20 in) accept pans up to 6 in (15.2 cm) deep.
- True wet-heat only design delivers even, gentle heat for superior food quality.
- Independent thermostatic dial for each well with bright power indicator light.
- Drip-free top flange and included mounting clips allow zero-clearance, drop-in installation on counters up to 3 in (7.6 cm) thick.
- ½ in (1.3 cm) ball-valve drain on every well for fast, mess-free water changes.
- 18-gauge stainless top and stainless exterior housing built to endure heavy daily use.
- 6 ft (1.8 m) cord with 6-15P plug—no hard-wiring required.
- NSF 4 & cULus listed for sanitation and safety.
- Backed by Vollrath’s 2-year parts-and-labor warranty.
At-a-Glance Specifications
| Capacity | (4) full-size pans – 6 in (15.2 cm) deep max |
|---|---|
| Overall dimensions | 54 ¾ in W × 26 in D × 15 in H (139.1 × 66 × 38.1 cm) |
| Counter cut-out | 54 in W × 25 ¼ in D (137.2 × 64.1 cm) • ⅞ in (2.2 cm) corner radius |
| Wattage / Amps | 2,500 W • 10.4 A @ 240 V, 60 Hz, 1-phase |
| Heating | 625 W per well (wet operation only) |
| Controls | 4 independent thermostatic knobs on remote stainless panel (4 ft tether) |
| Drain | Individual ½ in ball-valve drains (one per well) |
| Construction | 20-ga 316 stainless wells • 18-ga stainless top • Insulated on all sides |
| Electrical connection | 6 ft (1.8 m) cord with NEMA 6-15P plug |
| Certifications | NSF 4, cULus, Made in USA |
Installation & Use Tips
- Zero-clearance sides let you mount multiple drop-ins flush for a seamless serving line.
- Adapter bars (sold separately) are recommended when using fractional pans.
- Optional sheet-pan adapter (item 19186) allows use of 18 × 26 in pans.
For complete warranty terms, visit the Vollrath website or refer to the documentation shipped with the unit. Orders for drop-ins cannot be canceled or returned once processed.
