Vollrath  |  SKU: 36474

Vollrath 36474 Steam Tables & Food Wells

$2,929.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

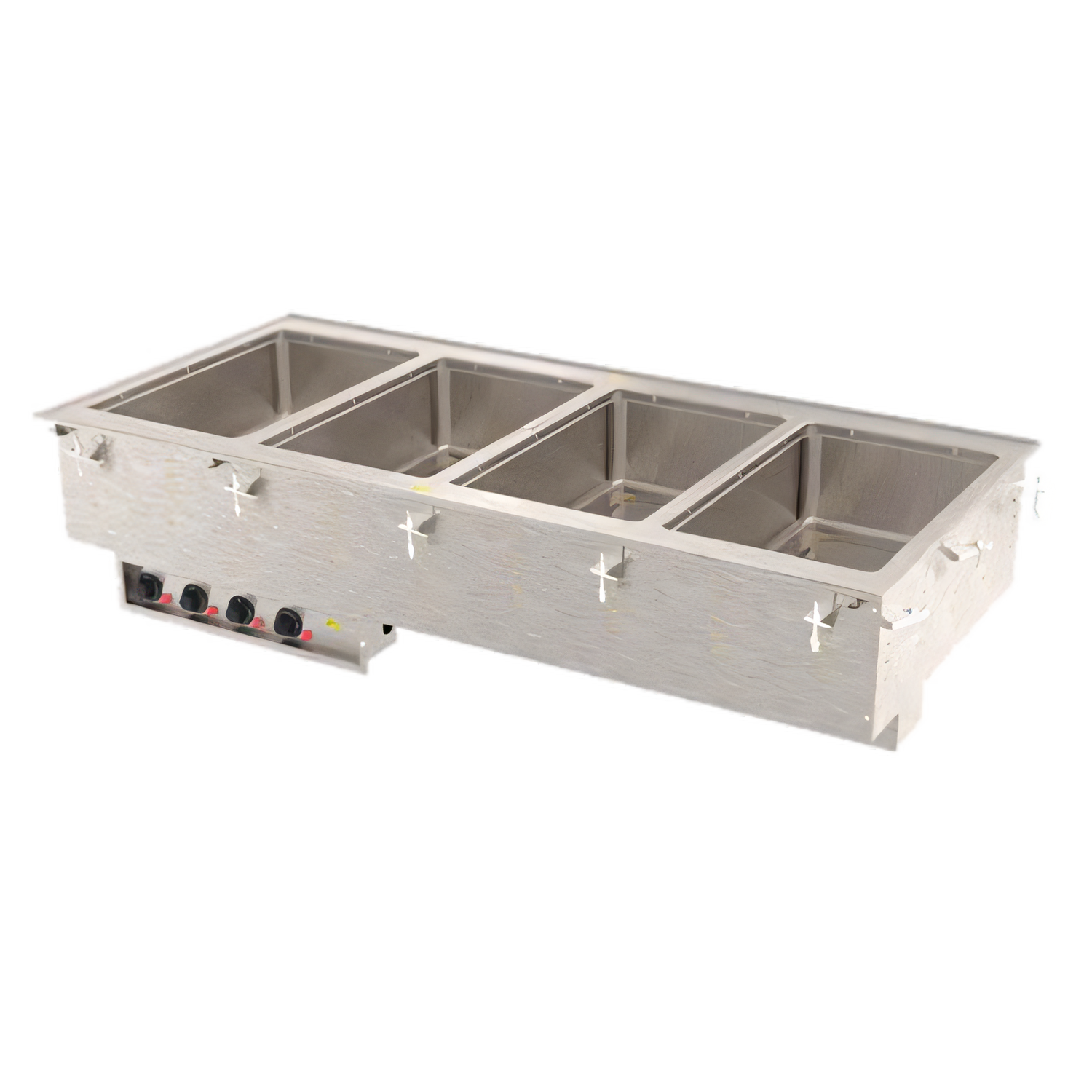

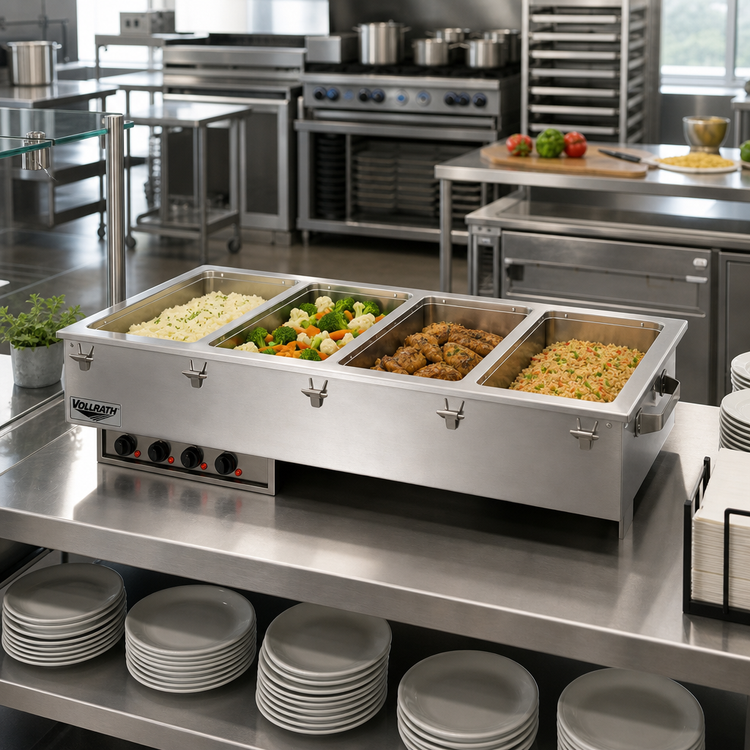

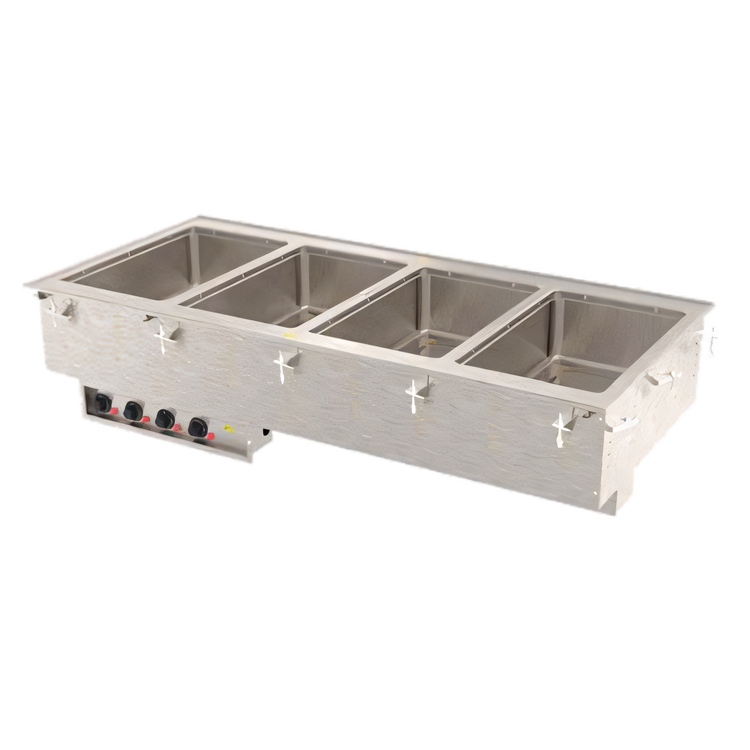

Vollrath 4-Well Drop-In Hot Food Well Unit – 240 V, Infinite Control

Model 36474 | 625 W per well (2.5 kW total)

Hold four different menu items at safe, appetizing temperatures with this NSF-listed, made-in-USA hot food module from Vollrath. Designed for quick top-mount installation, it ships pre-wired with a plug—no hard wiring required—so you can be up and serving in minutes.

Key Features

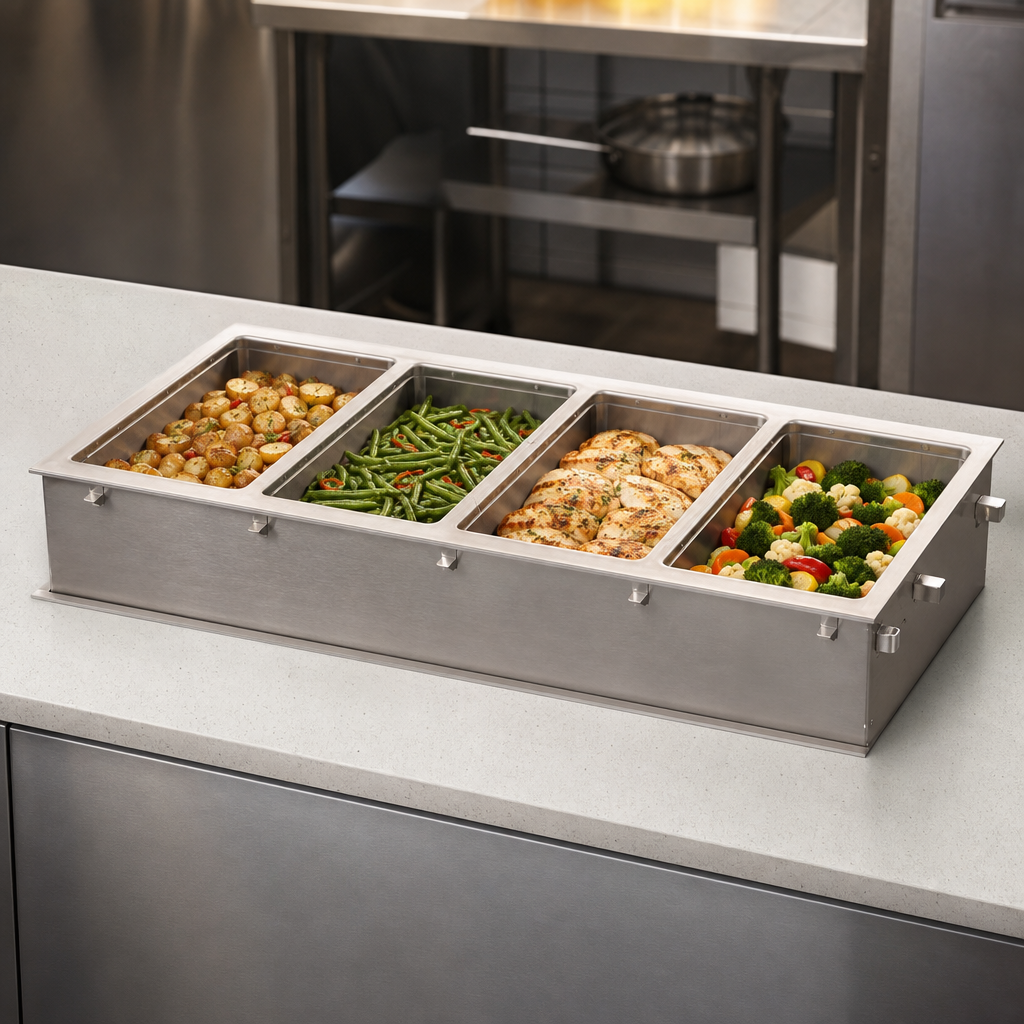

  • (4) independent 12" × 20" wells – 20-gauge, 300-series stainless steel, insulated on every side and between wells.
  • Wet-heat operation only for gentle, even holding that meets NSF 4 performance standards.
  • Individual infinite control knobs with power-on indicator lights let you fine-tune each well separately.
  • Drip-free top flange and included gasket create a sanitary, leak-resistant seal with the countertop.
  • Separate ½" MPT drains with built-in ball valves—empty one well without disturbing the rest.
  • 6 ft (1.8 m) cord with NEMA 6-15P plug – 240 V, 1-phase, 10.4 A.
  • Zero-clearance, flush-mount design with mounting clips for counters up to 3" (7.6 cm) thick.
  • Accepts fractional pans up to 6" (15.2 cm) deep; adapter bars available (Vollrath #19186).
  • Durable 18-gauge stainless steel top and 18-gauge galvanized exterior housing built for heavy commercial use.
  • NSF, cULus listed; proudly manufactured in Sheboygan, Wisconsin, USA.

Specifications

Manufacturer Vollrath
Model 36474 (standard drain, infinite control)
Number of wells 4 individually controlled
Pan capacity Full-size 12" × 20" or fractional pans, up to 6" deep
Operation type Wet heat only
Control style Infinite (one per well)
Electrical 240 V / 60 Hz / 1-phase, 10.4 A, 2.5 kW
Plug NEMA 6-15P (pre-wired 6 ft cord)
Overall dimensions 54-3/4" W × 26" D × 15" H (139.1 × 66 × 38.1 cm)
Counter cut-out 54" W × 25-1/4" D (137.2 × 64.1 cm) – 7/8" (2.2 cm) corner radius
Drain connection (4) ½" MPT with individual ball-valve shut-offs
Construction 20-ga SS wells, 18-ga SS top, 18-ga galvanized exterior
Agency listings NSF 4, cULus
Country of origin United States

For optimal performance and to maintain NSF compliance, keep 1–2 inches of water in each well during operation.

Important: Modular drop-ins cannot be canceled or returned once ordered. Please confirm cut-out size, electrical requirements, and local code compliance before purchasing.

Warranty coverage follows Vollrath’s standard policy. Visit vollrathfoodservice.com for full details.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

54.75in

Depth

26.0in

Shipping Weight

188.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge stainless steel insulated wells, 54-3/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2500 watts, 240v/60/1-ph, 10.4 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
