Vollrath 36473HD Steam Tables & Food Wells
Description

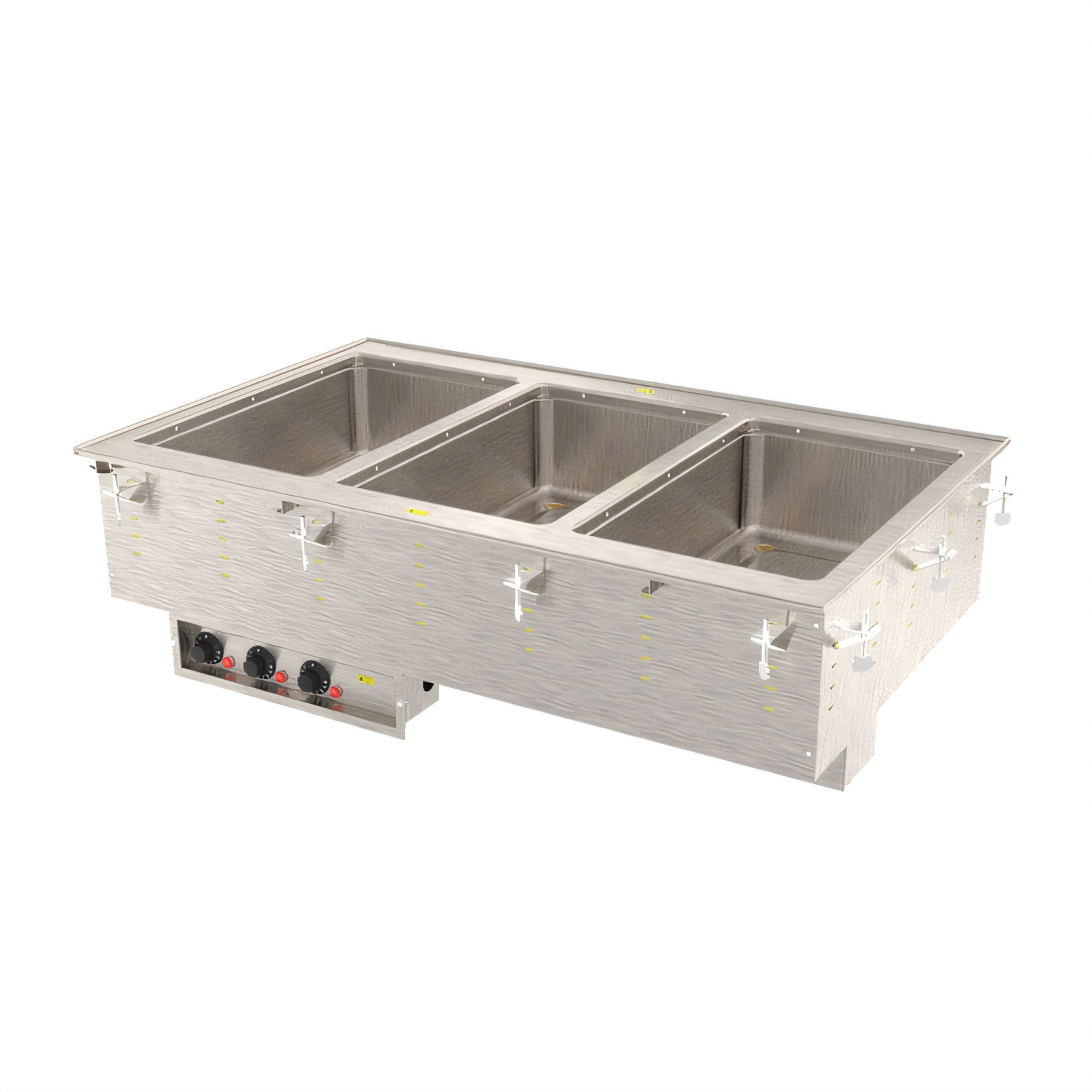

Vollrath 3-Well Modular Hot Drop-In – Marine-Grade (240 V)
Keeps three full-size food pans at safe, delicious serving temperatures.Built for high-volume buffets, casinos, cruise ships, and any operation where corrosion resistance and reliability are non-negotiable, this Vollrath hot food well unit delivers consistent wet-heat holding in a space-saving, drop-in design. Three independent 12" × 20" wells made from 20-gauge 316 marine-grade stainless steel protect against aggressive cleaning chemicals and salty environments while ensuring even heat distribution meal after meal.
Key Benefits
- Three individually controlled wells (625 W each) for flexible menu holding.

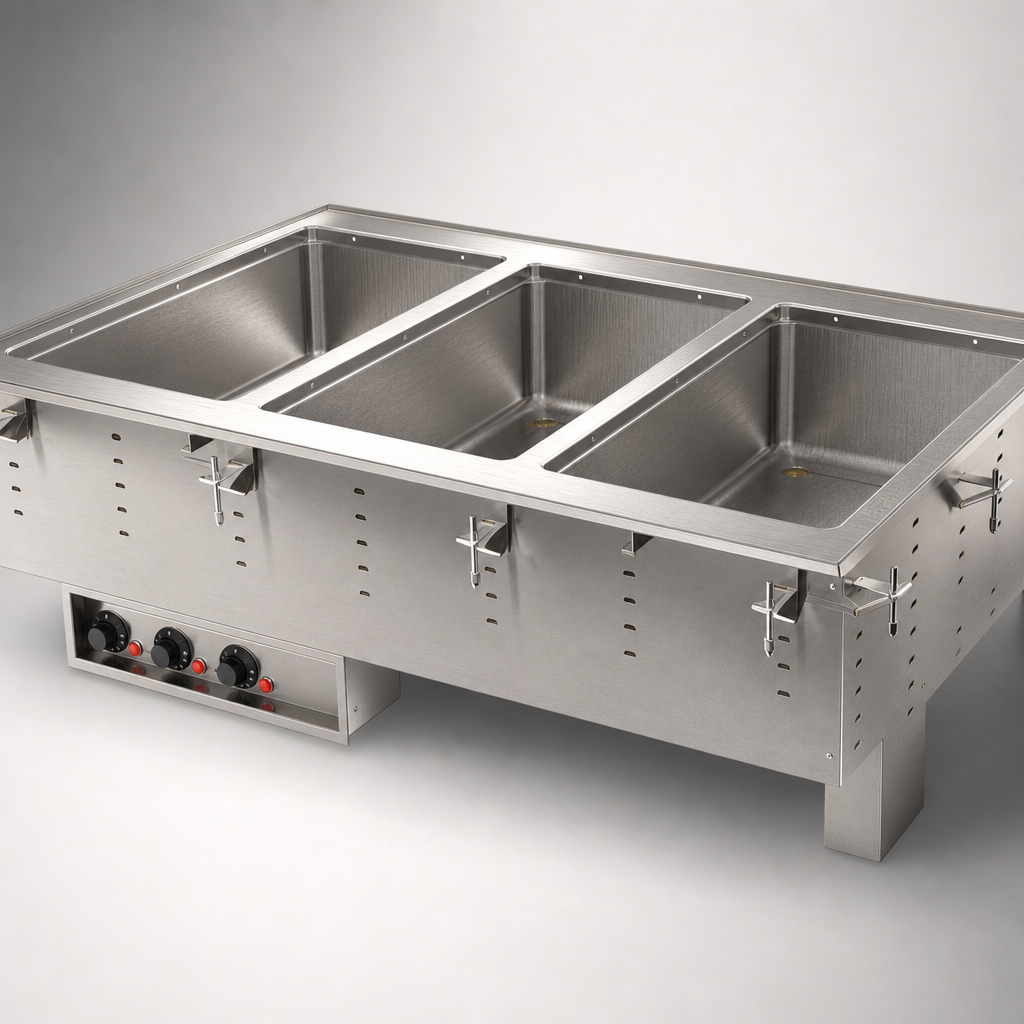

- Marine-grade 316 stainless wells resist pitting, rust, and chloride corrosion.
- Wet operation guarantees gentle, even heat to reduce product waste.
- Insulation on all sides – including between wells – boosts energy efficiency.
- Drip-free flange keeps countertop edges clean and dry.
- ½" NPT drains with individual ball-valve shut-offs speed end-of-day cleanup.
- Heavy-duty 18-gauge stainless steel top and exterior housing stand up to daily abuse.
- 4' tethered stainless control panel with infinite dial for each well & power indicator lights.
- No hard-wiring required – factory-installed 6' cord with NEMA 6-15P plug.
- Zero-clearance installation saves valuable under-counter space.
- Includes stainless positioning / mounting clips for counters up to 3" thick.
- NSF & cULus listed; proudly Made in the USA.
Technical Specifications
| Model | 3-Well Hot Drop-In with Marine-Grade Wells (625 W / well) |
|---|---|
| Overall Dimensions | 41 ½" W × 26" D × 15" H (105.4 × 66 × 38.1 cm) |
| Cut-Out Size | 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) – 7/8" (2.2 cm) corner radius required |
| Well Size (each) | Full-size pan – 12" × 20" (30.5 × 50.8 cm); up to 6" (15.2 cm) deep |
| Power | 1,875 W total, 240 V / 60 Hz / 1-ph, 7.8 A, NEMA 6-15P cord & plug |
| Controls | Three infinite-heat dials with indicator lights (remote panel) |
| Drain | ½" MPT outlet per well with individual shut-offs; 1" copper manifold option available |
| Construction | 20-ga 316 SS wells, 18-ga SS top, stainless exterior housing, fully insulated |
| Certifications | NSF 4 (wet), cULus |
| Origin | Made in USA |
Installation & Environment
- Indoor use only; ambient room temperature & HVAC may affect holding temperature.
- Zero side or rear clearance required.
- Do not modify cord or plug—doing so voids warranty and may cause injury.
What’s in the Box
- Vollrath three-well drop-in unit
- Remote control panel with 4' (121.9 cm) tether
- Factory-installed 6' (1.8 m) cord & NEMA 6-15P plug
- Stainless steel mounting clips & gasket
- Owner’s / installation manual
Certifications & Warranty
NSF & cULus listed. Vollrath backs this drop-in with a two-year limited warranty against defects in materials and workmanship. Refer to vollrathfoodservice.com for the complete policy.
