Vollrath 3647380 Steam Tables & Food Wells

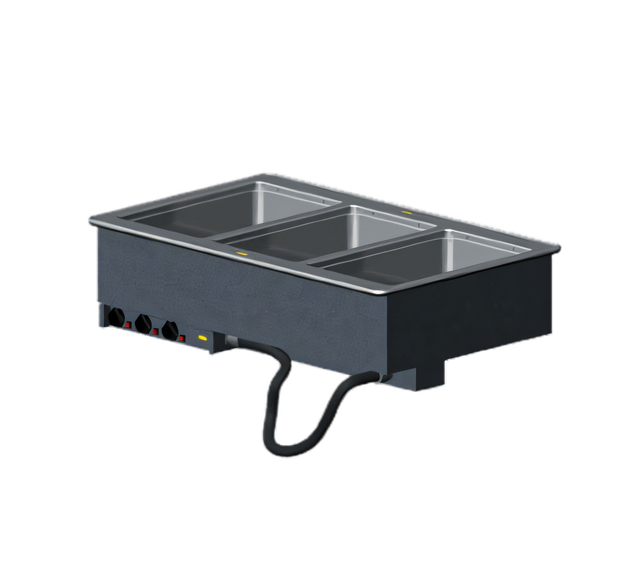

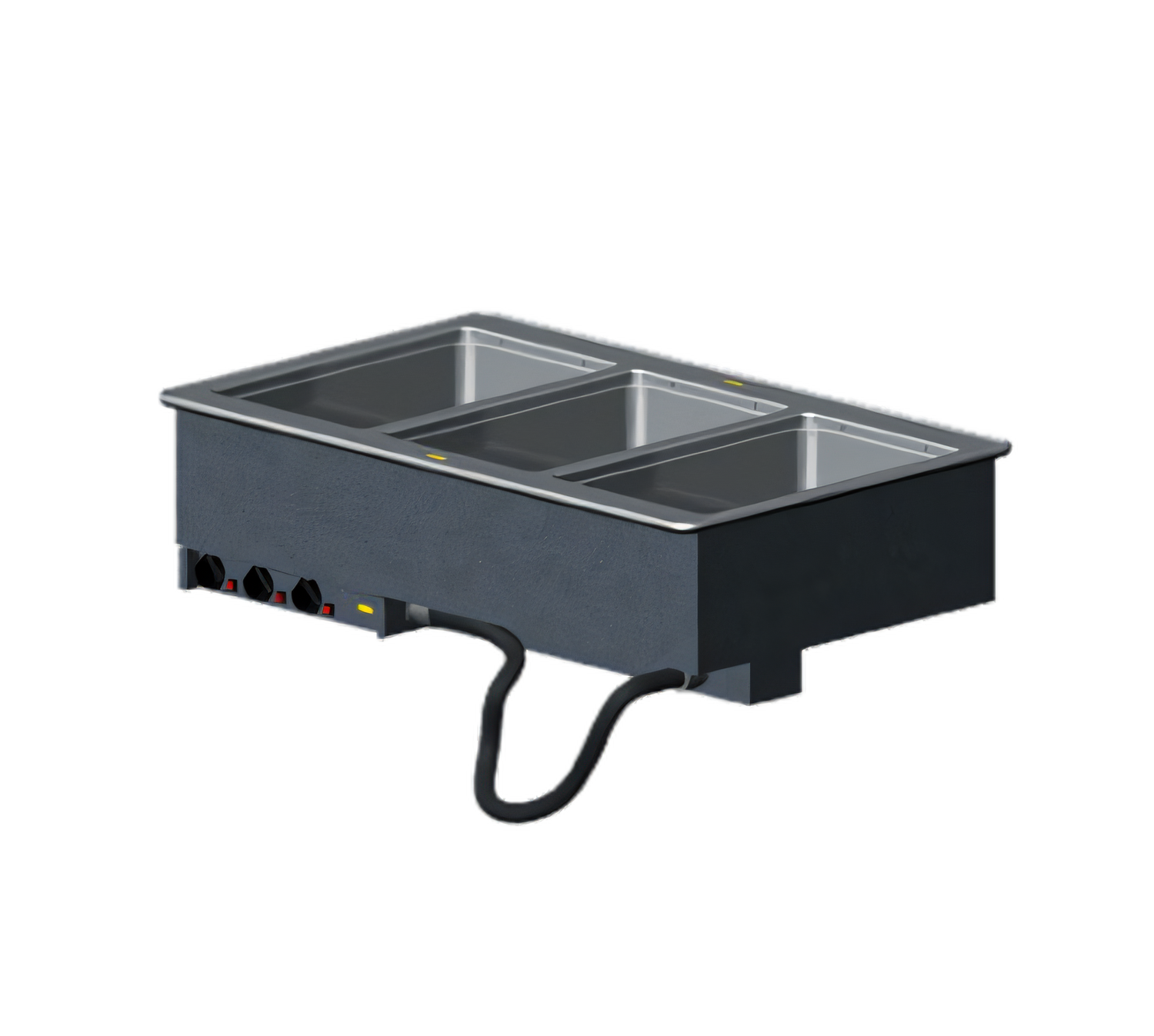

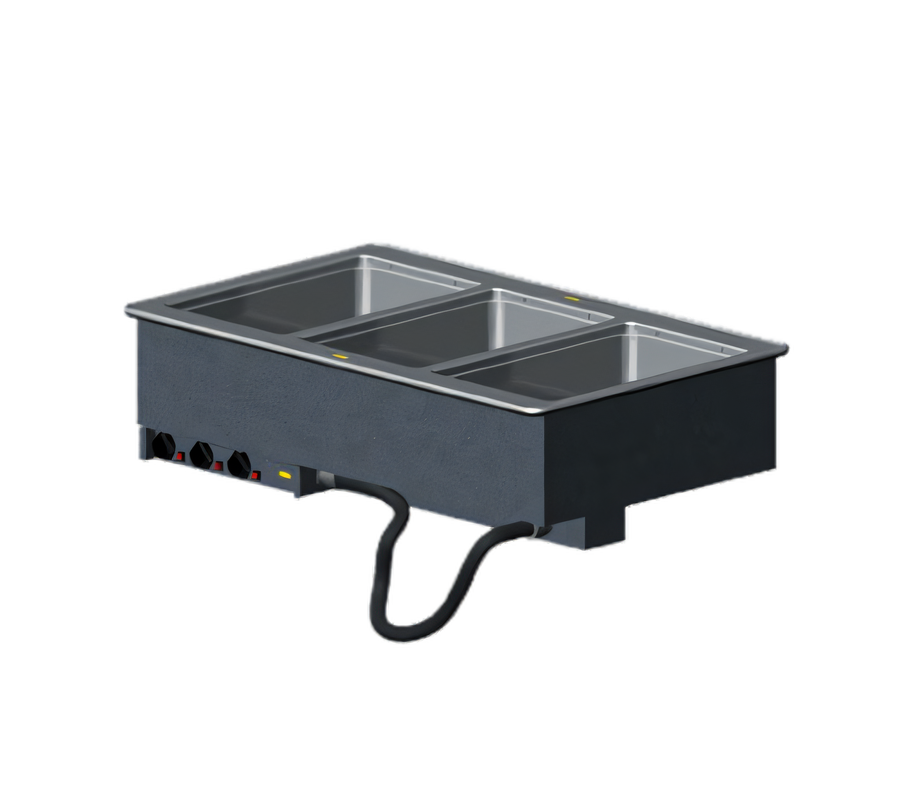

Vollrath 3-Well Auto-Fill Drop-In Hot Food Well – 240 V / 7.8 A

Keep soups, sauces and entrées at a perfectly appetizing temperature without constant babysitting. This Vollrath three-well unit drops neatly into a 40 ¾" × 25 ¼" counter cutout and delivers reliable, wet-heated holding with automatic water refills, individual thermostatic control and a mess-free 1" manifold drain system.

Key Features

• Auto-fill system maintains proper water level automatically – no more dry-well burnouts.

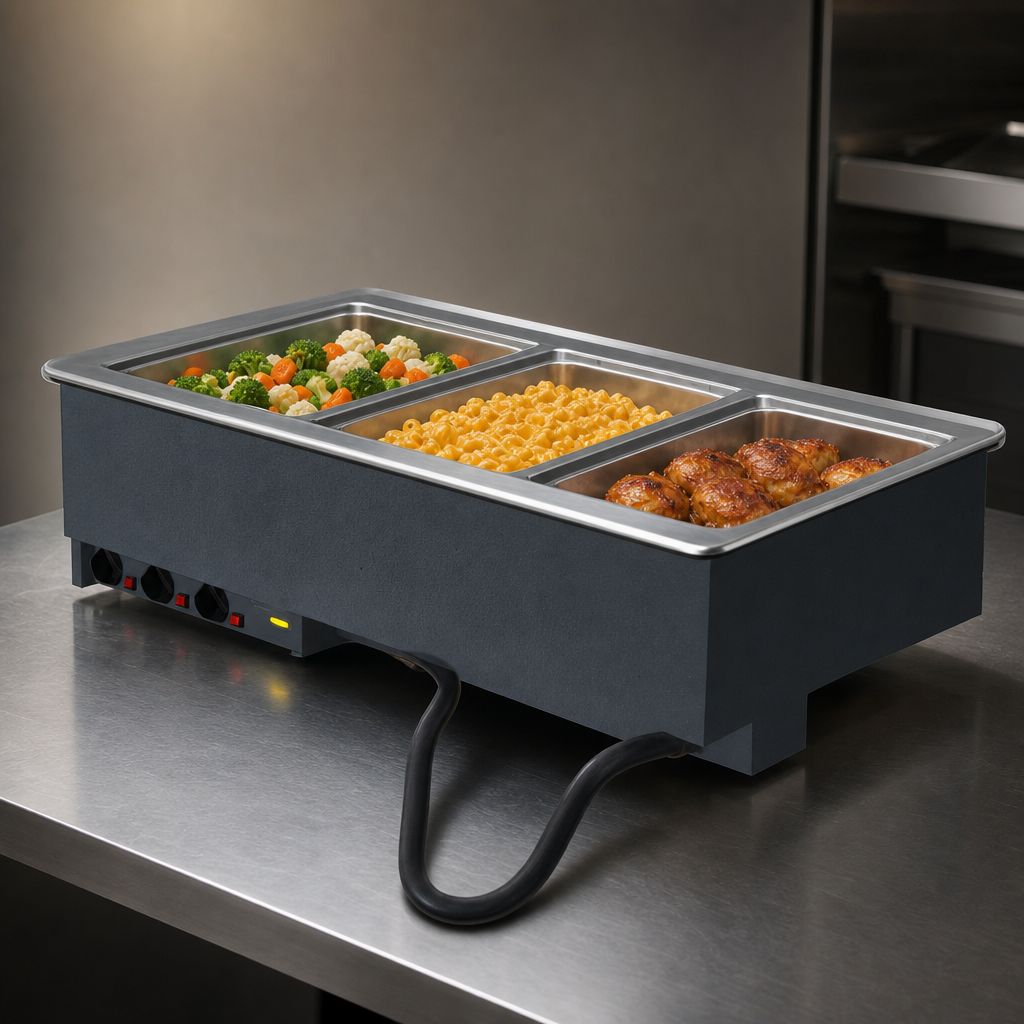

• Three independent 12" × 20" wells (20 ga 300-series stainless steel) accept full-size or fractional pans up to 6" deep.
• Individual thermostatic controls with power indicator lights on a tethered stainless-steel panel (4 ft cord) for flexible mounting.
• 625 W per well / 1 875 W total delivers fast recovery and even heat.
• 1" copper manifold drain with ball-valve shut-offs at each well plus a master shut-off for one-step draining.
• Drip-free embossed top flange, 18 ga stainless top & 18 ga galvanized exterior housing – built for heavy commercial traffic.
• Zero-clearance design; insulated on all sides (including between wells) to keep heat where it belongs.
• Ships ready to plug in – 6' cord & NEMA 6-15P; no hard-wiring required.
• NSF 4 & cULus listed for wet operation; complies when used with water.

At-a-Glance Specs

Why You’ll Love It

• Labor saver – automatic refilling and single-point draining streamline daily operation.
• Menu flexibility – independent wells let you hold multiple foods at different temperatures.
• Drop-in convenience – includes mounting clips for counters up to 3" thick.
• Built to last – heavy-gauge stainless, fully insulated cabinet and American craftsmanship.

Sheet-pan adapter bars (Vollrath #19186) sold separately. See vollrathfoodservice.com for complete warranty policy.
