Vollrath | SKU:
3647370HD
Vollrath 3647370HD Steam Tables & Food Wells
$3,290.60
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3647370HD Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3647370HD Steam Tables & Food Wells
$3,290.60
Unit price
/
Unavailable
Description
Vollrath Three-Well Modular Hot Drop-In with Marine-Grade Wells – Thermostatic, 240 V
Model 3647310HD | Made in USA | cULus & NSF ListedGive every entrée the perfect finish with Vollrath’s premium 3-well hot food well. Built from corrosion-proof SAE 316 stainless steel, this drop-in keeps menu items at safe serving temperatures in the most demanding kitchens, buffets, and coastal venues— no hard-wiring required.
Why you’ll love it

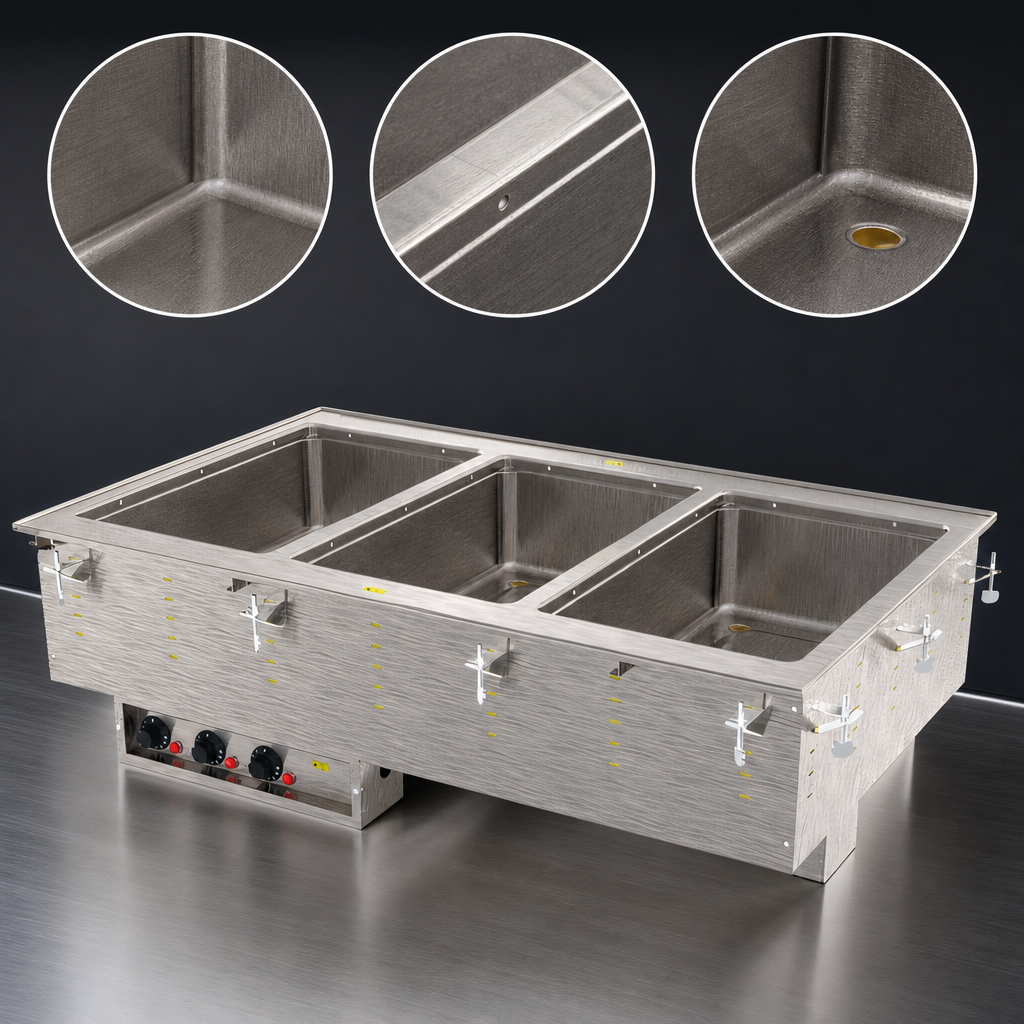

- Marine-grade 20-gauge drawn wells resist salt, chemicals & acidic foods.
- Individual thermostatic controls and power lights for precise holding of each well.
- Designed for wet operation only for even, consistent heat.
- 1" copper manifold drain with master shut-off plus ½" ball valves at every well for quick, mess-free emptying.
- 18-gauge stainless top, insulated exterior, and drip-free gasketed flange protect surrounding counters.
- 4 ft (1.2 m) tethered control panel offers flexible mounting and easy service access.
- Zero-clearance installation—mounting clips included for counters up to 3" (7.6 cm) thick.
- Accepts full-size or fractional pans up to 6" (15.2 cm) deep (adapter bars recommended, sold separately).
- 6 ft (1.8 m) cord with factory-installed NEMA 6-15P plug—simply drop in, plug in, and start serving.
Technical specifications
| Wells | (3) full-size 12" × 20" (1/1 GN) | 20-ga SAE 316 S/S | fully insulated |
|---|---|
| Heat output | 625 W per well | 1,875 W total |
| Controls | 3 independent thermostats & indicator lights (remote stainless panel) |
| Drain system | 1" copper manifold, individual ½" shut-offs, manifold master valve |
| Electrical | 240 V / 60 Hz / 1-ph | 7.8 A | NEMA 6-15P |
| Overall size | 41 ½" W × 26" D × 21 ½" H (105.4 × 66 × 54.6 cm) |
| Counter cut-out | 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) with ⅞" (2.2 cm) corner radius |
| Certifications | NSF 4 (moist heat), cULus |
| Warranty | 2-year parts & labor (see VollrathFoodservice.com for full policy) |
Important: Unit is engineered for wet operation only and meets NSF 4
performance standards when operated with water. Orders for modular drop-ins cannot be
canceled or returned.
Need a sheet-pan adapter? See Vollrath item 19186, sold separately.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
41.5in
Depth
26.0in
Shipping Weight
124.0lbs
Insulated or Non-Insulated
insulated
Style
individual pans
Pan Capacity
(3) full size (12" x 20")
Drain
with drain
Controls
thermostatic controls
Wet or Dry operation
wet
Construction
stainless steel construction
Specifications
Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1875 watts, 240v/60/1-ph, 7.8 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
