Vollrath 3-Well Drop-In Electric Hot Food Well with Auto-Fill, Marine-Grade Stainless Steel, 240V

Full-Size 12 x 20-Inch Pan Wells, Wet Operation Only

Hold three full-size pans of hot food at serving temperature in a rugged, wet-operation drop-in well built with marine-grade stainless steel.

  • Three insulated 12" x 20" full-size wells help keep food hot and ready to serve.
  • Auto-fill wet operation supports even heating and consistent holding temperatures.
  • Individual infinite controls and power indicator lights let you manage each well separately.
  • 1" copper manifold drain with individual well shutoffs and a master shutoff simplifies drainage.
  • Stainless steel top, exterior housing, and marine-grade wells provide durable, corrosion-resistant performance.
  • Includes positioning clips and a cord with plug for easier drop-in installation.

Overall Dimensions:

41.5"W x 26.0"D x 21.5"H

Product Weight:

148.0 lb

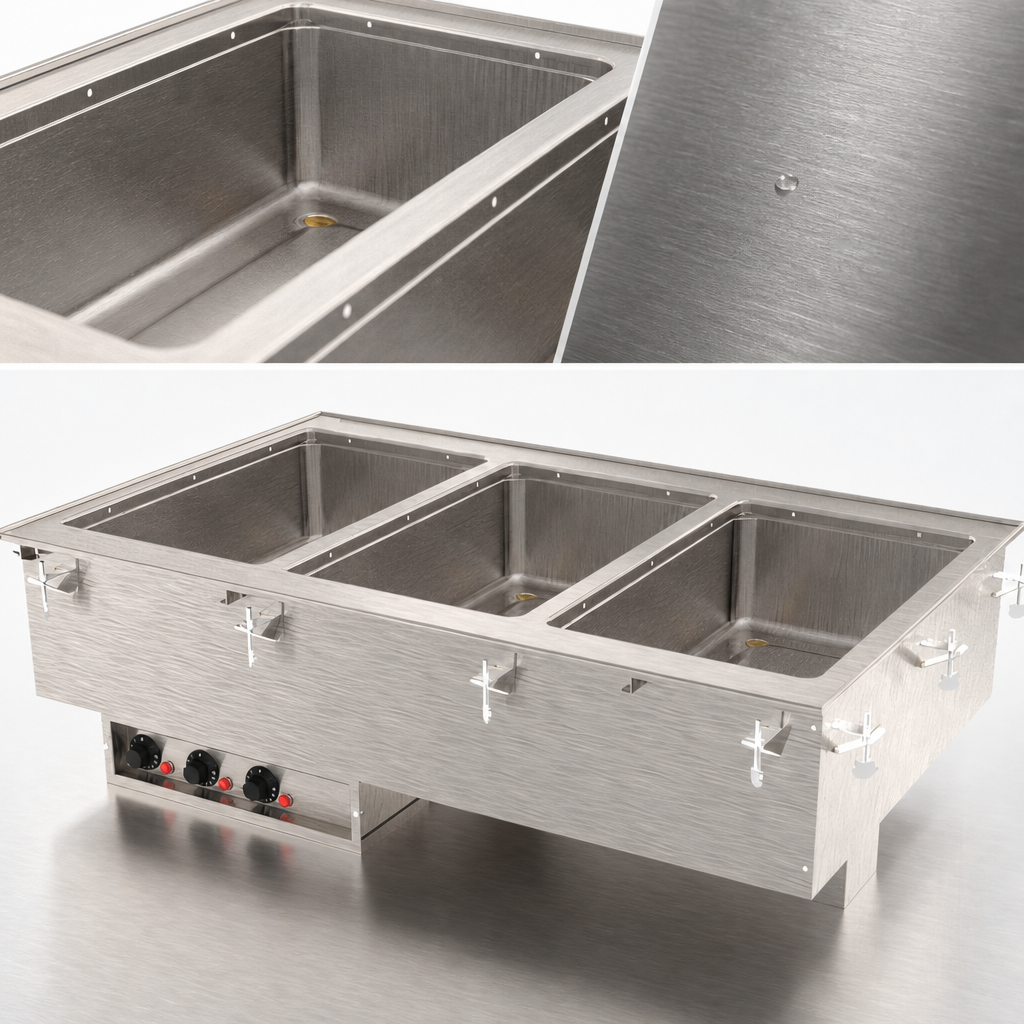

Marine-Grade Stainless Steel Wells

Three drawn 20-gauge 316 stainless steel wells provide corrosion resistance and heavy-duty holding performance.

Auto-Fill Wet Operation

Designed for wet use only; water is required for even heating and proper food holding.

Individual Infinite Controls

Each well has its own panel-mounted infinite control and power indicator light for independent temperature management.

Manifold Drain With Shutoffs

A 1-inch copper manifold drain includes individual well shutoffs plus a master manifold shutoff for easier cleanup.

Durable Stainless Construction

Features an 18-gauge stainless steel top, stainless steel exterior housing, and a drip-free flange.

Drop-In Installation

Includes positioning clips and a cord with plug, so the unit does not require hard-wiring.

Full-Size Pan Capacity

Accommodates three full-size 12" x 20" pans and accepts fractional pans up to 6 inches deep.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Controls Infinite
Pan Capacity 3 Full-Size Pans
Pan Size 12 x 20 Inches
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 240 Volts
Amps 7.8 Amps
Watts 1.875 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Drain Connection Size 1 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 148 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It is wet operation only, and water is required for even heating of the food product.
It accepts three full-size 12" x 20" pans and can also handle fractional pans up to 6 inches deep.
No. The unit includes a cord with plug and does not require hard-wiring.
This model operates on 240 Volts, 60 Hz, single-phase power and draws 7.8 amps.
The cutout size is 40-3/4 inches by 25-1/4 inches and requires a 7/8-inch corner radius.
HD wells have a 2-year warranty against defects in materials and workmanship.
