Vollrath  |  SKU: 3647360

Vollrath 3647360 Steam Tables & Food Wells

$3,398.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

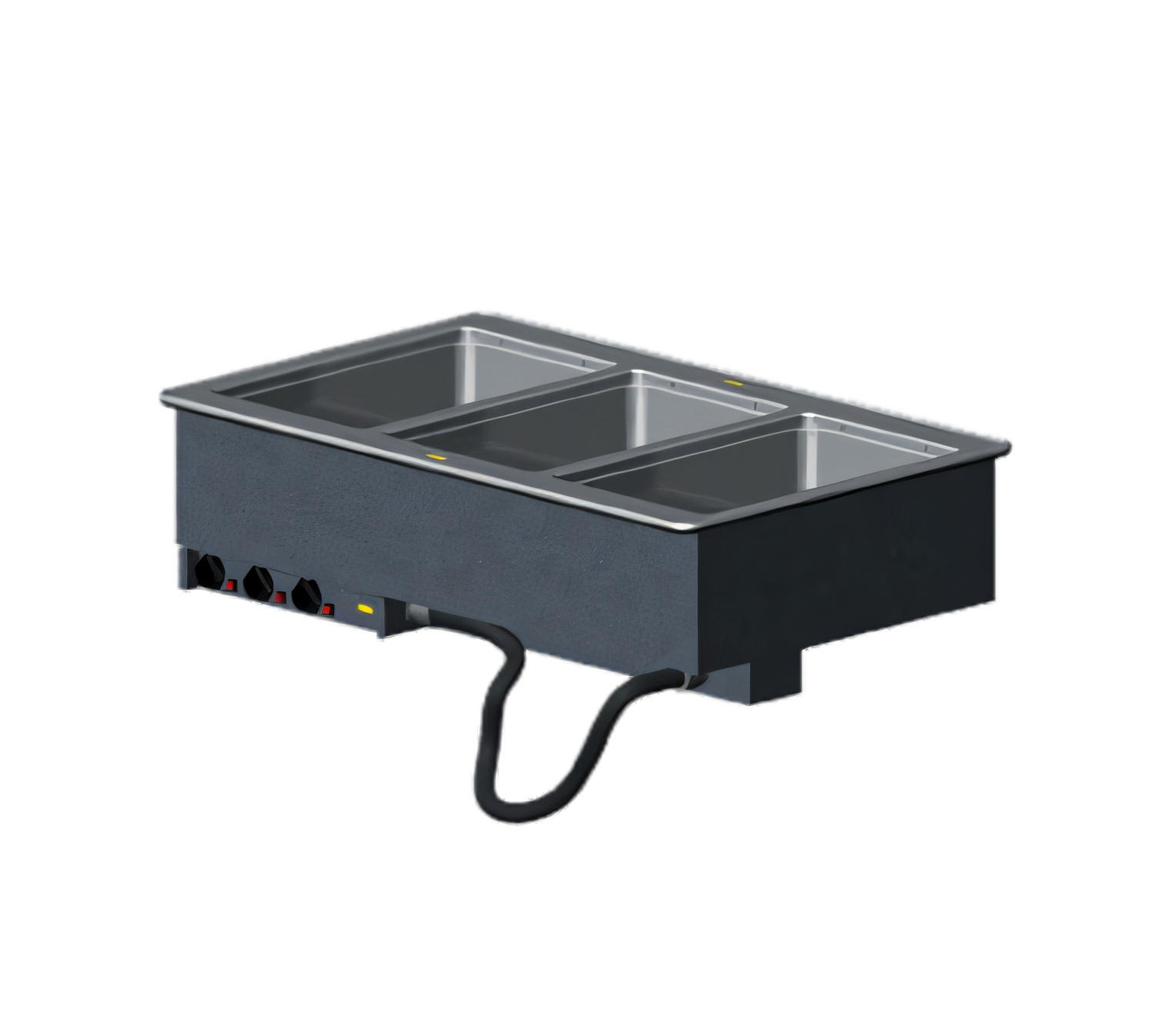

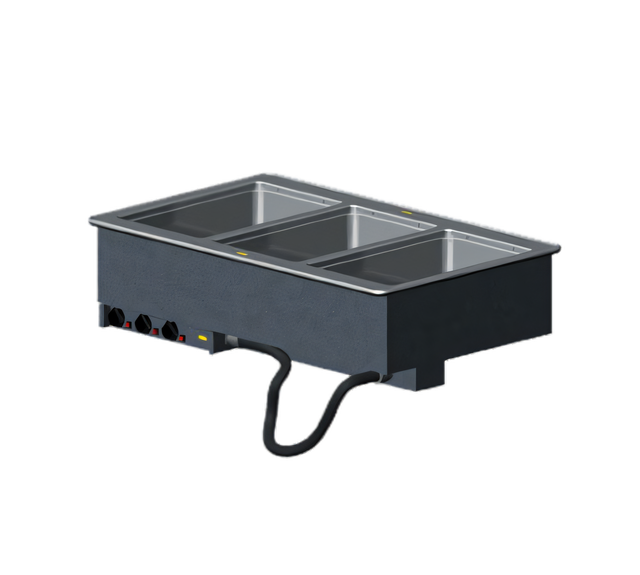

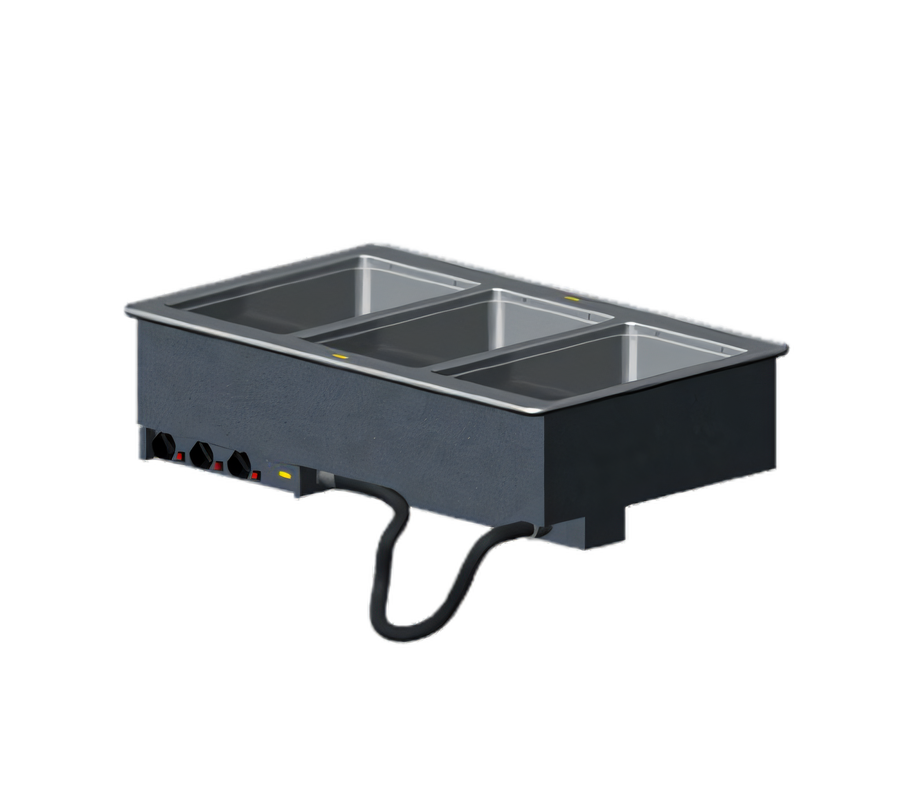

Vollrath 3-Well Drop-In Hot Food Well – Auto-Fill, 240 V

41-1/2" W × 26" D wet-bath module • 625 W per well • Infinite controls

Serve hot foods with confidence and zero hard-wiring. This Vollrath drop-in holds three full-size pans at safe, even temperatures while its auto-fill system keeps water levels exactly where they belong—so your staff doesn’t have to.

Why this unit stands out

  • Auto-fill maintains water level automatically—no manual refills
  • Individual infinite controls with power indicator lights for each well
  • 1" copper manifold drain with individual ball valves and master shut-off for quick, mess-free cleanup
  • Drip-free 300-series stainless flange protects surrounding countertop

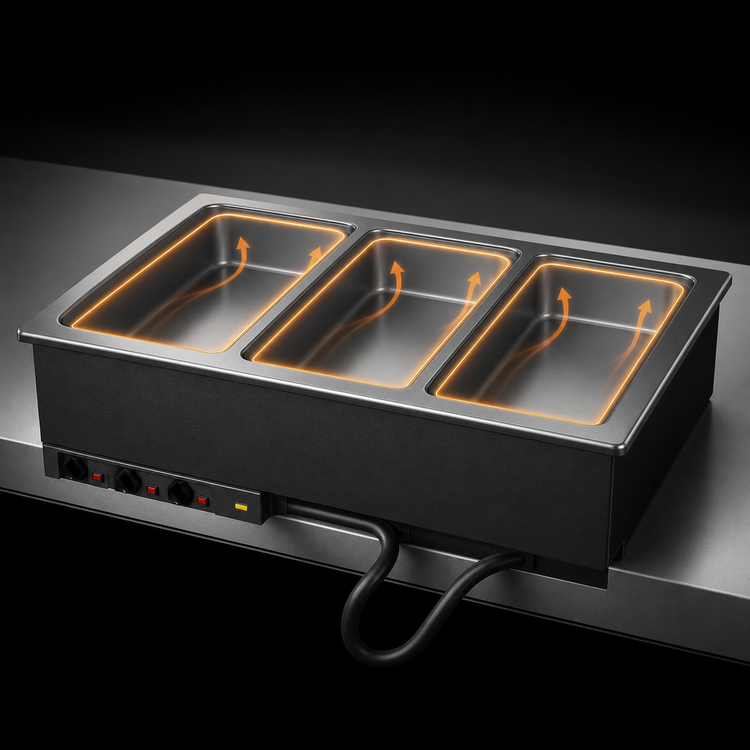

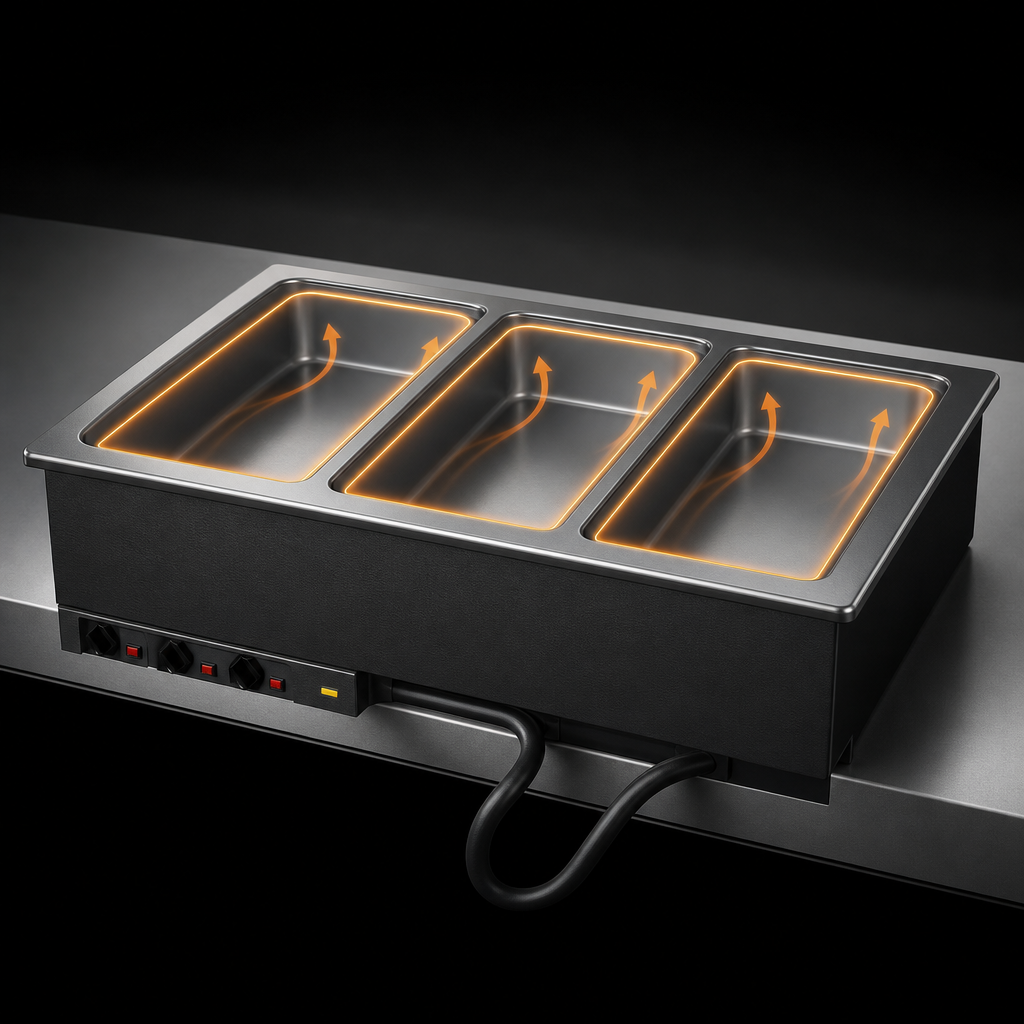

  • 20 ga stainless wells fully insulated on every side to improve efficiency and keep exterior surfaces cool
  • Ships ready-to-plug with 6 ft cord and NEMA 6-15P—no electrician required
  • Zero-clearance installation; mounting clips and gasket included for counters up to 3" thick
  • NSF 4 & cULus listed; proudly Made in the USA

Perfect for

  • Serving lines & cafeterias
  • Buffets and catered events
  • Grab-and-go or c-store programs

Technical specifications

Number of wells 3 – independent, insulated
Pan capacity Full-size 12" × 20" or fractional pans up to 6" deep
Operation Wet only (water bath required)
Total power 1,875 W (625 W per well)
Electrical 240 V / 60 Hz / 1-ph, 7.8 A, cord with NEMA 6-15P plug
Controls Panel-mounted infinite switches, 1 per well (4 ft tethered panel)
Overall dimensions 41-1/2" W × 26" D × 21-1/2" H (105.4 × 66 × 54.6 cm)
Cutout size 40-3/4" W × 25-1/4" D (103.5 × 64.1 cm) – 7/8" corner radius
Top material 18 ga stainless steel
Exterior housing 18 ga galvanized steel
Drain 1" copper manifold with individual well shut-offs & master valve
Included Mounting clips, under-flange gasket, auto-fill hardware
Certifications NSF 4, cULus
Origin USA

Holding sheet pans? Add Vollrath adapter bar #19186 for effortless conversion.

Important: This drop-in meets NSF 4 performance standards only when operated with water. Modular drop-ins are built to order and cannot be cancelled or returned. Review the full warranty policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

148.0lbs

Controls

infinite controls

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(3) full size (12" x 20")

Style

individual pans

Wet or Dry operation

wet

Insulated or Non-Insulated

insulated

Drain

with drain

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1875 watts, 240v/60/1-ph, 7.8 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
