Vollrath  |  SKU: 3647350HD

Vollrath 3647350HD Steam Tables & Food Wells

$3,097.95
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

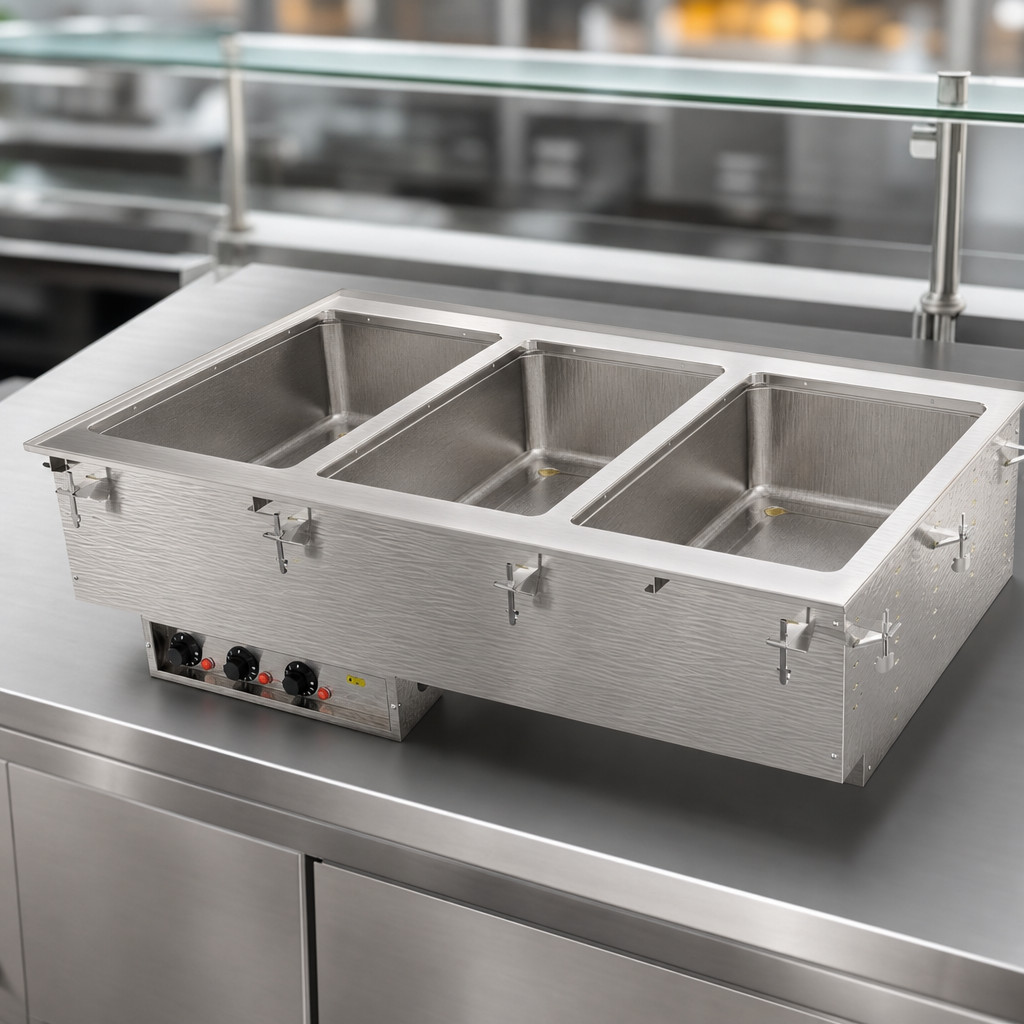

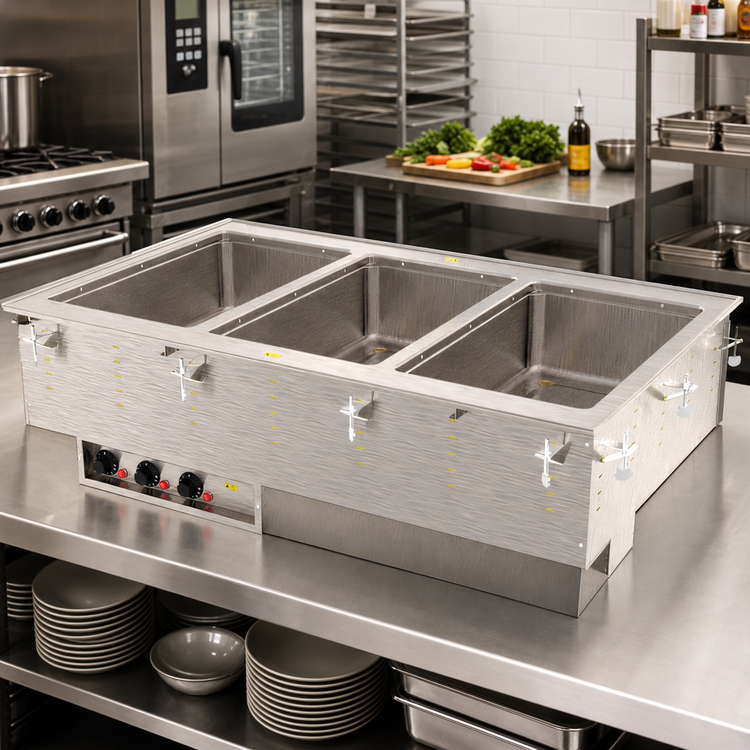

Vollrath 3-Well Hot Drop-In with Marine-Grade Wells – 240 V

Model 3647350HD • Infinite Controls • 625 W per well

Keep entrées, sides and sauces at safe serving temperatures—even in the toughest coastal environments—with this corrosion-resistant Vollrath three-well modular hot food well. Built for quick, top-mount installation, it arrives fully assembled with cord and plug, saving valuable time and labor on the line.

Key Features

  • Three individual 12" × 20" wells formed from 20-gauge 316 marine-grade stainless steel.
  • Wet-heat only operation delivers even holding and meets NSF 4 performance standards.
  • Independent infinite controls with power indicator lights for precise temperature management.
  • 1" copper manifold drain with shut-off valves on every well plus a master manifold shut-off.
  • Drip-free raised flange and full perimeter insulation (including between wells) protect surrounding counters.
  • 18-gauge stainless steel top and stainless exterior housing withstand heavy commercial use.
  • Ships with mounting clips, 6-ft cord and NEMA 6-15P plug—no hard-wiring required.
  • Zero-clearance installation; removable bottom panels provide easy service access.
  • NSF & cULus listed; proudly Made in the USA.

Ideal For

  • Cafeterias and buffet lines
  • QSR and fast-casual assembly stations
  • Cruise ships, resorts or any high-humidity/coastal operation

Specifications

Model 3647350HD
Number of Wells 3 (full-size 12" × 20")
Operation Wet heat only
Control Type Individual infinite controls with indicator lights
Total Wattage 1,875 W (625 W per well)
Electrical 240 V / 60 Hz / 1-ph, 7.8 A, cord with NEMA 6-15P
Overall Dimensions 41 ½" W × 26" D × 21 ½" H*
Counter Cut-out 40 ¾" W × 25 ¼" D, 7⁄8" corner radius
Pan Capacity Accepts pans up to 6" deep
Drain 1" copper manifold; ½" individual well drains
Construction 20-ga 316 SS wells; 18-ga stainless top; stainless exterior
Certifications NSF 4 (wet), cULus
Origin United States

*Manifold drain adds 6 ½" (16.5 cm) to the overall height below counter.

Important: This drop-in is engineered for wet operation only. Running the wells dry may damage the unit and will void the warranty. Modular drop-ins cannot be canceled or returned once ordered.

Two-year limited warranty against defects in materials and workmanship. For complete terms visit  vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

150.0lbs

Drain

with drain

Controls

infinite controls

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Wet or Dry operation

wet

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1875 watts, 240v/60/1-ph, 7.8 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
