Vollrath 3647350 Steam Tables & Food Wells
$2,648.30
Unit price
/
Unavailable
Description

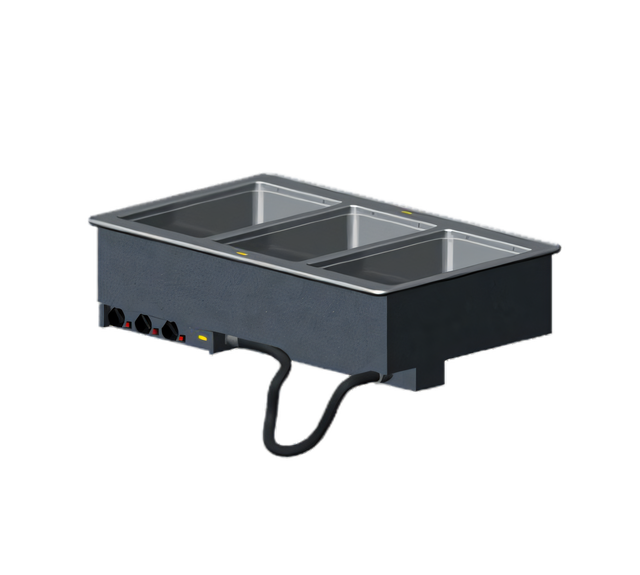

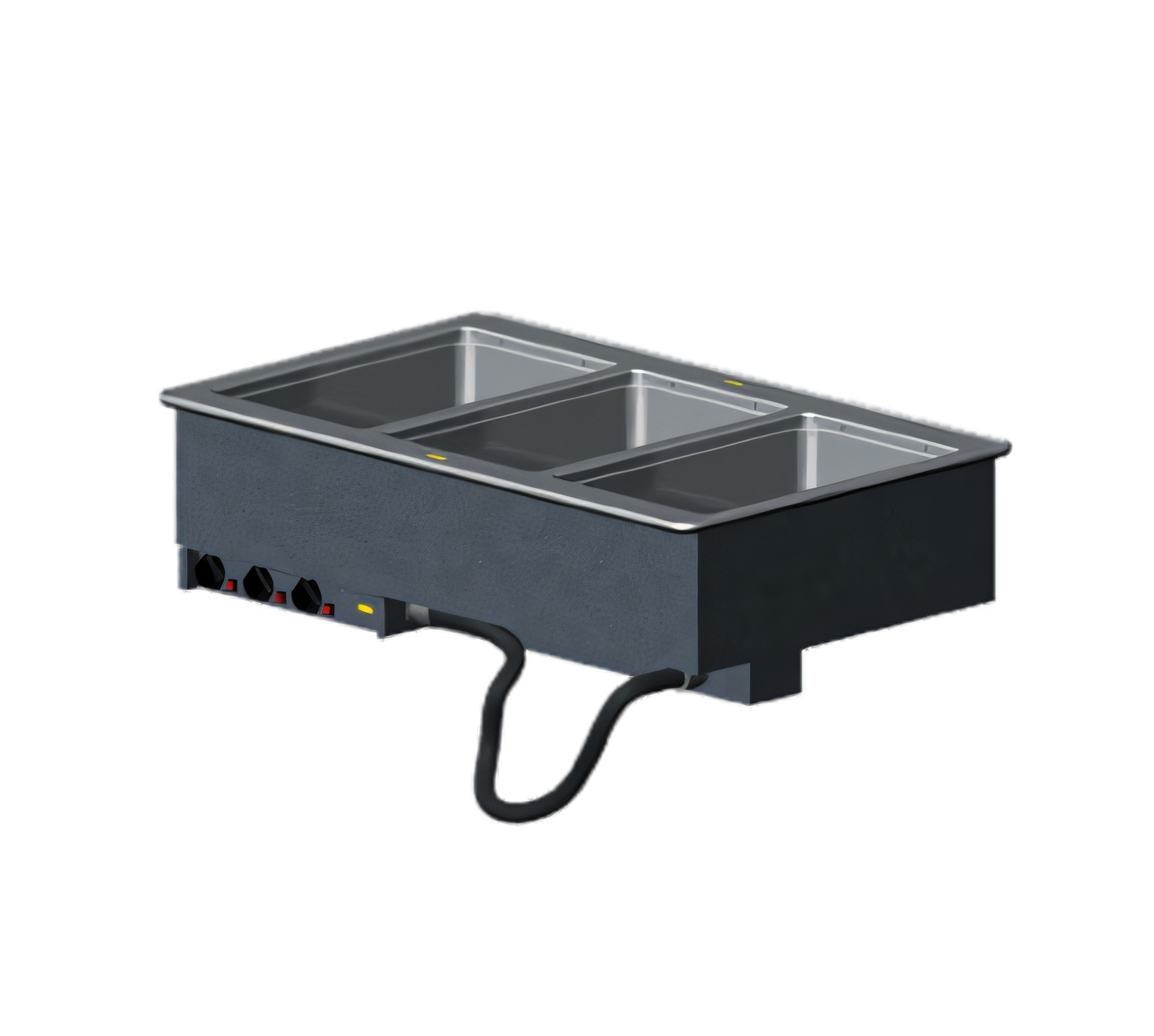

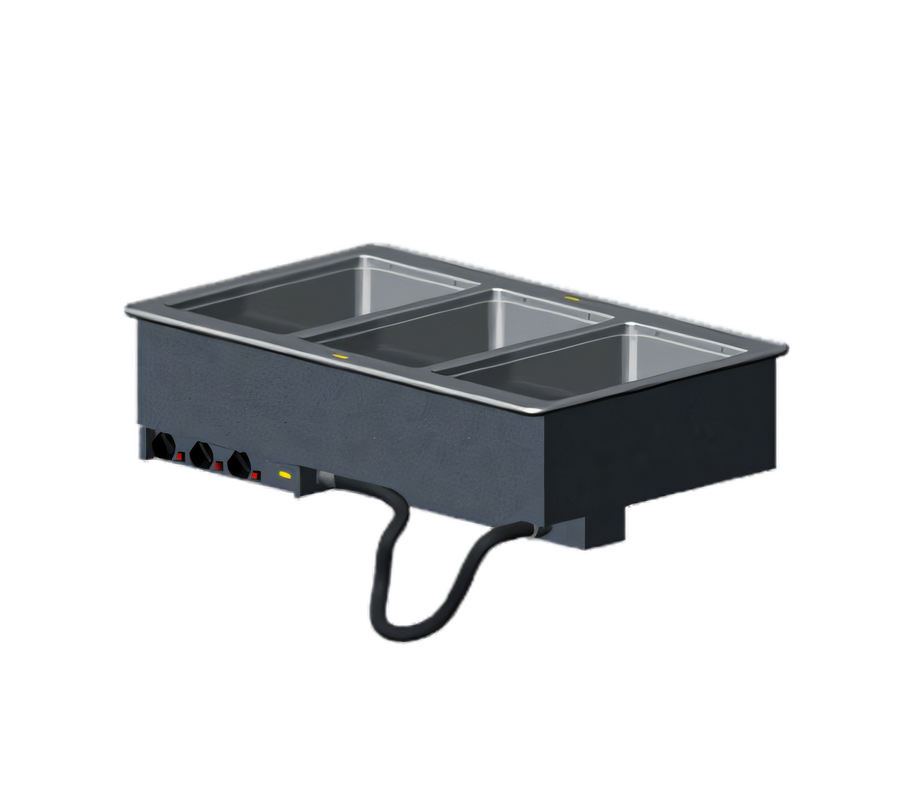

Vollrath 36473 3-Well Electric Drop-In Hot Food Well
Manifold Drain | Infinite Controls | 240 VHold your menu items at safe, appetizing temperatures with the Vollrath 36473 three-well hot drop-in. This self-contained unit installs in minutes, delivers precise wet-heat performance, and features a durable stainless-steel build ready for the demands of busy serving lines.
Key advantages

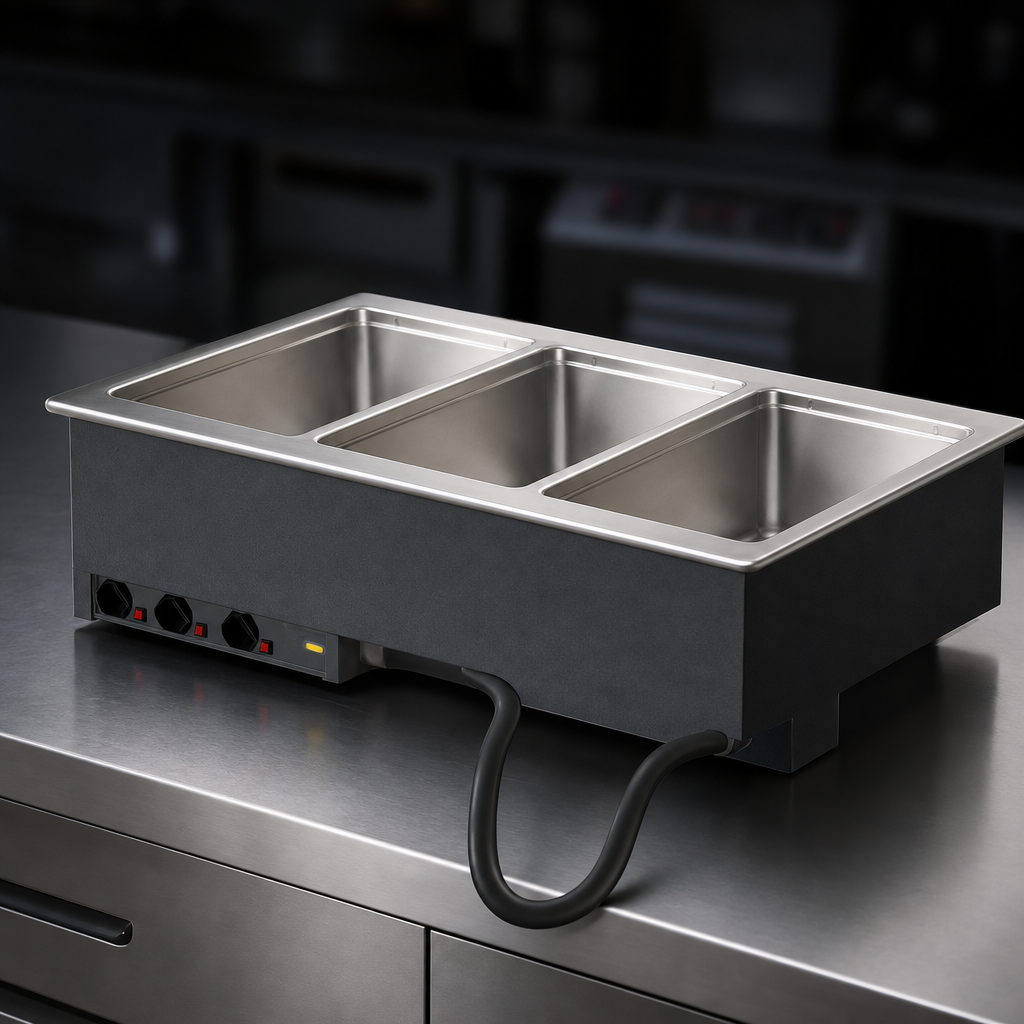

- Three individual 12" × 20" wells accept full-size or fractional pans up to 6" deep.
- 300-series stainless steel wells and drip-free flange resist corrosion and simplify cleanup.
- 1" copper manifold drain with individual ball-valve shut-offs and master shut-off for splash-free, one-step draining.
- Independent infinite controls and power indicator lights let you fine-tune each well separately.
- Fully insulated 20 ga wells and 18 ga galvanized exterior minimize heat loss and conserve energy.
- Ships with a 6 ft cord and NEMA 6-15P plug—no hard-wiring required.
- Zero-clearance installation with included mounting clips for counters up to 3" thick.
- NSF 4 and cULus listed; Made in the USA.
Product specifications
| Model # | 36473 |
|---|---|
| Number of wells | 3 (individually heated) |
| Operation | Wet only |
| Total power | 1,875 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-ph - 7.8 A |
| Controls | Infinite, panel-mounted (4 ft tether) |
| Plug type | NEMA 6-15P |
| Overall dimensions | 41-1/2" W × 26" D × 21-1/2" H |
| Counter cut-out | 40-3/4" W × 25-1/4" D; 7/8" corner radius |
| Well material | 20 ga 300-series stainless steel |
| Top flange | 18 ga stainless steel |
| Exterior housing | 18 ga galvanized steel |
| Drain | 1" copper manifold with individual & master shut-offs |
| Certifications | NSF, cULus |
| Country of origin | USA |
What’s in the box
- Vollrath 36473 three-well drop-in module
- Remote stainless-steel control panel
- Mounting/positioning clips & perimeter gasket
- 6 ft power cord with NEMA 6-15P plug
- Owner’s/installation manual
Important: This drop-in is designed for moist-heat operation. Always run each well with water to meet NSF performance standards.
Orders for drop-ins are non-cancelable and non-returnable.
For complete warranty terms, visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
41.5in
Depth
26.0in
Shipping Weight
150.0lbs
Controls
infinite controls
Style
individual pans
Pan Capacity
(3) full size (12" x 20")
Construction
stainless steel top, corrosion resistant steel exterior
Insulated or Non-Insulated
insulated
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1875 watts, 240v/60/1-ph, 7.8 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
