Description

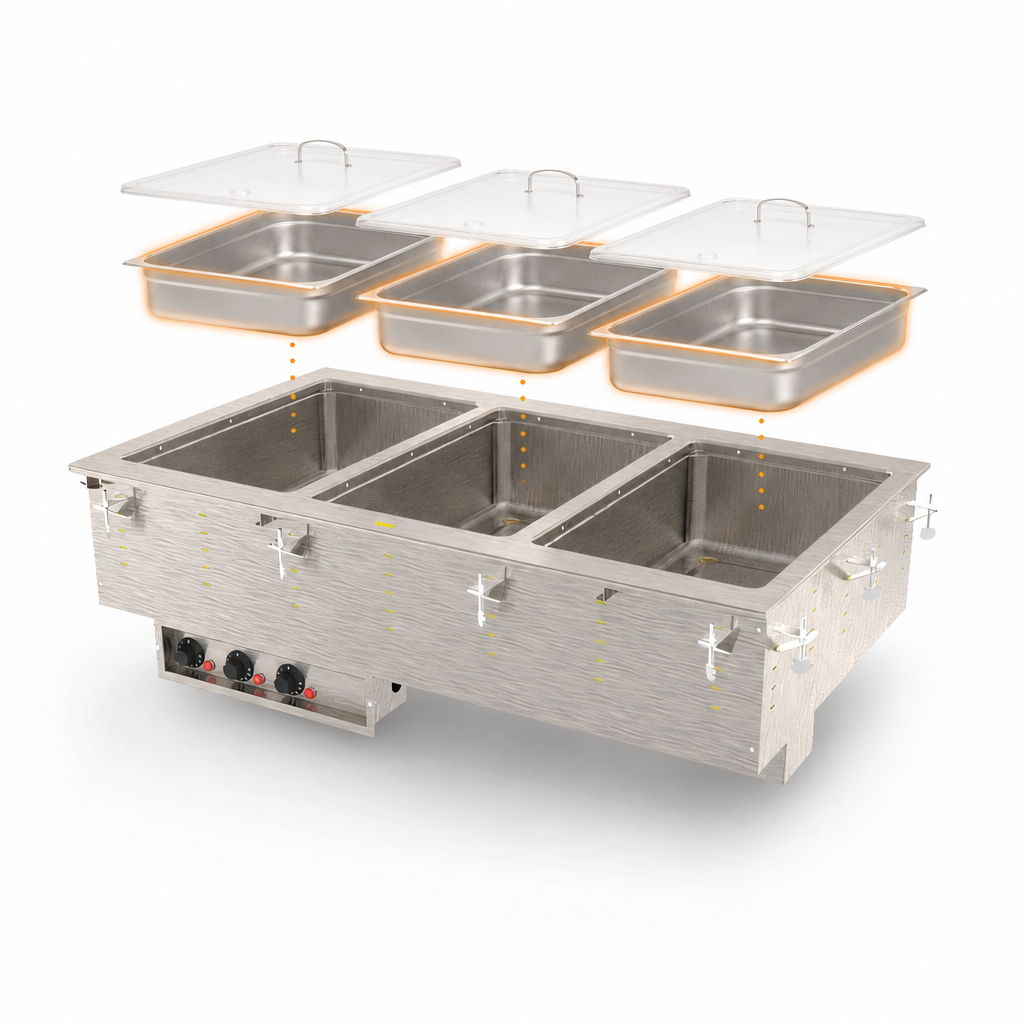

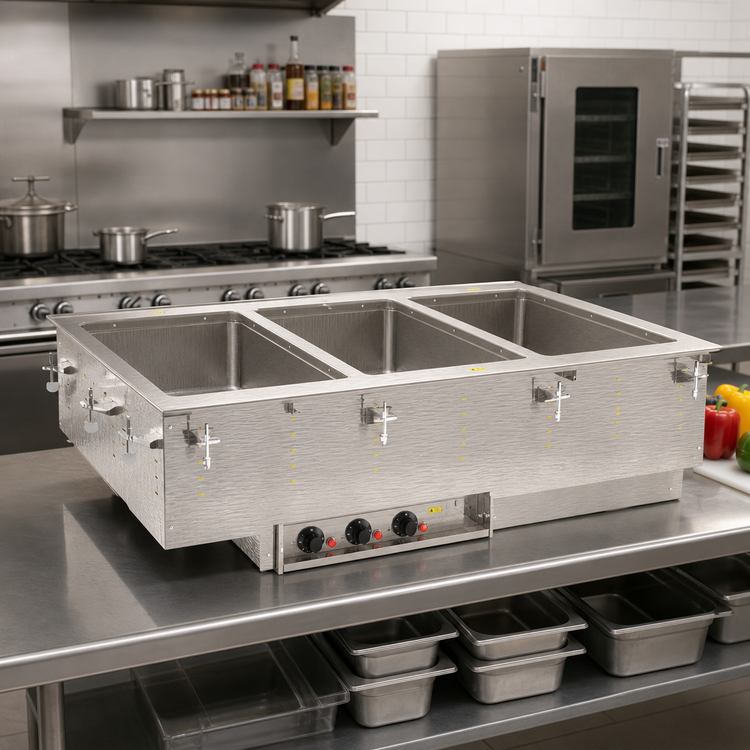

Vollrath 3-Well Marine-Grade Drop-In Hot Food Well – 240 V Thermostatic

Model 3647310HD • 625 W per well • NEMA 6-15P

Serve hot entrées, sides, and sauces with confidence. Vollrath’s marine-grade three-well drop-in delivers even, wet-heat holding in the harshest commercial environments—ideal for buffets, cafeterias, stadium suites, and coastal installations where corrosion resistance is critical.

Key Benefits

  • Drawn 20-gauge 316 stainless wells resist salt, chemicals, and pitting.
  • Individual thermostatic controls with power indicator lights let you dial in each 12" x 20" well independently.
  • Wet operation guarantees uniform heat and superior food quality; each well is fully insulated on all sides.
  • Drip-free top flange and included gasket ensure a clean, sanitary counter installation.
  • Separate ½" drains with ball-valve shut-offs speed change-outs and cleaning.
  • Ships with mounting/positioning clips for counters up to 3" thick—no hard-wiring required.
  • Zero-clearance design fits tight layouts; 6 ft. power cord with factory-installed NEMA 6-15P plug.
  • NSF & cULus listed; proudly made in the USA and backed by a two-year limited warranty.

Specifications

Configuration 3 individual wells (full-size 12" × 20")
Operation Wet heat only (water required)
Control Type Thermostatic, panel-mounted (4 ft tether)
Total Wattage 1,875 W (625 W per well)
Electrical 240 V / 60 Hz / 1-ph • 7.8 A • NEMA 6-15P
Overall Dimensions 41 ½" W × 26" D × 15" H (105.4 × 66 × 38.1 cm)
Cutout Required 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) with 7/8" corner radius
Well Material 316 marine-grade stainless, 20 ga
Top / Exterior 18 ga stainless steel top • stainless housing
Drain Connections Three ½" MPT drains with individual ball valves
Mounting Hardware Standard clips & gasket included
Agency Listings NSF 4 (wet operation), cULus
Warranty 2 years parts & labor (see VollrathFoodservice.com for full policy)

Ideal Applications

  • Steam tables & buffet lines
  • Shipboard or coastal foodservice venues
  • C-stores and modular kiosks
  • School & hospital cafeterias

For NSF compliance and optimal performance, operate with water in each well and keep drains closed during use.

Notice: Modular drop-ins are built to order and cannot be canceled or returned once production has begun.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

41.5in

Depth

26.0in

Shipping Weight

127.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Controls

thermostatic controls

Wet or Dry operation

wet

Construction

stainless steel construction

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1875 watts, 240v/60/1-ph, 7.8 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
