Vollrath | SKU:
3647310
Vollrath 3647310 Steam Tables & Food Wells
$2,601.35
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3647310 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3647310 Steam Tables & Food Wells
$2,601.35
Unit price
/
Unavailable
Description

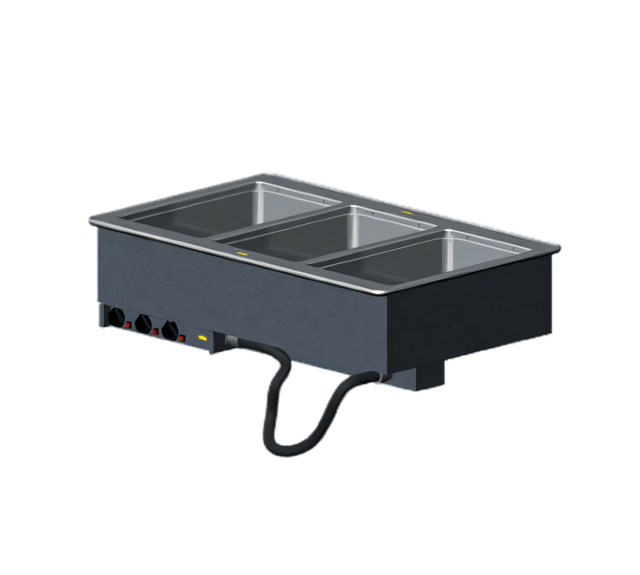

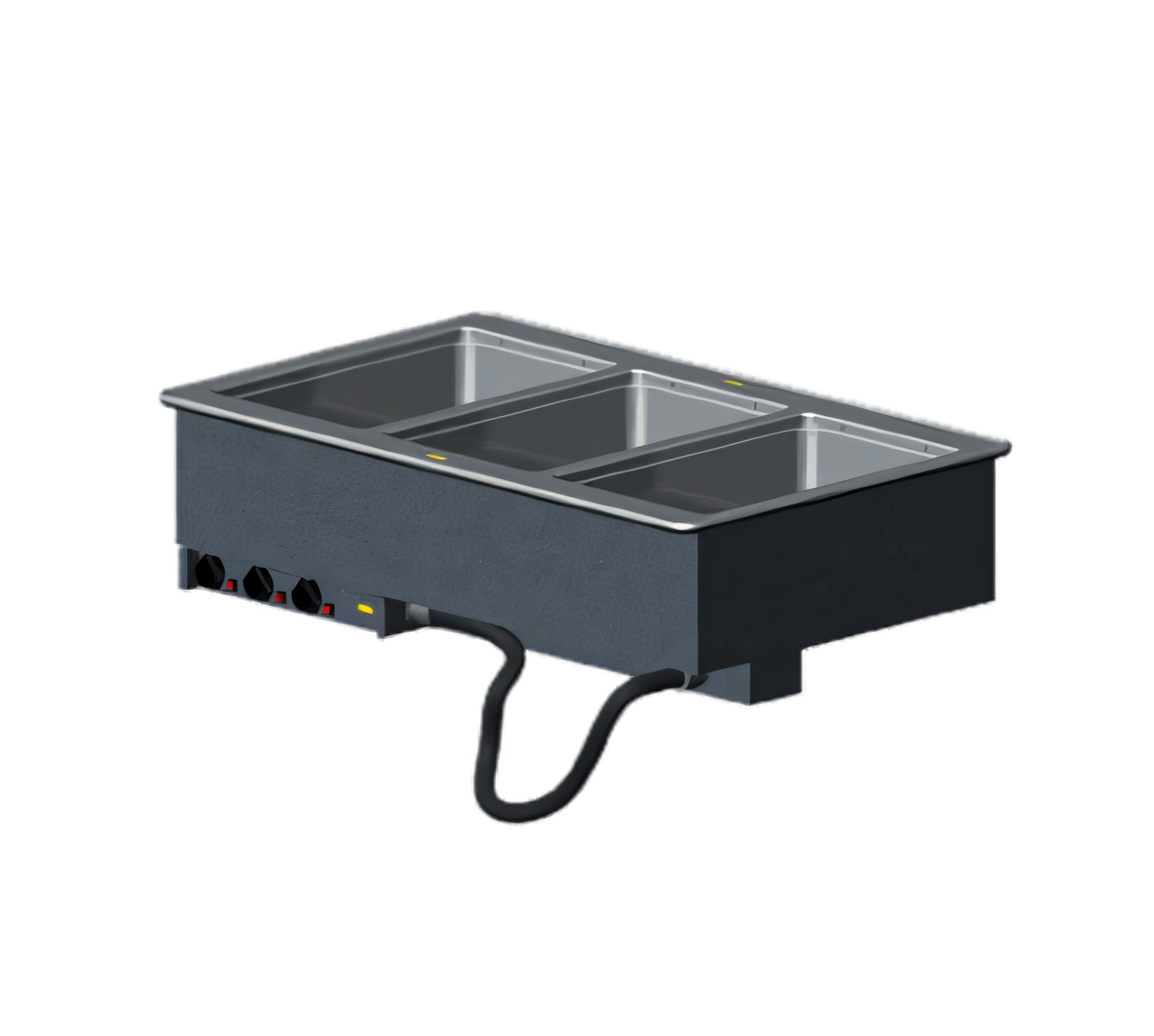

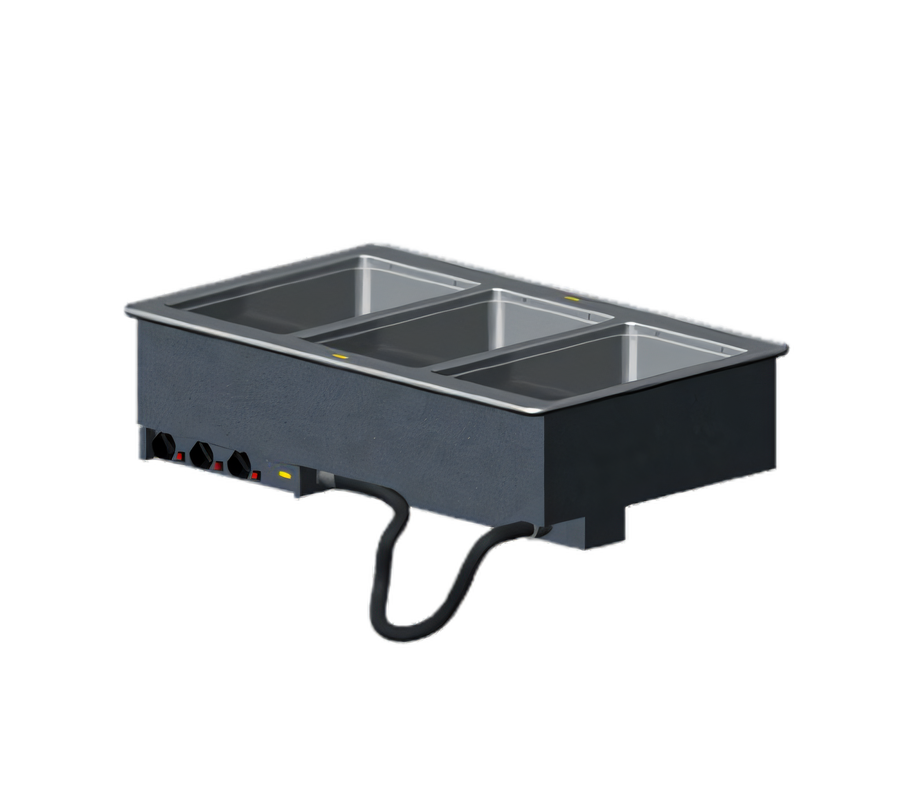

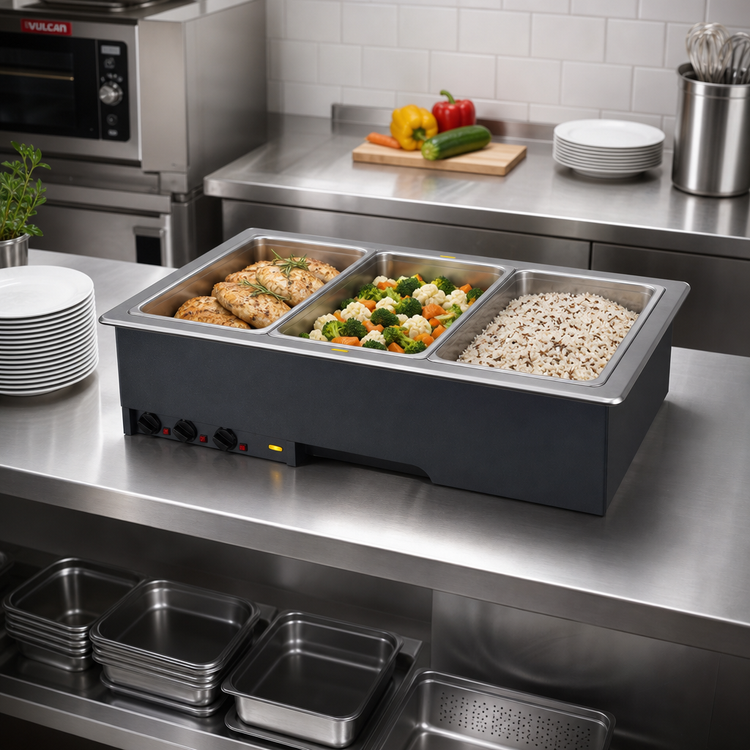

Vollrath 3-Well Drop-In Hot Food Well – Thermostatic, 240 V
41-1/2" W × 26" D | 625 W per well | NSF & cULus ListedKeep entrées, sides and sauces at safe, appetizing temperatures with this made-in-USA Vollrath three-well drop-in. Independent thermostatic controls, fully insulated 12" × 20" wells and a drip-free stainless flange deliver reliable wet-heat performance in any serving line.
Why You’ll Love It

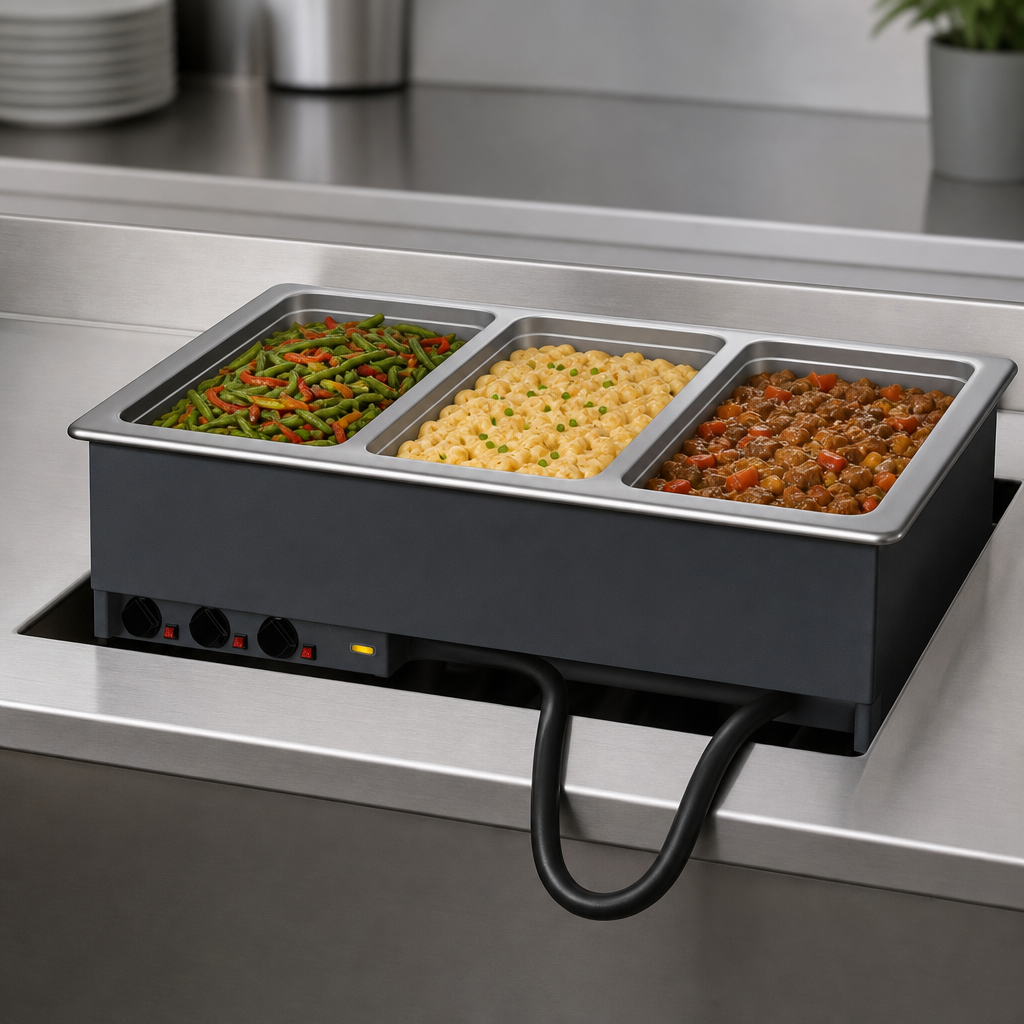

- Three individual 12" × 20" wells—each 20-gauge stainless steel and insulated on all sides for even heat.
- Precise thermostatic controls with power indicator lights let you dial in different settings for every menu item.
- Wet-operation design meets NSF 4 hot-holding standards and keeps food moist and flavorful.
- Drip-free 18-gauge stainless steel top flange delivers a clean, finished counter presentation.
- Dedicated ½" drain and ball valve for every well speeds end-of-day cleanup.
- Ships ready to install with gasket, positioning clips and a 6 ft cord—no hard-wiring required.
- Zero-clearance drop-in design saves valuable line space.
- Proudly made in the USA and backed by Vollrath’s commercial warranty.
At-a-Glance Specs
| Capacity | (3) full-size pans up to 6" (15.2 cm) deep |
|---|---|
| Overall dimensions | 41-1/2" W × 26" D × 15" H (105.4 × 66 × 38.1 cm) |
| Cutout size | 40-3/4" W × 25-1/4" D (103.5 × 64.1 cm); 7/8" (2.2 cm) corner radius |
| Construction – Top | 18-gauge 300-series stainless steel |
| Construction – Wells | 20-gauge 300-series stainless steel |
| Exterior housing | 18-gauge galvanized steel |
| Operation | Wet heat only |
| Heating power | 1 875 W total (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-ph, 7.8 A, cord & NEMA 6-15P plug |
| Controls | Individual thermostatic dials with power lights |
| Drain | ½" MPT per well with individual shut-off valves |
| Certifications | NSF 4, cULus |
| Country of origin | USA |
Installation Notes
- Indoor use only; ambient room temperature & HVAC can affect holding performance.
- Zero-clearance design allows placement against adjacent equipment.
- Provide access below counter for drain hook-up.
- Do not modify the factory-supplied cord or plug.
Important: This unit is designed for wet operation. Always add water to each well before turning on the heaters.
For complete warranty terms, visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
15.0in
Width
41.5in
Depth
26.0in
Shipping Weight
127.0lbs
Construction
stainless steel top, corrosion resistant steel exterior
Pan Capacity
(3) full size (12" x 20")
Style
individual pans
Wet or Dry operation
wet
Controls
thermostatic controls
Insulated or Non-Insulated
insulated
Drain
with drain
Specifications
Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1875 watts, 240v/60/1-ph, 7.8 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
