Vollrath  |  SKU: 36473

Vollrath 36473 Steam Tables & Food Wells

$2,318.95
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

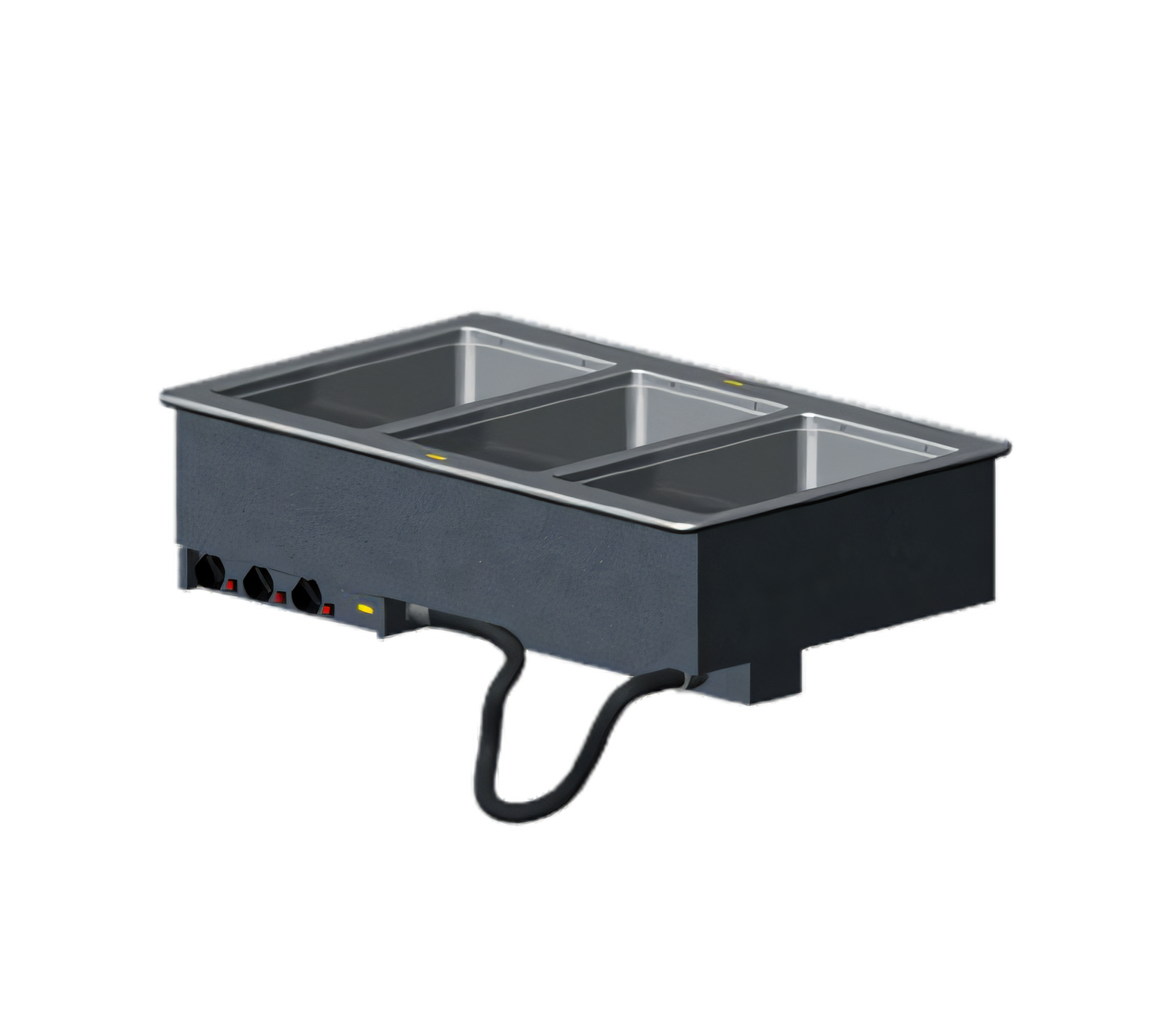

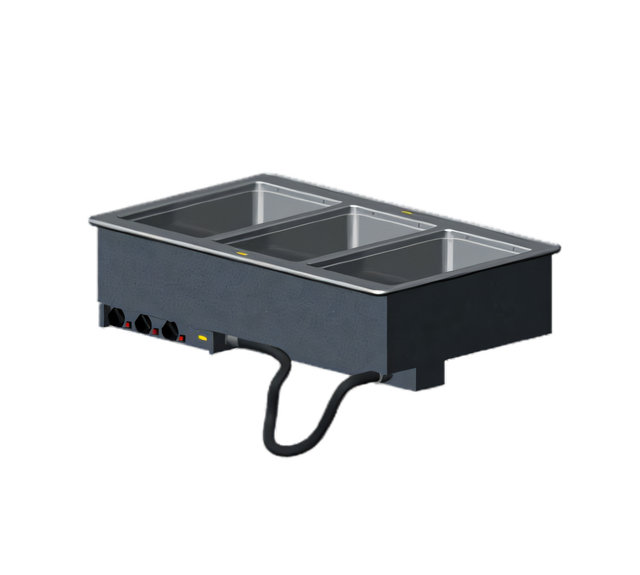

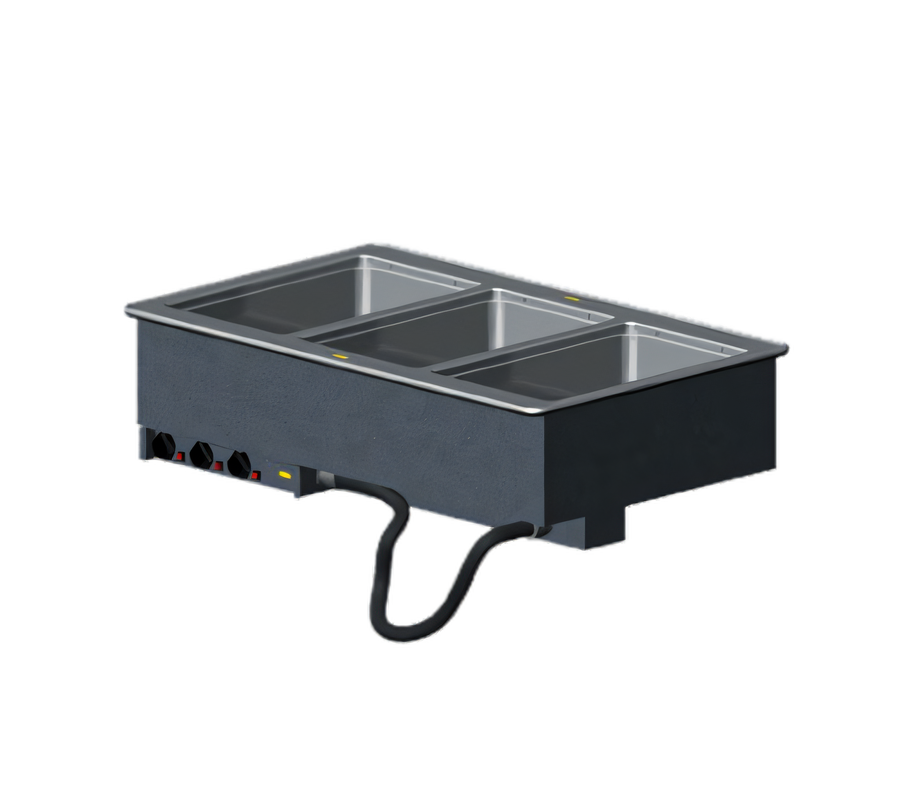

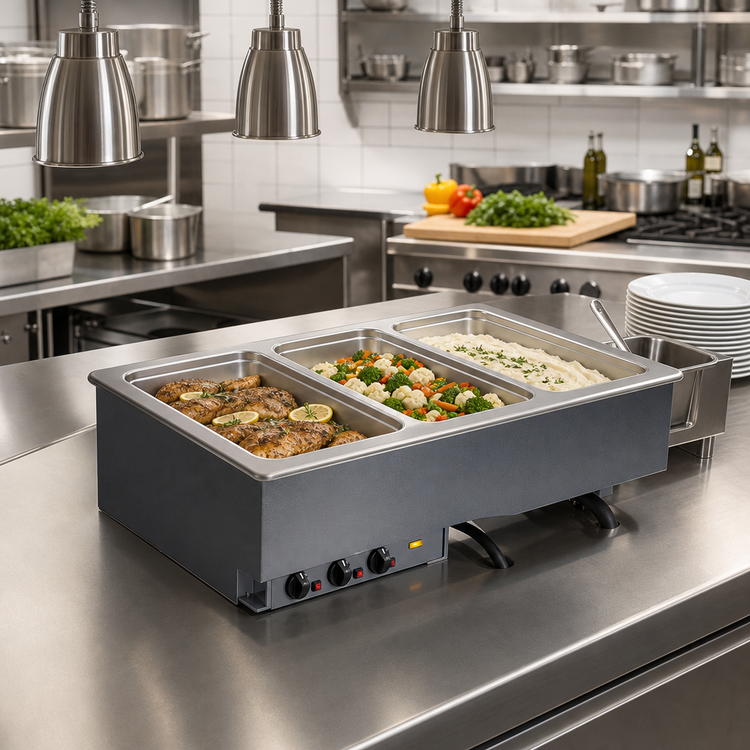

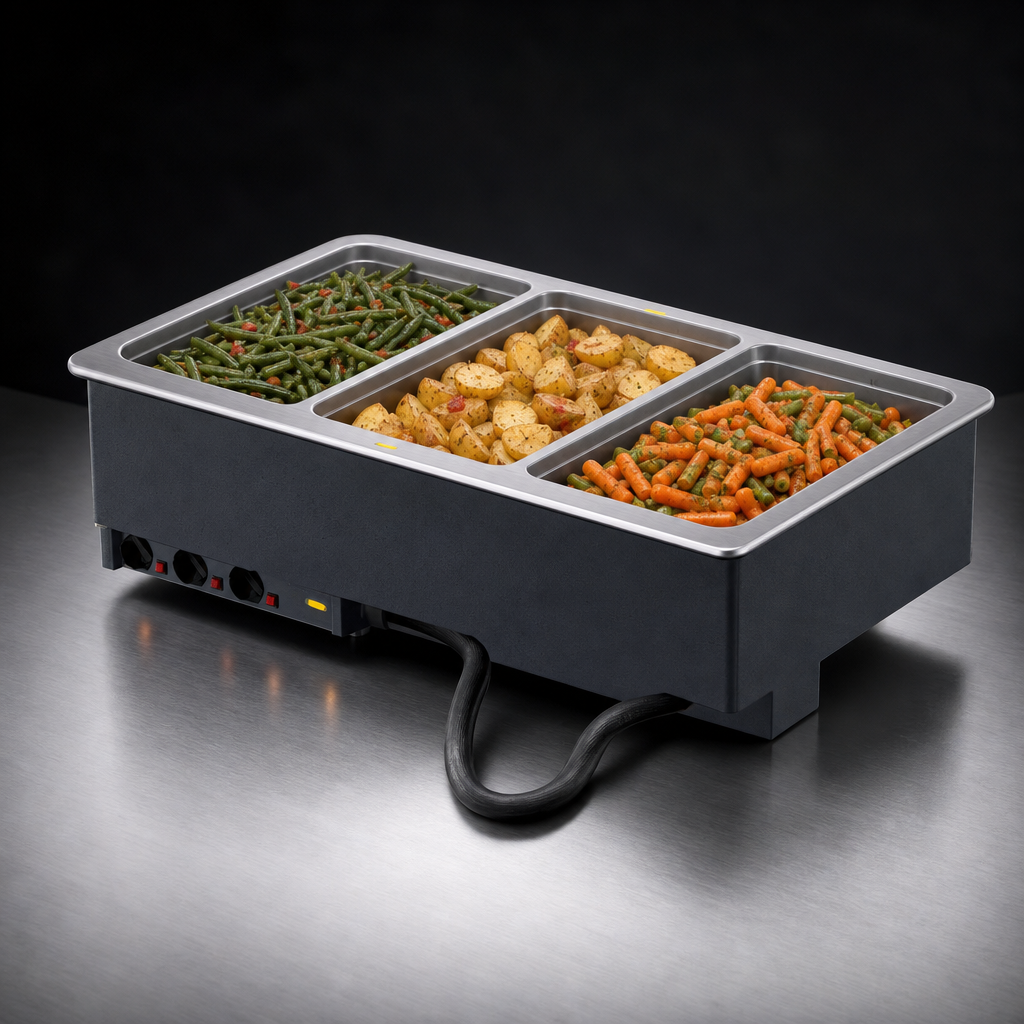

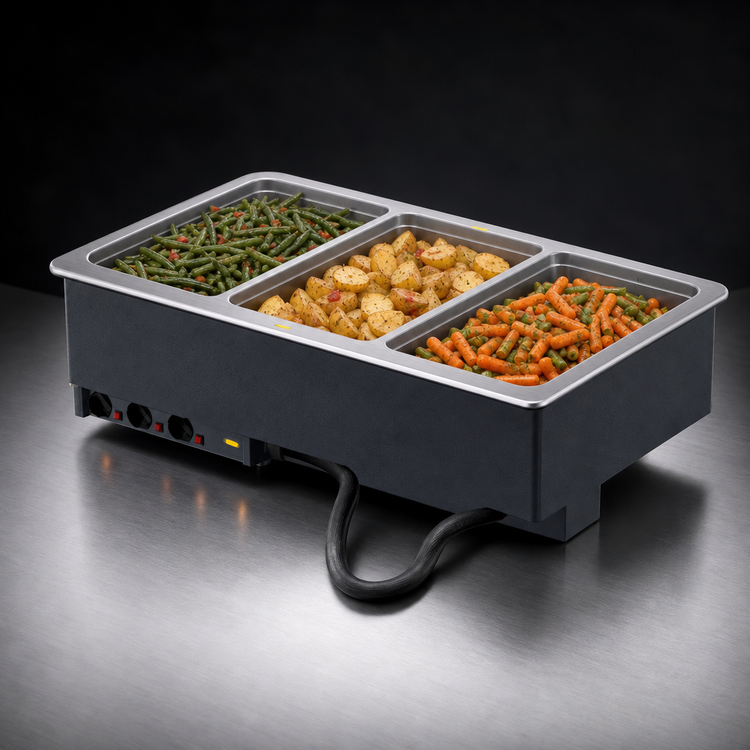

Vollrath 3-Well Drop-In Hot Food Well

Model 36473 | 240 V • Infinite Controls • Standard Drain

Keep entrées, sides and sauces at safe serving temperatures without hard-wiring. This Made-in-USA Vollrath unit drops neatly into a 40-3/4" x 25-1/4" cutout and delivers even, wet-heat holding through three individually controlled, fully insulated wells.

Why You’ll Love It

  • 3 independent 12" × 20" (full-size) wells; 20-gauge 300-series stainless for lasting durability
  • Wet operation only meets NSF 4 performance for hot-holding
  • Individual infinite controls & power lights on a tethered stainless control panel (4 ft cord)
  • Precise moisture management with separate ½" MPT drains & ball-valve shut-offs on each well
  • Drip-free, 18-gauge stainless top flange with factory-installed gasket for a clean, sealed install
  • Fully insulated—including between wells—for maximum energy efficiency and cooler counter surfaces
  • Includes mounting clips for counters up to 3" (7.6 cm) thick; zero-clearance required beneath
  • Accepts pans up to 6" deep; adapter bars available for fractional pans (Vollrath #19186)
  • 6 ft cord with NEMA 6-15P plug—no electrician needed
  • NSF, cULus listed • Made in the USA

Technical Specs

Overall dimensions 41 ½" W × 26" D × 15" H (105.4 × 66 × 38.1 cm)
Cut-out size 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) – 7/8" (2.2 cm) corner radius required
Well capacity (3) full-size pans, up to 6" deep
Operation type Wet (water bath) only
Heating power 625 W per well  |  1,875 W total
Electrical 240 V / 60 Hz / 1-phase, 7.8 A, cord & NEMA 6-15P plug
Materials 20-ga stainless wells
18-ga stainless top flange
18-ga galvanized exterior housing
Controls Remote stainless panel with individual infinite switches & indicator lights
Drainage (3) ½" individual drains with ball valves
Certifications NSF 4 (wet use), cULus
Country of origin USA

• Indoor use only. Room temperature & HVAC conditions can affect holding performance.
• Operation with water is required for even heating. Never run wells dry.
• Do not modify the cord or plug—this will void the warranty.

Warranty & Compliance

Backed by Vollrath’s one-year parts & labor warranty. See vollrathfoodservice.com for full policy details.

Non-returnable item: Modular drop-ins are built to order and cannot be canceled or returned once processed. Verify cut-out dimensions, electrical supply and local code compliance before purchasing.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

41.5in

Depth

26.0in

Shipping Weight

114.0lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1875 watts, 240v/60/1-ph, 7.8 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
