Vollrath 3647280HD Steam Tables & Food Wells
Description

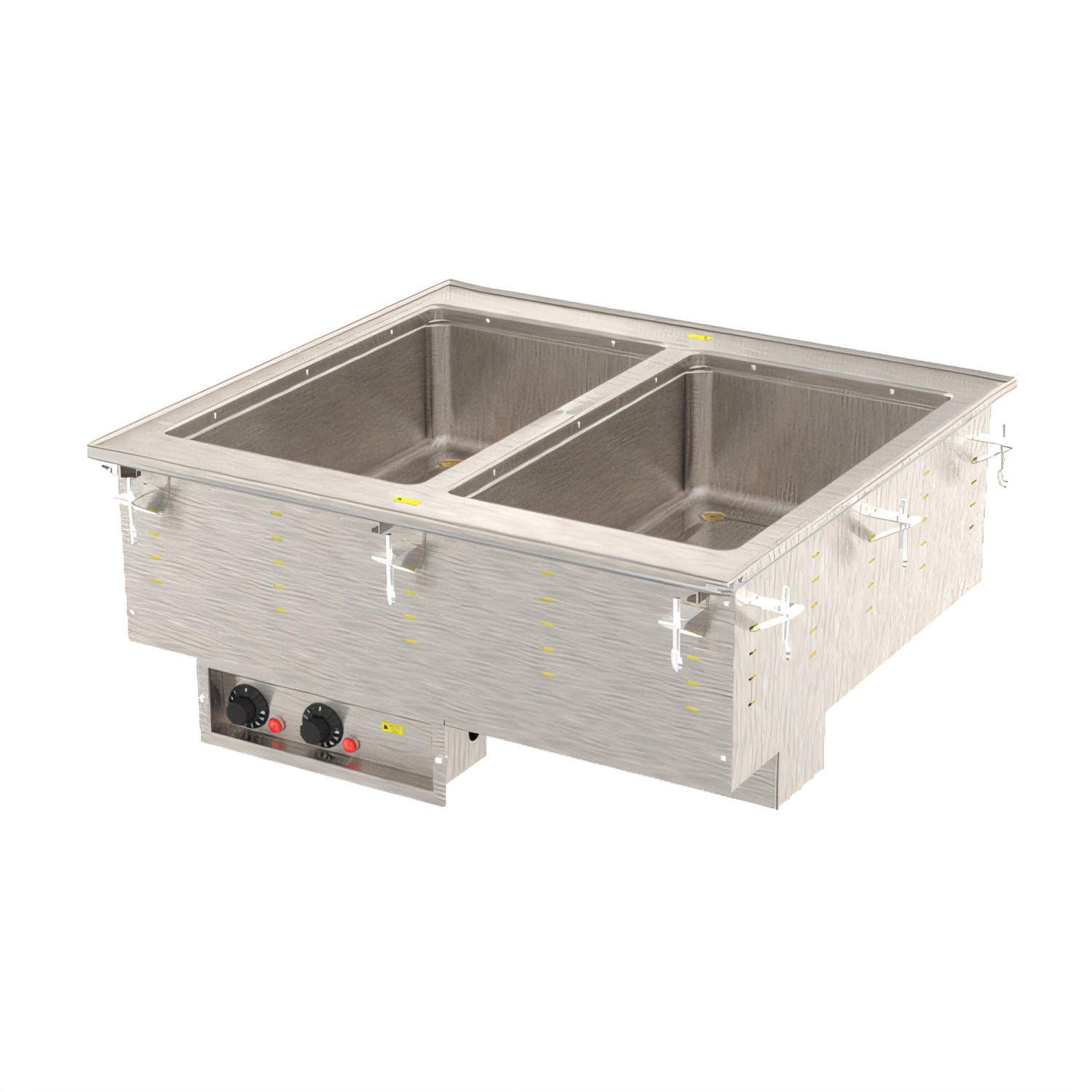

Vollrath Two-Well Marine-Grade Hot Drop-In – Auto-Fill, 240 V
Dual 12" × 20" wells • Individual thermostatic controls • 625 W per wellBuild an NSF-compliant serving line that stands up to the toughest environments. Vollrath’s drop-in hot well keeps entrées, sides and sauces at safe holding temperatures with marine-grade stainless steel durability and hands-off auto-fill convenience.
Why You’ll Love It

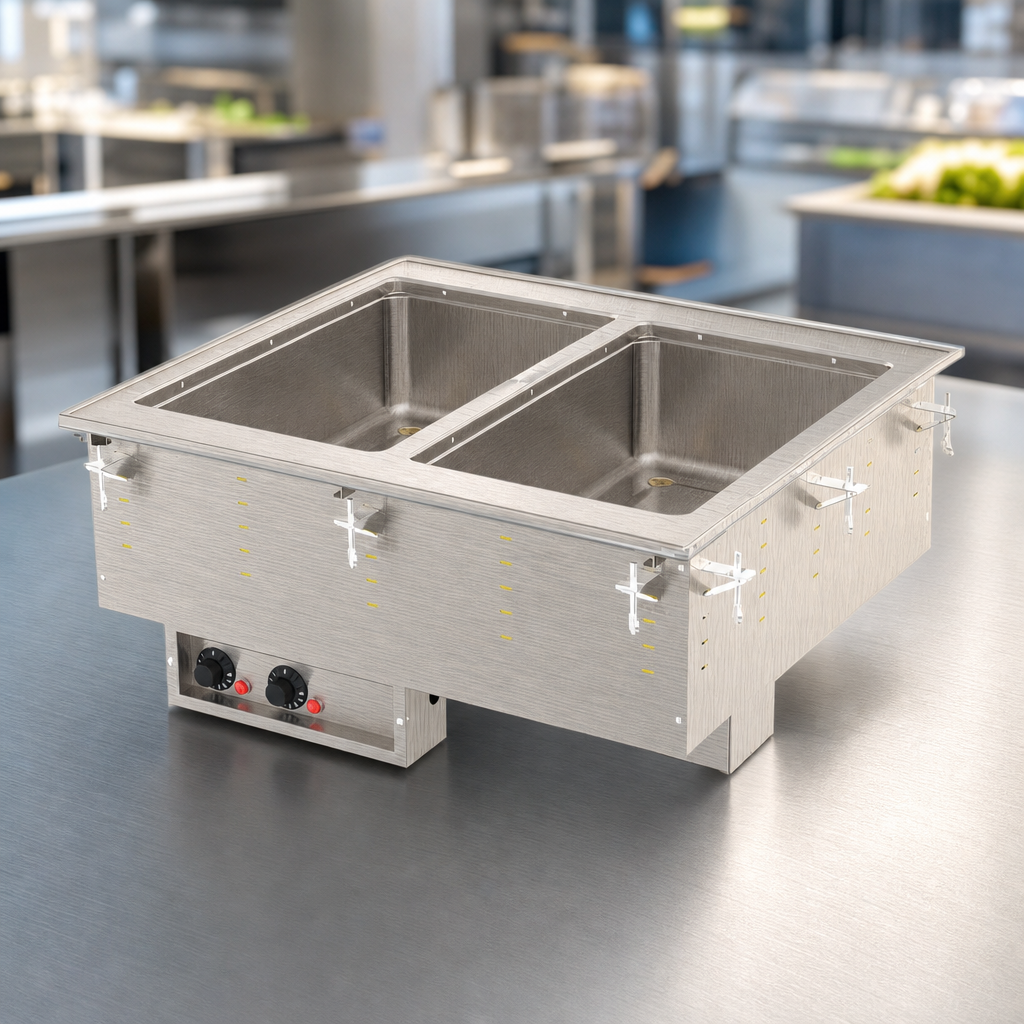

- 316 marine-grade drawn wells resist corrosion from salt, acidic foods and aggressive cleaners.
- Auto-fill system maintains the correct water level for consistent wet-heat only operation.
- Individual thermostatic controls with power indicator lights let you fine-tune each well independently.
- Fully insulated wells and housing maximize energy efficiency and keep countertops cool.
- 1" copper manifold drain with individual well shut-offs and master valve makes end-of-service cleanup fast.
- Zero-clearance, top-mount design installs easily in counters up to 3" thick—mounting clips included.
- Accepts full-size or fractional pans up to 6" deep; adapter bars recommended for fractional pans.
- Made in the USA and backed by Vollrath’s 2-year warranty for worry-free performance.
Technical Specifications
| Wells | (2) full-size 12" × 20" | 20 ga 316 SS, insulated |
|---|---|
| Operation | Wet heat only, auto-fill |
| Total Power | 1,250 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1 ph • 5.2 A • 6 ft cord with NEMA 6-15P |
| Controls | Remote stainless panel, individual thermostats, power lights, 4 ft tether |
| Drain | ½" individual drains to 1" copper manifold with master shut-off |
| Top Material | 18 ga stainless steel with drip-free flange & included gasket |
| Overall Dimensions | 28-1/4" W × 26" D × 21-1/2" H |
| Counter Cut-out | 27-1/2" W × 25-1/4" D • 7/8" corner radius required |
| Certifications | NSF 4 (wet), cULus listed |
| Origin | Made in USA |
Installation & Environment
- Zero-clearance drop-in—no side or rear clearance required.
- Indoor use only; ambient temperature & HVAC can influence holding temps.
- Refer to VollrathFoodservice.com for full installation manual and cut-out template.
Included / Optional Accessories
- Mounting/positioning clips (included)
- Adapter bars for fractional pans (sold separately)
- Sheet-pan adapter – Item #19186 (sold separately)
Certifications & Warranty
- NSF 4 certified when operated with water.
- cULus listed for electrical safety.
- 2-year limited warranty against defects in materials & workmanship (see Vollrath warranty policy).
Important: This unit is designed for wet operation only. Running the wells dry may damage the equipment and void the warranty.
Special Order: Drop-in units are built to order and cannot be canceled or returned.
Need a different voltage, control style or number of wells? Contact our food-service team for additional Vollrath configurations.
