Vollrath 3647270HD Steam Tables & Food Wells
$2,443.80
Unit price
/
Unavailable
Description

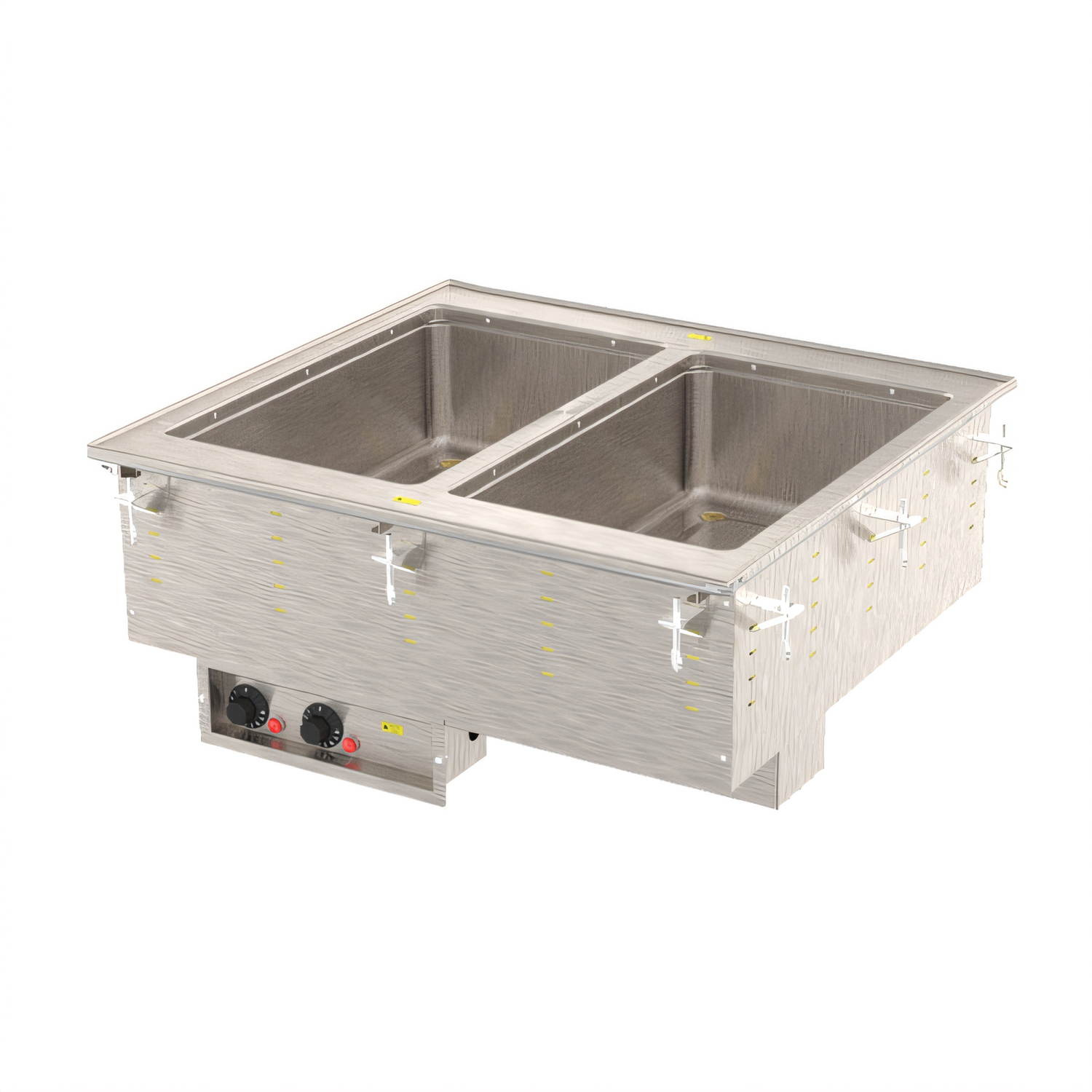

Vollrath 2-Well Marine-Grade Hot Drop-In (Thermostatic, 240 V)
Model: Two-Well Modular Hot Drop-In – 625 W per well, manifold drainBuilt for high-volume buffets, cafeterias, and galleys where corrosion resistance is mission-critical, this Vollrath drop-in keeps two full-size pans of food hot, safe, and ready to serve—all inside a compact, zero-clearance footprint that installs in minutes.
Why You’ll Love It

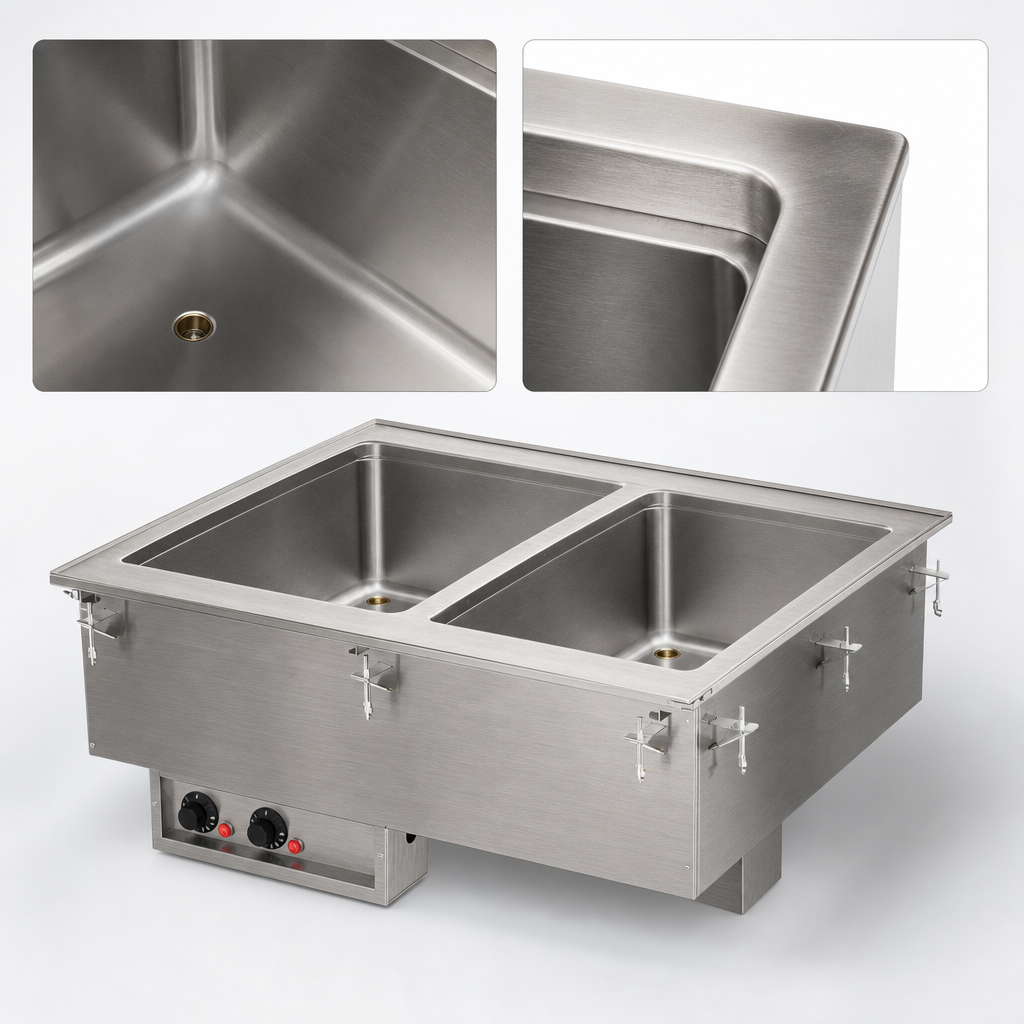

- Premium 20-gauge, 316 marine-grade stainless wells fight pitting & corrosion—ideal for salted or acidic menus.
- Individual thermostatic controls with power lights deliver precise holding temperatures for each well.
- Fully insulated wells (including the divider) boost efficiency and keep counter surfaces cool.
- 1" copper manifold drain with ball-valve shut-offs per well plus master shut-off simplifies daily cleanup.
- Drip-free recessed flange and included gasket create a clean, health-code-friendly seal.
- Ships with 6 ft cord & NEMA 6-15P plug—no hard-wiring required.
- Made in the USA, cULus listed, NSF 4 compliant for moist-heat operation.
Technical Specifications
| Number of wells | 2 (fits standard 12" × 20" pans up to 6" deep) |
|---|---|
| Construction | Wells: 20 ga 316 marine-grade stainless Top: 18 ga stainless Exterior housing: stainless steel |
| Operation | Wet heat only (water required for NSF performance) |
| Controls | Two independent thermostatic dials with power indicator lights (mounted on 4′ tethered panel) |
| Heat output | 625 W per well (1,250 W total) |
| Electrical | 240 V / 60 Hz / 1-ph, 5.2 A, cord & NEMA 6-15P plug |
| Overall dimensions | 28 ¼″ W × 26″ D × 21 ½″ H |
| Counter cut-out | 27 ½″ W × 25 ¼″ D, ⅞″ corner radius |
| Drain connection | 1″ copper manifold, ½″ MPT individual drains |
| Certifications | NSF 4, cULus, Made in USA |
| Included items | Mounting / positioning clips, under-flange gasket |
Important: This unit is designed for wet-operation only. Always keep 1"-2" of water in each well for even heating and to maintain NSF compliance.
Easy, Tool-Free Installation
- Zero-clearance design drops into counters up to 3″ thick.
- Standard mounting clips tighten by hand—no drilling or specialty hardware needed.
- 4′ tether lets you locate the stainless control panel where it’s most convenient for staff.
Compatible Accessories
- Sheet-pan adapter (Item 19186) for 18" × 26" pans.
- Vollrath adapter bars recommended when using fractional pans.
Warranty
Covered by Vollrath’s 2-year parts & labor warranty. See full policy at vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
28.25in
Depth
26.0in
Shipping Weight
110.0lbs
Style
individual pans
Construction
stainless steel construction
Pan Capacity
(2) full size (12" x 20")
Controls
thermostatic controls
Wet or Dry operation
wet
Insulated or Non-Insulated
insulated
Drain
with drain
Specifications
Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1250 watts, 240v/60/1-ph, 5.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
