Vollrath

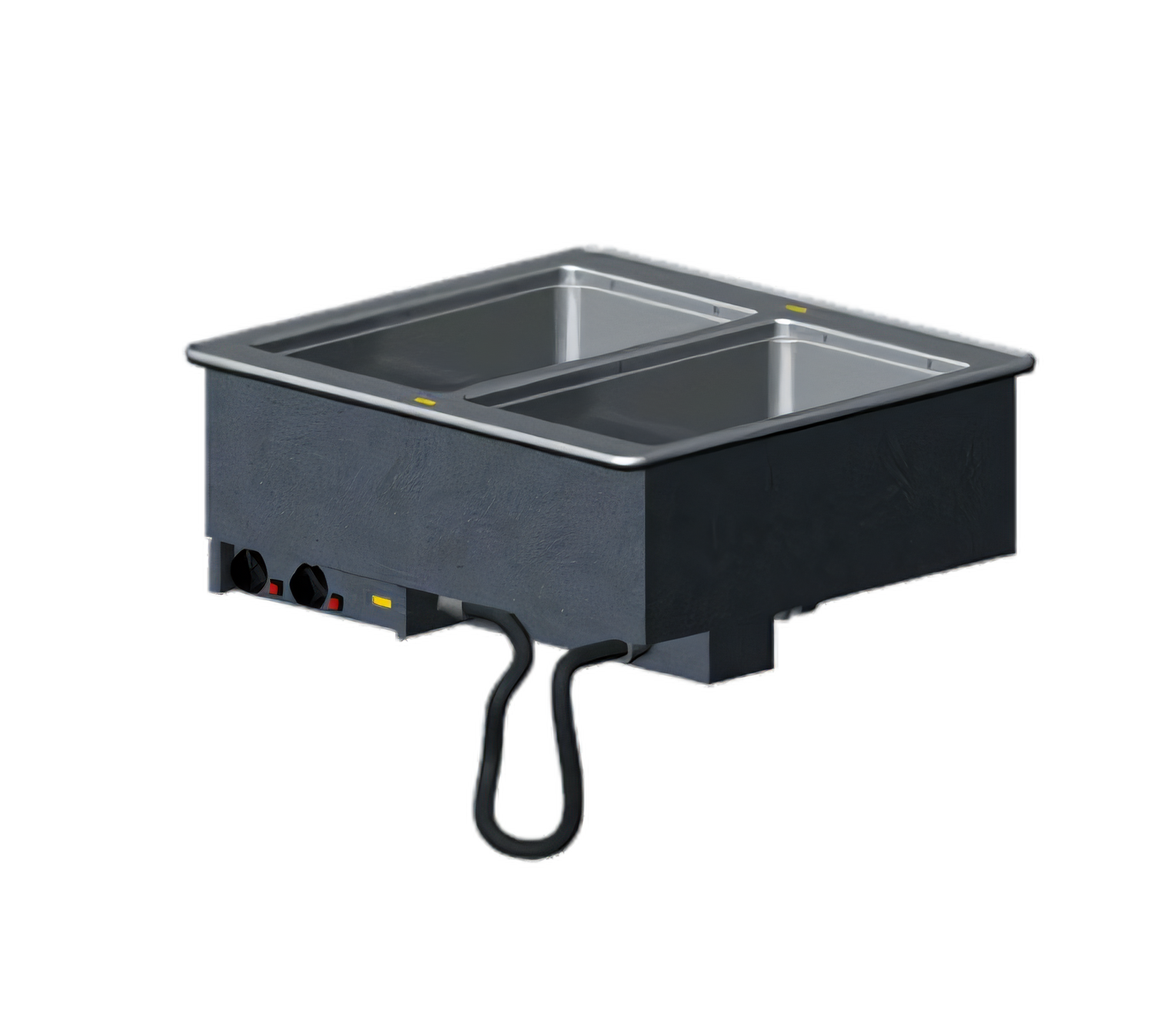

Vollrath Two-Well Drop-In Electric Hot Food Well with Thermostatic Controls, Manifold Drain, 12 x 20 Inch Insulated Wells, 240V

SKU: 3647270
$2,196.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Vollrath Two-Well Drop-In Electric Hot Food Well with Thermostatic Controls, Manifold Drain, 12 x 20 Inch Insulated Wells, 240V

Wet-Operation Only, Cord-and-Plug Installation, Stainless Steel Top

Keep two full-size pans of hot food ready to serve with an insulated, wet-operation drop-in well that combines thermostatic control, a manifold drain, and cord-and-plug convenience.

  • Two insulated 12" x 20" wells hold full-size pans and help maintain serving temperatures.
  • Wet-operation design requires water for even heating and consistent performance.
  • Individual thermostatic controls and power indicator lights make temperature management easy.
  • 1" copper manifold drain with individual well shutoffs and a master shutoff simplifies cleanup.
  • 18-gauge stainless steel top, stainless steel wells, and galvanized steel exterior housing add durability.
  • Includes a cord with NEMA 6-15P plug and positioning clips for easier installation.

Overall Dimensions:

28.25"W x 26.0"D x 21.5"H

Product Weight:

110.0 lb

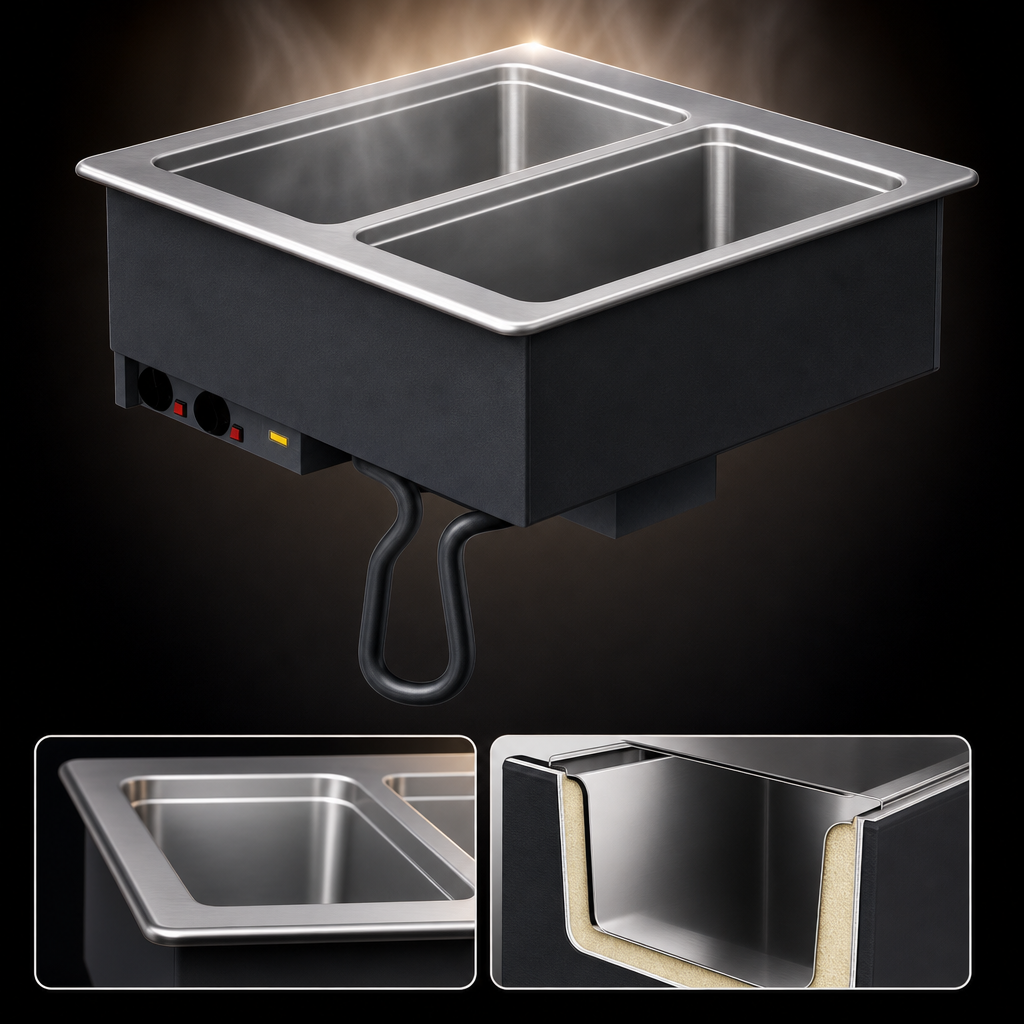

Insulated Stainless Steel Wells

Two 20-gauge stainless steel wells are insulated to help retain heat and fit full-size 12" x 20" pans.

Wet-Operation Only

Designed for moist-heat operation; water is required for even heating and proper food holding performance.

Individual Thermostatic Controls

Each well has its own thermostatic control mounted in a remote panel, with a power indicator light.

Manifold Drain System

The 1" copper manifold drain includes individual well shutoffs and a manifold shutoff for easier servicing.

Durable Top and Housing

Features an 18-gauge stainless steel top, 18-gauge galvanized steel exterior housing, and a drip-free flange.

Cord-and-Plug Installation

Includes a cord with a NEMA 6-15P plug and positioning clips; hard-wiring is not required.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 2 Full-Size Pans
Pan Size 12 x 20 Inches
Controls Thermostatic
Material Stainless Steel
Interior Finish Stainless Steel
Drain Connection Required
Drain Connection Size 1 Inch
Voltage 240 Volts
Watts 1.25 kW
Amps 5.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Cord Length 6 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 110 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship.

Frequently Asked Questions

Yes. It is wet-operation only, and water is required for even heating and proper food holding performance.
No. It includes a cord with a NEMA 6-15P plug.
It holds (2) full-size 12" x 20" pans and accepts fractional pans up to 6" deep; adapter bars are recommended for fractional pans.
The cutout size is 27-1/2" W x 25-1/4" D, and the cutout requires a 7/8" corner radius.
It has a 1" copper manifold drain with individual well shutoffs and a manifold shutoff.
