Vollrath | SKU:
3647260HD
Vollrath 3647260HD Steam Tables & Food Wells
$2,951.30
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3647260HD Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3647260HD Steam Tables & Food Wells
$2,951.30
Unit price
/
Unavailable
Description
Vollrath Two-Well Hot Drop-In with Marine-Grade Wells, Auto-Fill, 240 V
Model 3647250HD • Infinite Controls • 625 W / WellKeep entrées, sides and sauces at perfect serving temperature with this USA-made, marine-grade hot food well. Designed for top-mount installation, it delivers the corrosion resistance, easy service access and labor-saving auto-fill convenience today’s busy kitchens demand.
Key benefits

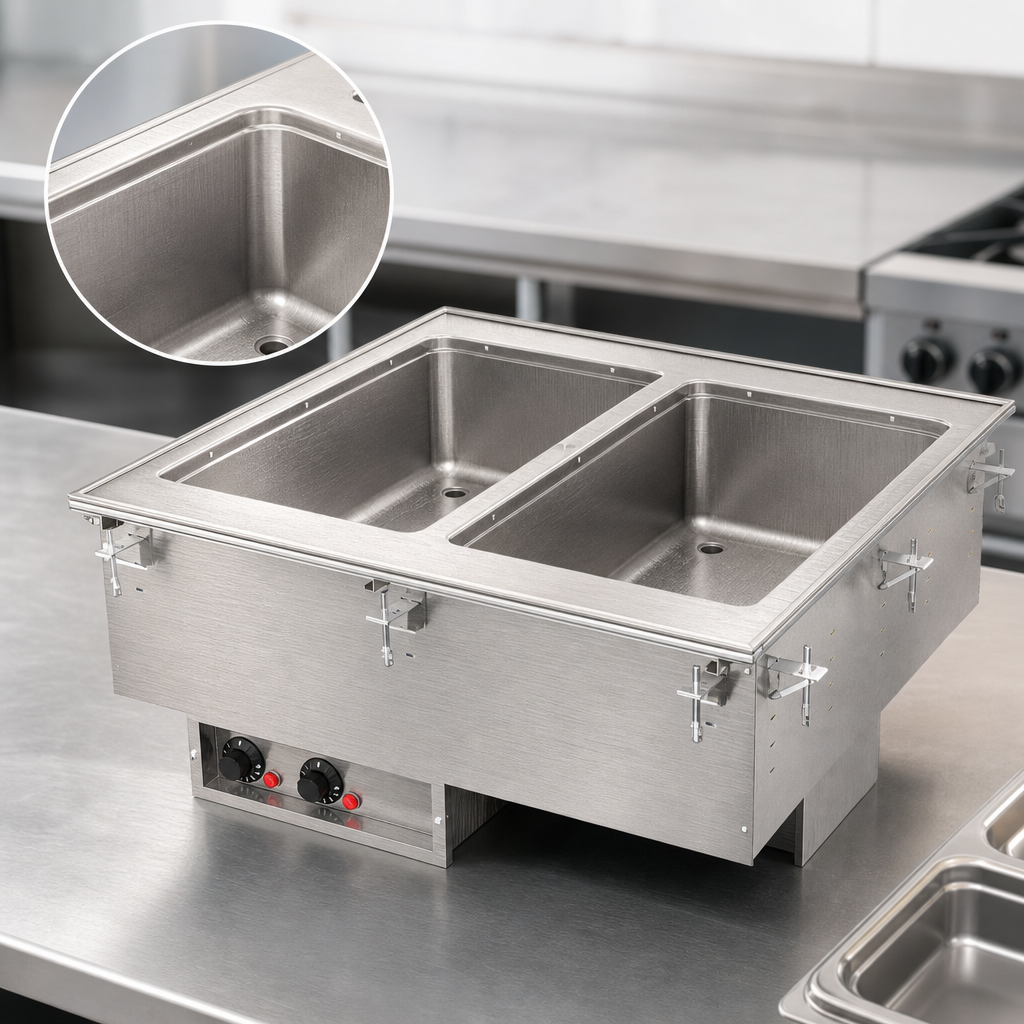

- (2) 12 × 20 in wells formed from 20 ga 316 stainless steel for unmatched corrosion resistance.
- Wet-heat only operation with factory-installed auto-fill—no more manual refills or burnt elements.
- Independent infinite controls with power indicator lights; 4 ft (121.9 cm) tethered panel mounts where you need it.
- Fully insulated wells and drip-free top flange improve energy efficiency and keep counter edges dry.
- 1 in copper manifold drain with master shut-off plus individual ball valves for quick, mess-free water changes.
- Ships ready to install: gasket, positioning clips (for counters up to 3 in / 7.6 cm thick) and 6 ft cord with NEMA 6-15P.
- NSF 4 (wet heat only) & cULus listed; backed by Vollrath’s 2-year parts & labor warranty.
Specifications
| Wells | 2 × full-size (12 × 20 in) |
|---|---|
| Operation | Wet heat only, auto-fill |
| Controls | Independent infinite knobs with indicator lights |
| Power | 1,250 W total (625 W / well) |
| Electrical | 240 V • 60 Hz • 1-phase • 5.2 A • NEMA 6-15P |
| Overall size | 28 ¼ "W × 26 "D × 21 ½ "H (71.8 × 66 × 54.6 cm) |
| Counter cut-out | 27 ½ "W × 25 ¼ "D (69.9 × 64.1 cm) – ⅞ in (2.2 cm) corner radius |
| Top material | 18 ga stainless steel |
| Well material | 20 ga 316 marine-grade stainless steel |
| Drain | 1 in copper manifold with individual well shut-offs & master valve |
| Certifications | NSF, cULus |
| Country of origin | Made in USA |
| Warranty | 2-year parts & labor (see vollrathfoodservice.com for full policy) |
Ideal for
- Buffet lines, cafeterias and catering stations
- Back-of-house staging where space and power are limited
- Marine, coastal and high-humidity operations that demand superior corrosion resistance
Important: To meet NSF 4 performance standards, the wells must be operated with water at all times.
Drop-in orders are non-cancellable and non-returnable.
Using fractional pans? Adapter bars are recommended. Sheet-pan adapter (Vollrath #19186) sold separately.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
28.25in
Depth
26.0in
Shipping Weight
122.0lbs
Controls
infinite controls
Insulated or Non-Insulated
insulated
Style
individual pans
Construction
stainless steel construction
Drain
with drain
Pan Capacity
(2) full size (12" x 20")
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1250 watts, 240v/60/1-ph, 5.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
