Vollrath 3647260 Steam Tables & Food Wells
$2,624.05
Unit price
/
Unavailable
Description

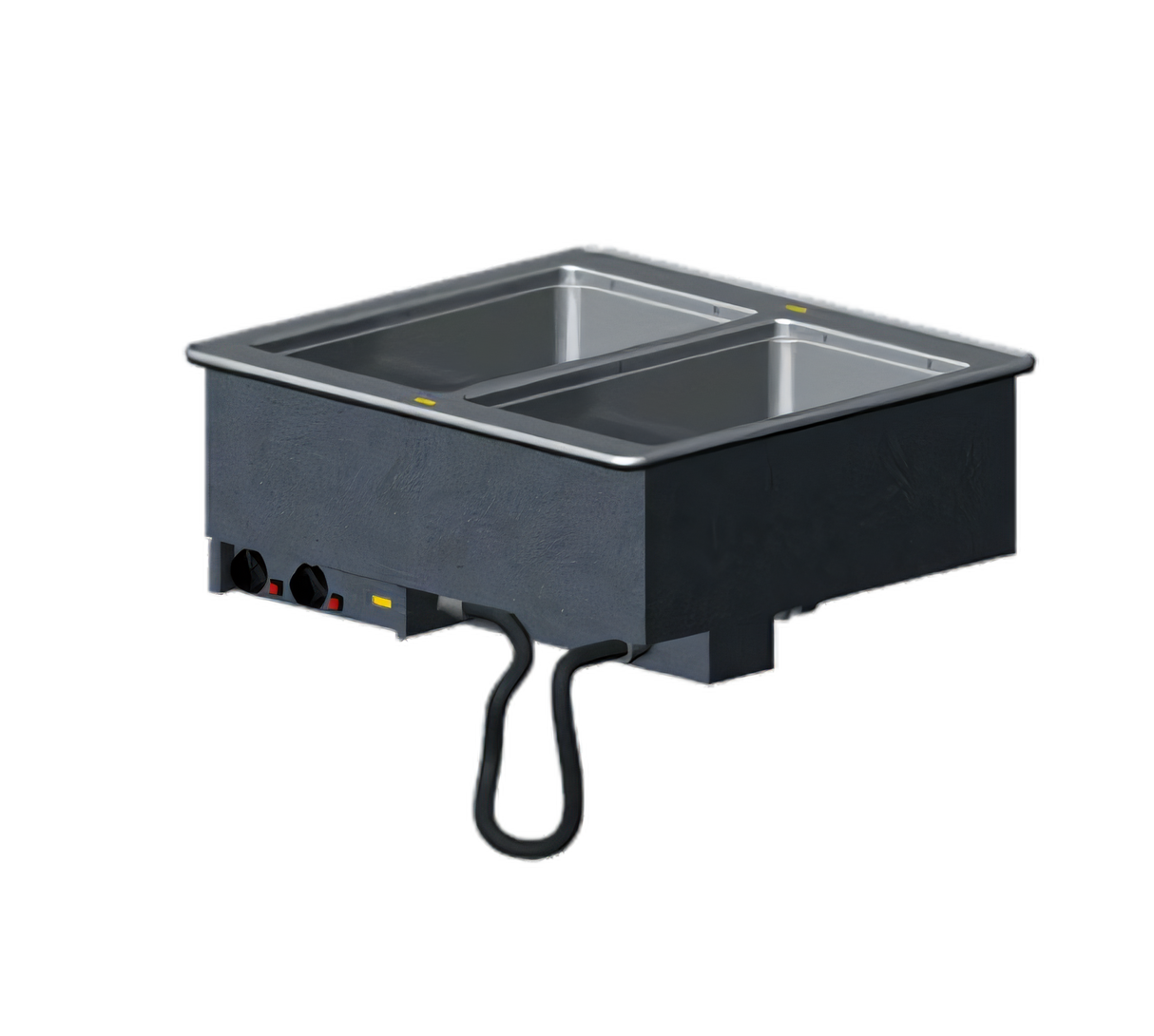

Vollrath Two-Well Drop-In Hot Food Well – Auto-Fill, 240 V
625 W per well • Infinite controls • NEMA 6-15P plugKeep soups, sauces and entrées at perfect serving temperature with this Made-in-USA Vollrath two-well hot module. Designed for top-mount installation, the unit arrives pre-wired with a cord and plug—no hard-wiring, onsite brazing or extra drain plumbing required.
Why You’ll Love It
- Two individual 12" × 20" (full-size) 20-gauge stainless wells—each fully insulated for maximum heat retention.
- Wet operation with automatic water level control; simply connect to a ¼" water line and the wells refill themselves.
- 1" copper manifold drain with individual ball-valve shut-offs plus a master manifold shut-off for fast, mess-free emptying.
- Separate infinite heat controls and power indicator lights for each well, mounted on a stainless control panel with a 4' tether for flexible placement.
- Drip-free 18-gauge stainless top flange for a clean, professional counter finish.
- Zero-clearance, top-mount design with included positioning clips for counters up to 3" (7.6 cm) thick—install in minutes.
- Accepts pans up to 6" (15.2 cm) deep; adapter bars recommended for fractional pans.
- NSF 4 and cULus listed for safe, reliable commercial use.
At-a-Glance Specs
| Wells | 2 × 12" × 20" (full-size), wet operation only |
|---|---|
| Total Wattage | 1,250 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-ph, 5.2 A, cord & NEMA 6-15P plug |
| Controls | Individual infinite rotary dials with pilot lights |
| Overall Dimensions | 28 ¼" W × 26" D × 21 ½" H (71.8 × 66 × 54.6 cm) |
| Counter Cut-out | 27 ½" W × 25 ¼" D (69.9 × 64.1 cm) – ⅞" corner radius required |
| Construction | 18-ga stainless top, 20-ga drawn wells, 18-ga galvanized exterior housing |
| Drain | 1" copper manifold with individual & master shut-offs |
| Water Connection | ¼" NPT for auto-fill |
| Certifications | NSF 4, cULus, Made in USA |
Installation Notes
- Indoor use only; room temperature & HVAC can affect holding temperature.
- Operate with water in wells to meet NSF performance standards.
- Cut-out must include a ⅞" (2.2 cm) corner radius.
- Do not modify the attached cord or plug—doing so voids warranty.
Important: Modular drop-ins are built to order and cannot be canceled or returned once the order is placed.
For complete warranty terms, visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
28.25in
Depth
26.0in
Shipping Weight
122.0lbs
Controls
infinite controls
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Drain
with drain
Pan Capacity
(2) full size (12" x 20")
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1250 watts, 240v/60/1-ph, 5.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
