Description

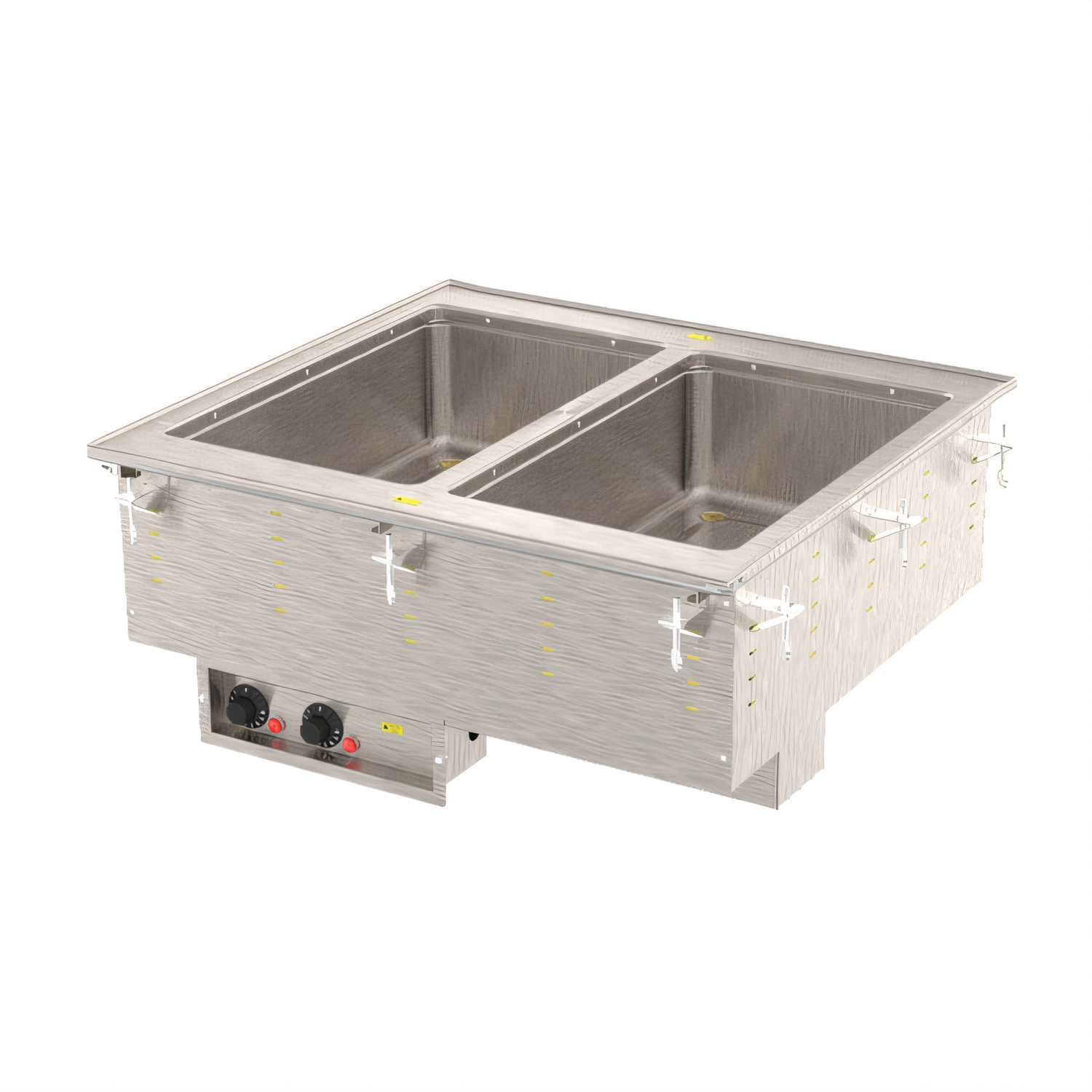

Vollrath Two-Well Modular Hot Food Drop-In with Marine-Grade Wells – 240 V
625 W per well | Infinite controls | Made in USAEngineered for restaurants, cafeterias, and marine environments alike, this Vollrath drop-in delivers consistent wet-heat holding in a compact, plug-and-play package. The dual 12″ × 20″ wells are formed from corrosion-resistant 316 stainless, insulated on every side, and drained by a copper manifold system for effortless clean-up.
Key Features

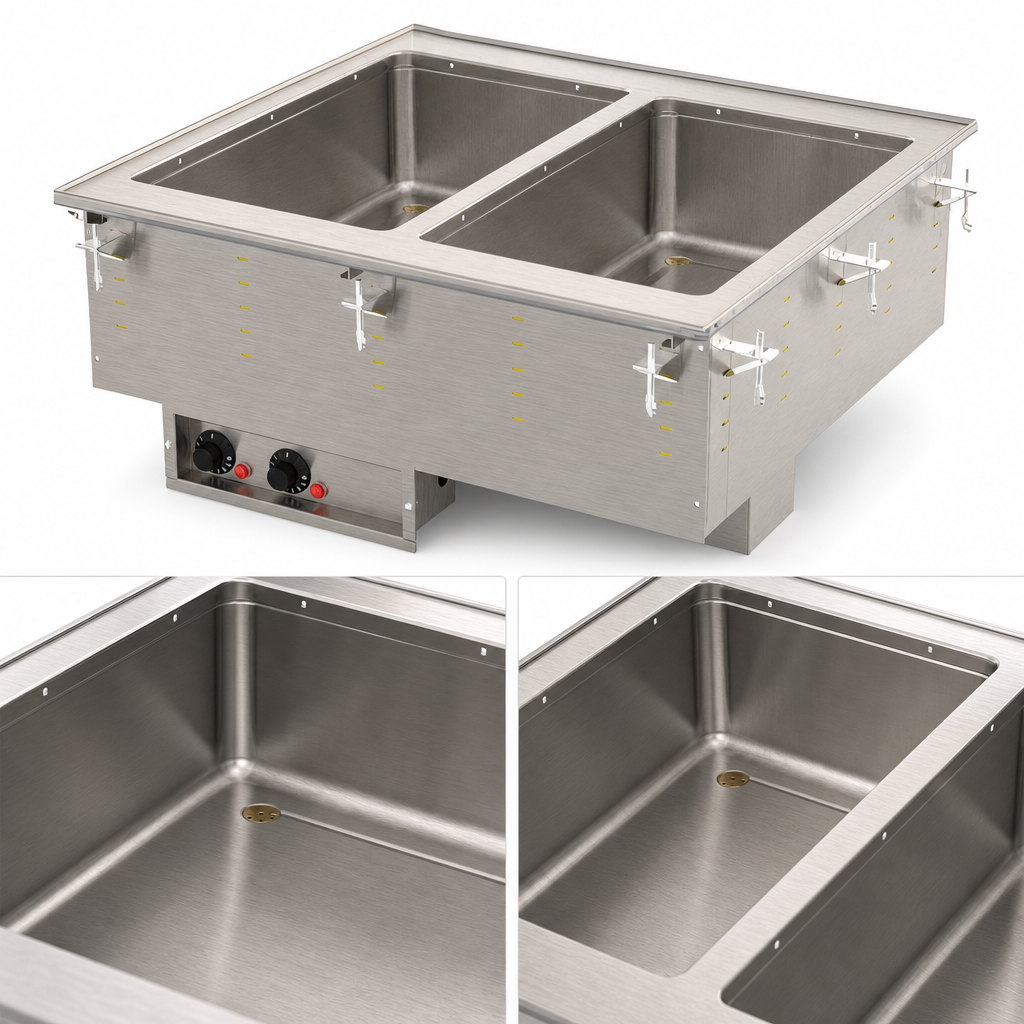

- (2) individual 12″ × 20″ wells spun from 20-gauge 316 marine-grade stainless steel.
- Independent infinite controls with bright power indicator lights for each well.
- Wet operation meets NSF 4 performance standards for safe, even heating.
- 1″ copper manifold drain with individual ball-valve shut-offs plus master shut-off.
- Drip-free flange, underside gasket, and mounting clips for counters up to 3″ thick.
- Fully insulated on all sides—including between wells—for maximum energy efficiency.
- 6′ power cord with NEMA 6-15P plug—no hard-wiring required.
- NSF & cULus listed; backed by a 2-year Vollrath warranty.
Wet operation only: Add water before turning the unit on. Running the wells dry can damage the heaters and void the warranty.
Technical Specifications
| Wells | (2) 12″ × 20″, 20 ga 316 stainless; accepts pans up to 6″ deep |
|---|---|
| Control Type | Individual infinite controls (remote panel, 4′ tether) |
| Total Wattage | 1,250 W (625 W per well) |
| Electrical | 240 V / 60 Hz / 1-ph, 5.2 A, NEMA 6-15P |
| Overall Dimensions | 28-1/4″ W × 26″ D × 21-1/2″ H |
| Cut-Out Size | 27-1/2″ W × 25-1/4″ D (7/8″ corner radius required) |
| Top / Housing | 18 ga stainless top with drip-free flange; stainless exterior housing |
| Drain System | 1″ copper manifold, individual well shut-offs & master shut-off |
| Certifications | NSF, cULus |
| Country of Origin | USA |
| Warranty | 2 years parts & labor (see vollrathfoodservice.com for details) |
Installation & Use

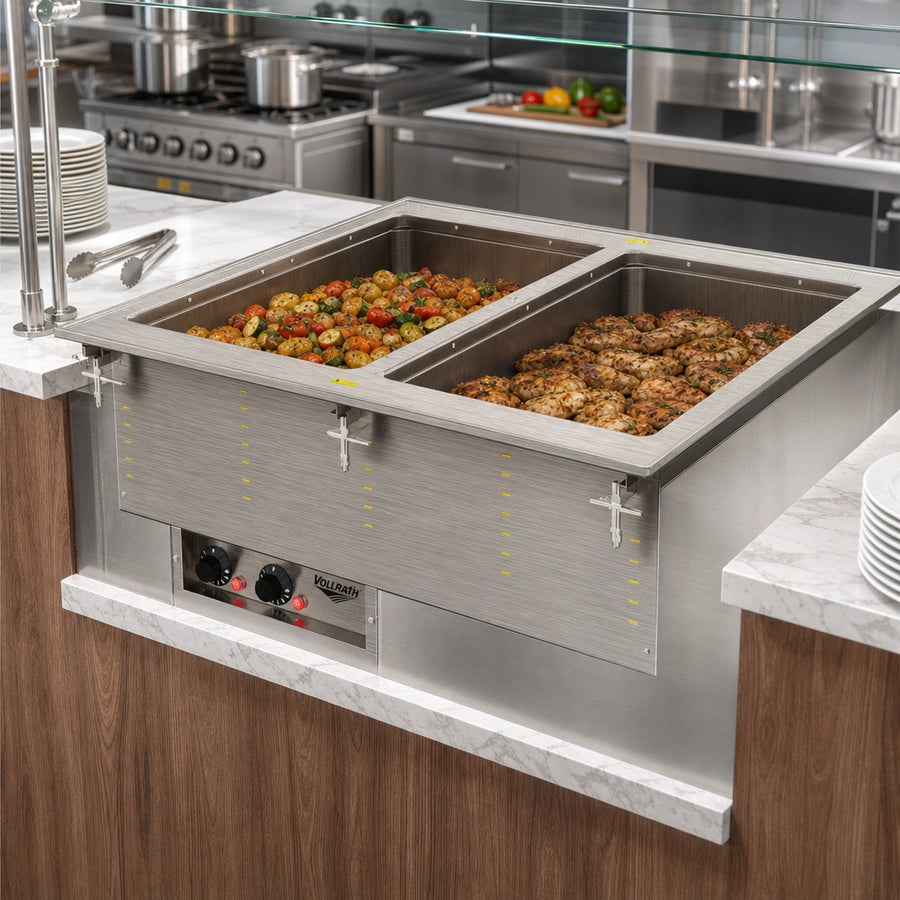

- Zero-clearance, drop-in mounting—perfect for buffets and build-outs.
- Control panel mounts remotely; choose the most ergonomic location.
- Always maintain water level above the heating element during service.
- Drain, rinse, and dry wells after each shift to preserve the marine-grade finish.
- For fractional pans, use adapter bars to ensure balanced heat distribution.
Looking for a sheet-pan adapter? Order Vollrath item 19186 (sold separately).
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
28.25in
Depth
26.0in
Shipping Weight
94.0lbs
Controls
infinite controls
Insulated or Non-Insulated
insulated
Style
individual pans
Construction
stainless steel construction
Drain
with drain
Pan Capacity
(2) full size (12" x 20")
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1250 watts, 240v/60/1-ph, 5.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
