Vollrath 3647250 Steam Tables & Food Wells
$2,014.70
Unit price
/
Unavailable
Description

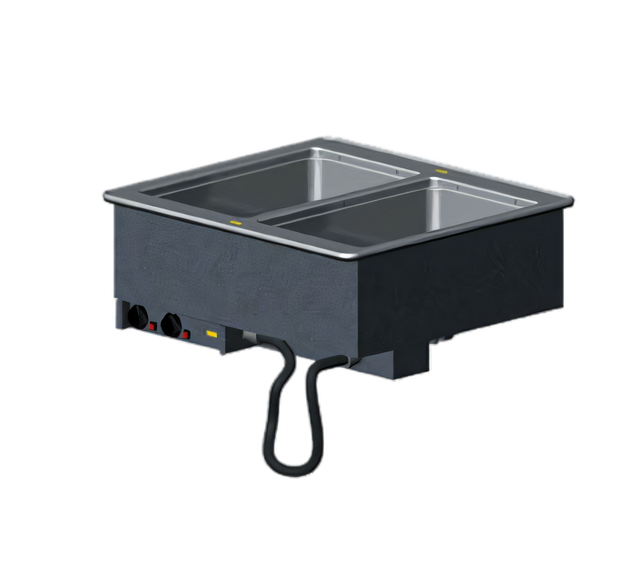

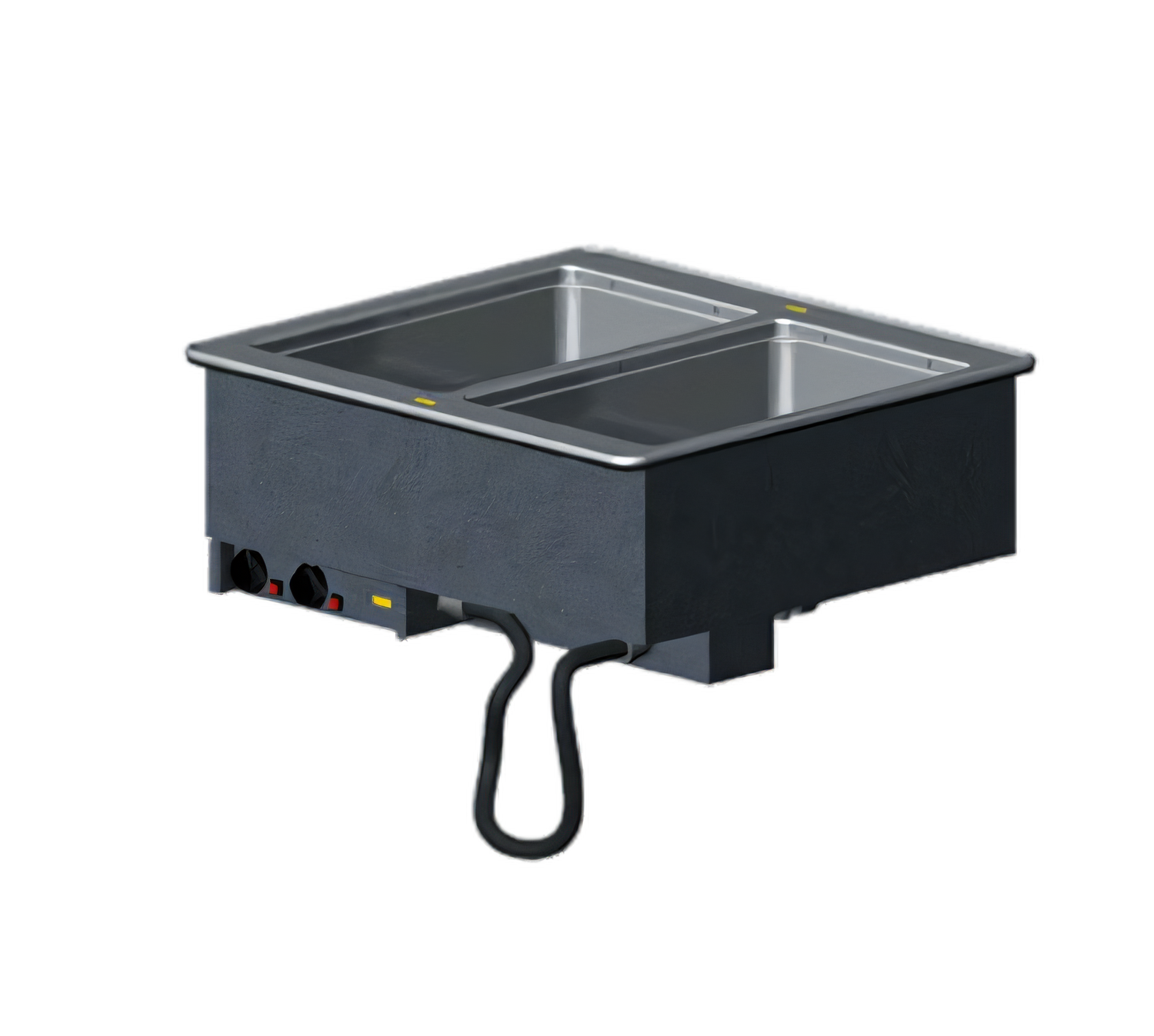

Vollrath Two-Well Drop-In Hot Food Well – Manifold Drain, Infinite Control, 240 V
Model family 36472 | 625 W per well | NSF & cULus listed | Made in USAKeep entrées, sides and sauces at safe serving temperatures with Vollrath’s premium two-well hot module. Designed for top-mount installation, this electric drop-in requires no hard-wiring and ships ready to install with all mounting hardware and a factory-attached cord & plug.
Why you’ll love it
- (2) independent 12 × 20 in (GN 1/1) wells – 20 ga 300-series stainless steel, fully insulated on all sides

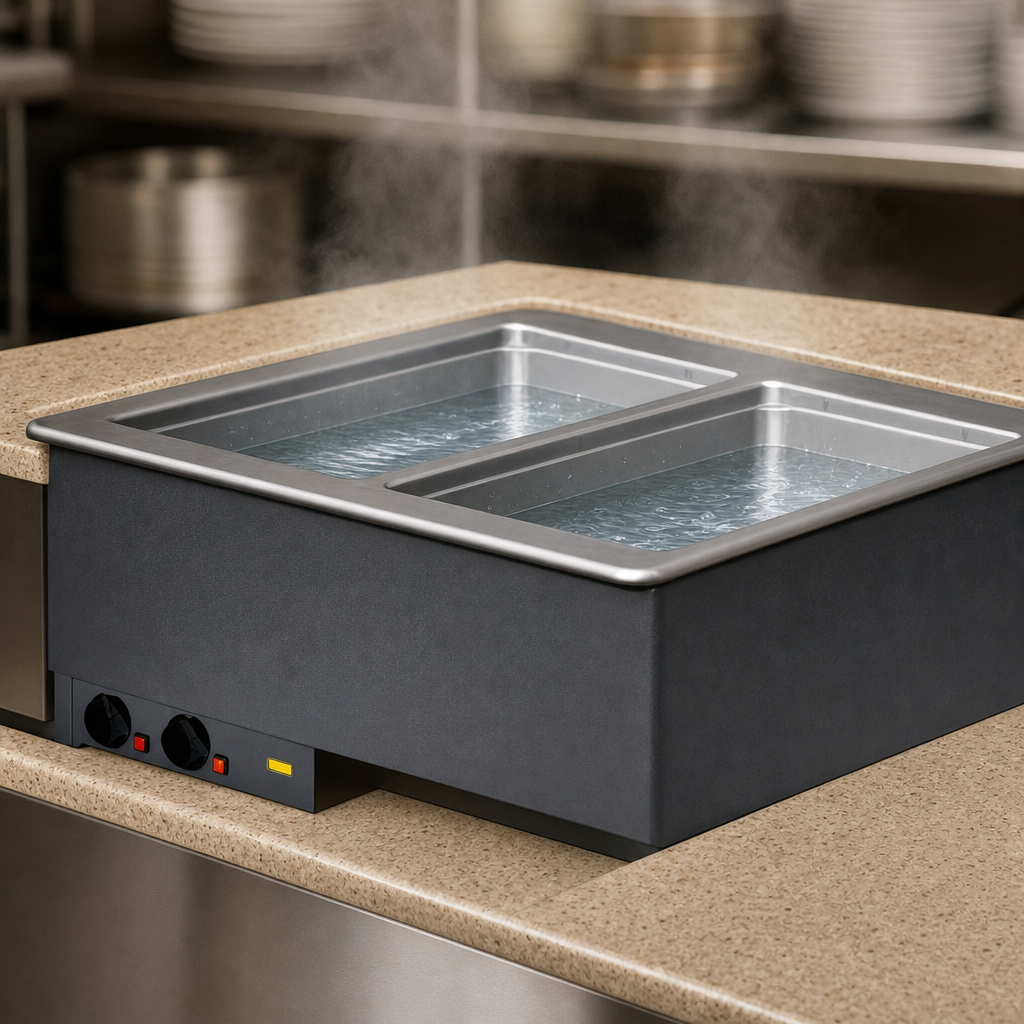

- Wet operation only for even, gentle heat that meets NSF 4 performance standards
- Individual infinite controls with power indicator lights on a 4 ft tethered stainless panel
- 1 in copper manifold drain with ball-valve shut-offs on each well plus a master shut-off
- Drip-free top flange & factory-installed gasket to protect the counter edge
- 18 ga stainless top & 18 ga galvanized exterior housing built for demanding kitchens
- 6 ft cord with NEMA 6-15P – simply plug into a dedicated 240 V outlet (5.2 A)
- Zero-clearance installation; includes positioning clips for counters up to 3 in thick
- Accepts full-size or fractional pans up to 6 in deep (adapter bars recommended for fractional pans)
- NSF, cULus certified and proudly made in the USA
Technical specifications
| Wells | (2) 12 × 20 in, 625 W each (total 1250 W) |
|---|---|
| Operation | Wet heat only (water required) |
| Controls | Separate infinite controls with pilot lights |
| Overall dimensions | 28 ¼ W × 26 D × 21 ½ H in (71.8 × 66 × 54.6 cm) |
| Cutout size | 27 ½ W × 25 ¼ D in • 7⁄8 in corner radius |
| Voltage / Phase | 240 V / 60 Hz / 1-ph |
| Amperage | 5.2 A |
| Plug | NEMA 6-15P (attached 6 ft cord) |
| Drain | 1 in copper manifold with individual well valves & master shut-off |
| Construction | 18 ga stainless top, 20 ga stainless wells, 18 ga galvanized housing |
| Pan capacity | Full-size & fractional pans up to 6 in (15.2 cm) deep |
| Certifications | NSF 4, cULus |
| Country of origin | USA |
Recommended accessories
- Sheet Pan Adapter – Vollrath #19186 (converts one well to hold a 18 × 26 in sheet pan)
- Adapter bars for fractional pans
Important: Unit must be operated with water in each well to maintain even
heating and to comply with NSF requirements.
Modular drop-ins cannot be canceled or returned once ordered. See the full warranty policy at vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
28.25in
Depth
26.0in
Shipping Weight
94.0lbs
Controls
infinite controls
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Drain
with drain
Pan Capacity
(2) full size (12" x 20")
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1250 watts, 240v/60/1-ph, 5.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
