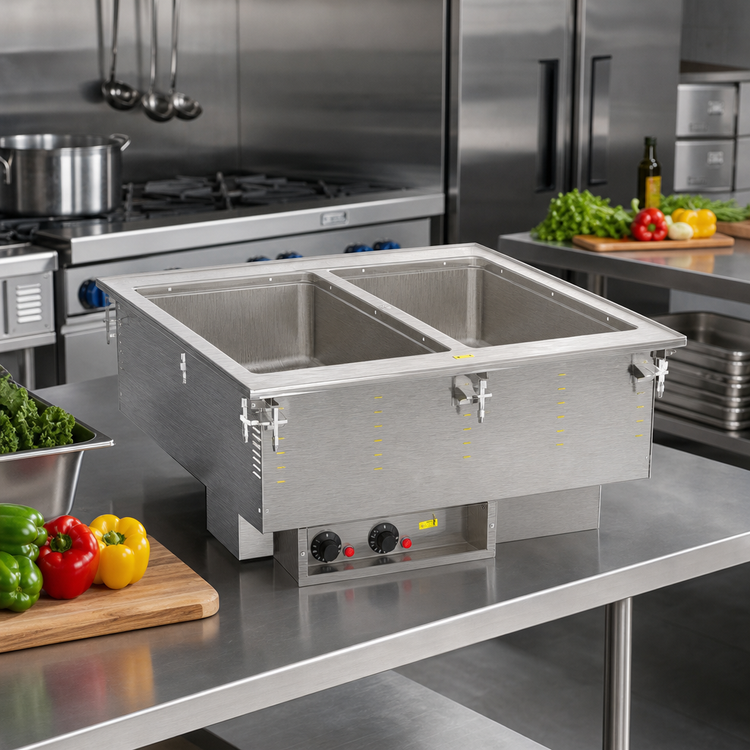

Vollrath Two-Well Electric Drop-In Hot Food Well with Thermostatic Controls, 12 x 20 Marine-Grade 316 Stainless Steel Wells

Wet Operation Only, 240V, 625W Per Well

Keep two full-size pans hot and ready with an insulated drop-in well built for reliable wet-heat service and precise thermostatic control.

  • Two individually controlled 12 x 20 wells are designed for wet operation to maintain serving temperatures evenly.
  • Marine-grade 316 stainless steel wells and insulated construction help resist corrosion and retain heat.
  • Thermostatic controls with power indicator lights make temperature management simple for each well.
  • Drop-in design includes a drip-free flange, positioning clips, and a cord with plug for easier installation.
  • Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.
  • Individual drain shutoffs and a removable bottom service panel help simplify maintenance and cleaning.

Overall Dimensions:

28.25"W x 26.0"D x 15.0"H

Product Weight:

106.0 lb

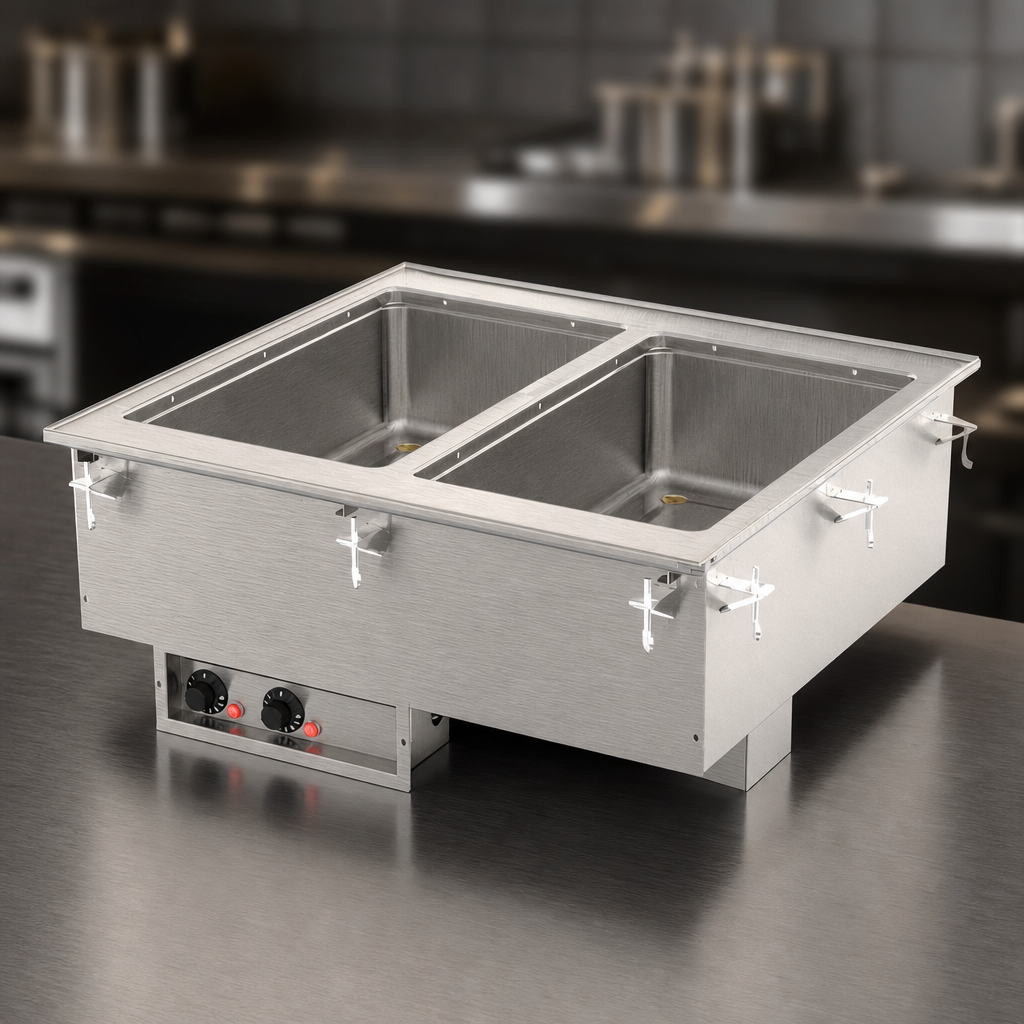

Marine-Grade Stainless Steel Wells

Each well is formed from 20-gauge, 316 marine-grade stainless steel for durability and corrosion resistance.

Insulated Wet-Heat Design

Insulated on all sides, including between wells, to improve heat retention during wet operation.

Individual Thermostatic Controls

Separate thermostatic controls and power indicator lights are mounted in the control panel for each well.

Flexible Remote Control Panel

The control panel connects with a 4-foot tether for flexible mounting locations.

Drop-In Installation Hardware

Includes standard mounting clips and a drip-free flange for easier top-mount installation; no hard-wiring is required.

Service Access Panel

A removable bottom panel provides access for service and maintenance.

Drain Shutoffs

Individual drain shutoffs help simplify emptying and cleaning each well.

Pan Compatibility

Accepts full-size and fractional pans up to 6 inches deep; a sheet pan adapter is available separately.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 2 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Controls Thermostatic
Material Stainless Steel
Interior Finish 316 Stainless Steel
Finish Stainless Steel
Watts 1.25 kW
Voltage 240 Volts
Amps 5.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Drain Connection Size 1/2 Inch MPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 106 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Wet operation only. Water is required for even heating and the unit is intended to hold foods at proper serving temperatures with moist heat.
No. It includes a cord with plug and does not require hard-wiring.
It accepts full-size and fractional pans up to 6 inches deep. Adapter bars are recommended when using fractional pans.
The required cutout size is 27-1/2 inches wide by 25-1/4 inches deep, with a 7/8-inch corner radius.
This model is supplied with a NEMA 6-15P plug.
HD wells come with a two-year warranty against defects in materials and workmanship. Refer to Vollrath's full warranty policy for complete terms.
