Vollrath

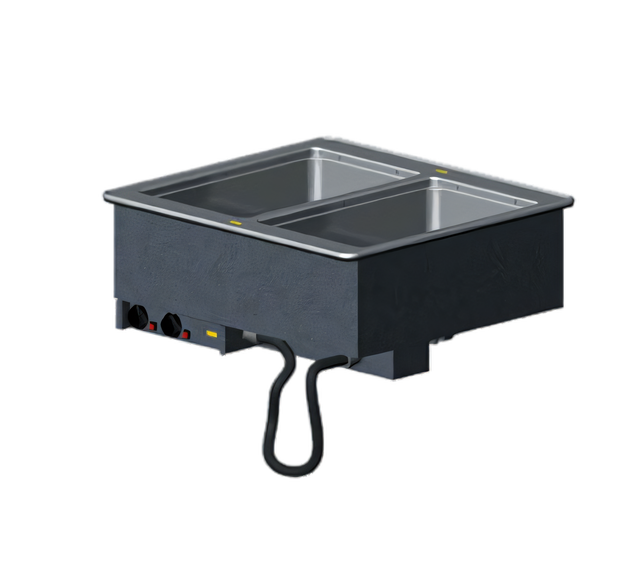

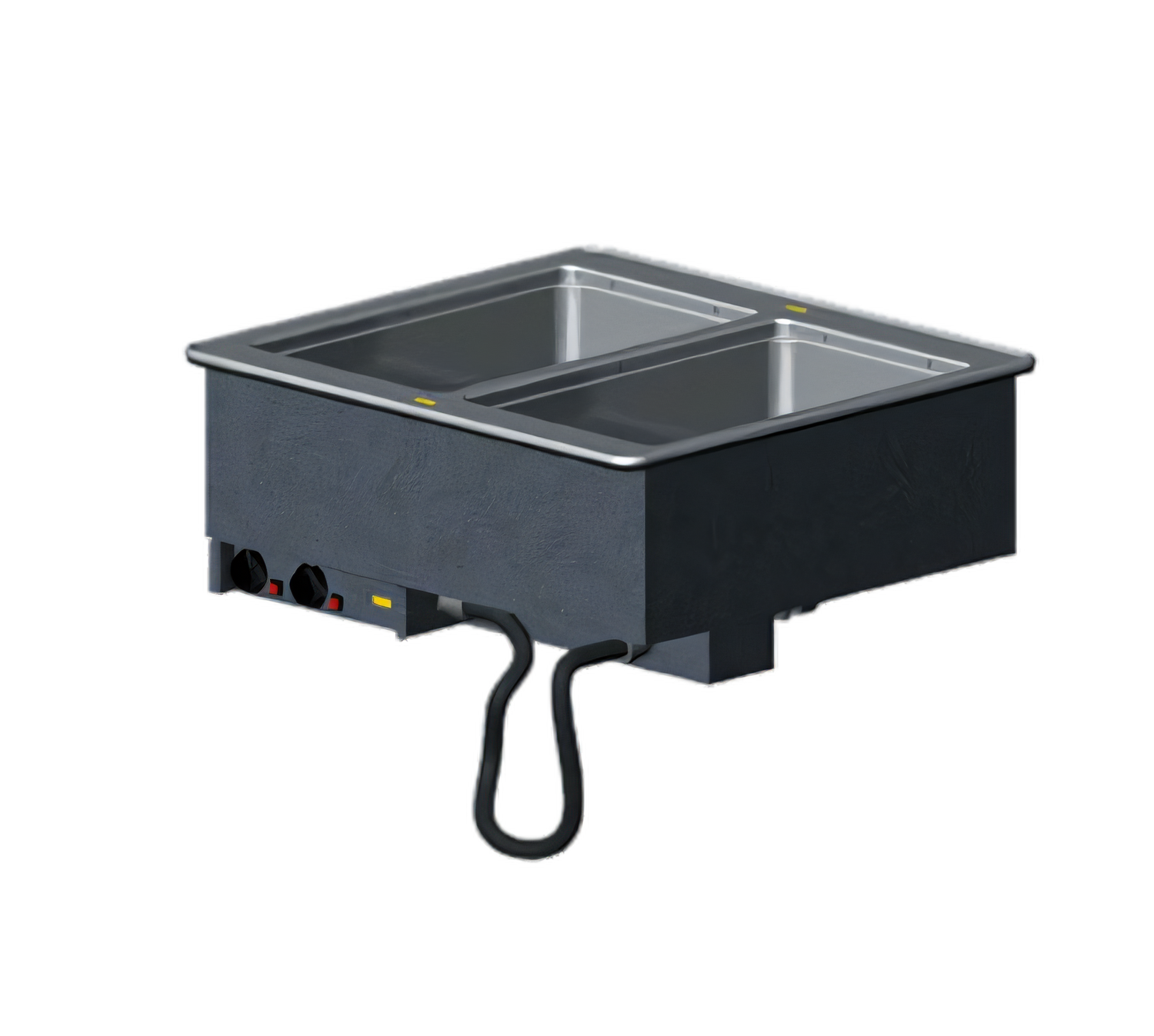

Vollrath Two-Well Drop-In Electric Hot Food Well Unit, Wet Operation, Thermostatic, 240V

SKU: 3647210
$1,931.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath Two-Well Drop-In Electric Hot Food Well Unit, Wet Operation, Thermostatic, 240V

Insulated full-size 12 x 20 wells with individual controls and NEMA 6-15P cord

Keep two pans hot and ready with an insulated drop-in well built for wet operation, precise thermostatic control, and easy top-mount installation.

  • Holds (2) full-size 12" x 20" pans in separate insulated wells.
  • Wet-operation design requires water for even heating and proper serving temperatures.
  • Individual thermostatic controls and power indicator lights let you manage each well independently.
  • Stainless steel top, flange, and wells are paired with a corrosion-resistant galvanized exterior housing.
  • Includes a 6' cord with NEMA 6-15P plug, mounting clips, and individual drain shutoffs.
  • Accepts full-size and fractional pans up to 6" deep with adapter bars recommended for fractional pans.

Overall Dimensions:

28.25"W x 26.0"D x 15.0"H

Product Weight:

106.0 lb

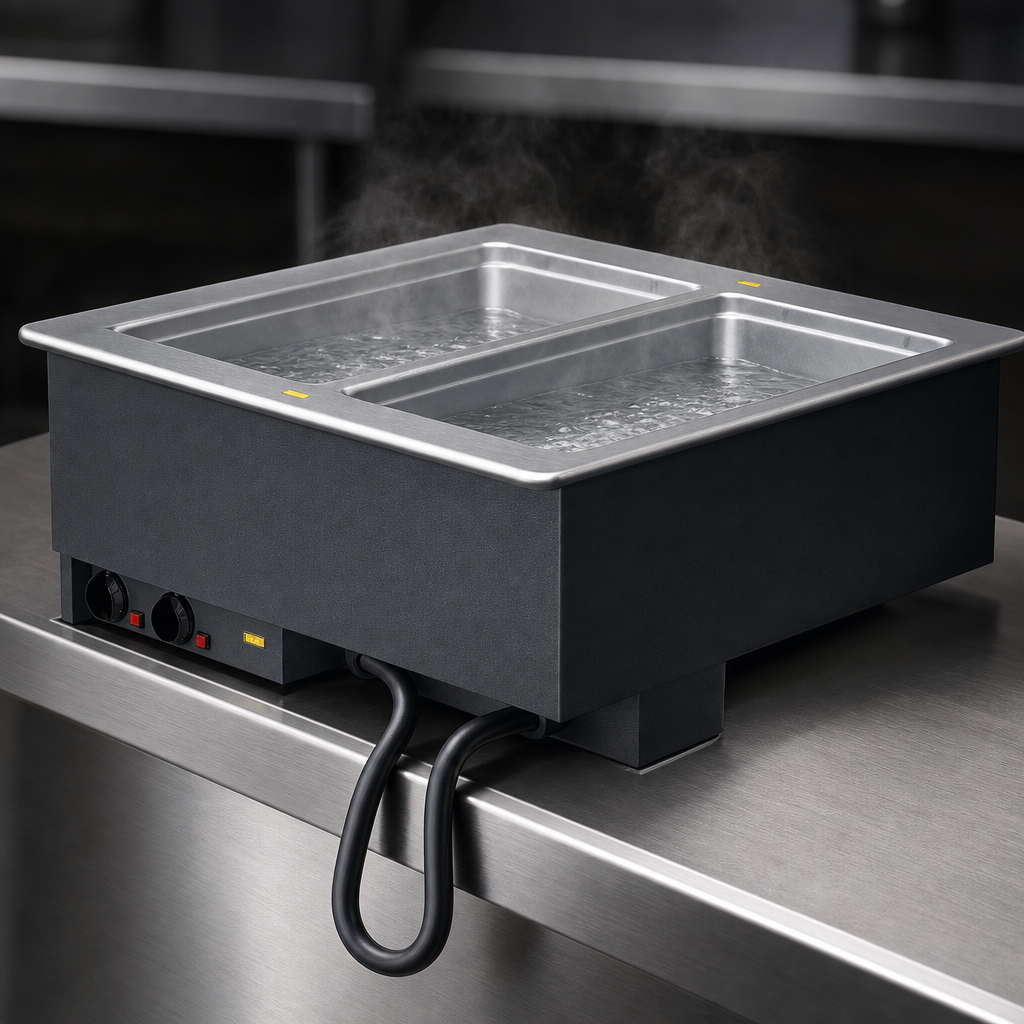

Wet Operation Only

Designed for moist heat operation; water is required for even heating and NSF4 performance.

Two Insulated Wells

Two individual full-size wells help hold food at serving temperature while improving heat retention.

Thermostatic Control Panel

Individual thermostatic controls are mounted in a remote panel and include a power indicator light for each well.

Stainless Steel Construction

Features a 300 series stainless steel top, flange, and drawn wells with a galvanized exterior housing.

Drip-Free Flange

A drip-free flange and gasket help contain moisture around the counter opening.

Individual Drain Shutoffs

Each well has its own drain shutoff for easier emptying and maintenance.

Drop-In Ready

Includes standard mounting clips for counters up to 3" thick and does not require hard-wiring.

Cord and Plug Included

Ships with a 6' cord and NEMA 6-15P plug for simplified electrical connection.

Fractional Pan Compatible

Accepts full-size and fractional pans up to 6" deep; adapter bars are recommended when using fractional pans.

Type Hot Food Well Unit
Style Individual Pans
Installation Type Drop-In
Controls Thermostatic
Pan Capacity 2
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Watts 1.25 kW
Voltage 240 Volts
Amps 5.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Cord Length 6 Feet
Drain Connection Size 1/2 Inch MPT
Drain Connection Required
Water Connection Not Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 29 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 106 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It is a wet-operation unit, and water is required for even heating and proper performance.
It holds (2) full-size 12" x 20" pans and can accept fractional pans up to 6" deep with adapter bars.
No. It includes a cord and plug and does not require hard-wiring.
The unit operates on 240 Volts, 60 Hz, single-phase power and draws 5.2 Amps with a NEMA 6-15P plug.
The cutout size is 27-1/2" W x 25-1/4" D with a 7/8" corner radius.
Vollrath's standard warranty applies; refer to the manufacturer's website for full warranty terms.
