Vollrath  |  SKU: 36472

Vollrath 36472 Steam Tables & Food Wells

$1,758.25
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

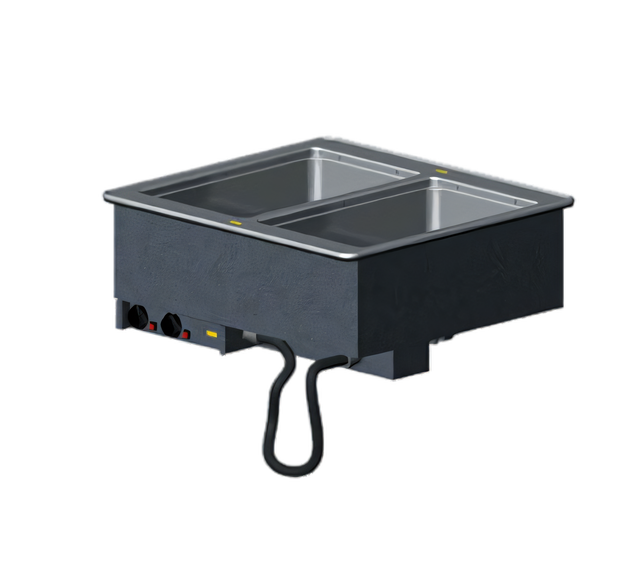

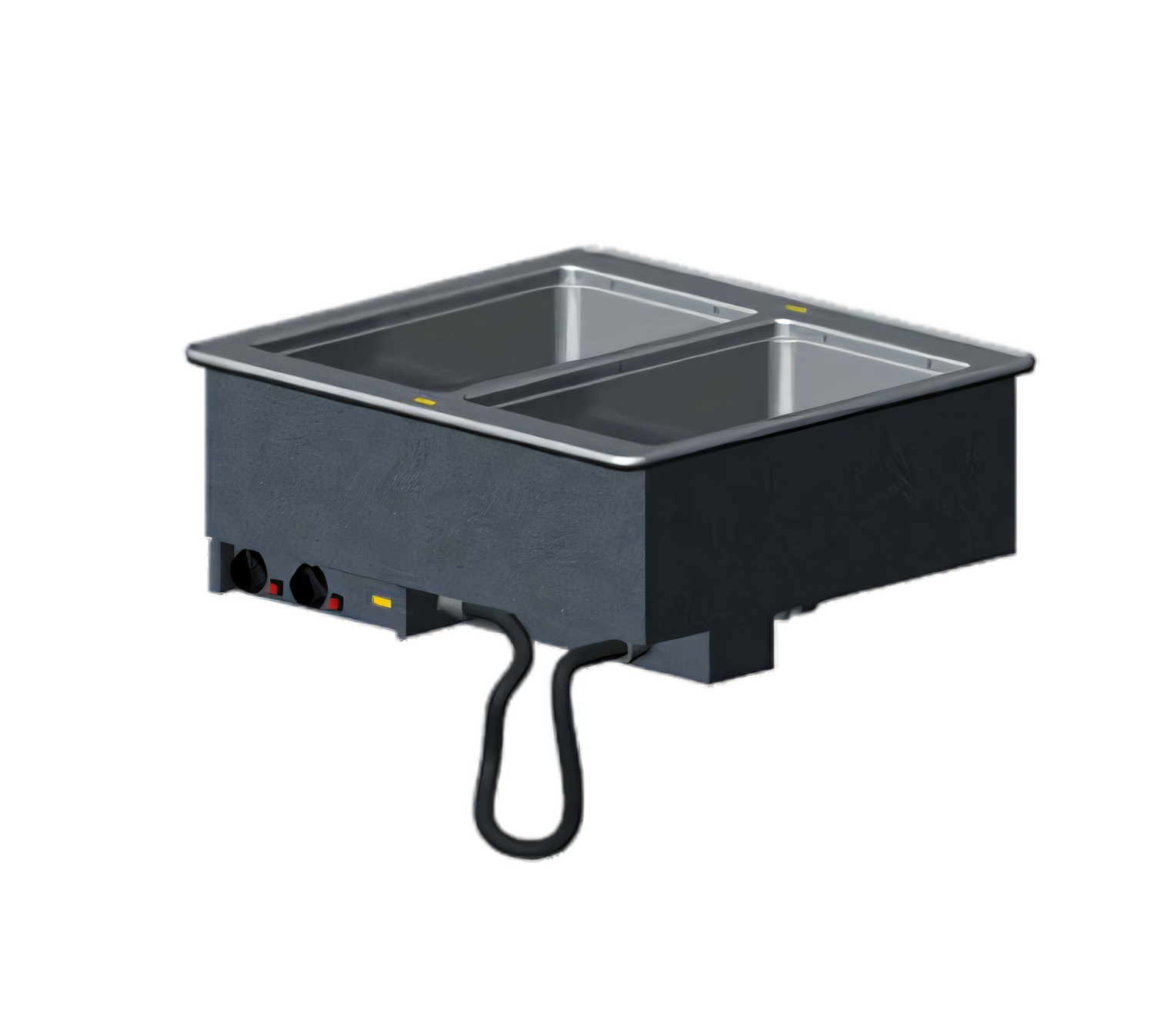

Vollrath Two-Well Drop-In Hot Food Well – 240 V

625 W per well • Individual infinite controls • Wet operation only

Keep soups, sauces and entrées at food-safe temperatures without complicated wiring. This Vollrath two-well drop-in module installs flush in a single counter cut-out, heats evenly with wet operation, and connects to a standard NEMA 6-15P outlet—perfect for buffets, cafeterias and catering lines.

Key Features

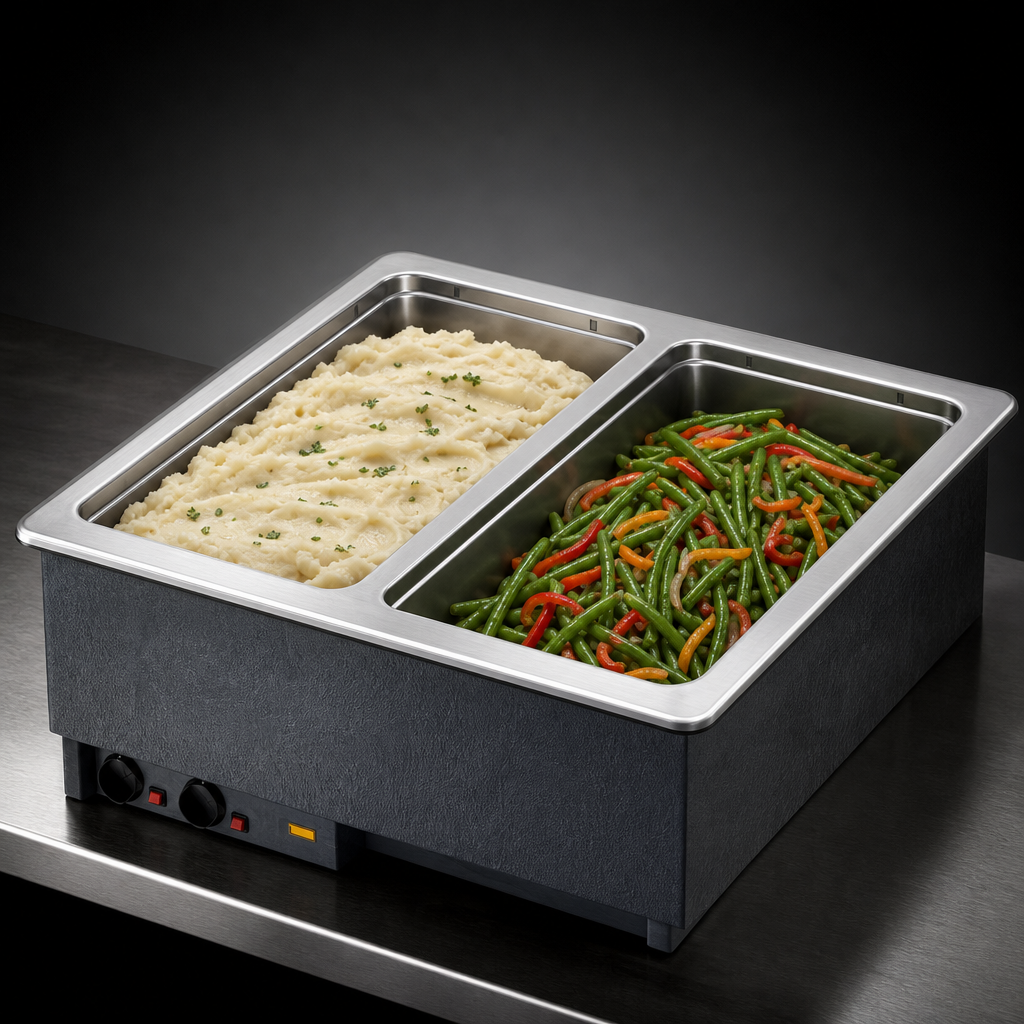

  • Two 12″ × 20″ wells—20-gauge, 300-series stainless steel and fully insulated on every side.
  • 18-gauge stainless top flange with included gasket delivers a drip-free, sanitary counter seal.
  • Individual infinite controls and power lights on a remote stainless panel (4 ft tether) for precise, independent holding.
  • ½″ MPT drains with ball-valve shut-offs per well for quick, mess-free water changes.
  • 6 ft cord with factory-installed NEMA 6-15P plug—no hard-wiring required.
  • Accepts full-size or fractional pans up to 6″ deep; adapter bars recommended for fractional pans.
  • Zero-clearance, indoor design—ideal for tight serving layouts.
  • NSF & cULus listed; Made in the USA.

Specifications

Operation Wet heat only (water required)
Number of wells 2
Well size 12″ × 20″ each
Output 625 W per well / 1250 W total
Electrical 240 V / 60 Hz / 1-phase
Current draw 5.2 A
Plug NEMA 6-15P (6 ft cord)
Controls Individual infinite controls with power indicator lights
Overall dimensions 28-1/4″ W × 26″ D × 15″ H
Counter cut-out 27-1/2″ W × 25-1/4″ D, 7/8″ corner radius
Top material 18-gauge stainless steel
Exterior housing 18-gauge galvanized steel
Drain connection ½″ MPT per well with individual shut-offs
Certifications NSF, cULus
Origin Made in USA
Important: This unit is designed for wet operation only. Operating without water may damage the elements and void the warranty. Orders for drop-ins cannot be canceled or returned.

Warranty

Backed by Vollrath’s standard limited warranty against defects in materials and workmanship. Review full terms at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

98.0lbs

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (2) 12" x 20" individual 20 gauge stainless steel insulated wells, 28-1/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1250 watts, 240v/60/1-ph, 5.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (27-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
