Vollrath  |  SKU: 36471HD

Vollrath 36471HD Steam Tables & Food Wells

$1,124.35
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

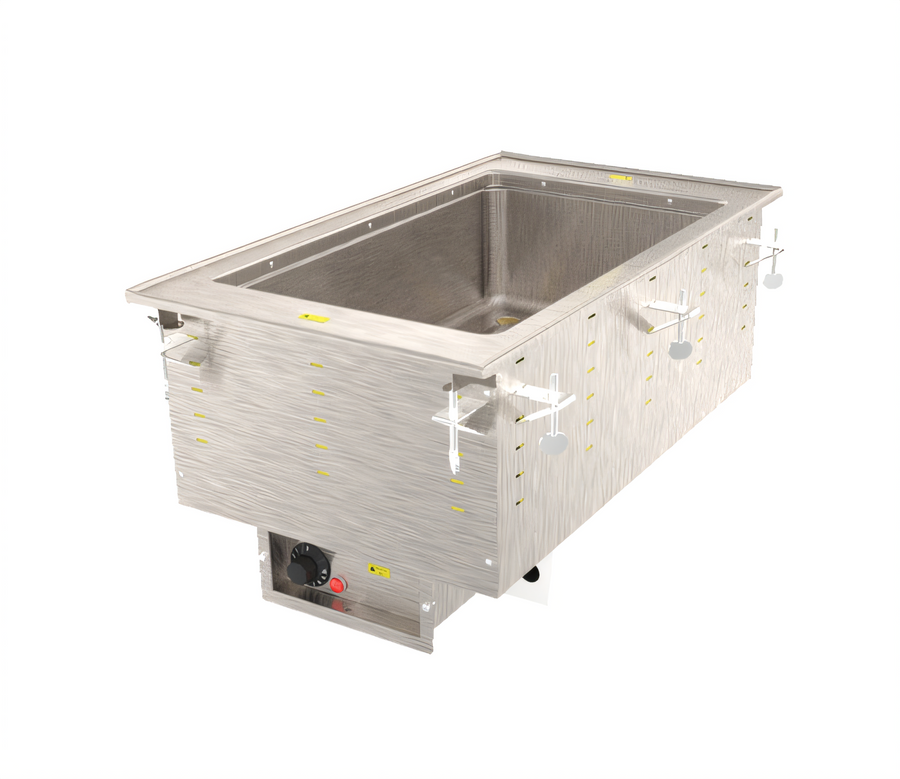

Vollrath 36471HD Marine-Grade Single Hot Drop-In Well – 240 V

12" × 20" full-size well | 625 W | Infinite control | Made in USA

Keep soups, sauces and sides piping hot and ready for service with the NSF-listed Vollrath 36471HD modular drop-in food well. Built from corrosion-proof 316 stainless steel, this compact unit drops into a 14-¼" × 25-¼" counter cut-out and delivers consistent wet heat—no hard-wiring required.

Key Features

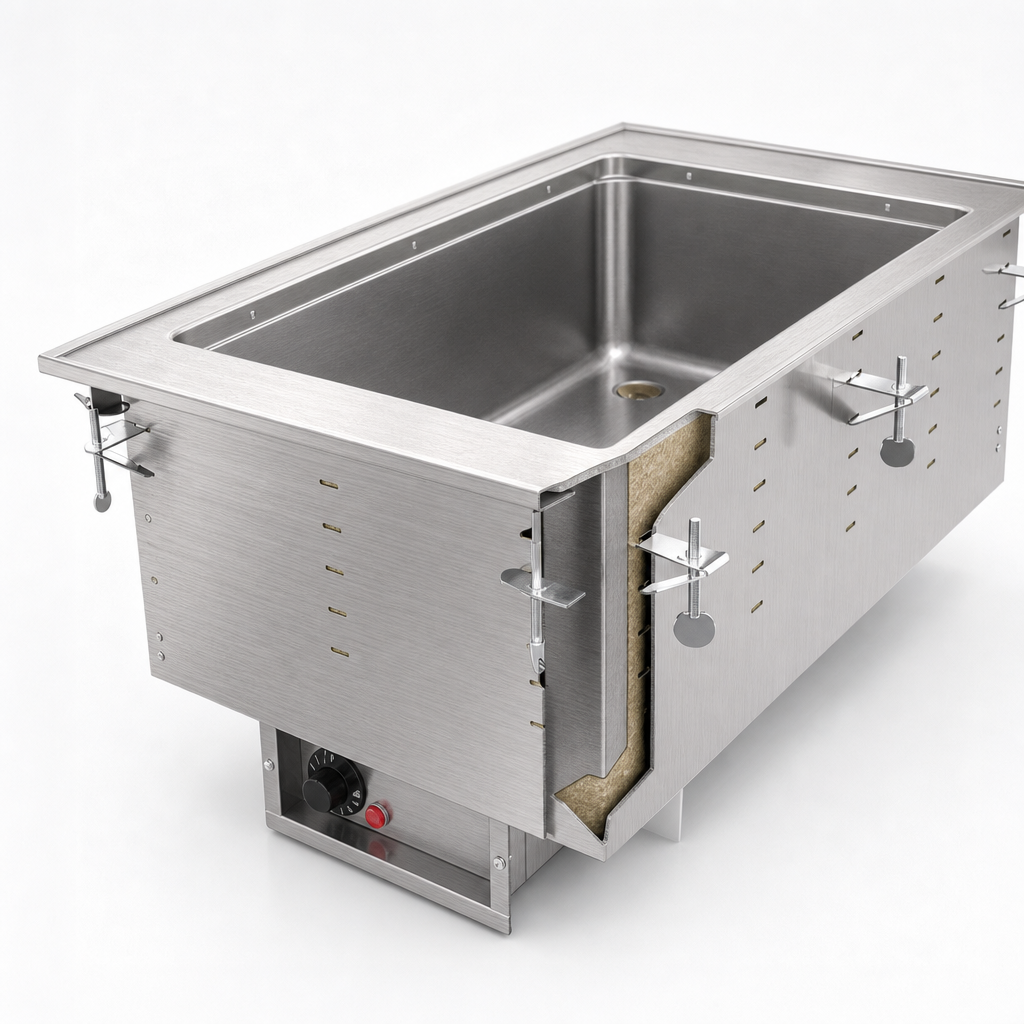

  • Marine-grade 20-ga SAE 316 stainless steel drawn well resists corrosive salt and chemical exposure.
  • Wet-heat operation with drip-free flange ensures even temperature and a clean counter.
  • Infinite dial control with bright power indicator light on a tethered stainless panel (4' reach) for flexible mounting.
  • Fully insulated on all non-exposed sides to reduce heat loss and protect cabinetry.
  • ½" NPT drain with ball-valve shut-off for quick, mess-free water removal.
  • 18-ga stainless top plate and exterior housing stand up to heavy commercial use.
  • Plug-and-play: 6' (1.8 m) power cord with NEMA 6-15P plug—no electrician needed.
  • Accepts one full-size or multiple fractional pans up to 6" deep (adapter bars recommended).
  • Includes gasket and positioning clips for zero-clearance installation on counters ≤ 3" thick.
  • NSF (wet use) and cULus listed for safety and sanitation.

At-a-Glance Specs

Model 36471HD
Overall Dimensions 15" W × 26" D × 15" H (38.1 × 66 × 38.1 cm)
Counter Cut-Out 14-¼" W × 25-¼" D (36.2 × 64.1 cm) with ⅞" corner radius
Well Size 12" × 20" full-size pan cavity
Operation Wet heat only
Control Type Infinite manual dial
Power 625 W | 2.6 A
Electrical 240 V / 60 Hz / 1-phase
Plug NEMA 6-15P (factory-installed cord)
Drain ½" MPT with shut-off valve
Construction 20-ga 316 SS well, 18-ga SS top & housing
Agency Listings NSF 4 (wet use), cULus
Origin Made in USA

For full warranty details, visit VollrathFoodservice.com.

Important: Operate this unit with water in the well at all times. Running the unit dry will damage the element and void the warranty.
Final Sale: Modular drop-ins are built to order and cannot be canceled or returned once processed.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

15.0in

Depth

26.0in

Shipping Weight

33.65lbs

Style

individual pans

Pan Capacity

(1) full size (12" x 20")

Construction

stainless steel construction

Controls

infinite controls

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, infinite controls mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 625 watts, 240v/60/1-ph, 2.6 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
