Vollrath 3647180HD Steam Tables & Food Wells
$2,321.20
Unit price
/
Unavailable
Description

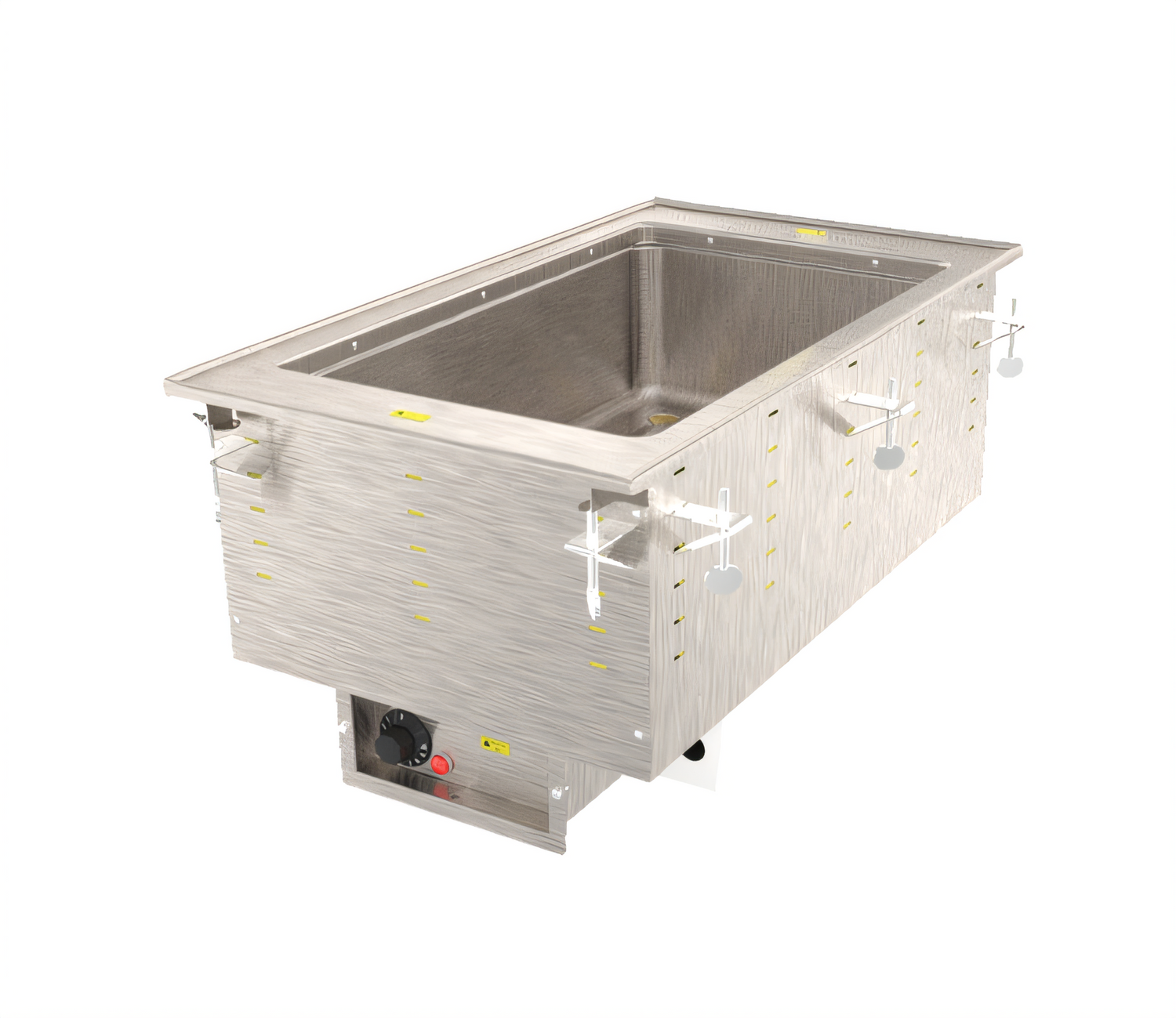

Vollrath Marine-Grade One-Well Hot Drop-In with Auto-Fill – 240 V / 625 W (Model 3647180HD)
12" × 20" Insulated Well • Thermostatic Control • Manifold Drain • NSF & cULusDesigned for high-volume commercial kitchens, the Vollrath 3647180HD keeps entrées, sides and sauces at safe, ready-to-serve temperatures—all in a compact, easy-to-install drop-in format. Just set it into the cut-out, plug it in and let the auto-fill system handle the rest.
Key benefits
- 316 marine-grade stainless steel well resists corrosion from salt, chlorides and acidic foods.
- Thermostatic control with power indicator light delivers precise, worry-free temperature holding.

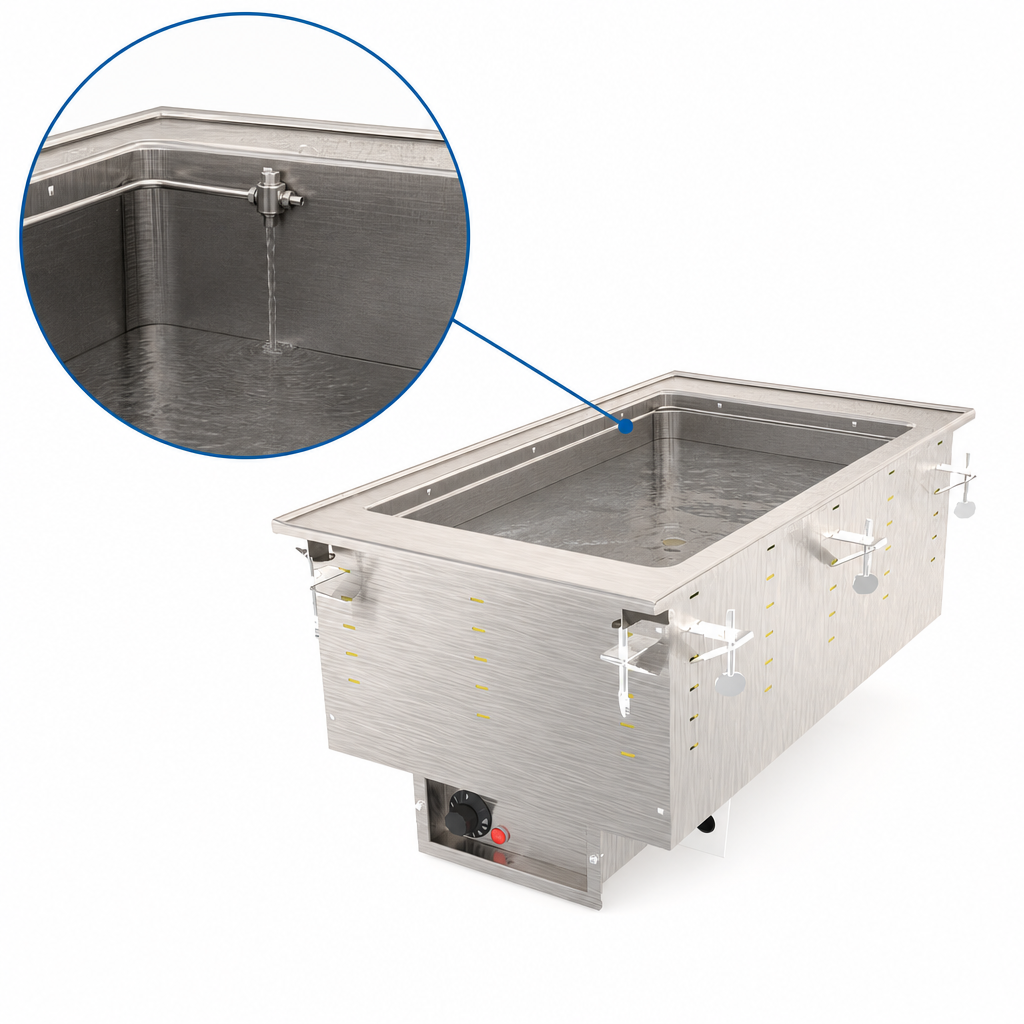

- Auto-fill maintains the ideal water level for consistent, even heat distribution.
- 1" copper manifold drain includes individual well shut-offs plus master shut-off for fast, mess-free draining.
- Drip-free flange and full insulation keep surrounding countertops clean and cool.
- Zero-clearance, top-mount installation—mounting clips are included; no hard-wiring required.
- Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
- Removable bottom service panel and 4' tethered control panel simplify maintenance.
- NSF-4 performance (wet operation) and proudly Made in the USA.
Specifications
| Model / SKU | 3647180HD |
|---|---|
| Pan capacity | (1) 12" × 20" full-size pan, up to 6" deep |
| Operation | Wet heat only, auto-fill |
| Control type | Thermostatic with power indicator light |
| Heat output | 625 watts |
| Electrical | 240 V / 60 Hz / 1-ph, 2.6 A | 6' cord, NEMA 6-15P |
| Well construction | 20 ga 316 marine-grade stainless steel, fully insulated |
| Top / housing | 18 ga stainless steel top & exterior |
| Drain | 1" copper manifold with individual shut-offs & master shut-off |
| Overall dimensions | 15" W × 26" D × 21 ½" H |
| Cut-out size | 14 ¼" W × 25 ¼" D (7 / 8" corner radius required) |
| Agency listings | NSF, cULus |
| Country of origin | USA |
| Warranty | 2-year parts & labor (see full policy) |
Important: Operate the unit with water in the well at all times to meet NSF performance
standards and prevent damage.
Modular drop-ins are non-cancellable and non-returnable.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
15.0in
Depth
26.0in
Shipping Weight
33.65lbs
Pan Capacity
(1) full size (12" x 20")
Style
individual pans
Insulated or Non-Insulated
insulated
Controls
thermostatic controls
Drain
with drain
Construction
stainless steel construction
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, thermostatic control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 625 watts, 240v/60/1-ph, 2.6 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
