Vollrath  |  SKU: 3647180

Vollrath 3647180 Steam Tables & Food Wells

$2,131.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

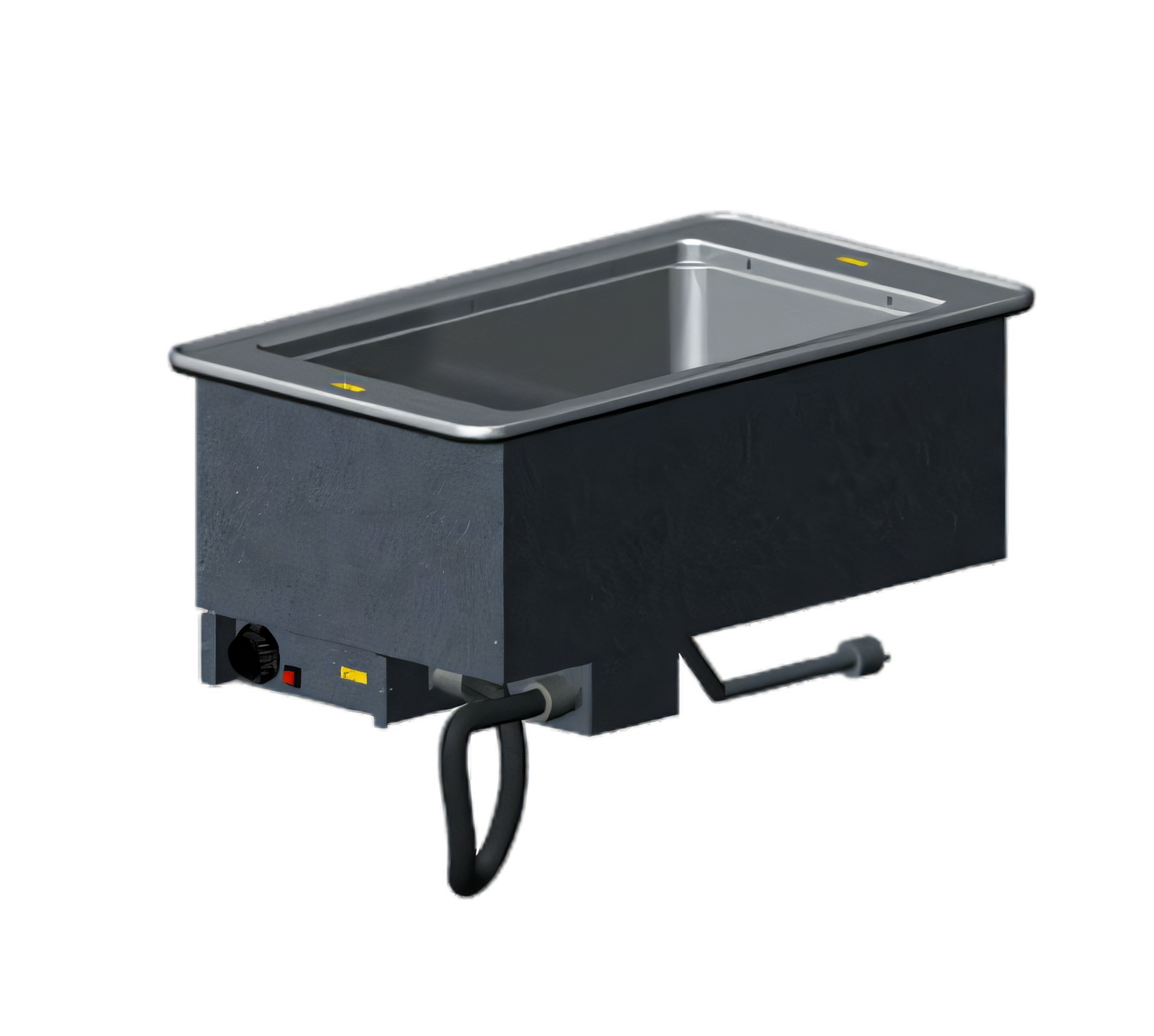

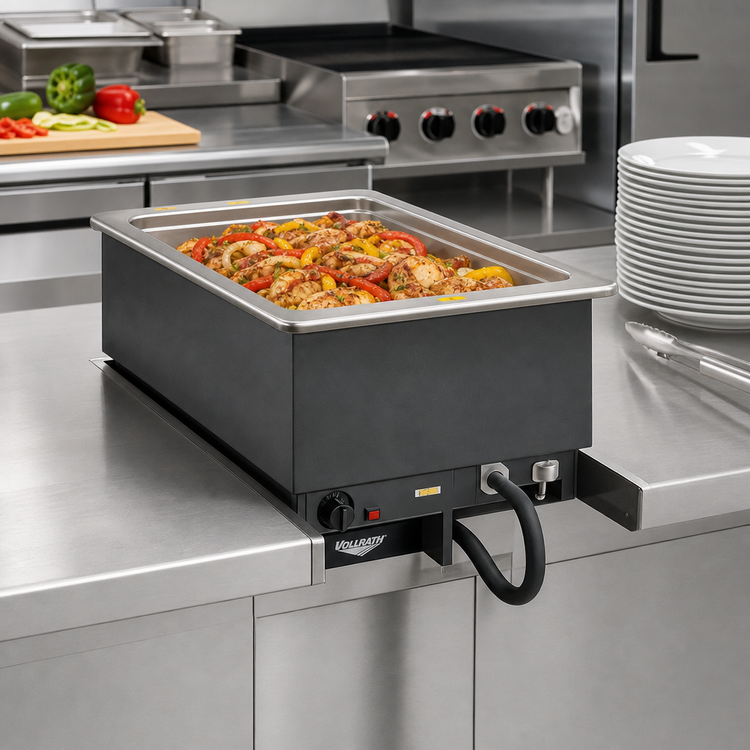

Vollrath One-Well Drop-In Hot Food Module with Auto-Fill – 240 V

625 W • Thermostatic Control • Manifold Drain

Engineered for busy food-service lines, this Vollrath modular drop-in keeps a single full-size pan of product at safe, consistent serving temperatures—without constant water checks. The self-contained auto-fill system maintains the correct water level automatically, while a thermostatic dial gives you pinpoint control of heat.

Key benefits

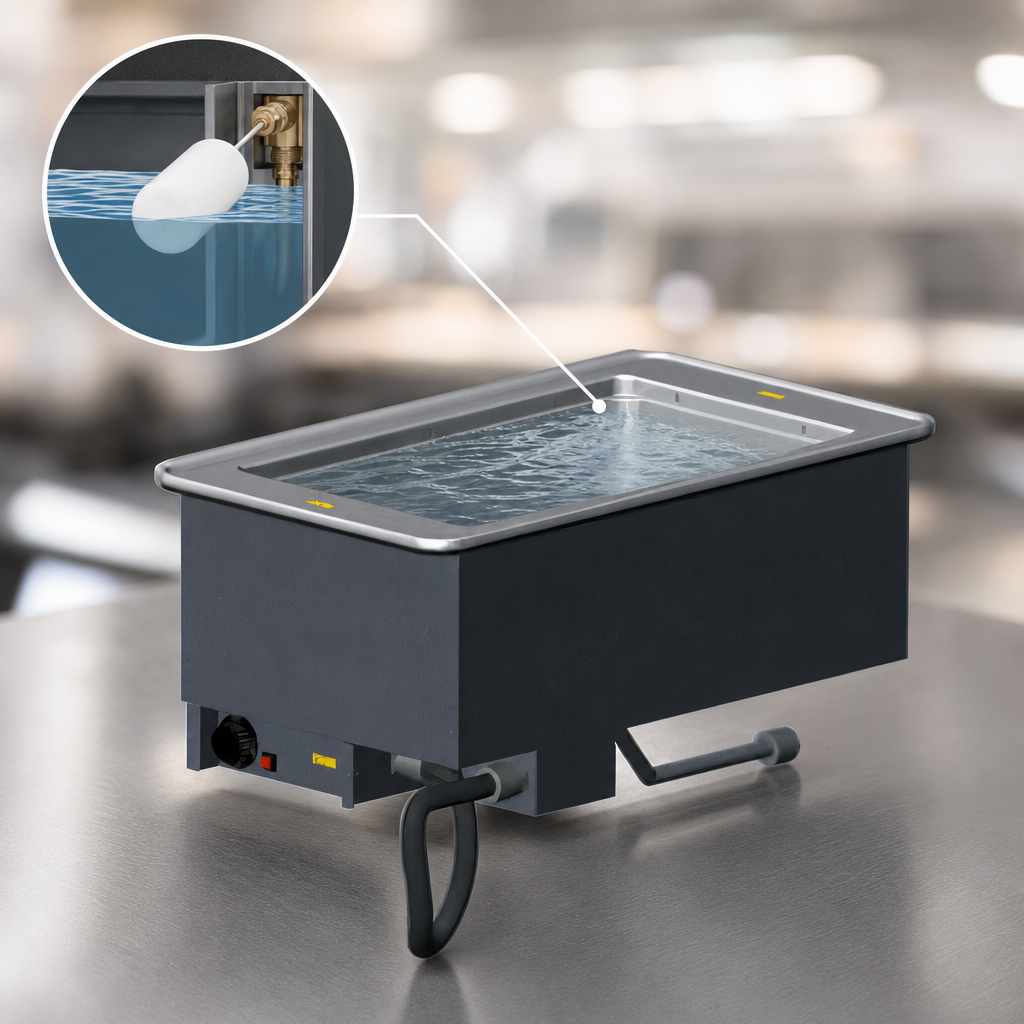

  • Auto-fill technology replenishes water on demand, preventing element burnout and saving labor.
  • Responsive thermostatic control with bright power indicator light for quick visual confirmation.
  • Deep-drawn 20 ga stainless steel well fits one 12" × 20" pan (up to 6" deep) or fractional pans with adaptor bars.
  • 18 ga stainless steel top with drip-free perimeter flange contains spills and condensation.
  • 1" copper manifold drain with individual well shut-offs plus master shut-off for fast, mess-free draining.
  • High-density fiberglass insulation on sides and base allows zero-clearance installation.
  • 6 ft power cord with NEMA 6-15P plug—no hard-wiring required.
  • NSF & cULus listed; proudly made in the USA.

Perfect for

  • Restaurant pass-through and buffet lines
  • Hotel banquets and catering stations
  • C-store or deli hot grab-and-go counters
  • Commissary, ghost-kitchen or institutional service

Specifications

Overall dimensions 15" W × 26" D × 21-1/2" H (38.1 × 66 × 54.6 cm)
Counter cut-out 14-1/4" W × 25-1/4" D (36.2 × 64.1 cm) with 7/8" (2.2 cm) corner radius
Well size 1 full-size 12" × 20" pan; accepts pans up to 6" (15.2 cm) deep
Operation Wet heat only (water required)
Heat control Thermostatic dial, panel-mounted with 3 ft tethered cord
Auto-fill Integrated; includes check valve to prevent cross-contamination
Drain 1" copper manifold drain with individual & master shut-offs
Construction 18 ga stainless top, 20 ga stainless well, 18 ga galvanized exterior housing
Insulation High-density fiberglass (sides & bottom)
Electrical 625 W | 240 V | 2.6 A | 1-phase | 6 ft cord with NEMA 6-15P
Certifications NSF, cULus
Country of origin USA

One-year parts & labor warranty. Refer to vollrathfoodservice.com for full warranty policy.

Important: Unit is designed for wet operation only. Always ensure water covers the heating element before powering on.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

15.0in

Depth

26.0in

Shipping Weight

33.65lbs

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, thermostatic control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 625 watts, 240v/60/1-ph, 2.6 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
