Vollrath 3647160HD Steam Tables & Food Wells

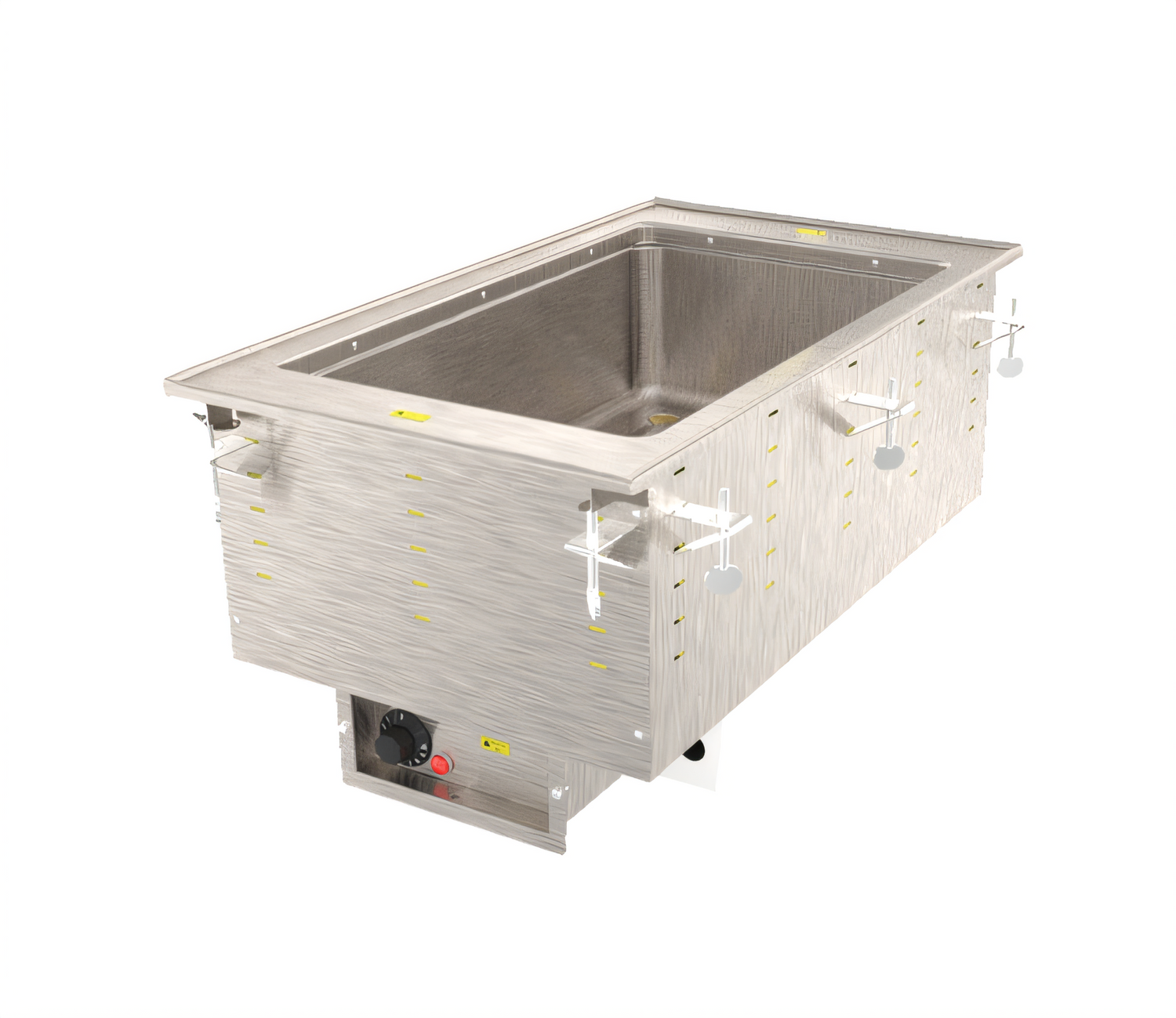

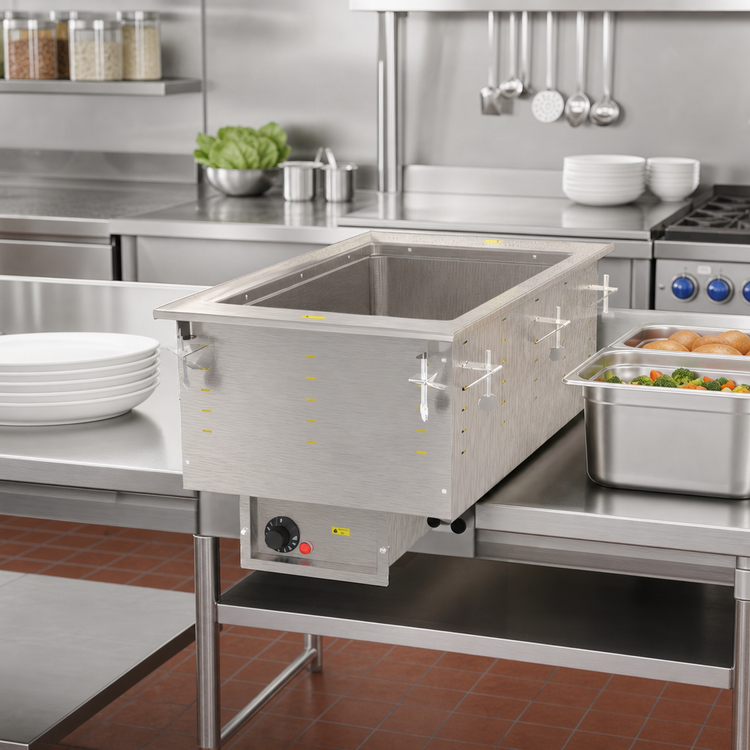

Vollrath One-Well Modular Drop-In Hot Food Well – 240 V Auto-Fill

Keep menu items hot, fresh and food-safe with Vollrath’s USA-made drop-in hot well built from corrosion-resistant 316 stainless steel. Ideal for buffets, cafeterias and concession lines that demand durability and simple, plug-and-play installation.

Key benefits

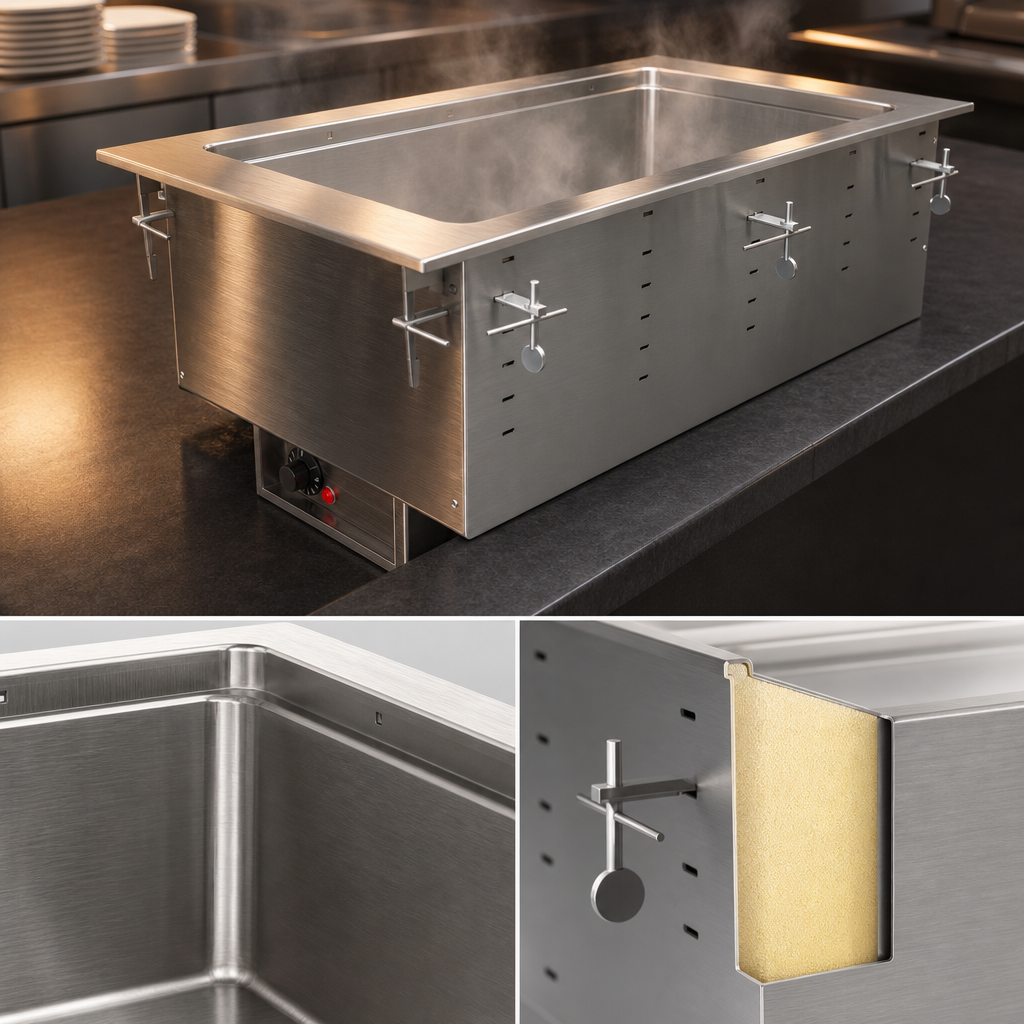

• SAE 316 marine-grade stainless steel well for superior corrosion resistance in coastal or high-salt kitchens.
• Auto-fill system maintains optimal water level for consistent, even heating—no constant refilling.
• Infinite manual control with bright power indicator light lets staff dial in holding temps in seconds.
• Drip-free top flange and full-body fiberglass insulation keep counters clean and energy in the well.
• 1" copper manifold drain with individual well shut-off plus master manifold shut-off—drain and clean without lifting the unit.
• Factory-installed 6' cord and NEMA 6-15P plug—no hard-wiring required.
• NSF & cULus listed for regulated foodservice operations.

Fast, flexible installation

• Fits a 14-1/4" W × 25-1/4" D countertop cutout (7/8" corner radius).
• Zero-clearance design mounts flush—even in tight serving counters.
• Stainless control panel is tethered with a 4' cable for mounting wherever it’s easiest for staff.
• Includes stainless positioning clips for counters up to 3" thick.
• Accepts one full-size 12" × 20" pan or fractional pans up to 6" deep (use adapter bars for best fit).

Technical specifications

For NSF 4 compliance, water must be present in the well during operation.

Warranty

Protected by Vollrath’s two-year limited warranty against defects in materials and workmanship. View full policy at vollrathfoodservice.com.
