Vollrath  |  SKU: 3647160

Vollrath 3647160 Steam Tables & Food Wells

$2,073.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

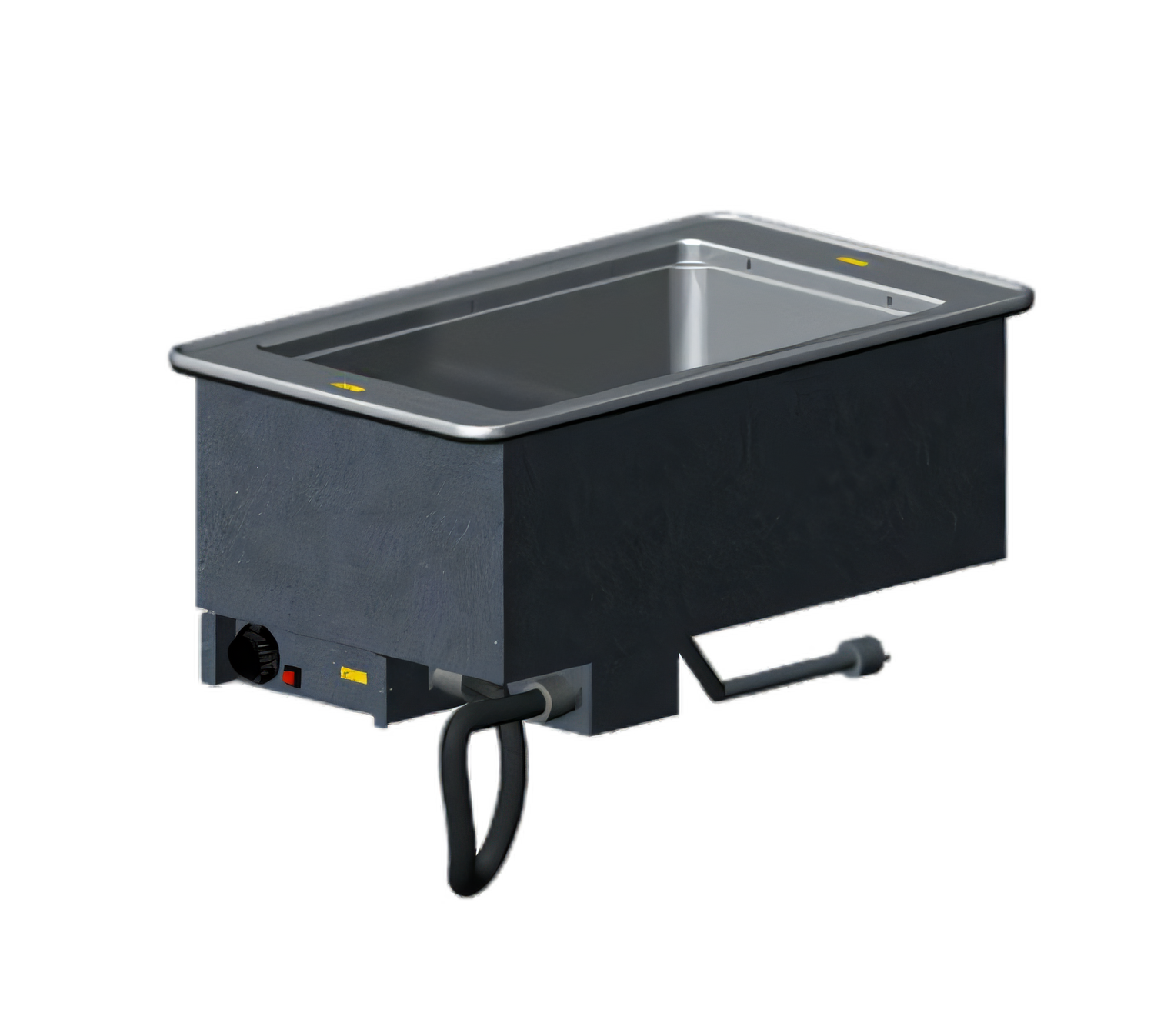

Vollrath 3647160 One-Well Drop-In Hot Food Well

625 W • Auto-Fill • Manifold Drain • 240 V

Designed for top-mount installation, this self-contained module keeps a single 12" × 20" pan of food at safe serving temperatures without the need for hard-wiring. With automatic water level control, a drip-free stainless top and an energy-saving insulated well, the Vollrath 3647160 delivers professional holding performance in the smallest possible footprint.

Key Features

  • Deep-drawn 20-ga stainless steel well holds a full-size (or fractional) pan up to 6" deep.
  • Wet-operation only design paired with auto-fill keeps the element submerged and eliminates manual refills.
  • 1" copper manifold drain with individual well shut-off and manifold shut-off for fast, sanitary emptying.
  • Infinite manual temperature control plus power-on indicator light for simple, precise adjustment.
  • Full-perimeter drip-edge and factory-installed breaker gasket contain spills and condensation.

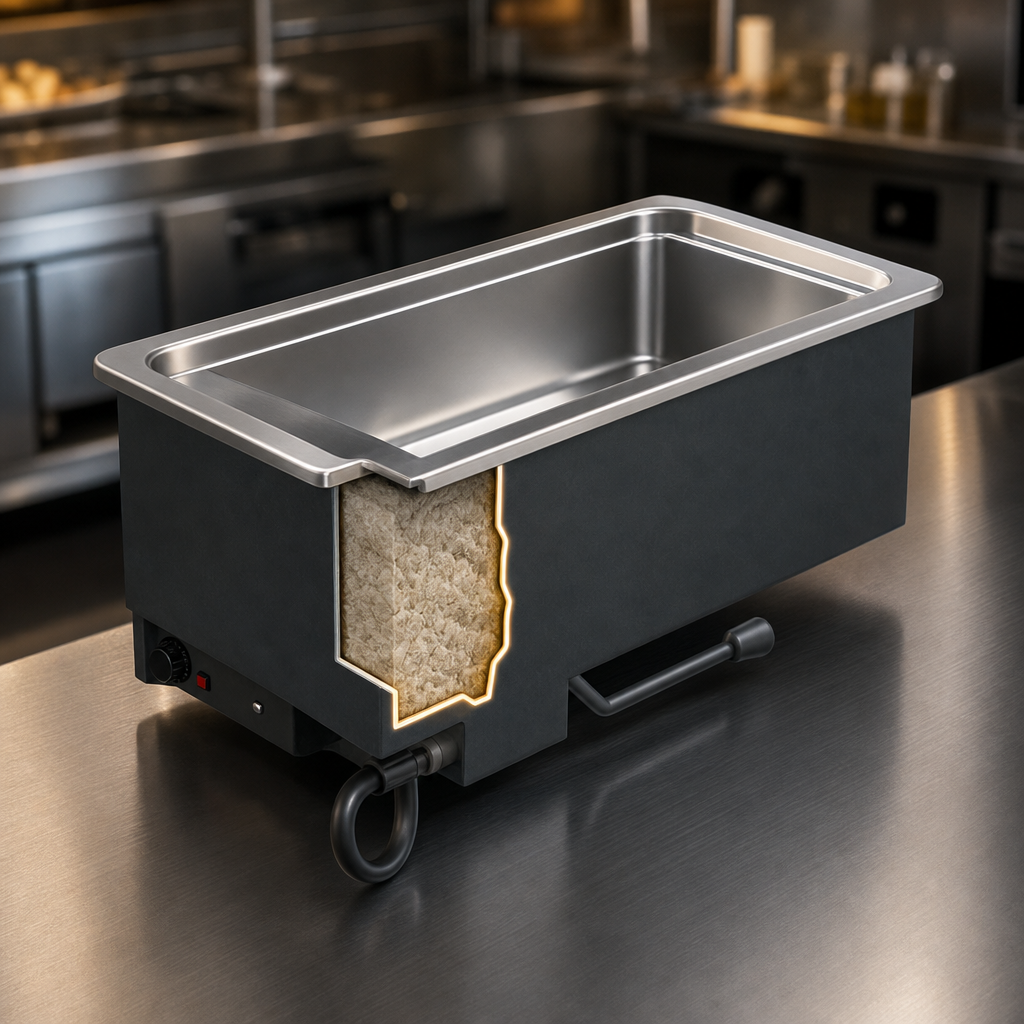

  • High-density fiberglass insulation on all sides allows zero-clearance installation and reduces energy loss.
  • 18-ga stainless steel top and 18-ga galvanized exterior housing stand up to daily commercial use.
  • 6 ft (182 cm) cord with NEMA 6-15P plug—just drop in, plug in, and start serving.
  • Remote-mountable stainless steel control panel (3 ft tether) and positioning/mounting clips included.
  • NSF & cULus listed; proudly Made in the USA.

Specifications

Model / Item # 3647160
Capacity (1) 12" × 20" full-size pan (or fractional pans with adapter bars)
Heat type Moist heat (wet operation only)
Control style Infinite manual knob
Power 625 watts
Electrical 240 V / 60 Hz / 1-ph, 2.6 A, NEMA 6-15P
Overall dimensions 15" W × 26" D × 21-1/2" H (38.1 × 66 × 54.5 cm)
Counter cutout 14-1/4" W × 25-1/4" D (36.2 × 64.1 cm), 7/8" corner radius
Top flange 18-ga stainless steel with drip-edge
Well material 20-ga stainless steel, fully insulated
Drain 1" copper manifold drain, well & manifold shut-off valves
Water fill Automatic (factory installed)
Certifications NSF, cULus
Warranty 1-year parts & labor (see Vollrath for full policy)
Country of origin United States
Wet operation only: Running the well without water can damage the heating element and will void the warranty. Verify the auto-fill is connected to a potable water line and water is present before powering on.

Perfect For

  • Buffet lines & cafeterias
  • Convenience stores and delis
  • Mobile catering build-outs
  • Any operation that needs reliable, labor-saving hot holding

Need more details? Visit the Vollrath warranty page for complete terms.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

15.0in

Depth

26.0in

Shipping Weight

33.65lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(1) full size (12" x 20")

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, infinite control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with well shutoff & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 625 watts, 240v/60/1-ph, 2.6 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
