Vollrath 3647110HD Steam Tables & Food Wells
$1,345.30
Unit price
/
Unavailable
Description

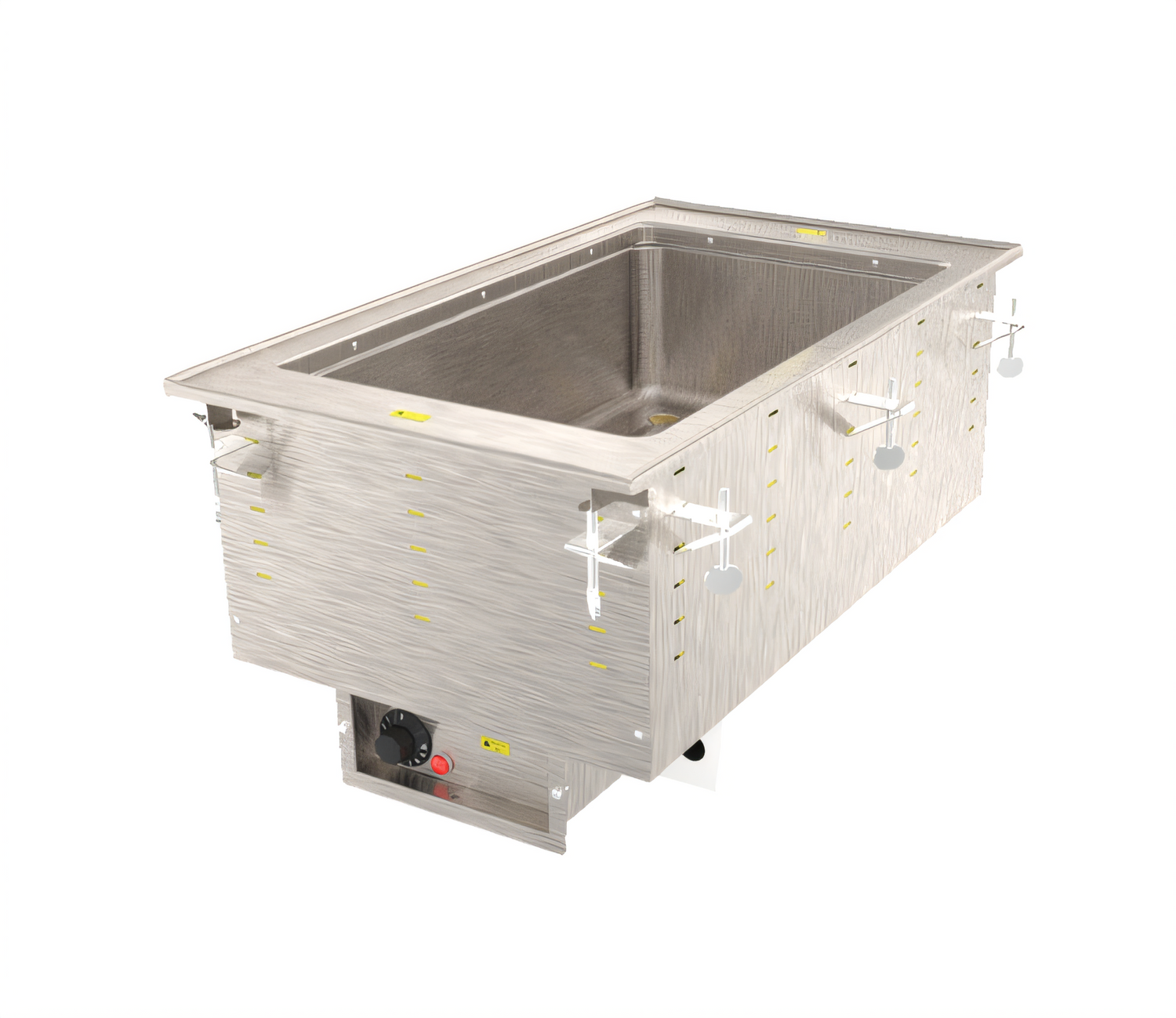

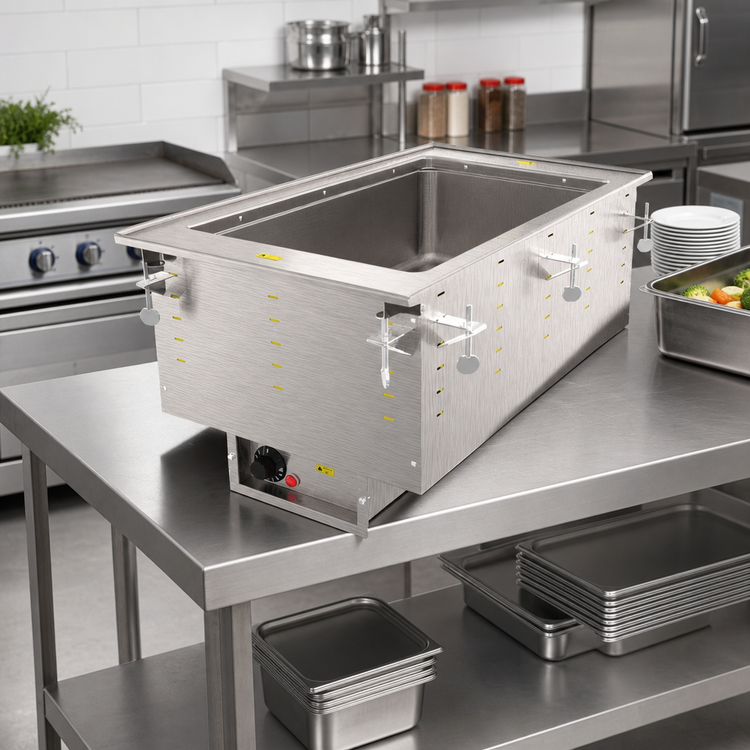

Vollrath 3647110HD Single Marine-Grade Drop-In Hot Food Well
Thermostatic • 625 W • 240 V • Wet Operation OnlyBuilt for high-volume service lines, this Made-in-USA drop-in keeps a full-size steam-table pan of food at safe, appetizing temperatures while resisting the harsh effects of salt, moisture and acidic ingredients.
Why You’ll Love It

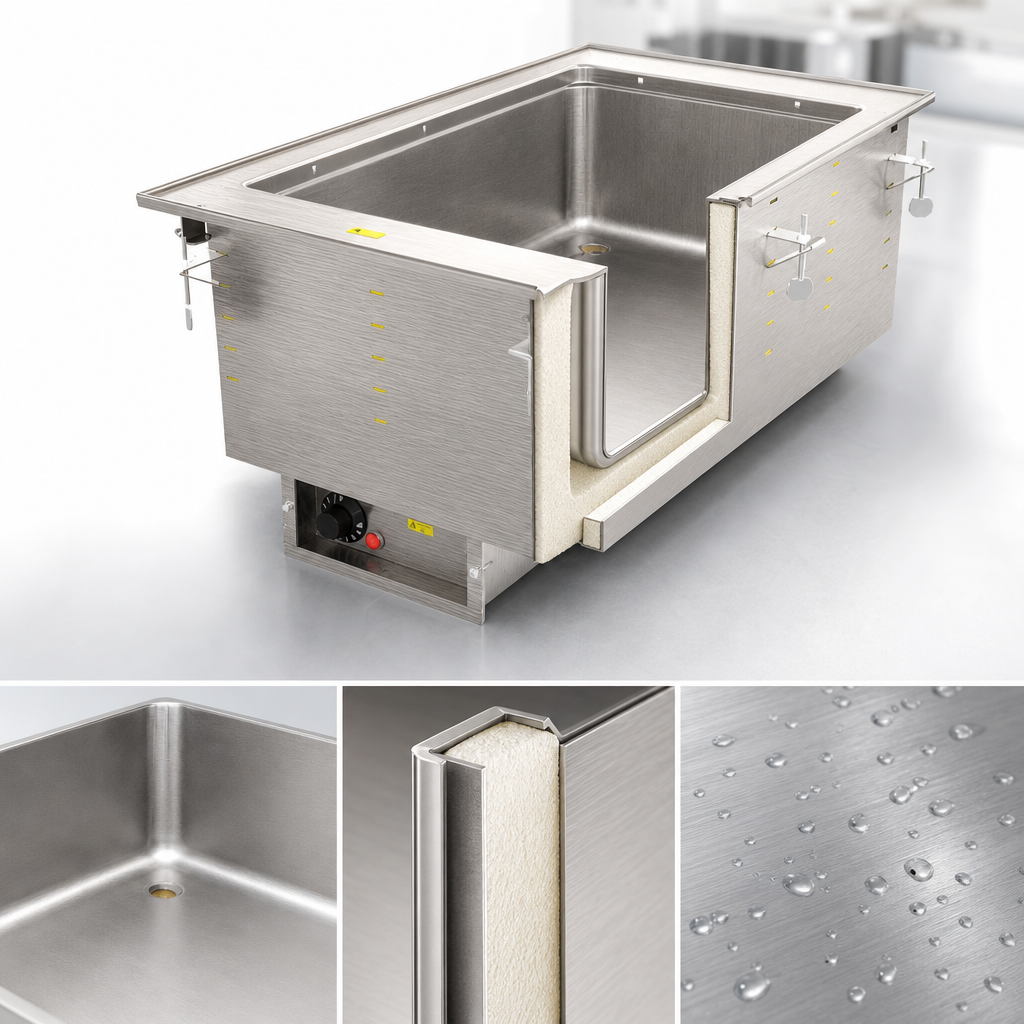

- Marine-grade 316 stainless well (20 ga) delivers superior corrosion resistance in coastal or high-humidity kitchens.
- Thermostatic control maintains precise holding temps; power indicator light confirms operation at a glance.
- Wet-heat design meets NSF 4 performance for even, gentle warming (water required).
- Drip-free 18 ga stainless top flange creates a clean, sealed presentation in your counter.
- ½" MPT drain with shut-off ball valve simplifies water changes.
- Quick installation – mounting clips included for counters up to 3" (7.6 cm) thick; zero-clearance design.
- Plug-and-play 6' (1.8 m) cord with NEMA 6-15P; no hard-wiring required.
- Accepts full-size or fractional pans up to 6" (15.2 cm) deep (use adapter bars for fractional pans).
- NSF & cULus listed for safety and sanitation.
Technical Specifications
| Item number | 3647110HD |
|---|---|
| Well capacity | 1 × 12" × 20" full-size steam-table pan |
| Overall dimensions | 15" W × 26" D × 15" H (38.1 × 66 × 38.1 cm) |
| Counter cut-out | 14¼" W × 25¼" D (36.2 × 64.1 cm) with ⅞" (2.2 cm) corner radius |
| Electrical | 625 W | 240 V | 60 Hz | 1-phase | 2.6 A | NEMA 6-15P |
| Construction | 20 ga 316 SS drawn well, 18 ga stainless top, stainless exterior housing, full insulation |
| Control panel | Remote stainless panel, 4' (121.9 cm) tether, thermostatic dial, power light |
| Drain | ½" MPT with manual ball valve |
| Installation | Top-mount, zero clearance, indoor use only |
| Certifications | NSF 4 (wet), cULus |
| Warranty | 2-year limited (see Vollrath for details) |
| Country of origin | USA |
Operating Essentials
- Fill the well with water before powering on to ensure even heat and protect the element.
- Indoor, ambient-controlled environments only—HVAC fluctuations may affect holding temperatures.
- Do not modify the factory-installed cord or plug; doing so voids the warranty.
Orders for modular drop-ins cannot be cancelled or returned once processed. Refer to vollrathfoodservice.com for full warranty policy.
Important: This unit is designed for wet operation only. Running the well dry can permanently damage the heating element and is not covered under warranty.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
15.0in
Width
15.0in
Depth
26.0in
Shipping Weight
35.46lbs
Pan Capacity
(1) full size (12" x 20")
Style
individual pans
Controls
thermostatic controls
Insulated or Non-Insulated
insulated
Construction
stainless steel construction
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 625 watts, 240v/60/1-ph, 2.6 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
