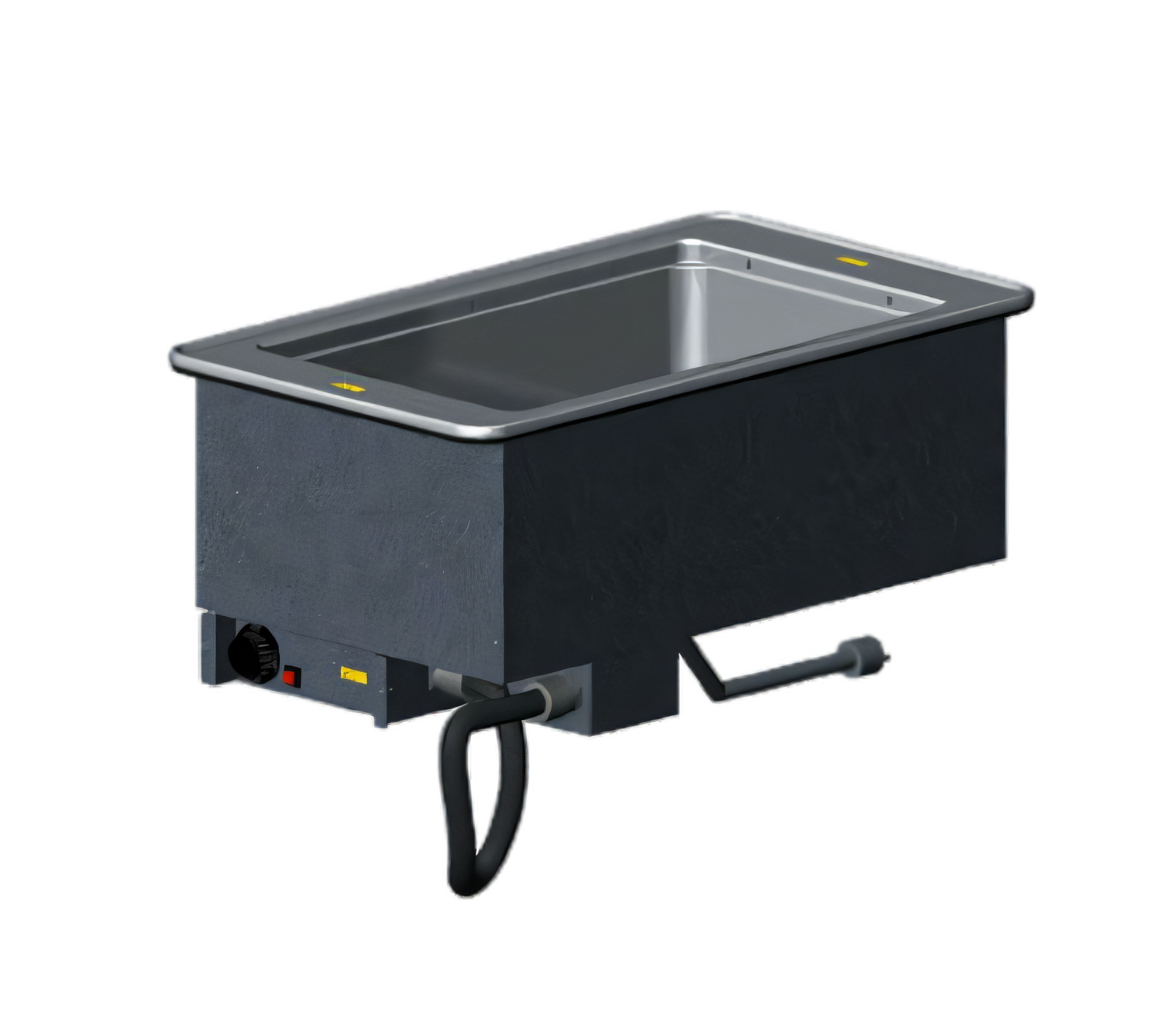

Vollrath Drop-In Electric Hot Food Well, 1 Full-Size Insulated Well, Thermostatic, With Drain, 240V

SKU: 3647110
$1,304.40
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath Drop-In Electric Hot Food Well, 1 Full-Size Insulated Well, Thermostatic, With Drain, 240V

Wet Operation Only, 625 Watts, NEMA 6-15P, Made in USA

Keep a full-size pan of food hot and ready with a durable drop-in well built for wet operation and precise thermostatic control.

  • Holds one full-size 12" x 20" pan in an insulated wet-operation well.
  • Panel-mounted thermostatic controls make temperature adjustment straightforward.
  • Drip-free flange, drain shutoff, and positioning clips support cleaner installation and service.
  • 18-gauge stainless steel top and insulated stainless steel well are paired with a galvanized exterior housing.
  • Runs on 240V, 60 Hz, single-phase power with 625 watts and a NEMA 6-15P cord.
  • Requires a 14-1/4" W x 25-1/4" D cutout with a 7/8" corner radius.

Overall Dimensions:

15.0"W x 26.0"D x 15.0"H

Product Weight:

35.46 lb

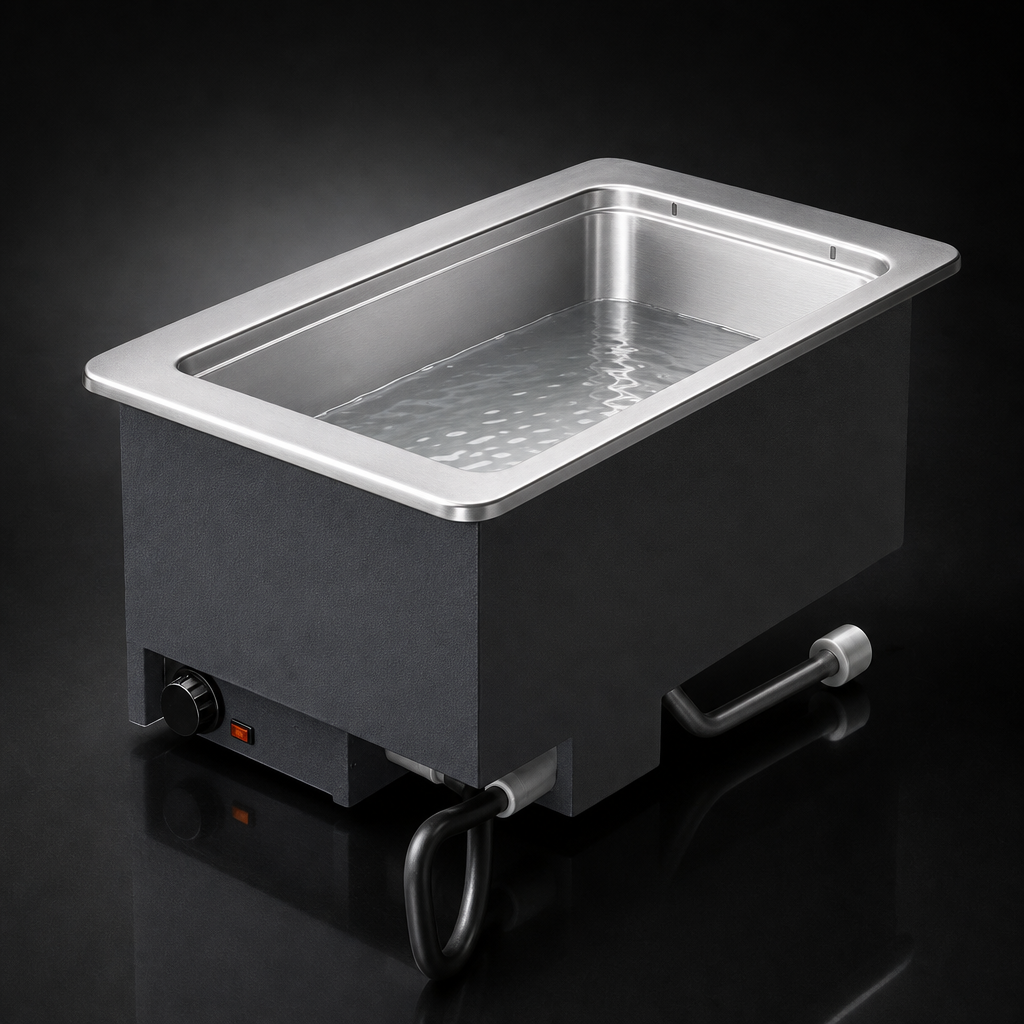

Insulated Wet Well

Single insulated stainless steel well designed for wet operation only.

Thermostatic Controls

Panel-mounted thermostatic controls provide precise heat adjustment and include a cord.

Power Indicator Light

Indicator light shows when the unit is powered.

Drain Shutoff

Built-in drain shutoff supports wet operation and easier cleanup.

Drip-Free Flange

Helps contain spills around the drop-in opening.

Stainless Steel Top

18-gauge stainless steel top adds durability in busy buffet applications.

Galvanized Exterior Housing

18-gauge galvanized exterior housing provides a rugged outer shell.

Includes Positioning Clips

Positioning clips are included to assist with installation.

Electrical Configuration

Designed for 240 volts, 60 Hz, single-phase power with 2.6 amps and a NEMA 6-15P plug.

NSF and cULus Listed

Listed for commercial foodservice use.

Type Hot Food Well
Style Individual Pan
Installation Type Drop-In
Pan Capacity 1 Full-Size Pan
Pan Size 12 x 20 Inches
Controls Thermostatic
Material Stainless Steel
Finish Galvanized Steel
Voltage 240 Volts
Amps 2.6 Amps
Watts 625 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 15 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 35.46 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds one full-size 12" x 20" pan.
This model is wet operation only.
It requires 240V, 60 Hz, single-phase power and draws 2.6 amps with a NEMA 6-15P plug.
The required cutout size is 14-1/4" W x 25-1/4" D with a 7/8" corner radius.
Yes, it includes a drain shutoff.
Catalog literature notes a one-year warranty; refer to vollrathfoodservice.com for the full warranty policy.
