Vollrath 36467HD Steam Tables & Food Wells
Description

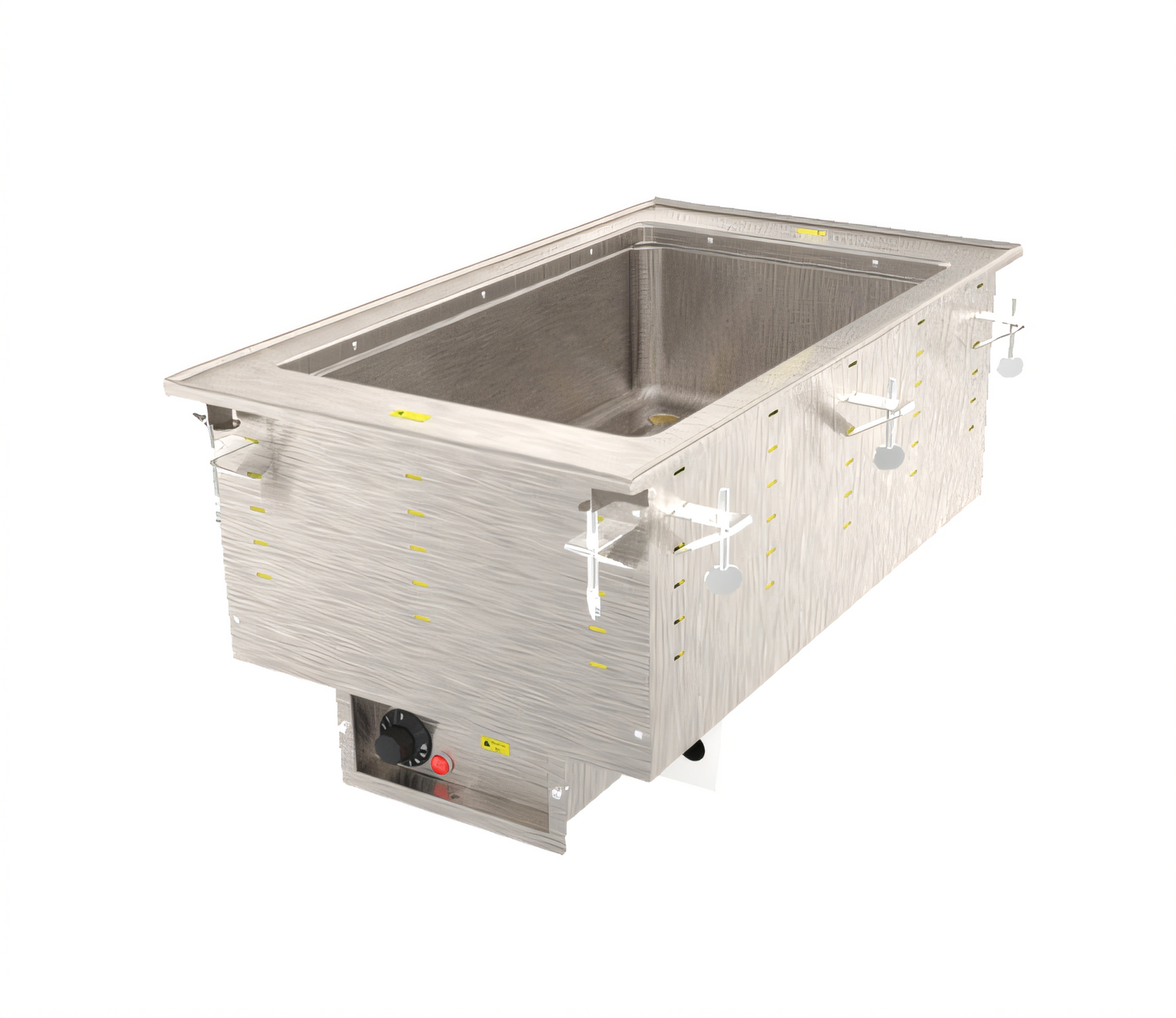

Vollrath 1-Well Marine-Grade Hot Food Drop-In
Model 36467HD · 625 W · 208 V · Infinite ControlGive your serving line the durability of 316 marine-grade stainless steel and the convenience of a plug-and-play installation. Designed for wet operation only, this Vollrath hot food well keeps soups, sauces and entrées at safe, piping-hot temperatures while protecting your countertop from drips and condensation.
Why you’ll love it
- 12" × 20" drawn well fabricated from 20 ga SAE 316 stainless steel for unmatched corrosion resistance.
- 18 ga stainless top with full-perimeter, drip-free flange contains spills and splatter.
- Precise infinite control knob with bright power indicator light—mounts remotely on a stainless panel (4' tether).
- Fully insulated on all sides (including between wells) for faster heat-up and lower energy loss.
- ½" MPT drain with positive shut-off ball valve speeds water changes between service periods.
- Ships ready to install: 6' (1.8 m) cord & NEMA 6-15P—no hard-wiring required.
- Accepts full-size or fractional pans up to 6" (15.2 cm) deep; adapter bars recommended for fractional pans.
- Zero-clearance design plus heavy-duty mounting clips for counters up to 3" (7.6 cm) thick.
- NSF & cULus listed, Made in the USA, and backed by a 2-year limited warranty.
Technical specifications
| Well size (usable) | 12" W × 20" D; fits standard full-size steam table pans |
|---|---|
| Overall dimensions | 15" W × 26" D × 15" H (38.1 × 66 × 38.1 cm) |
| Counter cut-out | 14 ¼" W × 25 ¼" D (36.2 × 64.1 cm) · 7 ⁄ 8" corner radius |
| Power & output | 625 W · 208 V / 60 Hz / 1-ph · 3.0 A |
| Plug type | NEMA 6-15P (cord attached) |

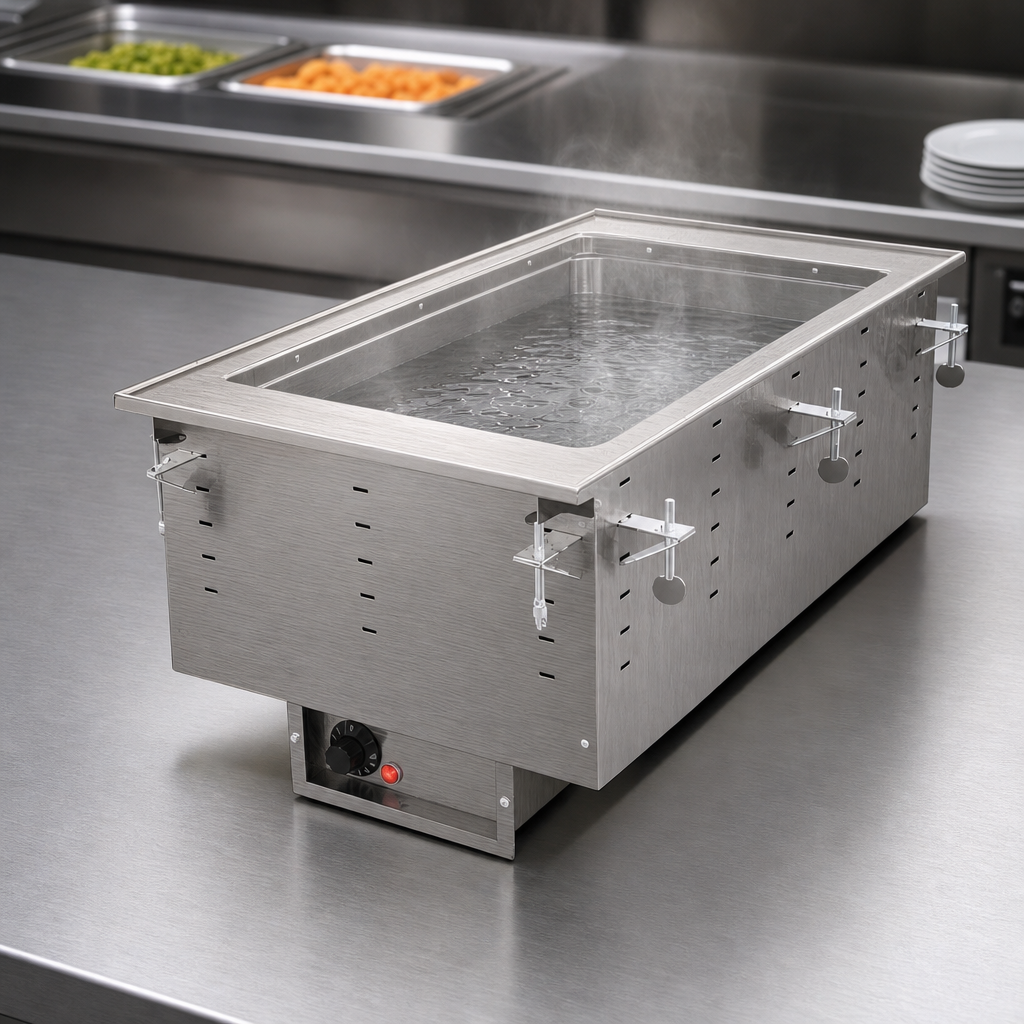

| Operation | Wet heat only (water required for even heating) |
| Controls | Remote infinite control, power indicator light |
| Drain | ½" MPT with ball valve shut-off |
| Construction | Well – 20 ga 316 SS · Top – 18 ga SS · Exterior housing – stainless steel |
| Certifications | NSF, cULus |
| Country of origin | USA |
| Warranty | 2-year limited (see vollrathfoodservice.com for details) |
Optional sheet pan adapter (Vollrath #19186) sold separately. Orders for drop-ins cannot be canceled or returned once processed. Do not modify the factory-installed cord or plug; doing so will void the warranty.
