Vollrath  |  SKU: 3646781HD

Vollrath 3646781HD Steam Tables & Food Wells

$2,306.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

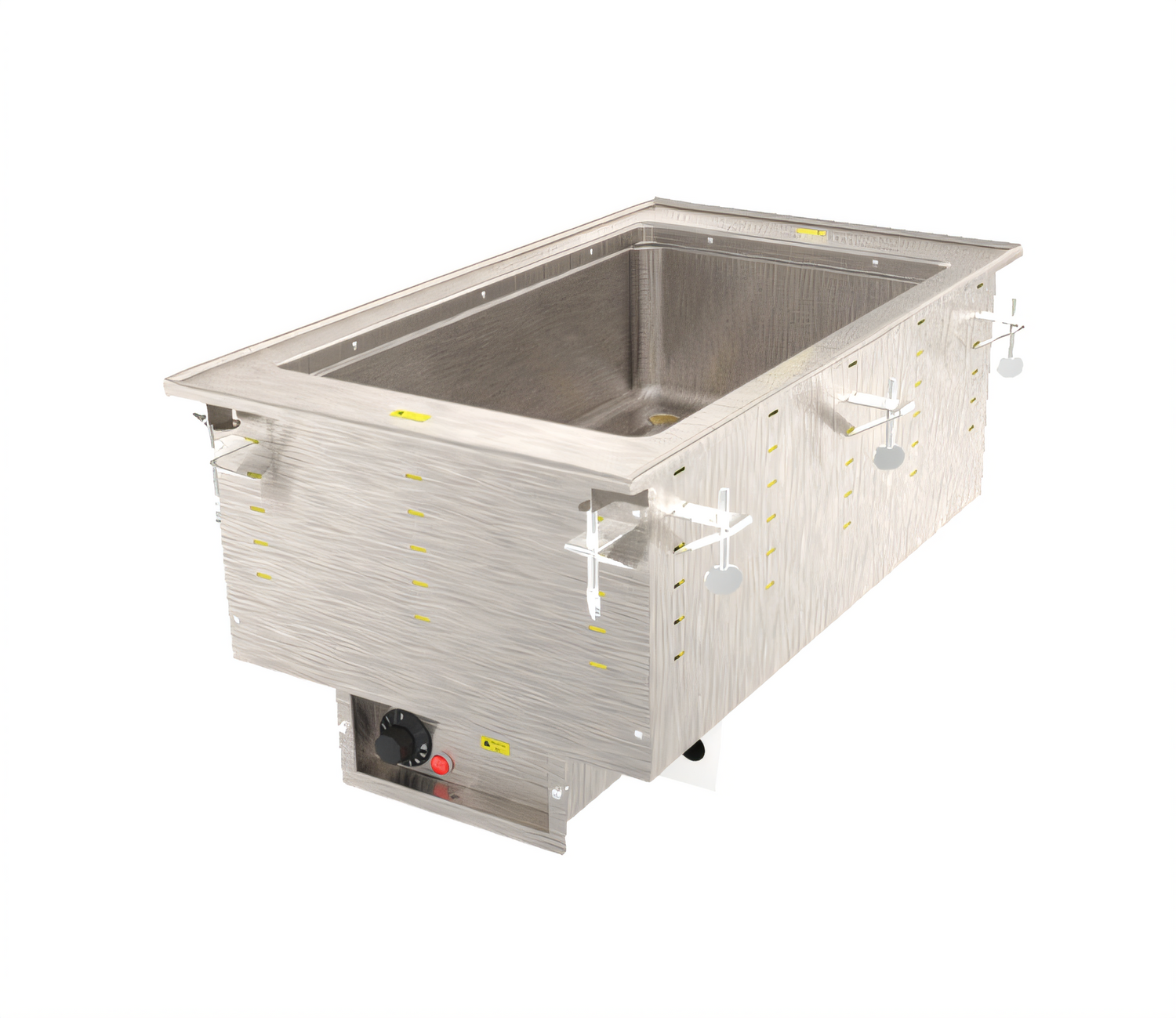

Vollrath 1-Well Marine-Grade Hot Food Drop-In

Model 3646781HD  |  Auto-Fill • Thermostatic • 208-240 V

Build a worry-free steam table station with Vollrath’s HD series marine-grade well. This electric, wet-operation drop-in keeps a single 12" × 20" pan of food at safe, appetizing temperatures while delivering the corrosion resistance and service access demanded by today’s busy commercial kitchens.

Why You’ll Love It

  • SAE 316 marine-grade 20-gauge stainless well resists chloride, salt & chemical damage.

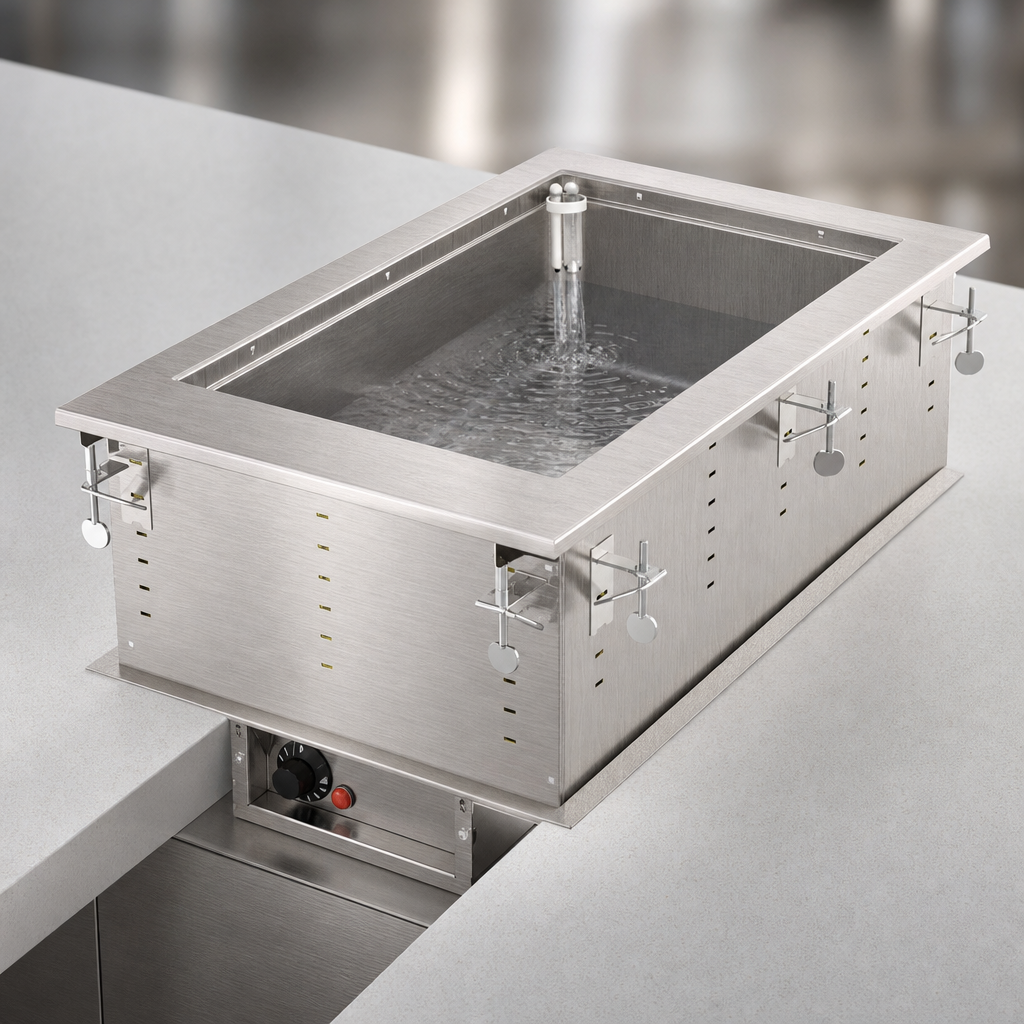

  • Factory-installed auto-fill maintains water level automatically—no manual monitoring.
  • 1" copper manifold drain with individual well shut-off and master shut-off speeds clean-up.
  • Energy-efficient 1000 W heater is fully thermostatically controlled for consistent holding temps.
  • Full-perimeter drip-free flange contains condensation and spills under the counter top.
  • Remote stainless control panel (4' tether) with power indicator light installs where it’s easiest to reach.
  • Zero-clearance, top-mount design drops into a 14-1/4" × 25-1/4" cutout—mounting clips included.
  • 6' cord with NEMA 6-15P plug—no hard-wiring required.
  • NSF, cULus listed and proudly Made in the USA.

Technical Specs

Well capacity 1 × 12" × 20" pan (accepts fractional pans with adapter bars)
Operation Wet only  •  Auto-fill water connection
Heat control Thermostatic dial, remote panel with power light
Heating element 1000 W
Electrical 208-240 V / 60 Hz / 1-phase  •  3.6-4.2 A  •  NEMA 6-15P
Overall dimensions 15" W × 26" D × 21-1/2" H (38 × 66 × 54.6 cm)
Cutout size 14-1/4" W × 25-1/4" D (36.2 × 64.1 cm)  •  7/8" corner radius
Construction 18-gauge stainless top
316 SS drawn well, fully insulated on all sides
Stainless exterior housing
Drain 1" copper manifold, individual well shut-off + manifold shut-off
Cord length 6' (1.8 m)
Certifications NSF 4 (wet use), cULus
Country of origin USA
Important: Unit must operate with water in the well for even heating and to meet NSF performance standards.

Ships with mounting clips, gasket, and installation instructions. Drop-in equipment orders are non-cancelable and non-returnable.
Full warranty details available at VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

15.0in

Depth

26.0in

Shipping Weight

45.12lbs

Style

individual pans

Pan Capacity

(1) full size (12" x 20")

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, thermostatic control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with well shutoff & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1000 watts, 208-240v/60/1-ph, 3.6-4.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
