Vollrath  |  SKU: 3646781

Vollrath 3646781 Steam Tables & Food Wells

$2,117.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

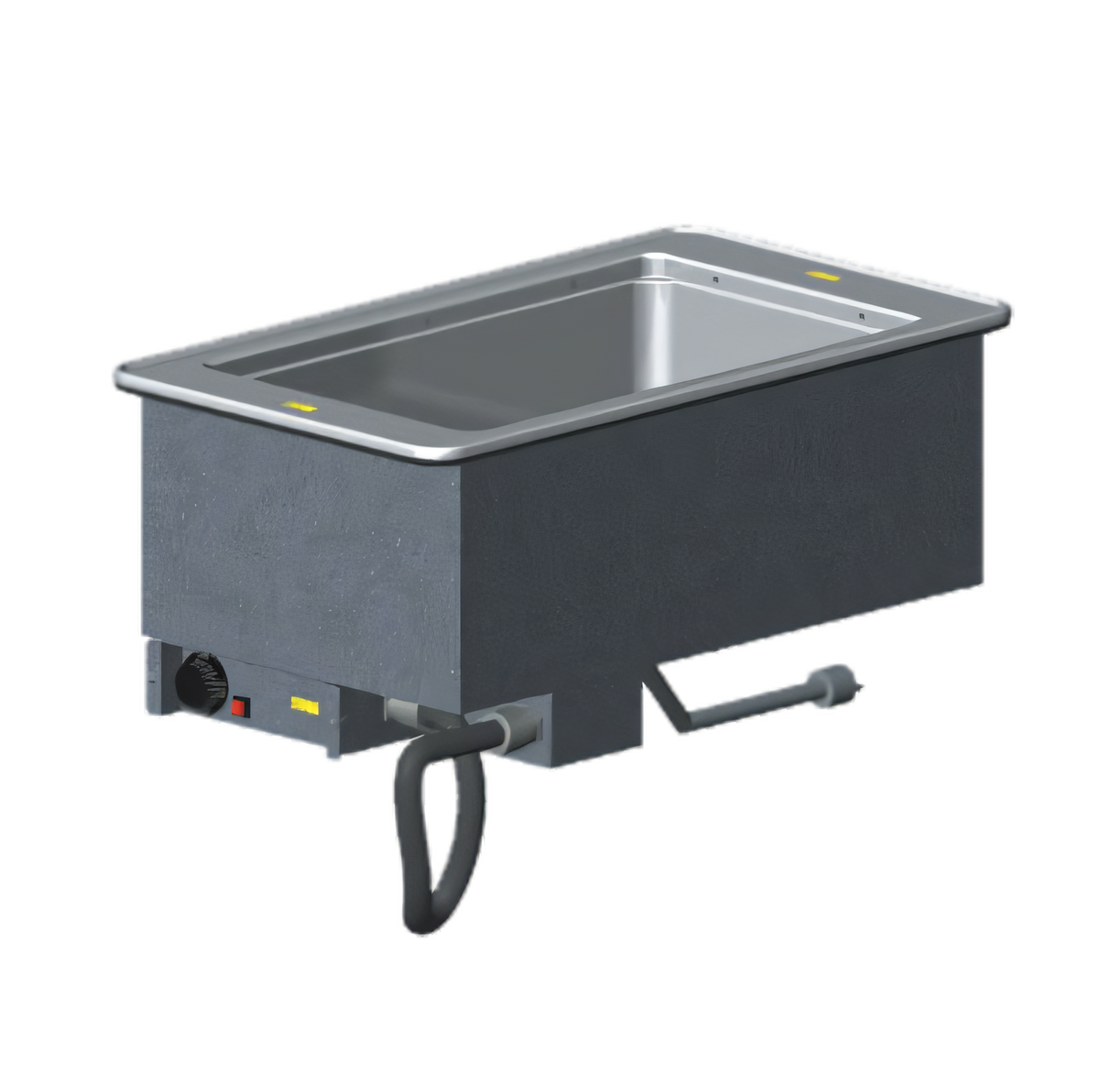

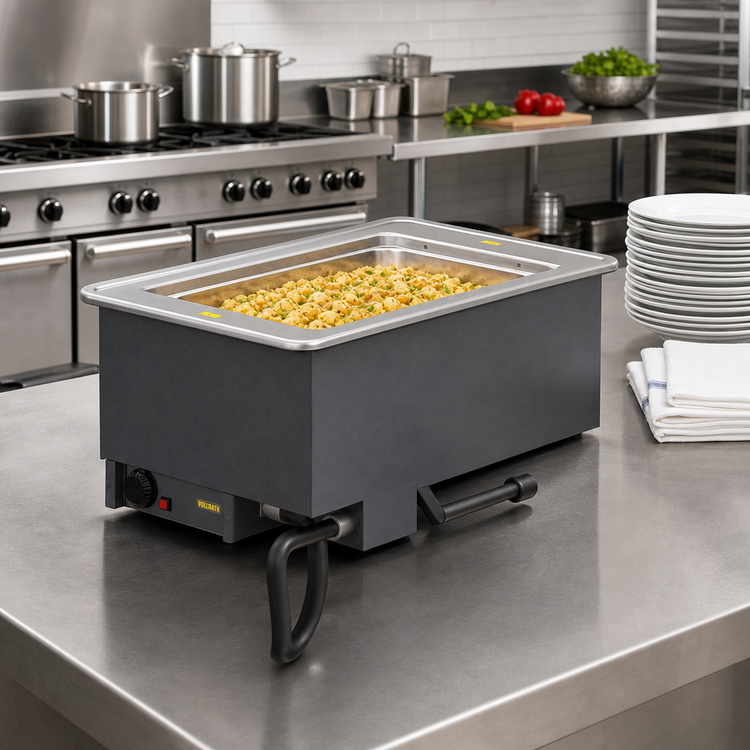

Vollrath 1-Well Drop-In Hot Food Well with Auto-Fill

Model 3646781 • Thermostatic Control • 1000 W • 208-240 V

Serve hot entrées, sides and sauces with confidence. This USA-made Vollrath drop-in module delivers consistent, moist heat for a single 12" × 20" pan—while its built-in auto-fill system keeps the water level perfect all day, so your staff doesn’t have to.

Why You’ll Love It

  • Auto-fill convenience – integrated valve maintains water level automatically, cutting labor and protecting the element.
  • Precise thermostatic control – set it and forget it; a bright power indicator shows at-a-glance status.
  • Superior construction – 18 ga stainless top, 20 ga deep-drawn well and galvanized exterior housing stand up to heavy service.
  • Drip-free flange and included breaker gasket form a clean, sanitary seal with the countertop.
  • 1" (2.5 cm) copper manifold drain with individual well shut-off + manifold shut-off for fast, mess-free emptying.

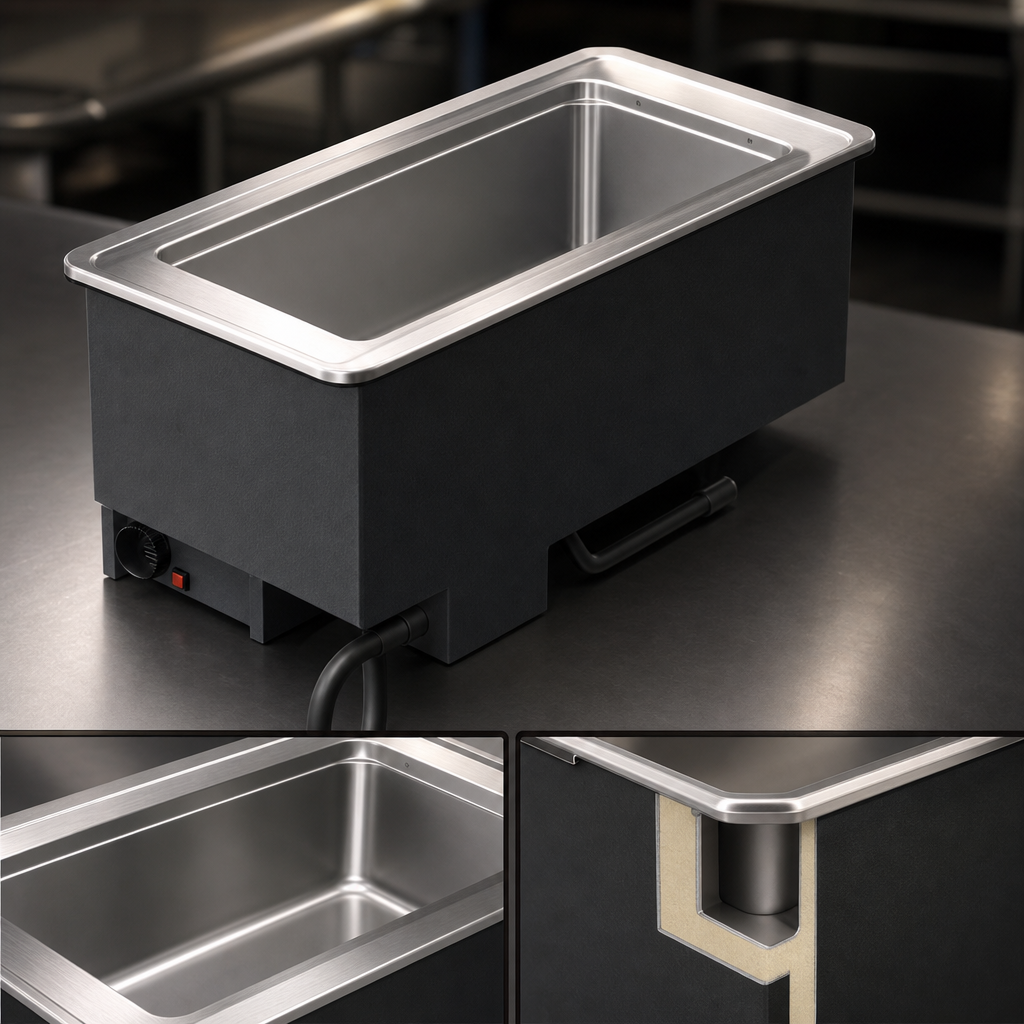

  • Zero-clearance insulation – high-density glass fiber on all sides allows tight installations.
  • Plug-and-play installation – 6 ft cord with NEMA 6-15P; no hard-wiring required.
  • Accepts full-size or fractional pans up to 6" (15.2 cm) deep.
  • NSF 4 & cULus listed for commercial kitchens.
Wet operation only: the well must be filled with water during use to ensure even heating and prevent element damage.

Technical Specifications

Pan Capacity (1) Full-size 12" × 20" pan (or fractional equivalents) up to 6" deep
Overall Dimensions 15" W × 26" D × 21 ½" H (38 × 66 × 54.5 cm)
Counter Cut-out 14 ¼" W × 25 ¼" D (36.2 × 64.1 cm) with 7/8" (2.2 cm) corner radius
Well Material 20 ga Stainless steel, fully insulated
Top Flange 18 ga Stainless steel with full-perimeter drip edge
Controls Thermostatic dial on tethered stainless control panel; power indicator light
Electrical 1000 W | 208-240 V, 60 Hz, 1-phase | 3.6 – 4.2 A | NEMA 6-15P cord & plug (6 ft / 1.8 m)
Drain System 1" copper manifold drain w/ individual well shut-off & master manifold shut-off
Auto-Fill Water Inlet Factory-installed check valve/siphon prevents cross-contamination (separate water supply required)
Mounting Hardware Adjustable clips & positioning brackets for counters up to 3" (7.6 cm) thick
Certifications NSF 4, cULus, Made in USA
Warranty 1-year parts & labor (see VollrathFoodservice.com for full policy)

What’s in the Box

  • Drop-in hot well module with auto-fill & manifold drain
  • Stainless control panel with 3 ft tethered cable
  • Mounting & positioning clips with gasket
  • 6 ft power cord with NEMA 6-15P plug (factory-installed)

Modular drop-ins are built to order and may be non-cancellable/non-returnable. For marine-grade (“HD”) wells or multi-well units, please contact us.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

15.0in

Depth

26.0in

Shipping Weight

33.15lbs

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, thermostatic control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with well shutoff & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1000 watts, 208-240v/60/1-ph, 3.6-4.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
